Parts for Mariner 60 HP (3 Cylinder) Gear Housing (Driveshaft)

Revise Search: All Models > 60 HP (3 Cylinder) > 9469200 - 9683054 (Belgium) > Gear Housing (Driveshaft)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket gearcase may be available for less than $900 USD. 70 HP+ only. Please call.

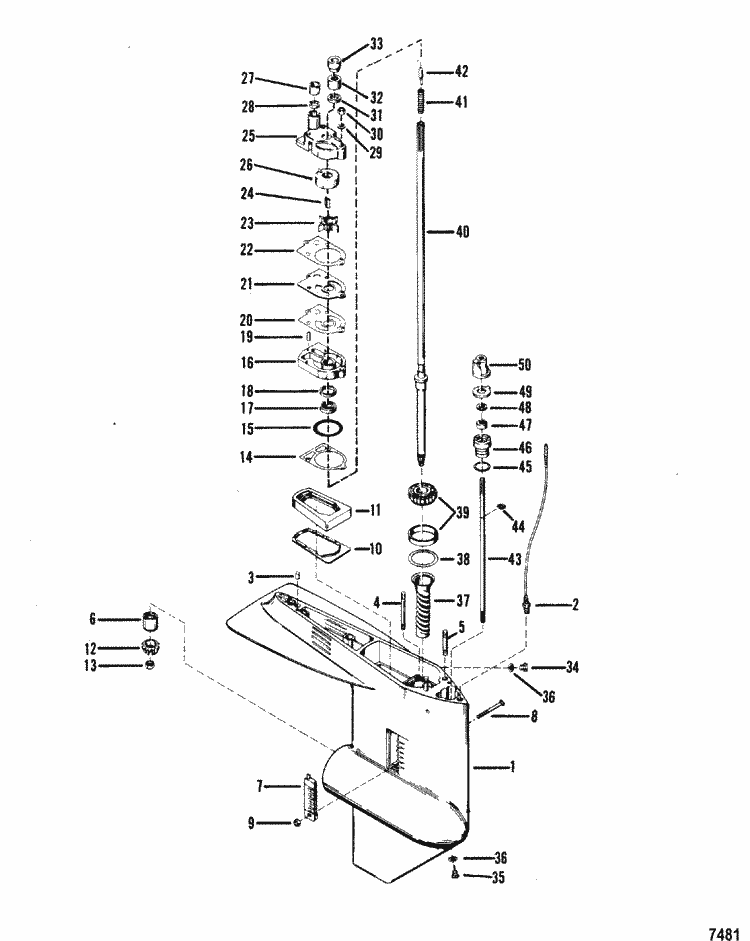

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	46-77177A 3	WATER PUMP KIT (1 required per assembly)
		46-77177A 3 - Water Pump Kit [ More info ] $129.49 4 In Stock.
		18-3324 - Water Pump Kit 46-77177A3 [ More info ] $102.99 $102.35 10+ In Stock.
		46-01115 - Complete Water Pump Kit, Mercury 46-77177A3 base matching 46-77177A1 [ More info ] $94.99 $83.45 10+ In Stock.
#	1643-9539A 3	GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK) (1 required per assembly)
		1643-9539A 3 - GEAR Housing, NLA [ More info ] Unavailable
#	93336	GUIDE (1 required per assembly) (For Assembly Aid of Shift Shaft) SN# 0C160936 & Up
		93336 - Guide [ More info ] Unavailable
		93336 1 - Guide [ More info ] Unavailable
#	26-79831A 1	SEAL KIT (1 required per assembly)
		26-79831A 1 - Seal Kit [ More info ] $107.49 In Stock
		18-2654 - Seal Kit 26-79831A1 [ More info ] $95.64 10+ In Stock.
		26-00286 - Lower Gearcase Seal Kit, Mercury 26-79831A1 [ More info ] $78.99 $68.63 4 In Stock.
#	1643-9539A 9	GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY) (1 required per assembly)
		1643-9539A 9 - GEAR Housing, NLA [ More info ] Unavailable
#	1643-9539A 2	GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK) (1 required per assembly)
		1643-9539A 2 - Gear Housing Assembly, NLA [ More info ] Unavailable
#	27-43779A87	GASKET SET (1 required per assembly)
		27-43779A87 - Powerhead Gasket Set [ More info ] $132.99 Available to Order: Shipping delay up to 10 days.
#1	1643-9539A 1	GEAR HOUSING ASSEMBLY (BLACK-BASIC) (1 required per assembly)
		1643-9539A 1 - Gear Housing Assembly [ More info ] Unavailable
		1643-9539T 1 - Gear Housing [ More info ] Unavailable
#1	1643-9539A 8	GEAR HOUSING ASSEMBLY (GRAY-BASIC) (1 required per assembly)
		1643-9539A 8 - Gear Housing Assembly [ More info ] Unavailable
		1643-9539T 8 - Ord 1643-9539T 1, NLA [ More info ] Unavailable
#2	22-85822A 1	CONNECTOR ASSEMBLY, SPEEDOMETER (1 required per assembly)
		22-85822A 1 - Connector Assembly [ More info ] $6.22 1 In Stock.
		22-85822A10 - Connector Assembly [ More info ] $21.16 4 In Stock.
#3	17-85500	PIN, Dowel (.187 x .530), GEAR HOUSING (2 required per assembly)
		17-85500 - Pin, Dowel (.187 X .530) [ More info ] $1.50 10+ In Stock.
		178M0084726 - Pin - Dowel [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#4	16-33778	STUD, WATER PUMP (2-5/8") (3 required per assembly)
		16-33778 - Stud [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#5	16-57933	STUD, (.437-14/.437-20 x 2.190), GEAR HOUSING (2 required per assembly)
		16-57933 - Stud [ More info ] $15.54 1 In Stock.
		16-8M0034453 - Stud [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#6	31-62091	BEARING, Roller, DRIVESHAFT (1 required per assembly)
		31-62091 - Roller Bearing - Drive Shaft [ More info ] Unavailable
		31-62091T - Bearing [ More info ] $68.99 Available to Order: Shipping delay up to 10 days.
#7	72849A 1	SCREEN ASSEMBLY, WATER INTAKE-STARBOARD AND PORT (1 required per assembly)
		72849A 1 - Screen Assembly, NLA [ More info ] Unavailable
		72848 - Water Intake Screen, Port Side Only [ More info ] $17.23 10+ In Stock.
#8	10-36070	SCREW, (#10-32 x 1.250), WATER INTAKE SCREEN (1 required per assembly)
		10-36070 - Screw - Priced Individually [ More info ] $3.10 10+ In Stock.
#9	11-45812	NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW (1 required per assembly)
		11-45812 - Nut, (#10-32) [ More info ] $4.43 10+ In Stock.
		11-859124 - Nut, (#10-32) Stainless Steel, Nylon Insert [ More info ] $18.69 10+ In Stock.
#10	92815	PLATE, SUPPORT-EXHAUST TUBE (1 required per assembly)
		92815 - Support Plate, Exhaust Tube [ More info ] $23.09 $22.16 10+ In Stock.
#11	37721	SEAL, EXHAUST TUBE (1 required per assembly)
		37721 - Seal - Priced Individually [ More info ] Unavailable
		37721001 - Seal - Priced Individually [ More info ] $13.79 1 In Stock.
#12	43-88019	GEAR, Pinion (1 required per assembly)
		43-88019 - Gear, Pinion [ More info ] $59.99 3 In Stock.
		43-88019T - Pinion Gear [ More info ] $285.75 Available to Order: Shipping delay up to 10 days.
#13	11-55910	NUT, (.437-20), PINION GEAR TO DRIVESHAFT (1 required per assembly)
		11-55910 - Nut, Special (7/16-20) [ More info ] $5.49 $4.40 10+ In Stock.

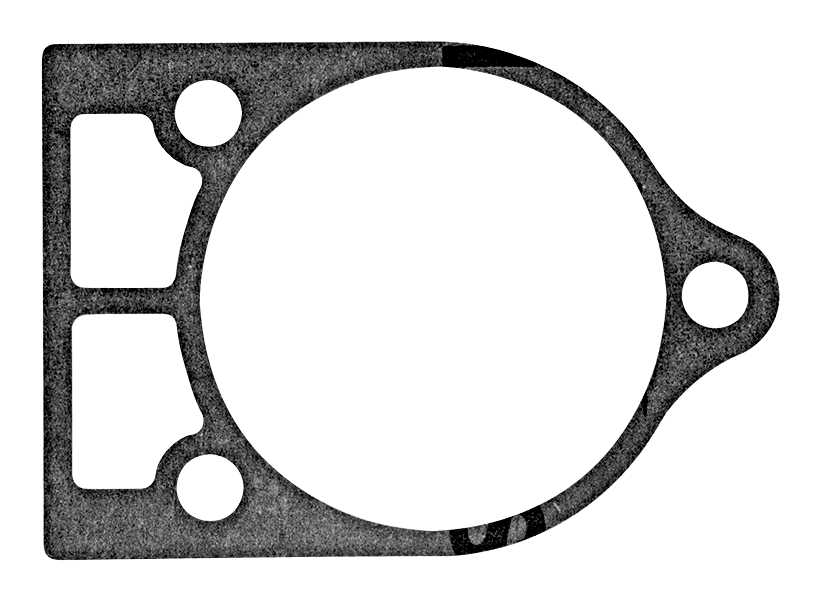

#14	27-77417	GASKET, WATER PUMP (1 required per assembly)
		27-77417 - Water Pump Gasket [ More info ] Unavailable
		27-19552 - Water Pump Base Gasket [ More info ] $4.09 7 In Stock.
#15	25-26722	O-RING, WATER PUMP BASE (1 required per assembly)
		25-26722 - O-Ring - Priced Individually [ More info ] $2.79 6 In Stock.
		18-7115 - O-Ring 25-26722 [ More info ] $2.25 5 In Stock.
#16	46-77177A 1	BASE ASSEMBLY, Water Pump (1 required per assembly)
		46-77177A 1 - Water Pump Base [ More info ] $54.49 Available to Order: Shipping delay up to 10 days.
		18-3424 - Water Pump Base, 46-77177A1 [ More info ] $43.99 $43.00 3 In Stock.
		46-01114 - Water Pump Base, 46-77177A 1 [ More info ] $42.99 $32.87 Available to Order: Shipping delay up to 10 days.
#17	26-79831	SEAL, Oil, WATER PUMP BASE (1 required per assembly)
		26-79831 - Seal [ More info ] $17.89 3 In Stock.
		18-2055 - Seal, 26-79831 [ More info ] $12.58 1 In Stock.
#18	26-90562	SEAL, (1.254 x .312), WATER PUMP BASE (1 required per assembly)
		26-90562 - Seal - Priced Individually [ More info ] $19.28 3 In Stock.
		18-2011 - Seal 26-90562 [ More info ] $15.99 $15.85 2 In Stock.
		26-00236 - Seal, 26-90562 [ More info ] $16.99 $11.36 6 In Stock.
#19	17-35973	PIN, Dowel, WATER PUMP BASE (2 required per assembly)
		17-35973 - Pin -Dowel - Priced Individually [ More info ] $1.80 10+ In Stock.
#20	27-32769	GASKET, LOWER-WATER PUMP (1 required per assembly)
		27-32769 - Lower Water Pump Gasket [ More info ] Unavailable
		27-19553 - Lower Gasket [ More info ] $4.09 10+ In Stock.
		18-2823-9 - Gasket 27-32769 2-Pack [ More info ] $6.48 Available to Order: Shipping delay up to 10 days.
#21	54705	FACE PLATE, WATER PUMP (1 required per assembly)
		54705 - Face Plate - Priced Individually [ More info ] $2.50 10+ In Stock.
		32768 - Face Plate, Water Pump Base to Water Pump Body [ More info ] $4.59 4 In Stock.
		18-3107 - Plate 32768 [ More info ] $2.97 $2.78 1 In Stock.
#22	27-19551	GASKET, UPPER-WATER PUMP (1 required per assembly)
		27-19551 - Upper Water Pump Gasket [ More info ] $2.69 10+ In Stock.
		18-2824-9 - Gasket 27-32770 2-Pack [ More info ] $4.25 Available to Order: Shipping delay up to 10 days.
#23	47-89983	IMPELLER, WATER PUMP (1 required per assembly)
		47-89983 - Impeller [ More info ] Unavailable
		47-89983T - Impeller [ More info ] $27.19 8 In Stock.
		18-3007 - Impeller 47-89983 [ More info ] $23.98 10+ In Stock.
		47-00002 - Water Pump Impeller, Mercury Mariner 40-70HP [ More info ] $18.99 4 In Stock.
#24	28-56662	KEY, IMPELLER DRIVE (1 required per assembly)
		28-56662 - Key - Priced Individually [ More info ] Unavailable
		28-8M0032837 - Key - Priced Individually [ More info ] $5.69 3 In Stock.
#25	46-77822A 1	BODY ASSEMBLY, Water Pump (1 required per assembly)
		46-77822A 1 - Water Pump Body [ More info ] $26.53 1 In Stock.
		18-3118 - Water Pump Housing, 46-77822A1 [ More info ] $23.99 $22.82 1 In Stock.
		46-01109 - Water Pump Housing, 77822A1 [ More info ] $21.99 $16.83 In Stock
#26	48753	INSERT, WATER PUMP BODY (1 required per assembly)
		48753 - Water Pump Body Insert [ More info ] $10.29 2 In Stock.
#27	26-38452	SEAL, RUBBER-WATER PUMP (1 required per assembly)
		26-38452 - Seal - Priced Individually [ More info ] $4.59 10+ In Stock.
#28	12-38453	WASHER, NYLON-WATER PUMP (1 required per assembly)
		12-38453 - Washer, Cupped - Water Tube Seal, Priced individually [ More info ] $1.20 9 In Stock.
#29	12-29245	WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDS (3 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#30	11-13438	NUT, (.250-28), WATER PUMP STUDS (3 required per assembly)
		11-13438 - Nut (1/4-28) [ More info ] Unavailable
		11-826711 9 - Nut [ More info ] $2.59 10+ In Stock.
#31	25-20273	O-RING, RUBBER (DRIVE SHAFT) (1 required per assembly)
		25-20273 - O-ring, Rubber - Centrifugal Slinger (drive Shaft) [ More info ] $1.70 8 In Stock.
#32	78654A 1	SEAT ASSEMBLY (1 required per assembly)
		78654A 1 - Seat Assembly [ More info ] $20.99 2 In Stock.
#33	86304	SEAL, SPLINED (1 required per assembly)
		86304 - Splined Seal [ More info ] $10.29 2 In Stock.
#34	10-79953	SCREW, (.375-16 x .250), GREASE FILLER (1 required per assembly)
		10-79953 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 6 In Stock.
#35	22-67892	SCREW, Magnetic, DRAIN (1 required per assembly)
		22-67892 - Plug - Priced Individually [ More info ] $5.45 1 In Stock.
		22-67892A 1 - Drain Plug [ More info ] Unavailable
		22-67892A05 - Drain Plug Kit [ More info ] Unavailable
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 10+ In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#36	12-19183	WASHER, Fiber, GREASE FILLER AND DRAIN SCREW (2 required per assembly)
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#37	88181	SLEEVE, LUBRICATION (1 required per assembly)
		88181 - Lubrication Sleeve [ More info ] $16.76 2 In Stock.
#38	15-92881A 1	SHIM SET, ROLLER BEARING (.002-3-5-10-20) (AR required per assembly)
		15-92881A 1 - Shim Set [ More info ] $7.29 2 In Stock.
#39	31-77420A 1	BEARING ASSEMBLY, Roller, TAPERED (1 required per assembly)
		31-77420A 1 - Tapered Roller Bearing [ More info ] Unavailable
#40	45-88025A 2	DRIVESHAFT ASSEMLBY (SHORT SHAFT) (1 required per assembly)
		45-88025A 2 - Drive Shaft [ More info ] Unavailable
		45-98179 - Drive Shaft - Short [ More info ] $199.99 $169.38 1 In Stock.
#40	45-88024A 2	DRIVESHAFT ASSEMBLY ( LONG SHAFT) (1 required per assembly)
		45-88024A 2 - Drive Shaft [ More info ] $182.84 1 In Stock.
		45-98180 - Drive Shaft - Long, NLA [ More info ] Unavailable
#41	24-20254	SPRING, COMPRESSION-DRIVESHAFT (1 required per assembly)
		24-20254 - Spring, NLA [ More info ] Unavailable
#42	17-30545	PIN, DRIVESHAFT (1 required per assembly)
		17-30545 - Pin - Priced Individually [ More info ] $1.90 10+ In Stock.
#43	76063A 1	SHAFT ASSEMBLY, SHIFT-LOWER (1 required per assembly)
		76063A 1 - Shaft Assembly [ More info ] $91.67 2 In Stock.
#44	53-29641	E RING, RETAINING-SHIFT SHAFT (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#45	25-25439	O-RING, (.862 x .103), SHIFT SHAFT BUSHING (1 required per assembly)
		25-25439 - O-Ring, Shaft Shaft Bushing [ More info ] $1.99 10+ In Stock.
#46	23-77631A 2	BUSHING ASSEMBLY, SHIFT SHAFT (1 required per assembly)
		23-77631A 2 - Bushing Assembly [ More info ] $30.21 3 In Stock.
		18-2155 - Bushing, 23-77631A2 [ More info ] $25.59 10 In Stock.
		23-00516 - Shift Bushing 23-77631A 2 [ More info ] $22.99 $22.10 1 In Stock.
#47	26-76384	SEAL, Oil, SHIFT SHAFT BUSHING (1 required per assembly)
		26-76384 - Seal [ More info ] Unavailable
		26-816464 - Seal [ More info ] Unavailable
		26-816464 1 - Seal [ More info ] Unavailable
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
		18-2054 - Oil Seal Mercury [ More info ] $12.60 8 In Stock.
#48	12-77674	WASHER, RUBBER-SHAFT BUSHING (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 9 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#49	78036	BASE, REVERSE LOCKING (1 required per assembly)
		78036 - Reverse Locking Base - Priced Individually [ More info ] $7.53 10+ In Stock.
#50	43308 1	CAM, REVERSE LOCKING (1 required per assembly)
		43308 1 - Cam [ More info ] Unavailable
		43308T 1 - Cam [ More info ] $63.40 3 In Stock.
