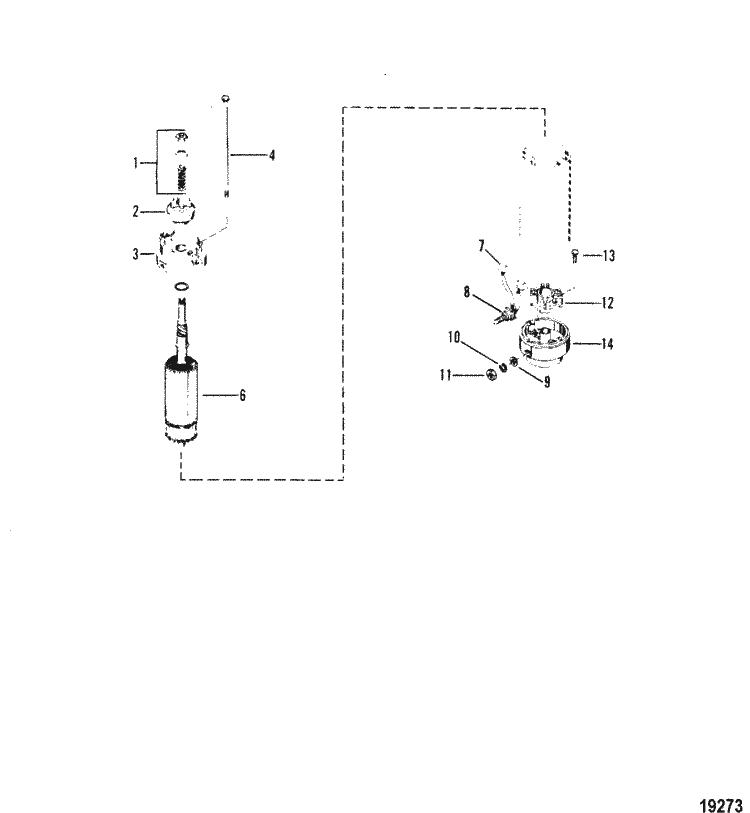

Parts for Mariner 60 HP (3 Cylinder) Starter Motor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-44369A 1 | STARTER MOTOR ASSEMBLY (1 required per assembly) |
  |
|
50-44369A 1 - Starter Kit, 7 inch starter with adapter for 8 inch applications [ More info ] Unavailable |
  |
|
18-5642 - Starter 50-66015, 8 inch, See Detail Page for Important Information [ More info ]
|
  |
|
5388 - Outboard Starter, Mercury, 50-60HP, 7 inch, See detail page for more info [ More info ]
|
  |
|
5375 - Starter, 50-66015, 10 Tooth, 8 inch, See detail page for more [ More info ]
|
| #1 | 90643 | DRIVE KIT (1 required per assembly) |
  |
|
90643 - Drive Retainer Kit [ More info ]
|
| #2 | 68575 | DRIVE ASSEMBLY (1 required per assembly) |
  |
68575 - Drive Assembly [ More info ] Unavailable |
|
  |
|
|
| #3 | 75660 | PLATE, DRIVE END (1 required per assembly) |
  |
|
75660 - Drive End Cap [ More info ]
|
  |
|
18-5674 - Drive Assembly, 387683, 75661 [ More info ]
|
| #4 | 10-95686 | BOLT, THRU (2 required per assembly) |
  |
|
10-95686 - Bolt -thru, NLA [ More info ]
|
| #6 | 11957 | ARMATURE (1 required per assembly) |
  |
|
11957 - Armature [ More info ] Unavailable |
| #7 | 75384 | BRUSH/SPRING KIT (1 required per assembly) |
  |
|
75384 - Brush and Spring Kit [ More info ]
|
  |
|
898265016 - Brush/Spring Kit [ More info ] Unavailable |
  |
|
18-5697 - Brush Kit, 385952, 75384 [ More info ]
|
  |
|
300-05697 - 300-05697 OMC STR BRS KT [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #8 | 23-57387 | BUSHING, INSULATING-INPUT STUD (1 required per assembly) |
  |
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #9 | 12-38013 | WASHER, INPUT STUD (1 required per assembly) |
  |
|
12-38013 - Washer, Input Stud, NLA [ More info ]
|
| #10 | 13-26992 | LOCKWASHER, (.250) Stainless Steel, INPUT STUD (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #11 | 11-20890 | NUT, (.250-20), INPUT STUD (1 required per assembly) |
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
| #12 | 61787 | HOLDER, BRUSH (2 required per assembly) |
  |
61787 - Brush Holder [ More info ] Unavailable |
|
  |
|
898265014 - Brush Holder [ More info ] Unavailable |
| #13 | 10-68586 | SCREW, BRUSH AND HOLDER TO CAP (2 required per assembly) |
  |
|
10-68586 - Screw, NLA [ More info ] Unavailable |
| #14 | 95669 | END CAP, COMMUTATOR (1 required per assembly) |
  |
95669 - End Cap [ More info ] Unavailable |
|
  |
|
|
  |
|
SR379 - Repair Kit [ More info ]
|
