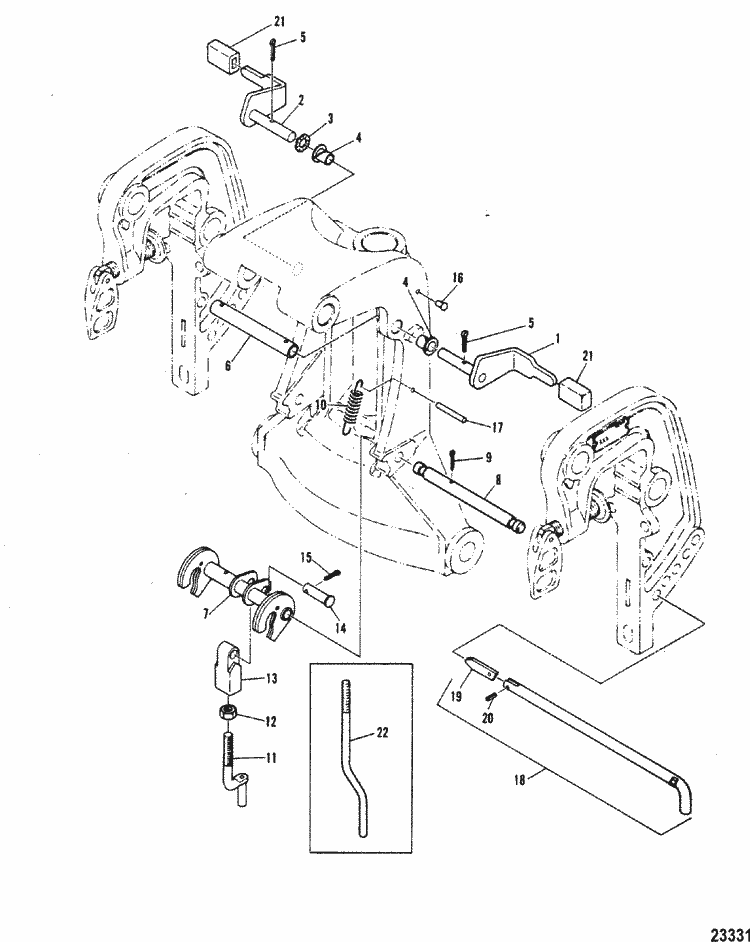

Parts for Mariner 60 HP (2 Cylinder) Reverse Lock
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 81393M | LEVER, TILT STOP SUPPORT (PORT) (1 required per assembly) |
  |
|
|
| #2 | 81394M | LEVER, TILT STOP SUPPORT (STARBOARD) (1 required per assembly) |
  |
|
81394M - Lever, NLA [ More info ] Unavailable |
| #3 | 13-81868M | WAVE WASHER (1 required per assembly) |
  |
|
13-81868M - Wave Washer - Priced Individually [ More info ]
|
| #4 | 23-81947M | BUSHING (2 required per assembly) |
  |
|
23-81947M - Bushing, NLA [ More info ] Unavailable |
| #5 | 18-82131M | COTTER PIN (2 required per assembly) |
  |
|
18-82131M - Cotter Pin - Priced Individually [ More info ]
|
  |
|
18-82132M - Cotter Pin - Priced Individually [ More info ]
|
| #6 | 23-81980M | COLLAR, TILT STOP SUPPORT (1 required per assembly) |
  |
|
23-81980M - Collar [ More info ]
|
| #7 | 81396M | REVERSE LOCK (1 required per assembly) |
  |
81396M - REVERSE LOCK [ More info ] Unavailable |
|
  |
97088M - REVERSE LOCK [ More info ] Unavailable |
|
  |
|
97088T - REVERSE LOCK,NLA [ More info ] Unavailable |
| #8 | 14-81397M | ROD, REVERSE LOCK (1 required per assembly) |
  |
17-81397M - Rod, Reverse Lock, NLA [ More info ] Unavailable |
|
  |
|
17-41314M - Shaft, NLA [ More info ]
|
| #9 | 18-82130M | PIN, COTTER (1 required per assembly) |
  |
|
18-82130M - Cotter Pin [ More info ] Unavailable |
| #10 | 24-82103M | SPRING, TENSION (1 required per assembly) |
  |
|
24-82103M - Spring, Tension,NLA [ More info ]
|
| #11 | 81398M | ROD, REVERSE LOCK (SHORT SHAFT) (1 required per assembly) |
  |
81398M - Reverse Lock Rod [ More info ] Unavailable |
|
  |
|
92653M - Reverse Lock Rod [ More info ] Unavailable |
| #12 | 11-82400M | NUT (1 required per assembly) |
  |
11-82400M - Lock Nut, Reverse Lock Rod [ More info ] Unavailable |
|
  |
|
11-82392M - NUT Note: Priced Individually [ More info ]
|
  |
|
11-82382M - Nut - Priced Individually [ More info ]
|
| #13 | 81400M | CLEVIS, ADJUSTING (1 required per assembly) |
  |
|
81400M - Clevis, NLA [ More info ] Unavailable |
| #14 | 17-82138M | PIN, CLEVIS (1 required per assembly) |
  |
|
17-82138M - Pin, Clevis - Reverse Lock, NLA [ More info ] Unavailable |
| #15 | 18-82752M | PIN, COTTER (1 required per assembly) |
  |
18-82752M - Pin, Cotter [ More info ] Unavailable |
|
  |
|
18-82128M - Cotter Pin, NLA [ More info ]
|
| #16 | 17-81909M | RIVET (1 required per assembly) |
  |
|
17-81909M - PIN,NLA [ More info ] Unavailable |
| #17 | 17-82159M | PIN, ROLL (1 required per assembly) |
  |
|
17-82159M - Pin, Tension Spring, NLA [ More info ] Unavailable |
| #18 | 17-83904M | TILT PIN ASS'Y (1 required per assembly) SN# S-675-000981/L-675-302761 & Up |
  |
|
17-83904M - Tilt Pin [ More info ]
|
  |
17-814972M - Pin, Tilt Lock [ More info ] Unavailable |
|
  |
|
17-814972T - Pin - Tilt [ More info ]
|
| #18 | 17-81389M | TILT LOCK PIN ASS'Y (1 required per assembly) SN# S-675-000980/L-675-302760 & Below |
  |
17-81389M - Tilt Pin [ More info ] Unavailable |
|
| #19 | 84044M | STOPPER (1 required per assembly) SN# S-675-000981/L-675-302761 & Up |
  |
|
84044M - Stopper Plate, NLA [ More info ]
|
| #19 | 81391M | STOPPER PLATE (1 required per assembly) SN# S-675-000980/L-675-302760 & Below |
  |
|
81391M - PLATE,NLA [ More info ] Unavailable |
| #20 | 17-82145M | PIN, ROLL (1 required per assembly) |
  |
|
17-82145M - PIN [ More info ] Unavailable |
| #21 | 81395M | COVER (2 required per assembly) |
  |
|
|
| #22 | 81399M | ROD, REVERSE LOCK (LONG SHAFT) (1 required per assembly) |
  |
|
81399M - Reverse Lock Rod [ More info ]
|
