Parts for Mariner 6 HP Throttle & Shift Linkage (Side Shift)

Revise Search: All Models > 6 HP > 9792200 - 0P016999 (Belgium) > Throttle & Shift Linkage (Side Shift)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

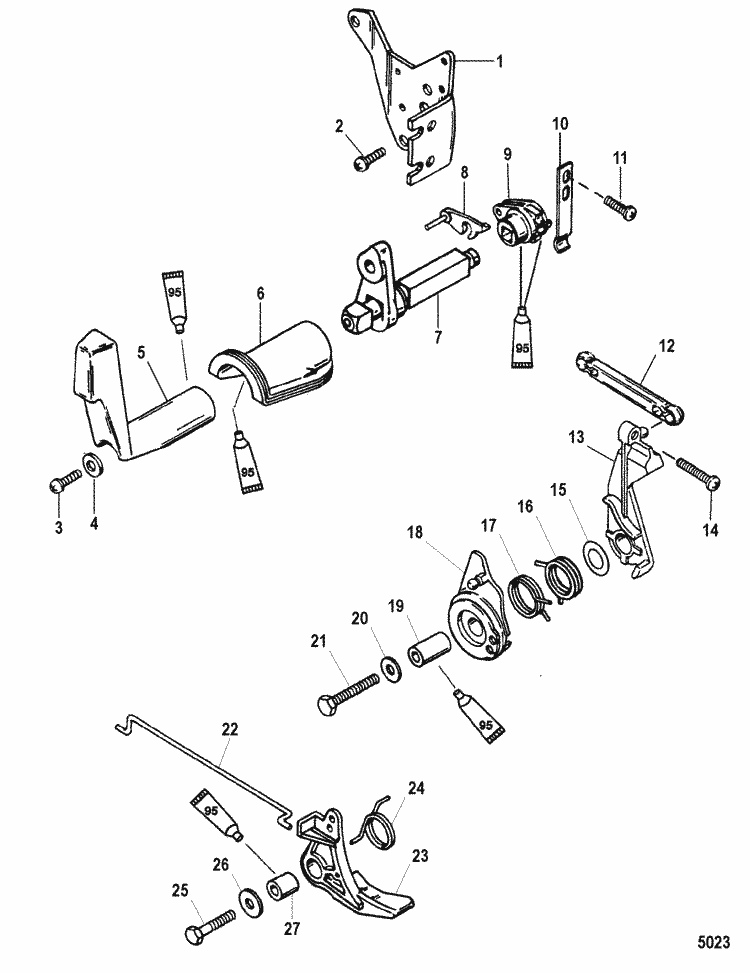

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	42181 1	BRACKET, Cable (1 required per assembly)
		42181 1 - Bracket - Cable [ More info ] $61.49 Available to Order: Shipping delay up to 10 days.
#2	10-40001 71	SCREW, (M6 x 16) (2 required per assembly)
		10-40001 71 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#3	10-40056107	SCREW, (M5 x 16) (1 required per assembly)
		10-40056107 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#4	12-40023 14	WASHER (1 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.
#5	42157 1	SHIFT HANDLE (1 required per assembly)
		42157 1 - Shift Handle C [ More info ] $17.57 1 In Stock.
#6	44459	GROMMET (1 required per assembly)
		44459 - Grommet, Side Shift Cover [ More info ] Unavailable
		44459001 - Grommet [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#7	815550 1	SHIFT SHAFT (1 required per assembly)
		815550 1 - Shift Shaft [ More info ] $28.59 1 In Stock.
#8	42156	LEVER (1 required per assembly)
		42156 - Lever [ More info ] $13.69 2 In Stock.
#9	42153	LEVER (1 required per assembly)
		42153 - Lever [ More info ] $27.59 Available to Order: Shipping delay up to 10 days.
#10	24-39627	SPRING (1 required per assembly)
		24-39627 - Spring, Detent [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#11	10-40001 1	SCREW, (M5 x 8) (2 required per assembly)
		10-40001 1 - Screw [ More info ] $0.60 2 In Stock.
#12	42167 1	TIMING LINK (1 required per assembly)
		42167 1 - Timing Link [ More info ] Unavailable
#13	42163 1	LEVER, Control (1 required per assembly)
		42163 1 - Lever [ More info ] $21.49 Available to Order: Shipping delay up to 10 days.
#14	10-40019111	SCREW, (M5 x 35) (1 required per assembly)
		10-40019111 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#15	13-69708	WAVE WASHER (1 required per assembly)
		13-69708 - Wave Washer [ More info ] $2.69 2 In Stock.
#16	24-42164	SPRING (1 required per assembly)
		24-42164 - Spring [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#17	24-13676	SPRING (1 required per assembly)
		24-13676 - Spring [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#18	42166 2	ACTUATOR (1 required per assembly)
		42166 2 - Actuator [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#19	23-42162 1	BUSHING (1 required per assembly)
		23-42162 1 - Bushing [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#20	12-69056	WASHER, (.255 x .620 x .030) Stainless Steel (1 required per assembly)
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#21	10-40003 33	SCREW, (M6 x 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#22	42161	LINK INTERLOCK (1 required per assembly)
		42161 - Link Interlock [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#23	42159 2	LEVER (1 required per assembly)
		42159 2 - Interlock Lever [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#24	24-42160	SPRING (1 required per assembly)
		24-42160 - Spring [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#25	10-40003 31	SCREW, (M6 x 30) (1 required per assembly)
		10-40003 31 - Screw [ More info ] $3.79 6 In Stock.
#27	23-42158 1	BUSHING (1 required per assembly)
		23-42158 1 - Bushing [ More info ] $6.99 2 In Stock.
