Parts for Mariner 55 HP Water Pump
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 46-81416M | BODY, WATER PUMP (1 required per assembly) |
  |
|
46-81416M - Water Pump Body [ More info ] Unavailable |
| #2 | 81419M | INSERT, CARTRIDGE (1 required per assembly) |
  |
|
81419M - Insert, NLA [ More info ]
|
| #3 | 47-81423M | IMPELLER, WATER PUMP (1 required per assembly) SERIAL 00000000-00002730 |
  |
|
47-81423M - Impeller [ More info ]
|
  |
|
18-3069 - Impeller 47-97108M [ More info ]
|
  |
|
879124 - Impeller, 18-3064, [ More info ]
|
| #3 | 47-82824M | IMPELLER (1 required per assembly) SERIAL 00002731-09999999 |
  |
47-82824M - Impeller - Priced Individually [ More info ] Unavailable |
|
  |
|
47-97108M - Impeller [ More info ]
|

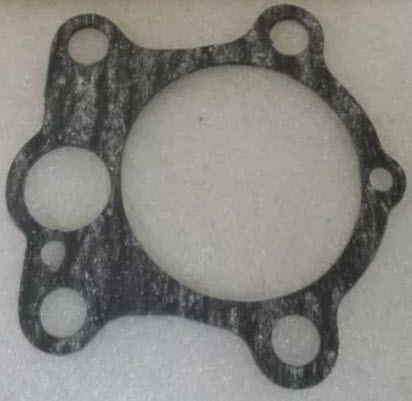

| #4 | 27-81417M | GASKET, WATER PUMP (1 required per assembly) |
  |
|
27-81417M - Water Pump Gasket [ More info ]
|
  |
|
27-81417 - Gasket - Priced Individually [ More info ]
|
| #5 | 81420M | OUTER PLATE, CARTRIDGE (1 required per assembly) |
  |
|
|
| #6 | 27-81421M | GASKER, CARTRIDGE OUTER PLATE (1 required per assembly) |
  |
|
27-81421M - Cartridge Outer Plate Gasket [ More info ]
|
| #7 | 46-81422M | BASE< WATER PUMP (1 required per assembly) |
  |
|
46-81422M - Water Pump Base, NLA [ More info ] Unavailable |

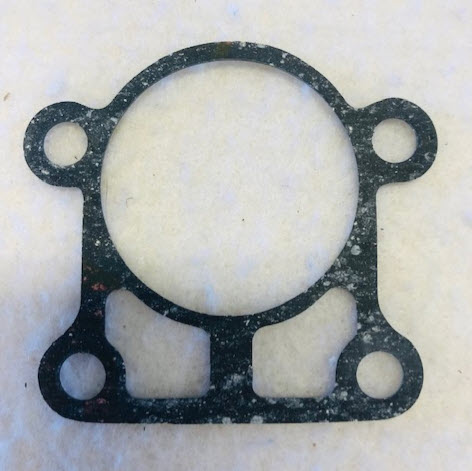

| #8 | 27-81418M | GASKET, WATER PUMP BASE (1 required per assembly) |
  |
|
27-81418M - Water Pump Base Gasket [ More info ]
|
| #9 | 25-82275M | O-RING, WATER PUMP BASE (1 required per assembly) |
  |
|
25-82275M - O-ring, Water Pump Base [ More info ]
|
| #10 | 26-82234M | OIL SEAL,WATER PUMP (2 required per assembly) |
  |
|
26-82234M - Seal [ More info ]
|
  |
|
18-0297 - Seal, 93101-23070-00 [ More info ]
|
| #11 | 17-82354M | PIN, DOWEL-WATER PUMP (2 required per assembly) |
  |
|
17-82354M - Pin -Dowel, NLA [ More info ]
|
| #12 | 10-82469M | BOLT, PUMP ATTACHING (2 required per assembly) |
  |
10-82469M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-84057M - Bolt, NLA [ More info ] Unavailable |
| #13 | 10-82468M | BOLT, PUMP ATTACHING (2 required per assembly) |
  |
10-82468M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-852776 14 - Bolt [ More info ]
|
| #14 | 12-82217M | WASHER, PUMP BELT (4 required per assembly) |
  |
|
12-82217M - Washer, NLA [ More info ]
|
| #15 | 12-81852M | WASHER, WATER TUBE (1 required per assembly) |
  |
|
12-81852M - Washer, NLA [ More info ]
|
| #16 | 31-81424M | TUBE, WATER (SHORT SHAFT) (1 required per assembly) |
  |
|
32-81424M - Tubing, NLA [ More info ] Unavailable |
| #16 | 32-81425M | TUBE, WATER (LONG SHAFT ) (1 required per assembly) |
  |
|
32-81425M - Tubing, NLA [ More info ] Unavailable |
| #17 | 25-81989M | GSKET, WATER TUBE (1 required per assembly) |
  |
|
25-81989M - O-Ring - Priced Individually [ More info ]
|
| #18 | 81428M | SET PLATE, WATER TUBE (1 required per assembly) |
  |
|
81428M - Retainer, NLA [ More info ]
|
| #19 | 10-82448M | BOLT, PLATE ATTACHING (2 required per assembly) |
  |
10-82448M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-91772M - Bolt [ More info ]
|
| #20 | 13-82212M | LOCK WASHER, PLATE BOLT (2 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #21 | 26-82417M | SEAL, WATER TUBE-LOWER (1 required per assembly) |
  |
|
10-82417M - Bolt, NLA [ More info ]
|
| #22 | 26-81426M | SEAL, WATER TUBE-UPPER (1 required per assembly) |
  |
|
26-81426M - Seal [ More info ]
|
