Parts for Mariner 55 HP Crankshaft & Piston
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 463-6825M | CRANKSHAFT (1 required per assembly) |
  |
|
463-6825M - CrankShaft, NLA [ More info ] Unavailable |
| #2 | 31-82312M | BEARING, NEEDLE (1 required per assembly) |
  |
31-82312M - Needle Bearing [ More info ] Unavailable |
|
  |
|
31-82312T - Bearing, NLA [ More info ] Unavailable |
| #3 | 26-82249M | OIL SEAL, CRANKSHAFT-UPPER (1 required per assembly) |
  |
|
26-82249M - Seal, NLA [ More info ]
|
| #4 | 25-82276M | O-RING, CRANKSHAFT-UPPER (1 required per assembly) |
  |
|
25-82276M - O Ring,NLA [ More info ]
|
| #5 | 31-82313M | BEARING, CENTER MAIN (1 required per assembly) |
  |
31-82313M - ROLLER Bearing [ More info ] Unavailable |
|
  |
31-97837M - Roller Bearing [ More info ] Unavailable |
|
  |
|
31-97837T - Bearing, NLA [ More info ]
|
| #6 | 30-82304M | BEARING, CRANKSHAFT-LOWER (1 required per assembly) |
  |
30-82304M - Ball Bearing [ More info ] Unavailable |
|
  |
30-97838M - Ball Bearing [ More info ] Unavailable |
|
  |
30-99983M - Bearing - Crankshaft - Lower [ More info ] Unavailable |
|
  |
30-41296M - Ball Bearing [ More info ] Unavailable |
|
  |
|
30-814560M - Ball Bearing [ More info ]
|
  |
|
30-814560T - Ball Bearing [ More info ]
|
| #7 | 15-81259M | WASHER, CRANKSHAFT PIN (1 required per assembly) |
  |
|
15-81259M - Shim, NLA [ More info ]
|
| #8 | 791-6826M | PISTON(STD 81.96MM) (AR required per assembly) |
  |
|
761-6826M - Piston, NLA [ More info ] Unavailable |
| #8 | 761-6961M | PISTON(STD 81.97 MM) (AR required per assembly) |
  |
|
761-6961M - Piston, NLA [ More info ]
|
| #8 | 761-6828M | PISTON(1ST O.S. 82.25 MM) (2 required per assembly) |
  |
|
761-6828M - Piston, NLA [ More info ] Unavailable |
| #8 | 761-6829M | PISTON (2ND O.S. 82.50 MM) (2 required per assembly) |
  |
|
761-6829M - Piston, NLA [ More info ] Unavailable |

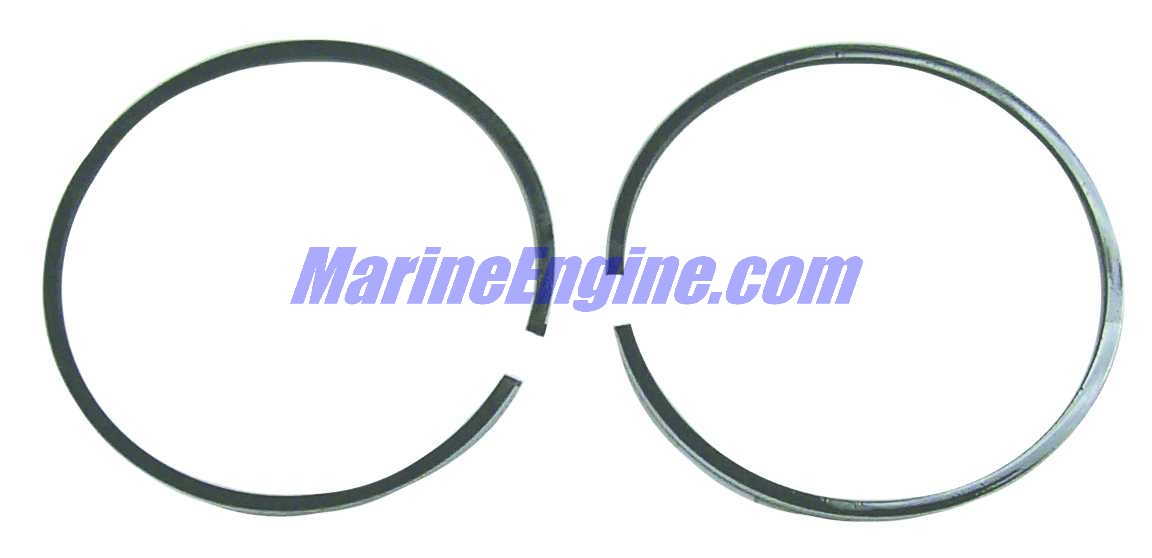

| #9 | 39-81260M | PISTON RING SET (STD) |
  |
|
39-81260M - Piston Rings, NLA [ More info ] Unavailable |
| #9 | 39-81261M | PISTON RING SET(1ST O.S. 82. MM) (AR required per assembly) |
  |
|
39-81261M - Piston Ring,NLA [ More info ] Unavailable |
| #9 | 39-81262M | PISTON RING SET (2ND O.S. 82.50 MM) (2 required per assembly) |
  |
|
39-81262M - Piston Ring Set,NLA [ More info ] Unavailable |
| #10 | 41-81263M | PIN, PISTON (2 required per assembly) |
  |
41-81263M - Piston Pin [ More info ] Unavailable |
|
  |
|
41-81263T - Piston Pin, NLA [ More info ] Unavailable |
| #11 | 53-81264M | CLIP, PISTON PIN (4 required per assembly) |
  |
|
53-81264M - Snap Ring, NLA [ More info ]
|
| #12 | 29-82353M | BEARING, SMALL END (56 required per assembly) |
  |
|
29-82353M - Needle Bearing [ More info ]
|
| #13 | 12-81831M | WASHER, CONNECTING ROD BEARING (4 required per assembly) |
  |
|
12-81831M - Washer - Priced Individually [ More info ] Unavailable |
| #14 | 81294M | HOUSING, OIL SEAL (1 required per assembly) |
  |
81294M - Housing [ More info ] Unavailable |
|
  |
82986M - Housing [ More info ] Unavailable |
|
  |
|
41828M - Housing, NLA [ More info ]
|
| #15 | 26-82255M | OIL SEAL, CRANKSHAFT-LOWER (1 required per assembly) |
  |
|
26-82255M - Seal, NLA [ More info ]
|
| #16 | 26-82248M | OIL SEAL, CRANKSHAFT-LOWER (1 required per assembly) |
  |
|
26-82248M - Seal, NLA [ More info ]
|
| #17 | 25-82286M | O-RING, OIL SEAL HOUSING (1 required per assembly) |
  |
|
25-82286M - O-ring, Oil Seal Housing,NLA [ More info ]
|
| #18 | 10-82449M | BOLT, OIL SEAL HOUSING ATTACHING (3 required per assembly) |
  |
|
10-82449M - Bolt - Priced Individually [ More info ]
|
  |
|
10-84368M - Screw, NLA [ More info ]
|
| #19 | 12-82214M | WASHER, HOUSING BOLT (3 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #20 | 28-81915M | KEY, CRANKSHAFT TO FLYWHEEL (1 required per assembly) |
  |
|
28-81915M - Key, NLA [ More info ]
|
| #21 | 629-6830M | CONNECTING ROD ASS'Y (2 required per assembly) |
  |
629-6830M - Connecting Rod [ More info ] Unavailable |
|
  |
|
629-8813M - Connecting Rod, NLA [ More info ] Unavailable |
| #22 | 10-81715M | BOLT (4 required per assembly) |
  |
|
10-81715M - Screw, NLA [ More info ]
|
| #23 | 31-82311M | BEARING, NEEDLE (2 required per assembly) |
  |
31-82311M - ROLLER Bearing [ More info ] Unavailable |
|
  |
|
31-97710M - Rod Bearing [ More info ]
|
