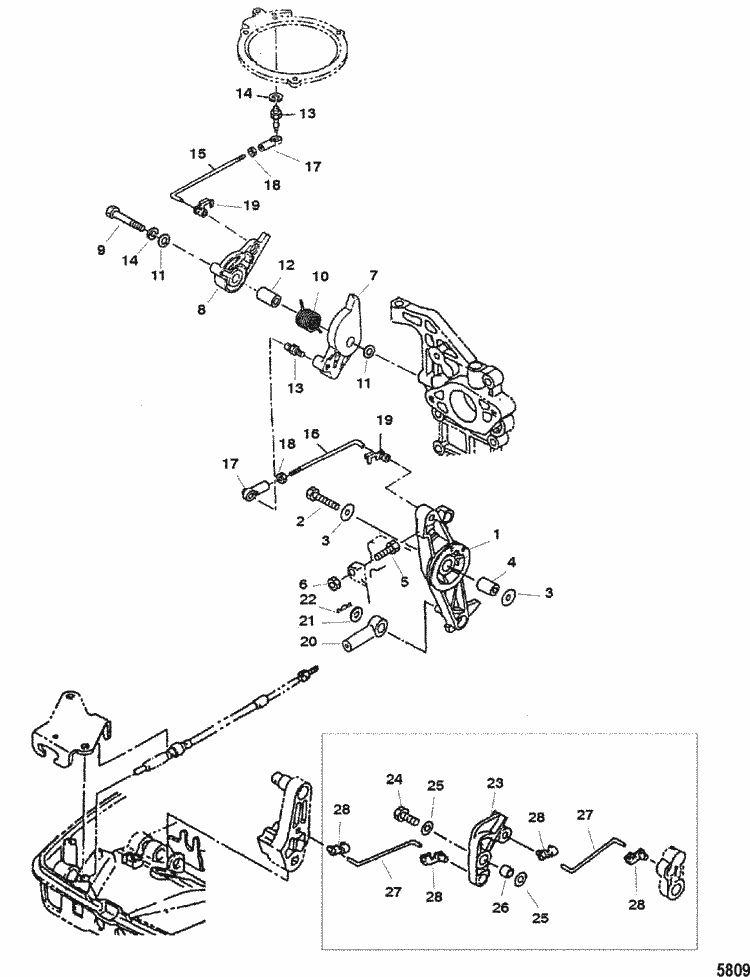

Parts for Mariner 50MH Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 853742003 | ARM, Actuator (1 required per assembly) |
  |
|
853742003 - ARM-ADVANCER [ More info ]
|
| #2 | 10-16201 | BOLT (1 required per assembly) |
  |
|
|
| #3 | 12-16140 4 | WASHER (2 required per assembly) |
  |
|
12-16140 4 - Washer [ More info ]
|
| #4 | 23-95286 12 | COLLAR (1 required per assembly) |
  |
|
23-95286 12 - Collar [ More info ]
|
| #5 | 10-16830 | BOLT (1 required per assembly) |
  |
|
|
| #6 | 11-40021 2 | NUT, (M6) Stainless Steel (1 required per assembly) |
  |
|
11-40021 2 - Nut [ More info ]
|
| #7 | 853750 1 | CAM, Throttle (1 required per assembly) (40 Lightning XR/50) |
  |
|
853750 1 - CAM Throttle [ More info ] Unavailable |
| #7 | 853750 2 | CAM, Throttle (1 required per assembly) (40) |
  |
|
853750 2 - Throttle Cam [ More info ]
|
| #8 | 803156 | LEVER, Advancer (1 required per assembly) |
  |
|
803156 - Advancer Lever [ More info ]
|
| #9 | 10-40003 33 | SCREW, (M6 x 40) (1 required per assembly) |
  |
|
10-40003 33 - Screw - Priced Individually [ More info ]
|
| #10 | 24-803157 | SPRING, Throttle Cam (1 required per assembly) |
  |
|
24-803157 - Spring, Throttle Cam [ More info ]
|
| #11 | 12-895118002 | WASHER (2 required per assembly) |
  |
12-895118002 - WASHER [ More info ] Unavailable |
|
  |
|
12-95392 1 - Washer [ More info ]
|
| #12 | 23-95286 13 | COLLAR (1 required per assembly) |
  |
|
23-95286 13 - COLLAR [ More info ] Unavailable |
| #13 | 853744 | BALL JOINT (2 required per assembly) |
  |
|
853744 - 853744 - BALL JOINT [ More info ] Unavailable Replaced by -853744001 |
  |
|
853744001 - Ball Joint [ More info ]
|
| #14 | 13-40025 6 | LOCKWASHER, (M6) (2 required per assembly) |
  |
|
13-40025 6 - LockWasher - Priced Individually [ More info ]
|
| #15 | 855561 2 | L-LINK (1 required per assembly) |
  |
|
855561 2 - 855561 2 - L-LINK [ More info ] Unavailable Replaced by -8M0054756 |
  |
|
8M0054756 - Link-L [ More info ]
|
| #16 | 855561 6 | L-LINK (1 required per assembly) |
  |
|
855561 6 - L-LINK [ More info ] Unavailable |
| #17 | 853745 | CAP (2 required per assembly) |
  |
|
853745 - Ball Socket [ More info ]
|
| #18 | 11-853722 5 | NUT (2 required per assembly) |
  |
|
11-853722 5 - Nut [ More info ] Unavailable |
| #19 | 16333 2 | SNAP, Link Rod (2 required per assembly) |
  |
|
16333 2 - Rod Snap [ More info ]
|
| #20 | 853745003 | SOCKET (1 required per assembly) |
  |
853745003 - Socket [ More info ] Unavailable |
|
  |
|
8M0079131 - Socket [ More info ]
|
| #21 | 12-95392 5 | WASHER (1 required per assembly) |
  |
|
12-95392 5 - Washer [ More info ]
|
| #22 | 18-815026 2 | COTTER PIN (1 required per assembly) |
  |
|
18-815026 2 - Cotter Pin [ More info ]
|
| #23 | 803993 | ARM, Throttle Stop (Handle) (1 required per assembly) |
  |
|
803993 - Arm-Throttle Stop [ More info ]
|
| #24 | 10-40003 30 | SCREW, (M6 x 25) (Handle) (1 required per assembly) |
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|
| #25 | 12-16826 | WASHER, Stainless Steel (Handle) (2 required per assembly) |
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #26 | 23-95286 24 | COLLAR, (9.3 mm) (Handle) (1 required per assembly) |
  |
23-95286 24 - COLLAR [ More info ] Unavailable |
|
  |
|
23-8M0021168 - Spacer [ More info ]
|
| #27 | 803994 | S-LINK (Handle) (2 required per assembly) |
  |
|
|
| #28 | 803995 | SNAP, Link Rod (Handle) (4 required per assembly) |
  |
|
803995 - Link Rod Snap [ More info ] Unavailable |
