Parts for Mariner 50MH Fuel Tank (Plastic- 6.6 Gallon)

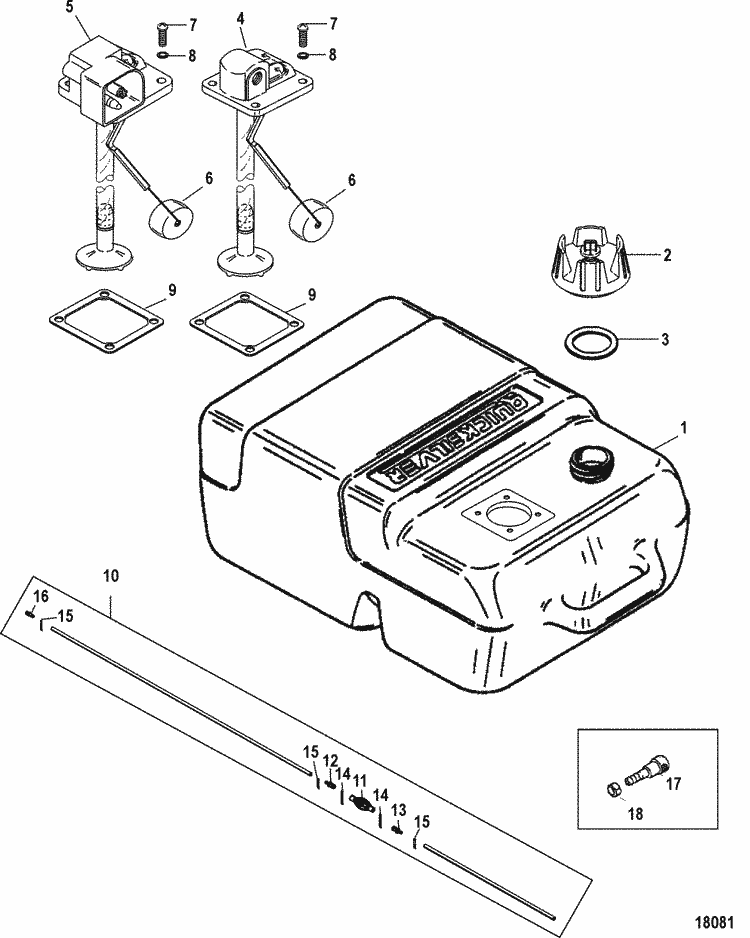

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1259-859063A 1 | TANK ASSEMBLY, Fuel (Threaded Connection) (1 required per assembly) |
  |
|
1259-859063A 1 - Fuel Tank-6.6 GA NLA C [ More info ] Unavailable |
| #1 | 1259-859063A 2 | TANK ASSEMBLY, Fuel (Quick Connect) (1 required per assembly) |
  |
|
1259-859063A 2 - Fuel Tank-6.6 GA NLA C [ More info ] Unavailable |
| #2 | 36-816976Q 1 | CAP ASSEMBLY, Fuel (1 required per assembly) |
  |
|
36-816976Q 1 - Fuel Cap Assembly - Priced Individually [ More info ]
|
  |
|
36-816976T 1 - Fuel Cap Assembly - Priced Individually [ More info ]
|
| #3 | 27-816977 1 | GASKET, Fuel Cap (1 required per assembly) |
  |
|
27-816977 1 - Gasket [ More info ]
|
| #4 | 859059A 2 | PICK UP ASSEMBLY, Fuel (Threaded Connection) (1 required per assembly) |
  |
|
859059A 2 - Pickup Assembly [ More info ]
|
| #5 | 859066A 2 | PICK UP ASSEMBLY, Fuel (Quick Connect) (1 required per assembly) |
  |
859066A 2 - Pickup Assembly [ More info ] Unavailable |
|
  |
|
8M0084089 - Pickup Assembly [ More info ]
|
| #6 | 859056 | FLOAT (1 required per assembly) |
  |
|
859056 - Fuel Tank Float [ More info ]
|
| #7 | 10-40056107 | SCREW, (M5 x 16) (4 required per assembly) |
  |
|
10-40056107 - Screw [ More info ]
|
| #8 | 12-859080 | WASHER (4 required per assembly) |
  |
|
12-859080 - Washer, Fiber, Sold individually [ More info ]
|
| #9 | 27-859072 | GASKET (1 required per assembly) |
  |
|
27-859072 - Pick Up Body Gasket [ More info ]
|
| #10 | 32-858610A37 | HOSE ASSEMBLY, Fuel (1 required per assembly) (2008 and Below) |
  |
|
32-858610A37 - HOSE ASSEMBLY Fue NLA [ More info ] Unavailable |
| #10 | 32-8M0038616 | HOSE ASSEMBLY, Fuel (1 required per assembly) (2009 and Up) |
  |
|
32-8M0038616 - 32-8M0038616 - HOSE ASSEMBLY Fue [ More info ] Unavailable Replaced by 32-8M0172378 |
  |
|
32-8M0172378 - FUEL LINE ASSY [ More info ] Unavailable |
| #11 | 13330Q 5 | BULB ASSEMBLY, Primer (1 required per assembly) |
  |
13330Q 5 - Primer Bulb , Priced Individually [ More info ] Unavailable |
|
  |
13330Q06 - PRIMER BULB Note: Priced Individually [ More info ] Unavailable |
|
  |
|
13330Q07 - 8M0052973 [ More info ] Unavailable |
  |
|
18-8005EP-1 - Primer Bulb -3/8 Inch [ More info ]
|
  |
|
32-03880 - Fuel Primer Bulb, EPA 3/8 inch [ More info ]
|
| #12 | 21-13331A 3 | CHECK VALVE ASSEMBLY (1 required per assembly) |
  |
|
21-13331A 3 - Check Valve Assembly [ More info ]
|
| #13 | 21-13331A 4 | CHECK VALVE ASSEMBLY (1 required per assembly) |
  |
|
21-13331A 4 - Check Valve Assembly [ More info ]
|
| #14 | NSS | NOT SOLD SEPARATE, Clamp (2 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #16 | 22-89771 2 | CONNECTOR, (.250-18) (1 required per assembly) |
  |
22-89771 2 - Connector [ More info ] Unavailable |
|
  |
|
22-89771Q 2 - Connector - Priced Individually [ More info ]
|
  |
|
22-89771T 2 - Connector - Priced Individually [ More info ]
|
| #17 | 22-853736 1 | CONNECTOR, Fuel (1 required per assembly) |
  |
|
22-853736 1 - 22-853736 1 - CONNECTOR Fuel [ More info ] Unavailable Replaced by 22-8M0072235 |
  |
228M0072235 - Fuel Connector [ More info ] Unavailable |
|
  |
|
228M0120628 - Fuel Connector [ More info ]
|
| #18 | 54-853798 | CLAMP (1 required per assembly) |
  |
|
54-853798 - Clamp [ More info ]
|
