Parts for Mariner 50MH Starter Motor

Revise Search: All Models > 50MH > 0N051023 - 0N056164 > Starter Motor

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

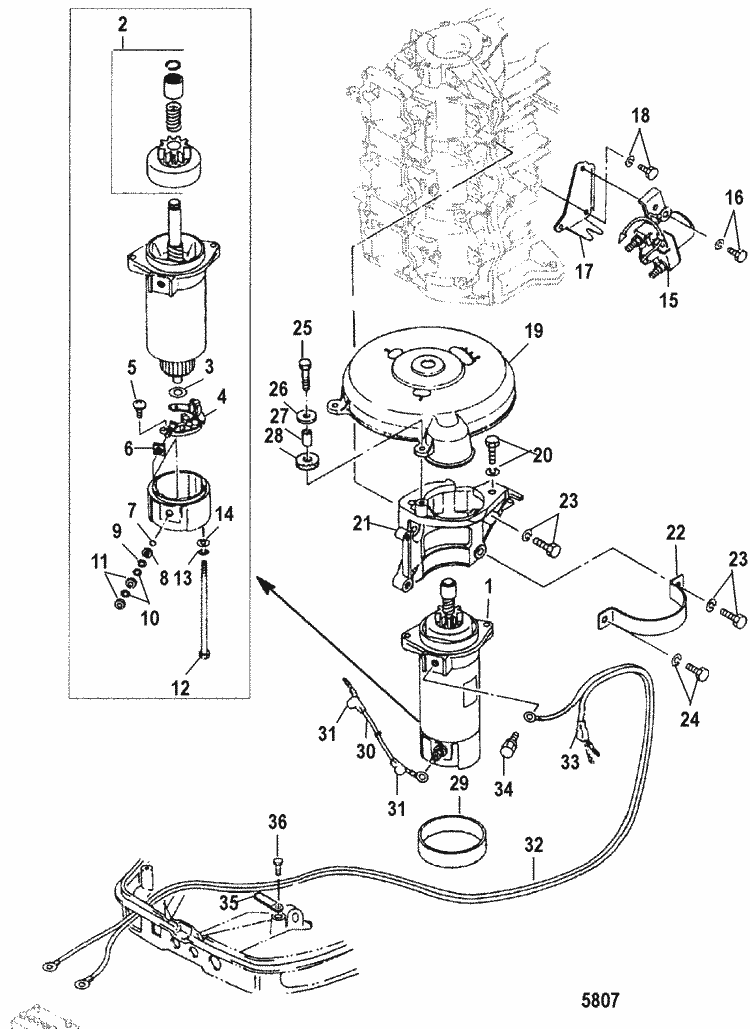

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	50-853805A 3	STARTER MOTOR ASSEMBLY (1 required per assembly)
		50-853805A 3 - STARTER MOTOR ASS [ More info ] Unavailable
#2	853806 1	PINION (1 required per assembly)
		853806 1 - Pinion [ More info ] Unavailable
#3	12-95392 6	WASHER (1 required per assembly)
		12-95392 6 - Washer Set [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#4	853807 2	HOLDER, Brush (1 required per assembly)
		853807 2 - 853807 2 - HOLDER Brush [ More info ] Unavailable Replaced by -853807T02
		853807T02 - Brush Holder [ More info ] Unavailable
		8M0135544 - Brush Holder [ More info ] $69.99 Available to Order: Shipping delay up to 10 days.
#5	10-16821	SCREW (2 required per assembly)
		10-16821 - Screw [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#6	23-95286 14	BUSHING (1 required per assembly)
		23-95286 14 - Bushing [ More info ] Unavailable
#7	25-16178 4	O-RING (1 required per assembly)
		25-16178 4 - O-Ring [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#8	23-95286 19	BUSHING (1 required per assembly)
		23-95286 19 - Bushing [ More info ] Unavailable
#9	12-16826	WASHER, Stainless Steel (1 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 1 In Stock.
#10	13-40025 6	LOCKWASHER, (M6) (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#11	11-40021 2	NUT, (M6) Stainless Steel (2 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#12	10-16263 2	BOLT (2 required per assembly)
		10-16263 2 - Bolt [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#13	13-16079	LOCKWASHER (2 required per assembly)
		13-16079 - LockWasher [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#14	12-16072 1	WASHER (2 required per assembly)
		12-16072 1 - Washer [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#15	89-853809	SOLENOID, Starter (1 required per assembly)
		89-853809 - 89-853809 - SOLENOID Starter [ More info ] Unavailable Replaced by 89-853809T
		89-853809T - Solenoid [ More info ] $152.49 $146.32 1 In Stock.
#16	10-16223 3	SCREW (1 required per assembly)
		10-16223 3 - Bolt [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#17	851836 2	BRACKET (1 required per assembly)
		851836 2 - BRACKET [ More info ] Unavailable
#18	10-16223 4	BOLT (2 required per assembly)
		10-16223 4 - Bolt [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#19	851838	COVER (1 required per assembly)
		851838 - Cover [ More info ] $25.69 Available to Order: Shipping delay up to 10 days.
#20	10-823042 9	BOLT (2 required per assembly)
		10-823042 9 - Bolt [ More info ] Unavailable
#21	851836	BRACKET (1 required per assembly)
		851836 - Bracket [ More info ] $77.49 Available to Order: Shipping delay up to 10 days.
#22	851836 1	BRACKET (1 required per assembly)
		851836 1 - Bracket [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#24	10-823042 6	BOLT (1 required per assembly)
		10-823042 6 - Bolt [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#25	10-40003 30	SCREW, (M6 x 25) (3 required per assembly)
		10-40003 30 - Screw - Priced Individually [ More info ] $2.77 10+ In Stock.
#26	12-95392 1	WASHER, Stainless Steel (3 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 4 In Stock.
#27	23-95286 13	COLLAR (3 required per assembly)
		23-95286 13 - COLLAR [ More info ] Unavailable
#28	12-95392 3	WASHER, Rubber (3 required per assembly)
		12-95392 3 - Washer [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#29	851837	MOUNT, Rubber (1 required per assembly)
		851837 - Rubber Mount [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#30	84-853740 3	CABLE (1 required per assembly)
		84-853740 3 - Cable [ More info ] $17.70 Available to Order: Shipping delay up to 10 days.
#31	85-853816 1	CAP (2 required per assembly)
		85-853816 1 - Boot [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#32	84-853740 4	WIRE, Battery (1 required per assembly)
		84-853740 4 - 84-853740 4 - WIRE Battery [ More info ] Unavailable Replaced by 84-8M0069792
		84-8M0069792 - ORD 84-8M0086098 NLA [ More info ] Unavailable
#33	85-853816	CAP (1 required per assembly)
		85-853816 - Boot [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#34	10-16211 1	BOLT (1 required per assembly)
		10-16211 1 - Bolt [ More info ] Unavailable
#35	54-813275	CLAMP (1 required per assembly)
		54-813275 - Clamp [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#36	10-16223 1	BOLT (1 required per assembly)
		10-16223 1 - Bolt, NLA [ More info ] $1.88 $1.59 10+ In Stock.
