Parts for Mariner 4A HP Throttle Control

Revise Search: All Models > 4A HP > 6E0-001011 & Up (M) > Throttle Control

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	91756M	HANDLE, STEERING (1 required per assembly)
		91756M - Handle A [ More info ] Unavailable

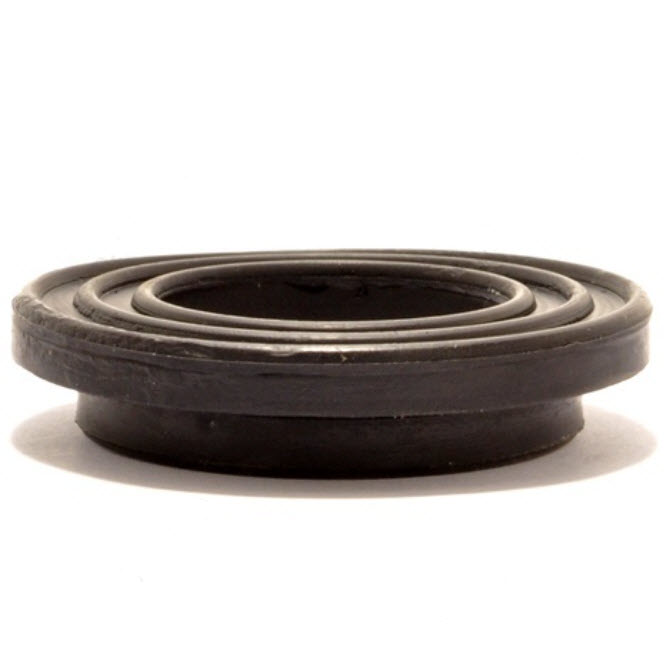

#2	23-17657M	BUSHING, RUBBER (2 required per assembly)
		23-17657M - Bushing [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#3	23-91758M	BUSHING (1 required per assembly)
		23-91758M - Bushing, NLA [ More info ] $27.17 $23.01 6 In Stock.
#4	18845M	COVER, STEERING HANDLE (1 required per assembly) SERIAL (M-093348 ML-332748) AND ABOVE
		18845M -Steering Handle Cover [ More info ] Unavailable
#4	43112M	COVER, STEERING HANDLE (1 required per assembly) SERIAL (M-093347 ML-332747) AND BELOW
		43112M - Cover [ More info ] $25.00 $21.18 1 In Stock.
#5	10-82419M	BOLT (2 required per assembly) SERIAL (M-070824 ML-325784) AND ABOVE
		10-82419M - Bolt, NLA [ More info ] $1.50 $1.28 5 In Stock.
#5	10-95473M	BOLT (2 required per assembly) SERIAL (M-043239-070823 ML-212355 THRU 325783)
		10-95473M - Bolt, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#5	10-82417M	BOLT (2 required per assembly) SERIAL (M-043238 ML-212354) AND BELOW
		10-82417M - Bolt, NLA [ More info ] $1.88 $1.59 10+ In Stock.
#6	23-91760M	BUSHING, RUBBER (1 required per assembly) SERIAL (M-043238 ML-212354) AND BELOW
		23-91760M - Bushing, NLA [ More info ] Unavailable
#7	10-91761M	BOLT, FRICTION ADJUSTING (1 required per assembly)
		10-91761M - Bolt, NLA [ More info ] Unavailable
#8	18846M	COVER (1 required per assembly) SERIAL (M-093348 ML-332748) AND ABOVE
		18846M - Cover [ More info ] $6.07 10+ In Stock.
#8	91762M	COVER (1 required per assembly) SERIAL (M-093347 ML-332747) AND BELOW
		91762M - Cover [ More info ] Unavailable
#9	10-14232M	SCREW (2 required per assembly)
		10-14232M - Screw, NLA [ More info ] $4.05 10+ In Stock.
#10	18-82124M	PIN (1 required per assembly)
		18-82124M - COTTER PIN Note: Priced Individually [ More info ] Unavailable
		18-16189 - Cotter Pin [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.

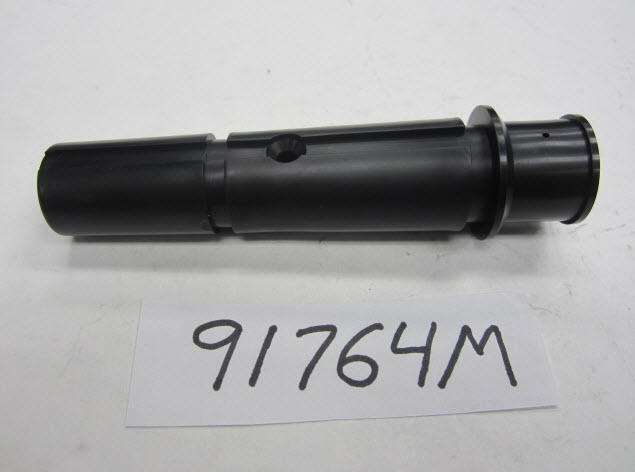

#11	91764M	HANDLE (1 required per assembly)
		91764M - Handle, NLA [ More info ] $14.55 10+ In Stock.
#12	91765M	GRIP, HANDLE (1 required per assembly)
		91765M - Handle Grip, NLA [ More info ] $14.55 10+ In Stock.
#13	16632M	INDICATOR, THROTTLE (1 required per assembly) SERIAL (M-082241 ML-329127) AND ABOVE
		16632M - Throttle Indicator, NLA [ More info ] $12.14 10+ In Stock.
#13	98958M	INDICATOR, THROTTLE (1 required per assembly) SERIAL (M-082240 ML-329126) AND BELOW
		98958M - INDICATOR [ More info ] $3.50 1 In Stock.
#14	17-81907M	RIVET (1 required per assembly)
		17-81907M - Rivet, NLA [ More info ] $7.53 6 In Stock.
#15	24-82095M	SPRING (1 required per assembly)
		24-82095M - Spring, Throttle Shaft,NLA [ More info ] $9.69 10 In Stock.
#16	12-91767M	WASHER (1 required per assembly)
		12-91767M - Washer, NLA [ More info ] $4.99 $4.22 10+ In Stock.
#17	10-18847M	SCREW (1 required per assembly) SERIAL (M-093348 ML-332748) AND ABOVE
		10-18847M - SCREW [ More info ] Unavailable
		10-84300M - SCREW Note: Priced Individually [ More info ] Unavailable
		10-811916M - Screw, NLA [ More info ] $3.61 $3.06 10+ In Stock.
#17	10-84300M	SCREW (1 required per assembly) SERIAL (M-093347 ML-332747) AND BELOW
#18	41252M	SHAFT (1 required per assembly)
		41252M - Lever [ More info ] $32.32 10+ In Stock.
#19	18848M	PLATE (1 required per assembly) SERIAL (M-093348 ML-332748) AND ABOVE
		18848M - Plate [ More info ] $2.16 1 In Stock.
#19	91769M	PLATE (1 required per assembly) SERIAL (M-093347 ML-332747) AND BELOW
		91769M - PLATE [ More info ] Unavailable

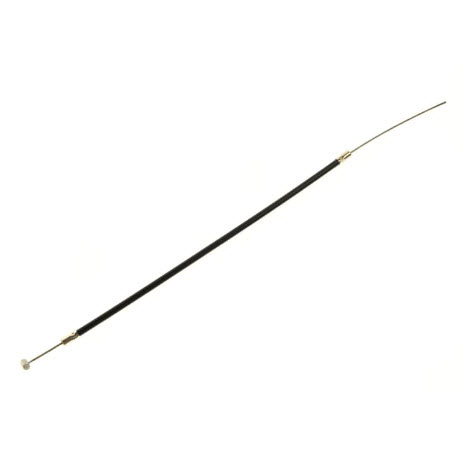

#21	21-11921M	THROTTLE WIRE ASS'Y (1 required per assembly)
		11921M - Throttle Wire [ More info ] $19.99 1 In Stock.
#22	24-91771M	SPRING (1 required per assembly)
		24-91771M - Spring, NLA [ More info ] Unavailable
#23	12-82214M	WASHER (1 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#24	10-91772M	BOLT (1 required per assembly)
		10-91772M - Bolt [ More info ] $5.42 $4.59 10+ In Stock.
#25	11-82390M	NUT (1 required per assembly)
		11-82390M - Nut, (M6) [ More info ] $3.62 $3.06 10+ In Stock.
#26	23-96558M	BUSHING (1 required per assembly) SERIAL (M-013401 ML-306026) AND ABOVE
		23-96558M - Bushing, NLA [ More info ] $7.00 $5.93 6 In Stock.
#27	12-82211M	WASHER (2 required per assembly) SERIAL (M-013401 ML-306026) AND ABOVE
		12-82211M - Washer - Priced Individually [ More info ] $1.70 $0.96 10+ In Stock.
#28	12-41290M	WASHER (1 required per assembly) SERIAL (M-013401 ML-306026) AND ABOVE
		12-41290M - Washer, NLA [ More info ] $1.50 $1.28 1 In Stock.
