Parts for Mariner 4A HP Gearhousing Assembly

Revise Search: All Models > 4A HP > 6E0-001011 & Up (M) > Gearhousing Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-91719M	POWERHEAD GASKET SET (1 required per assembly)
		27-91719M - Powerhead Gasket Set [ More info ] Unavailable

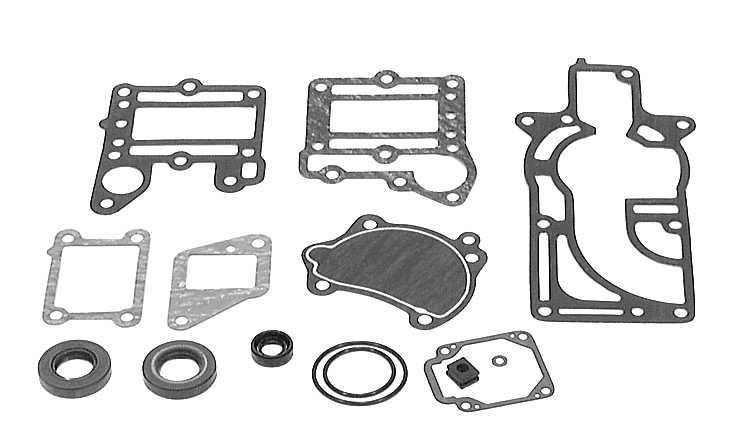

#	27-14188M	POWERHEAD GASKET SET (1 required per assembly)
		27-14188M - Powerhead Gasket Set [ More info ] Unavailable
#	27-99997M	POWERHEAD GASKET SET (1 required per assembly)
		27-99997M - Powerhead Gasket Set [ More info ] $38.50 $32.62 4 In Stock.
#0-1	1651-810952M	GEARHOUSING ASS'Y (SHORT) (1 required per assembly) SERIAL (M-114253 ML-338166) AND ABOVE
		1651-810952M - GEAR Housing, NLA [ More info ] Unavailable
#0-1	1651-9780M	GEARHOUSING ASS'Y (SHORT) (1 required per assembly) SERIAL (M-114252 ML-338165) AND BELOW
		1651-9780M - Gear Housing Assembly [ More info ] Unavailable
#0-1	1651-810953M	GEARHOUSING ASS'Y (LONG) (1 required per assembly) SERIAL (M-114253 ML-338166) AND ABOVE
		1651-810953M - Gear Housing Assembly, 4HP, Long* [ More info ] Unavailable
#0-1	1651-9781M	GEARHOUSING ASS'Y (LONG) (1 required per assembly) SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
		1651-9781M - Gear Housing Assembly [ More info ] Unavailable
#0-1	1651-8258M	GEARHOUSING ASS'Y (LONG) (1 required per assembly) SERIAL (M-093347 ML-332747) AND BELOW
		1651-8258M - Gear Housing Assembly [ More info ] Unavailable
#1	1651-810954M	GEARHOUSING (1 required per assembly) SERIAL (M-114253 ML-338166) AND ABOVE
		1651-810954M - GEAR Housing, NLA [ More info ] Unavailable
#1	1651-9782M	GEARHOUSING (1 required per assembly) SERIAL (M-093348 THRU 114252 NL-332748 THRU 338165)
		1651-9782M - Gear Housing Assembly [ More info ] Unavailable
		1651-8259M - GEAR Housing, NLA [ More info ] Unavailable
#1	1651-8259M	GEARHOUSING (1 required per assembly) SERIAL (M-093347 ML-332747) AND BELOW
#2	23-95476M	BUSHING (1 required per assembly) SERIAL (M-043239 ML-212355) AND ABOVE
		23-95476M - Bushing, NLA [ More info ] $6.12 $5.19 6 In Stock.
#3	23-95477M	BUSHING (1 required per assembly) SERIAL (M-043239 ML-212355) AND ABOVE
		23-95477M - Bushing, NLA [ More info ] $7.61 $6.45 6 In Stock.
#4	26-91726M	OIL SEAL (2 required per assembly)
		26-91726M - Seal [ More info ] $14.87 1 In Stock.
#5	11922M	ANODE (1 required per assembly) SERIAL (M-055866 THRU 114252 ML-321427 THRU 338165)
		11922M - Anode [ More info ] $4.43 10+ In Stock.
		95609M - Anode, NLA [ More info ] $3.00 $2.54 10+ In Stock.
#5	43107M	ANODE (1 required per assembly) SERIAL (M-055885 ML-321425) AND BELOW
		43107M - Anode, NLA [ More info ] $17.99 $15.23 10+ In Stock.
#6	10-91772M	SCREW (1 required per assembly) SERIAL (M-055886 THRU 114252 ML-321427 THRU 338165)
		10-91772M - Bolt [ More info ] $5.42 $4.59 10+ In Stock.
#6	10-84367M	SCREW (1 required per assembly) SERIAL (M-055885 ML-321426) AND BELOW
		10-84367M - Screw, NLA [ More info ] $1.88 $1.59 10 In Stock.
#7	27-81987M	GASKET (3 required per assembly)
		27-81987M - Plug Gasket [ More info ] Unavailable
		27-81987 - Drain Plug Gasket [ More info ] $3.79 10+ In Stock.
		18-46981-9 - Drain Fill Washer (50 Pack) [ More info ] $119.99 In Stock
		18-4698 - Drain Fill Washer [ More info ] $2.30 10+ In Stock.
#8	22-81924M	PLUG (3 required per assembly)
		22-81924M - Plug - Priced Individually [ More info ] $14.99 10+ In Stock.
#9	10-18851M	BOLT, W/WASHER (2 required per assembly) SERIAL (M-093348 ML-332748) AND ABOVE
		10-18851M - BOLT,NLA [ More info ] Unavailable
#9	10-14185M	BOLT, W/WASHER (2 required per assembly) SERIAL (M-103610 ML-335564) AND BELOW
		10-14185M - Bolt, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#9	10-96293M	BOLT (2 required per assembly) SERIAL (M-070823 ML-325783) AND BELOW
		10-96293M - BOLT [ More info ] Unavailable
		10-83285M - Screw - Priced Individually [ More info ] $5.19 10+ In Stock.
#10	814457M	PLATE (1 required per assembly) SERIAL (M-103611 ML-335565) AND ABOVE
		814457M - Plate [ More info ] Unavailable
		8M0080450 - Plate [ More info ] $34.81 3 In Stock.
#10	11923M	PLATE (1 required per assembly) SERIAL (M-103610 ML-335564) AND BELOW
		11923M - PLATE [ More info ] Unavailable
#10	96294M	PLATE (1 required per assembly) SERIAL (M-055885 ML-321426) AND BELOW
		96294M - Plate [ More info ] $4.05 1 In Stock.
#11	27-96295M	GASKET (1 required per assembly)
		27-96295M - Gasket [ More info ] Unavailable
		27-96295 - Gasket [ More info ] $8.99 Available to Order: Shipping delay up to 10 days.
#12	10-82405M	BOLT (1 required per assembly)
		10-82405M - Screw, NLA [ More info ] $10.86 $9.19 10+ In Stock.
#13	12-82214M	WASHER (1 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#14	96297M	SHIFT CAM ASS'Y (SHORT) (1 required per assembly)
		96297M - SHIFT CAM,NLA [ More info ] Unavailable
#14	96298M	SHIFT CAM ASS'Y (LONG) (1 required per assembly)
		96298M - SHIFT CAM,NLA [ More info ] $32.00 $27.10 2 In Stock.
#15	15304M	BOOT, SHIFT ROD (1 required per assembly)
		15304M - Shift Rod Boot [ More info ] $19.99 3 In Stock.
#16	46-96299M	HOUSING, WATER PUMP (1 required per assembly)
		46-96299M - Water Pump [ More info ] $18.25 $15.46 1 In Stock.
#17	27-96300M	GASKET, WATER PUMP (1 required per assembly)
		27-96300M - Water Pump Gasket [ More info ] Unavailable
		27-96300 - Gasket [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#18	96301M	INSERT, CARTRIDGE (1 required per assembly)
		96301M - Cartidge Insert, NLA [ More info ] Unavailable
#18	96302M	INSERT, CHROME (OPT) (1 required per assembly)
		96302M - Insert [ More info ] Unavailable
#19	96303M	OUTER PLATE, CARTRIDGE (1 required per assembly)
		96303M - Cartidge Outer Plate [ More info ] $8.99 $7.61 8 In Stock.
#19	96304M	OUTER PLATE, CHROME (OPT) (1 required per assembly)
		96304M - Plate [ More info ] Unavailable
#20	26-14186M	SEAL (1 required per assembly) SERIAL (M-070824 ML-325784) AND ABOVE
		26-14186M - Seal, NLA [ More info ] $3.90 10+ In Stock.
#20	26-80398M	SEAL (1 required per assembly) SERIAL (M-070823 ML-325783) AND BELOW
		26-80398M - Seal - Priced Individually [ More info ] $10.76 10+ In Stock.
#21	47-96305M	IMPELLER (1 required per assembly)
		47-96305M - Impeller [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
		18-3073 - Impeller 47-96305M [ More info ] $20.99 $20.53 3 In Stock.
		47-02172 � Water Pump Impeller, 96305M [ More info ] $18.99 $15.68 In Stock
#22	10-92536M	BOLT (4 required per assembly)
		10-92536M - BOLT [ More info ] Unavailable
		10-84657M - Screw, NLA [ More info ] $2.72 $2.31 10+ In Stock.
#23	96306M	PLATE (2 required per assembly)
		96306M - Plate [ More info ] Unavailable
#24	17-82357M	PIN (2 required per assembly)
		17-82357M - Pin -Dowel, NLA [ More info ] $1.50 10+ In Stock.
#25	45-96307M	DRIVESHAFT (SHORT) (1 required per assembly)
		45-96307M - Drive Shaft, NLA [ More info ] Unavailable
#25	45-96308M	DRIVESHAFT (LONG) (1 required per assembly)
		45-96308M - Drive Shaft, NLA [ More info ] Unavailable
#26	53-96309M	CLIP (1 required per assembly)
		53-96309M - Clip, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#27	17-82355M	PIN (1 required per assembly)
		17-82355M - Pin -Dowel, NLA [ More info ] $8.15 $6.90 10+ In Stock.
#28	43-96310M	PINION (1 required per assembly)
		43-96310M - Pinion Gear, NLA [ More info ] $34.99 $29.63 4 In Stock.
#29	53-82331M	SNAP RING (1 required per assembly)
		53-82331M - E-Ring, NLA [ More info ] $4.77 10+ In Stock.
#30	12-96311M	WASHER (1 required per assembly)
		12-96311M - Washer, NLA [ More info ] Unavailable
#31	30-95475M	BEARING (1 required per assembly) SERIAL (M-070824 ML-325784) AND ABOVE
		30-95475M - Ball Bearing [ More info ] Unavailable
		30-82291M - Ball Bearing [ More info ] Unavailable
		30-82291T - Ball Bearing [ More info ] Unavailable
#31	30-82291M	BEARING (1 required per assembly) SERIAL (M-070823 ML-325783) AND BELOW
#32	43-96312M	GEAR, FORWARD (1 required per assembly)
		43-96312M - Forward Gear, NLA [ More info ] Unavailable
#33	81014M	PLUNGER, SHIFT (1 required per assembly)
		81014M - Follower, NLA [ More info ] $4.05 7 In Stock.
#34	24-82077M	SPRING (1 required per assembly)
		24-82077M - Spring, Shift,NLA [ More info ] $8.99 $7.61 1 In Stock.
#35	83-81013M	RING, CROSS PIN (1 required per assembly)
		53-81013M - Retaining Ring - Priced Individually, NLA [ More info ] Unavailable
#36	17-81902M	PIN, CROSS (1 required per assembly)
		17-81902M - Pin, Cross, NLA [ More info ] Unavailable
#37	52-96313M	CLUTCH, DOG (1 required per assembly)
		52-96313M - Clutch, NLA [ More info ] Unavailable
#38	44-96314M	SHAFT, PROPELLER (1 required per assembly)
		44-96314M - Propeller Shaft [ More info ] Unavailable
#39	12-96315M	WASHER (1 required per assembly)
		12-96315M - Washer, NLA [ More info ] $3.30 $2.80 10+ In Stock.
#40	43-96316M	GEAR, REVERSE (1 required per assembly)
		43-96316M - Reverse Gear [ More info ] $89.99 Available to Order: Shipping delay up to 10 days.
#42	26-96317M	OIL SEAL (2 required per assembly)
		26-96317M - Seal [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#43	25-82280M	O-RING (1 required per assembly)
		25-82280M - O-Ring [ More info ] $8.25 10+ In Stock.
#44	96318M	CAP, GEARHOUSING (1 required per assembly)
		96318M - Cover, NLA [ More info ] Unavailable
#45	10-91705M	BOLT (2 required per assembly)
		10-91705M - BOLT [ More info ] Unavailable
		10-91686M - Bolt, NLA [ More info ] Unavailable
#46	27-41822M	GASKET, WATER PUMP (1 required per assembly) SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)
		27-41822M - Water Pump Gasket [ More info ] Unavailable
		27-41822 - Gasket [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#47	18852M	ANODE (1 required per assembly) SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
		9718852M - Anode, Aluminum [ More info ] Unavailable
#48	10-91725M	BOLT (2 required per assembly) SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
		10-91725M - BOLT [ More info ] Unavailable
		10-826957M - Bolt, NLA [ More info ] $5.19 10+ In Stock.
#50	18853M	COLLAR (2 required per assembly) SERIAL (M-093348 ML-332748) AND ABOVE
		18853M - Collar, NLA [ More info ] $2.50 $2.13 3 In Stock.
#51	810945M	ANODE (1 required per assembly) SERIAL (M-114253 ML-338166) AND ABOVE
		810945M - Anode, NLA [ More info ] $5.56 $4.71 10 In Stock.
#54	11-80545M	NUT, PROPELLER (1 required per assembly)
		11-80545M - Prop Nut [ More info ] Unavailable
		859931 - Propeller Nut, NLA [ More info ] $17.99 Available to Order: Shipping delay up to 10 days.
#55	18-82132M	PIN,C OTTER (1 required per assembly)
		18-82132M - Cotter Pin - Priced Individually [ More info ] $3.90 10+ In Stock.
#56	96321M	HOUSING, BEARING (LONG) (1 required per assembly)
		96321M - Housing, NLA [ More info ] Unavailable
#57	232-96322M	BUSHING, DRIVE SHAFT (LONG) (1 required per assembly)
		23-96322M - Bushing, NLA [ More info ] Unavailable
#58	53-96323M	SNAP RING (LONG) (1 required per assembly)
		53-96323M - Snap Ring, NLA [ More info ] $1.50 $1.28 7 In Stock.
#59	10-83108M	SCREW (LONG) (2 required per assembly)
		10-83108M - Screw, NLA [ More info ] $2.17 $1.83 10+ In Stock.
#60	12-82211M	WASHER (LONG) (2 required per assembly)
		12-82211M - Washer - Priced Individually [ More info ] $1.70 $0.96 10+ In Stock.
#61	32-96319M	TUBE, WATER (SHORT) (1 required per assembly)
		32-96319M - Tubing, NLA [ More info ] $10.00 $8.47 10+ In Stock.
#61	32-96320M	TUBE, WATER (LONG) (1 required per assembly)
		32-96320M - Tubing, NLA [ More info ] $15.05 $12.75 2 In Stock.
#62	26-80397M	SEAL (1 required per assembly)
		26-80397M - Seal, NLA [ More info ] $9.90 $8.39 10+ In Stock.
#63	17-17554M	PIN, DRIVE (1 required per assembly)
		17-17554M - Shear Pin - Priced Individually [ More info ] $15.08 10+ In Stock.
#63	27-96324M	LOWER UNIT GASKET SET (1 required per assembly)
		27-96324M - Gasket Set [ More info ] Unavailable
#63	96325M	WATER PUMP REPAIR KIT (1 required per assembly)
		96325M - Repair Kit [ More info ] $65.00 1 In Stock.
		96325T - Repair Kit [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#63	96326M	CHROME PUMP KIT (OPT) (1 required per assembly)
		96326M - Repair Kit, NLA [ More info ] Unavailable
