Parts for Mariner 48 HP Gear Shift Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 81404M | BRACKET, SHIFT (1 required per assembly) |
  |
81404M - Bracket [ More info ] Unavailable |
|
  |
|
98919M - Bracket, NLA [ More info ] Unavailable |
| #2 | 17-82137M | PIN, CLEVIS - SHIFT BRACKET (1 required per assembly) |
  |
|
17-82137M - Pin, Clevis-shift Bracket,NLA [ More info ] Unavailable |
| #3 | 13-82199M | WASHER (2 required per assembly) |
  |
13-82199M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #4 | 13-81866M | WASHER, WAVE - CLEVIS PIN (1 required per assembly) |
  |
|
13-81866M - Wave Washer, NLA [ More info ] Unavailable |
| #5 | 10-82423M | BOLT, BRACKET ATTACHING (1 required per assembly) |
  |
|
10-82423M - Bolt, NLA [ More info ]
|
| #6 | 81407M | LEVER, SHIFT ROD (1 required per assembly) |
  |
|
81407M - ROD,NLA [ More info ] Unavailable |
| #7 | 81412M | RETAINER, CLEVIS (1 required per assembly) |
  |
81412M - LEVER [ More info ] Unavailable |
|
  |
|
92657M - Retainer, NLA [ More info ]
|
| #8 | 53-82330M | CIRCLIP (3 required per assembly) |
  |
|
53-82330M - E-Ring, NLA [ More info ]
|
| #9 | 81480M | CLEVIS, SHIFT CONTROL CABLE (1 required per assembly) |
  |
|
|
| #10 | 82556M | BRACKET, SHIFT ROD (1 required per assembly) |
  |
|
82556M - Bracket, NLA [ More info ] Unavailable |
| #11 | 10-82441M | BOLT, BRACKET ATTACHING (2 required per assembly) |
  |
|
10-82441M - Bolt, NLA [ More info ]
|
| #12 | 13-82200M | LOCKWASHR, BRACKET BOLT (2 required per assembly) |
  |
13-82200M - LOCKWASHER Note: Priced Individually [ More info ] Unavailable |
|
  |
|
13-82215M - LockWasher - Priced Individually [ More info ]
|
| #13 | 12-82202M | WASHER (2 required per assembly) |
  |
12-82202M - WASHER Note: Priced Individually [ More info ] Unavailable |
|
  |
|
12-82217M - Washer, NLA [ More info ]
|
| #14 | 82346M | BALL, DETENT (1 required per assembly) |
  |
|
|
| #15 | 24-82081M | SPRING, DETENT (1 required per assembly) |
  |
|
24-82081M - Spring [ More info ] Unavailable |
| #16 | 23-80635M | RETAINER, COMPRESSION SPRING (1 required per assembly) |
  |
|
23-80635M - Bushing, NLA [ More info ] Unavailable |
| #17 | 81670M | SHIFT RODE ASS'Y, UPPER - SHORT SHAFT (1 required per assembly) |
  |
|
81670M - Shift Shaft, NLA [ More info ] Unavailable |
| #17 | 81671M | SHIFT ROD ASS'Y, UPPER - LONG SHAFT (1 required per assembly) |
  |
|
81671M - Shift Shaft, NLA [ More info ] Unavailable |

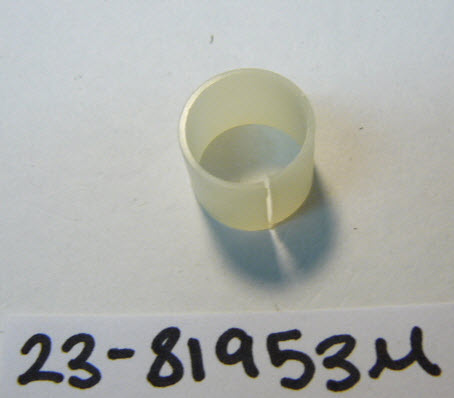

| #18 | 23-81953M | BUSHING, SHIFT ROD (1 required per assembly) |
  |
|
23-81953M - Bushing, NLA [ More info ] Unavailable |
| #19 | 12-81858M | SPACER, SHIFT ROD (2 required per assembly) |
  |
|
12-81858M - Washer, Spacer-Shift Rod, NLA [ More info ]
|
| #20 | 53-82324M | CIRCLIP, UPPER SHIFT ROD (1 required per assembly) |
  |
53-82324M - SNAP RING [ More info ] Unavailable |
|
  |
|
53-19259M - Snap Ring, NLA [ More info ]
|
