Parts for Mariner 45 HP Jet Clamp Bracket, Manual

Revise Search: All Models > 45 HP Jet > 9973100 - 0P016999 (Belgium) > Clamp Bracket, Manual

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

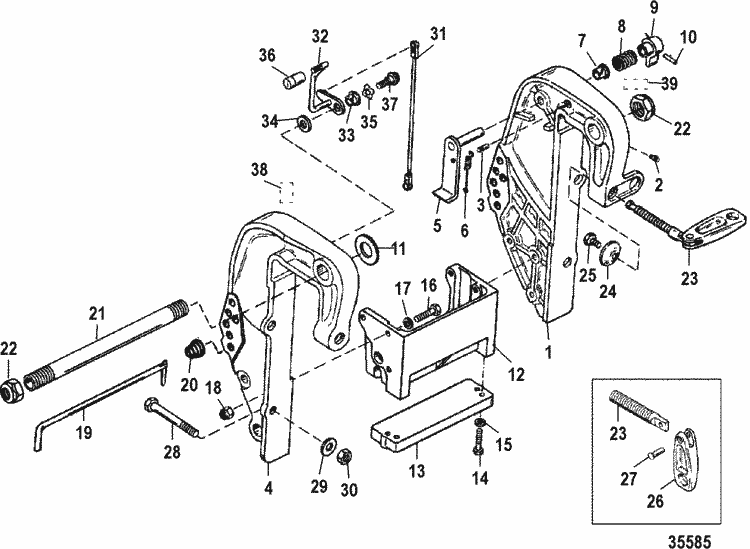

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	3420-822868A 1	CLAMP BRACKET ASSEMBLY (1 required per assembly) (BLACK) PORT
		3420-822868A 1 - Clamp Bracket Assembly [ More info ] Unavailable
		34208M0084195 - Bracket-Clamp-BLK [ More info ] $542.99 Available to Order: Shipping delay up to 10 days.
#1	3420-822868A 2	CLAMP BRACKET ASSEMBLY (1 required per assembly) (GRAY) PORT
		3420-822868A 2 - Clamp Bracket Assembly [ More info ] Unavailable
#2	22-98727	FITTING, Grease (1 required per assembly)
		22-98727 - Fitting [ More info ] Unavailable
		22-8M0169588 - FITTING [ More info ] Unavailable
#3	17-99604	PIN, Groove (1 required per assembly)
		17-99604 - Pin, Groove [ More info ] $4.99 6 In Stock.
#4	3419-822867F 1	CLAMP BRACKET (1 required per assembly) (BLACK) STARBOARD
		3419-822867F 1 - Clamp Bracket [ More info ] $499.99 Available to Order: Shipping delay up to 10 days.
#4	3419-822867F 2	CLAMP BRACKET (1 required per assembly) (GRAY) STARBOARD
		3419-822867F 2 - Clamp Bracket [ More info ] Unavailable
#5	19618A 2	LEVER ASSEMBLY, Tilt Lock (1 required per assembly) (BLACK)
		19618A 2 - Tilt Lock Lever [ More info ] Unavailable
		893704T01 - Tilt Lock Lever [ More info ] $254.49 Available to Order: Shipping delay up to 10 days.
#5	19618A 3	LEVER ASSEMBLY, Tilt Lock (1 required per assembly) (GRAY)
		19618A 3 - Ord 19618A 2, NLA [ More info ] Unavailable
#6	24-99622	SPRING (1 required per assembly)
		24-99622 - Spring, Tilt Lock Tension [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#7	23-65830	NYLINER (1 required per assembly)
		23-65830 - NyLiner [ More info ] $5.69 1 In Stock.
#8	24-812708	SPRING (1 required per assembly)
		24-812708 - Spring [ More info ] $5.39 1 In Stock.
#9	812709T	KNOB (1 required per assembly) (BLACK)
		812709T - KNOB [ More info ] Unavailable
		812709 - Knob [ More info ] $16.29 Available to Order: Shipping delay up to 10 days.
#9	812709T 6	KNOB (1 required per assembly) (GRAY)
		812709T 6 - Ord 812709, NLA [ More info ] Unavailable
#10	17-99615	PIN, Groove (1 required per assembly)
		17-99615 - Pin, Groove [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#11	12-19619	WASHER (2 required per assembly)
		12-19619 - Washer [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#12	18486F 5	BRACKET, Anchor (1 required per assembly) (BLACK)
		18486F 5 - Ord 18486A0, NLA [ More info ] Unavailable
		18486A08 - Anchor Bracket Ki [ More info ] $467.49 Available to Order: Shipping delay up to 10 days.
#12	18486F 6	BRACKET, Anchor (1 required per assembly) (GRAY)
		18486F 6 - Ord 18486A0, NLA [ More info ] Unavailable
#13	818298A 1	ANODE KIT (1 required per assembly)
		818298A 1 - Anode Kit [ More info ] Unavailable
		97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ] $25.49 4 In Stock.
		18-6249A - Anode, Aluminum, 18-6249A [ More info ] $23.09 $22.96 In Stock
		18-6249 - Zinc Anode, 818298A1 [ More info ] $25.05 1 In Stock.
		97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ] $27.99 $27.92 Available to Order: Shipping delay up to 10 days.
#14	10-40003 30	SCREW, (M6 x 25) (2 required per assembly)
		10-40003 30 - Screw - Priced Individually [ More info ] $2.77 10+ In Stock.
#15	12-29245	WASHER, (.281 x .500 x .060) Stainless Steel (2 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#16	10-40003 54	SCREW, (M8 x 30) (5 required per assembly)
		10-40003 54 - Screw - Priced Individually [ More info ] $4.79 7 In Stock.
#16	10-40003 55	SCREW, (M8 x 35) (1 required per assembly)
		10-40003 55 - Screw - Priced Individually [ More info ] $4.49 $2.53 10 In Stock.
#17	13-40025 7	LOCKWASHER, (M8) (4 required per assembly)
		13-40025 7 - LockWasher [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#18	11-40063 5	NUT, (M8) (2 required per assembly)
		11-40063 5 - NUT Note: Priced Individually [ More info ] Unavailable
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#19	17-49930A 1	PIN ASSEMBLY, Tilt Lock (1 required per assembly)
		17-49930A 1 - Tilt Pin Assembly [ More info ] Unavailable
		17-8M0026068 - Pin Assembly - Tilt [ More info ] $56.75 1 In Stock.
#20	24-821461	SPRING (1 required per assembly)
		24-821461 - Spring, Tilt Lock Pin (Manual Tilt Models) [ More info ] $1.80 2 In Stock.
#21	19614	TILT TUBE (1 required per assembly)
		19614 - Tilt Tube [ More info ] Unavailable
		19614 1 - Tilt Tube [ More info ] Unavailable
		8M0035070 - Tilt Tube [ More info ] Unavailable
		8M0041938 - Tilt Tube [ More info ] $117.08 2 In Stock.
#22	11-30499	NUT, (7/8-14) (2 required per assembly)
		11-30499 - Nut (7/8-14) [ More info ] Unavailable
		11-858869 - Nut, (.875-14) [ More info ] $4.99 4 In Stock.
#23	10-818883A 1	THUMB SCREW ASSEMBLY (2 required per assembly)
		10-818883A 1 - Thumb Screw Assembly, New Takeoff [ More info ] $130.99 Available to Order: Shipping delay up to 10 days.
#24	12-818884	WASHER (2 required per assembly)
		12-818884 - Washer [ More info ] $13.79 $11.04 2 In Stock.
#25	10-76804 2	SHOULDER SCREW, Hex (2 required per assembly)
		10-76804 2 - Screw [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#26	NSS	NOT SOLD SEPARATE, Handle (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#28	10-814259	SCREW, (.500-20 x 4.00) (4 required per assembly)
		10-814259 - Screw [ More info ] $19.55 3 In Stock.
#29	12-28421	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (4 required per assembly)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $2.99 10 In Stock.
		12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#30	11-91962	NUT, (.500-20) (4 required per assembly)
		1191962 - 118M0027784 [ More info ] Unavailable
#31	19385 25	LINK (1 required per assembly)
		19385 25 - Link [ More info ] Unavailable
#32	19615A 4	LEVER ASSEMBLY, Tilt (1 required per assembly)
		19615A 4 - Tilt Lever Assembly [ More info ] Unavailable
		19615A05 - Tilt Lever Assembly [ More info ] $57.49 Available to Order: Shipping delay up to 10 days.
#33	23-812707	BUSHING (1 required per assembly)
		23-812707 - Bushing [ More info ] $8.29 2 In Stock.
#34	12-19605	WASHER, (.520 x .850 x .060) Nylon - Black (1 required per assembly)
		12-19605 - Washer, (.520 X .850 X .060) Nylon - Black [ More info ] Unavailable
		12-8M0042643 - Washer [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#35	13-99611	WAVE WASHER (1 required per assembly)
		13-99611 - Washer, NLA [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#36	19621	TILT KNOB (1 required per assembly)
		19621 - KNOB-TILT [ More info ] Unavailable
		8M0007469 - Knob - Tilt [ More info ] $12.59 Available to Order: Shipping delay up to 10 days.
#37	10-19611	SCREW, (.375-16 x .62) (1 required per assembly)
		10-19611 - Bolt [ More info ] $14.89 Available to Order: Shipping delay up to 10 days.
