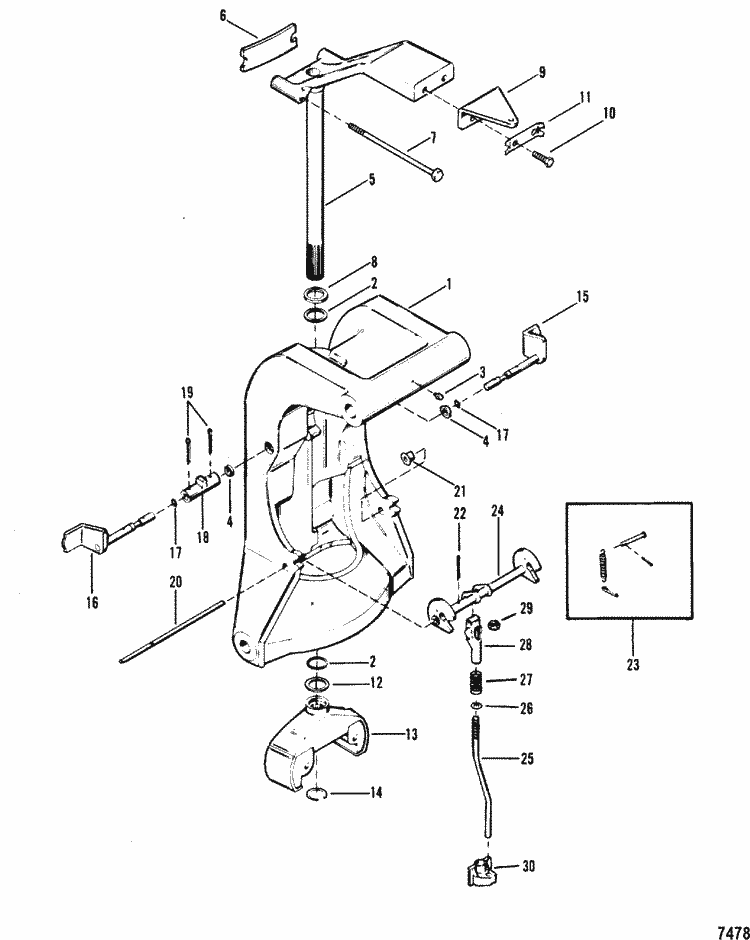

Parts for Mariner 45 HP (4 Cylinder) Swivel Bracket & Reverse Lock (Non Power Trim)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-85491A87 | GASKET SET (1 required per assembly) |
  |
27-85491A87 - Engine Gasket Set [ More info ] Unavailable |
|
  |
|
27-85491A90 - Engine Gasket Set [ More info ]
|
| #1 | 1489-8597A 4 | SWIVEL BRACKET (1 required per assembly) (Short Shaft) |
  |
|
1489-8597A 4 - Swivel Bracket,NLA [ More info ] Unavailable |
| #1 | 1490-8599A 6 | SWIVEL BRACKET (1 required per assembly) (Long Shaft) |
  |
|
1490-8599A 6 - Swivel Bracket,NLA [ More info ] Unavailable |
| #2 | 26-32911 | SEAL, Oil, Swivel Bracket (2 required per assembly) |
  |
|
|
| #3 | 22-74036 | FITTING, Grease (4 required per assembly) |
  |
22-74036 - Fitting - Priced Individually [ More info ] Unavailable |
|
  |
|
228M0169589 - Fitting Note: Priced Individually [ More info ]
|
| #4 | 26-22734 | SEAL, Oil, Swivel Bracket (2 required per assembly) |
  |
|
26-22734 - Seal, NLA [ More info ] Unavailable |
| #5 | 88798A 1 | SWIVEL PIN ASSEMBLY, Two Piece Steering Arm (1 required per assembly) (Short Shaft) |
  |
88798A 1 - ARM ASSY [ More info ] Unavailable |
|
  |
88798A19 - Steering Arm [ More info ] Unavailable |
|
  |
|
88798A23 - Swivel Pin Assembly, NLA [ More info ] Unavailable |
| #5 | 88798A 2 | SWIVEL PIN ASSEMBLY, Two Piece Steering Arm (1 required per assembly) (Long Shaft) |
  |
88798A 2 - Arm Assembly [ More info ] Unavailable |
|
  |
88798A20 - Arm Assembly [ More info ] Unavailable |
|
  |
|
88798A24 - Swivel Pin Assembly, NLA [ More info ]
|
| #5 | 69540A 3 | SWIVEL PIN ASSEMBLY, One Piece Steering Arm (1 required per assembly) (Short Shaft) |
  |
|
69540A 3 - ARM ASSY,NLA [ More info ] Unavailable |
| #5 | 69540A 4 | SWIVEL PIN ASSEMBLY, One Piece Steering Arm (1 required per assembly) (Long Shaft) |
  |
|
69540A 4 - ARM ASSY,NLA [ More info ] Unavailable |
| #6 | 30711 | BUMPER, Steering Arm (1 required per assembly) |
  |
|
30711 - Bumper, NLA [ More info ]
|
| #7 | 10-66897 | BOLT, (.437-20 x 5.250), Upper MOunt to Swivel Pin (5.25 Inch) (2 required per assembly) |
  |
|
10-66897 - Screw [ More info ]
|
| #8 | 12-47606 | WASHER, Swivel Pin - Lower (1 required per assembly) |
  |
|
12-47606 - Washer, Swivel Pin, NLA [ More info ]
|
| #9 | 76535 | BRACKET, Ride - Guide (1 required per assembly) (Manual/Electric without Tiller Handle) |
  |
76535 - Bracket [ More info ] Unavailable |
|
  |
|
76535T - Bracket [ More info ]
|
| #10 | 10-34352 | SCREW, (.375-24 x .875), Bracket (2 required per assembly) (Manual/Electric without Tiller Handle) |
  |
|
10-34352 - Screw - Priced Individually [ More info ]
|
| #11 | 76533 | STRAP, Bracket Screw (1 required per assembly) (Manual/Electric without Tiller Handle) |
  |
|
76533 - Strap, without Tiller Handle [ More info ]
|
| #12 | 12-25176 | WASHER, Swivel Pin to Bottom Yoke (.060) (1 required per assembly) |
  |
|
12-25176 - Washer (.060), NLA [ More info ]
|
| #13 | 77416T | YOKE, Bottom (1 required per assembly) (Black) |
  |
77416T - YOKE-BOTTOM-BLACK [ More info ] Unavailable |
|
  |
|
77416T 1 - Bottom Yoke, Black [ More info ] Unavailable |
| #13 | 77416T 6 | YOKE, Bottom (1 required per assembly) (Gray) |
  |
|
77416T 6 - YOKE-BOTTOM-GRAY,NLA [ More info ] Unavailable |
| #14 | 53-77415 | RETAINING RING, Bottom Yoke (1 required per assembly) |
  |
|
53-77415 - Ring - Retaining [ More info ]
|
| #15/16 | 89105 | TILT LOCK (2 required per assembly) (Starboard/Port) |
  |
|
|
| #15/16 | 99431A 1 | TILT LOCK (2 required per assembly) (Handle Models) |
  |
|
99431A 1 - Lever Assembly [ More info ] Unavailable |
| #17 | 25-62702 | O-RING, (.301 x .070), Tilt Lock (2 required per assembly) |
  |
25-62702 - O-ring, (.301 X .070) [ More info ] Unavailable |
|
  |
|
25-62702 1 - O-Ring [ More info ]
|
| #18 | 79659 | COUPLING, Tilt Lock (1 required per assembly) |
  |
|
79659 - Tilt Lock Coupling, NLA [ More info ]
|
| #19 | 18-47959 | COTTER PIN, Tilt Lock Tube (2 required per assembly) |
  |
|
18-47959 - Cotter Pin - Priced Individually [ More info ]
|
| #20 | 56349 | SHAFT, Reverse Lock Pivot (1 required per assembly) |
  |
|
56349 - Shaft, NLA [ More info ] Unavailable |
| #21 | 23-69132 | BUSHING, Reverse Pivot Shaft (2 required per assembly) |
  |
|
23-69132 - Bushing, NLA [ More info ]
|
| #22 | 18-45882 | COTTER PIN, Reverse Lock to Shaft (2 required per assembly) |
  |
|
18-45882 - Cotter Pin - Priced Individually [ More info ]
|
| #23 | 24-78203A 2 | SPRING, Reverse Lock Tension (1 required per assembly) |
  |
|
24-78203A 2 - Pin & Spring Assembly, NLA [ More info ]
|
| #24 | 14664A 3 | REVERESE LOCK (1 required per assembly) |
  |
|
14664A 3 - Reverse Hook, NLA [ More info ] Unavailable |
| #25 | 43415 | PUSH ROD, Reverse Lock (1 required per assembly) (Short Shaft) |
  |
|
43415 - Push Rod,NLA [ More info ] Unavailable |
| #25 | 43416 | PUSH ROD, Reverse Lock (1 required per assembly) (Long Shaft) |
  |
|
43416 - Push Rod, NLA [ More info ] Unavailable |
| #26 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel, Push Rod (1 required per assembly) |
  |
12-70132 - Washer, (.323 X .563 X .063 - Stainless Steel) [ More info ] Unavailable |
|
  |
|
12-8M0042642 - Washer - Priced Individually [ More info ]
|
| #27 | 24-44297 | SPRING, Push Rod (1 required per assembly) |
  |
|
24-44297 - Spring, Push Rod,NLA [ More info ]
|
| #28 | 89813 | ROD END, Push Rod (1 required per assembly) |
  |
|
|
| #29 | 11-35814 | NUT, (.312-24) Stainless Steel, Push Rod (1 required per assembly) |
  |
11-35814 - Nut (5/16-24) [ More info ] Unavailable |
|
  |
|
11-826709 11 - Nut (5/16-24) [ More info ]
|
| #30 | 93336 | GUIDE, Push Rod (1 required per assembly) |
  |
93336 - Guide [ More info ] Unavailable |
|
  |
|
93336 1 - Guide [ More info ] Unavailable |
