Parts for Mariner 40B (Thru Prop. Exhaust) Carburetor

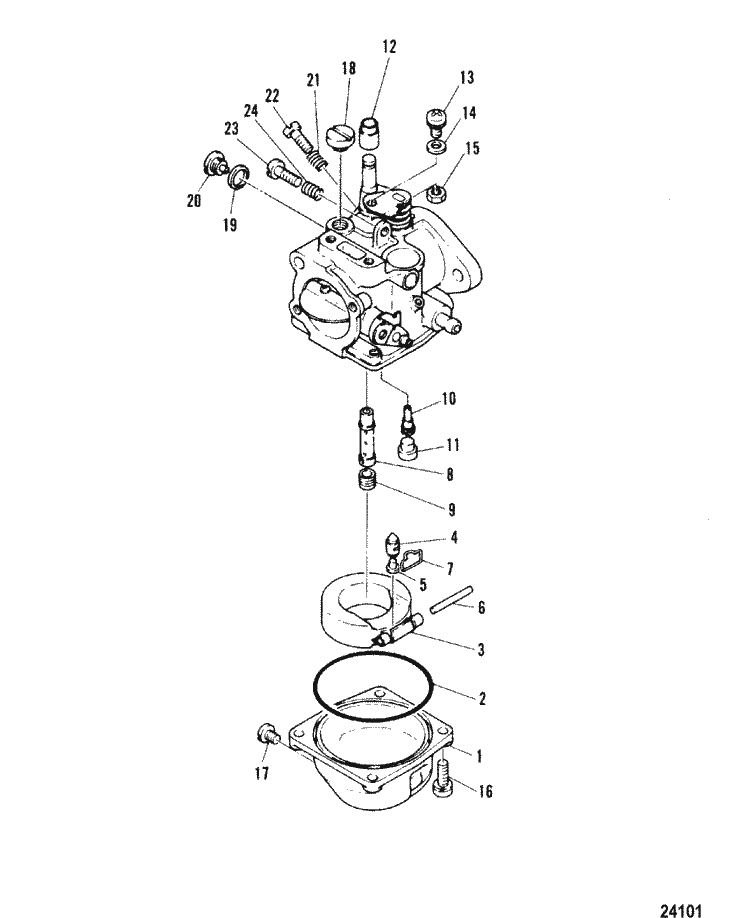

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-84167M | GASKET SET (1 required per assembly) |
  |
27-84167M - Powerhead Gasket Set [ More info ] Unavailable |
|
  |
|
27-94483M - Gasket Set [ More info ]
|
| # | 84475M | REPAIR KIT (1 required per assembly) |
  |
|
84475M - Carburetor Repair Kit [ More info ] Unavailable |
  |
|
18-7291 - Carburetor Kit, for One Carb [ More info ]
|
| #0-1 | 1383-7132M | CARBURETOR ASSY'Y (1 required per assembly) |
  |
1383-7132M - Carburetor [ More info ] Unavailable |
|
  |
|
1383-7996M - Carburetor [ More info ] Unavailable |
| #1 | 83361M | FLOAT BOWL (1 required per assembly) |
  |
|
83361M - Float Bowl,NLA [ More info ] Unavailable |
| #2 | 25-83362M | O-RING (1 required per assembly) |
  |
|
25-83362M - O-Ring [ More info ] Unavailable |
| #3 | 83363M | FLOAT (1 required per assembly) |
  |
83363M - Carburetor Float [ More info ] Unavailable |
|
  |
|
891730A01 - Float [ More info ]
|
| #4 | 83364M | INLET NEEDLE & SEAT (1 required per assembly) |
  |
|
83364M - Inlet Needle, Seat [ More info ]
|
| #5 | 17-81698M | PIN, INLET NEEDLE (1 required per assembly) |
  |
17-81698M - Pin, Inlet Needle [ More info ] Unavailable |
|
  |
|
17-92639M - Pin, Float [ More info ]
|
| #6 | 17-83365M | PIN (1 required per assembly) |
  |
17-83365M - PIN [ More info ] Unavailable |
|
  |
|
17-81278M - Pin, NLA [ More info ] Unavailable |
| #7 | 54-82781M | CLIP (1 required per assembly) |
  |
54-82781M - Clip - Priced Individually [ More info ] Unavailable |
|
  |
|
54-8M0120624 - CLIP @2 NLA [ More info ] Unavailable |
| #8 | 83887M | NOZZLE, MAIN (1 required per assembly) |
  |
|
83887M - Nozzle, NLA [ More info ] Unavailable |
| #9 | 83367M | JET, MAIN (# 155) (1 required per assembly) |
  |
|
83367M - Jet, NLA [ More info ]
|
| #10 | 83888M | JET, SLOW (# 55) (1 required per assembly) |
  |
|
83888M - JET,NLA [ More info ] Unavailable |
| #11 | 22-83369M | CAP (1 required per assembly) |
  |
22-83369M - PLUG [ More info ] Unavailable |
|
  |
|
228M0080455 - Plug [ More info ]
|
| #12 | 83370M | COLLAR (1 required per assembly) |
  |
|
83370M - COLLAR,NLA [ More info ] Unavailable |
| #13 | 10-83371M | SCREW (1 required per assembly) |
  |
|
10-83371M - Screw, NLA [ More info ]
|
| #14 | 12-83372M | WASHER (1 required per assembly) |
  |
|
12-83372M - Washer, NLA [ More info ]
|
| #15 | 11-82378M | NUT (1 required per assembly) |
  |
11-82378M - NUT [ More info ] Unavailable |
|
  |
|
11-82388M - Nut, (M5) [ More info ]
|
| #16 | 10-83373M | SCREW (4 required per assembly) |
  |
10-83373M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
10-814566M - SCREW [ More info ] Unavailable |
|
  |
10-83913M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-11796M - Screw, NLA [ More info ]
|
| #17 | 10-83374M | SCREW (1 required per assembly) |
  |
|
10-83374M - Screw, NLA [ More info ]
|
| #18 | 10-83375M | SCREW (1 required per assembly) |
  |
|
10-83375M - SCREW,NLA [ More info ] Unavailable |
| #19 | 12-83376M | WASHER (1 required per assembly) |
  |
|
12-83376M - Washer, NLA [ More info ]
|
| #20 | 10-81292M | SCREW (1 required per assembly) |
  |
|
10-81292M - SCREW,NLA [ More info ] Unavailable |
| #21 | 24-82073M | SPRING (1 required per assembly) |
  |
|
24-82073M - Spring, Compression - Idle Speed Screw,NLA [ More info ]
|
| #22 | 10-83889M | SCREW, IDLE MIXTURE (1 required per assembly) |
  |
|
10-83889M - SCREW,NLA [ More info ] Unavailable |
| #23 | 10-81277M | SCREW, IDLE SPEED (1 required per assembly) |
  |
|
10-81277M - Screw, NLA [ More info ]
|
| #24 | 24-82080M | SPRING (1 required per assembly) |
  |
|
24-82080M - Spring [ More info ] Unavailable |
