Parts for Mariner 40B (Thru Prop. Exhaust) Remote Control Attaching Kit

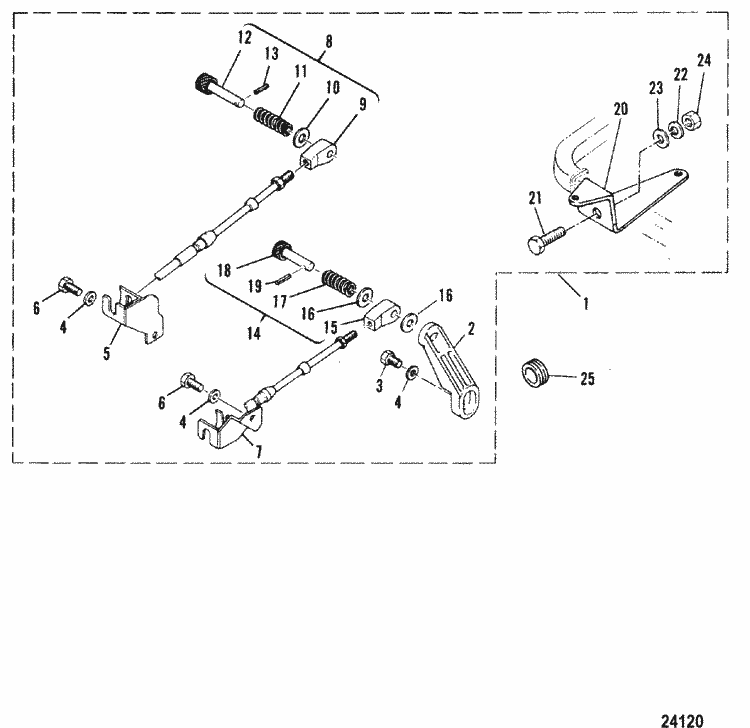

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 83635M | REMOTE CONTROL ATTACHMENT KIT (1 required per assembly) |
  |
|
83635M - Attaching Assembly [ More info ]
|
  |
|
43992A 1 - Remote Control Attaching Kit [ More info ] Unavailable |
| #2 | 83716M | THROTTLE LEVER (1 required per assembly) |
  |
|
83716M - Lever [ More info ] Unavailable |
| #3 | 10-82448M | BOLT (1 required per assembly) |
  |
10-82448M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-91772M - Bolt [ More info ]
|
| #4 | 13-82212M | LOCKWASHER (3 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #5 | 83718M | BOLT, REMOTE CONTROL (1 required per assembly) |
  |
|
83718M - Bracket, NLA [ More info ]
|
| #6 | 10-83395M | BOLT (2 required per assembly) |
  |
10-83395M - SCREW [ More info ] Unavailable |
|
  |
10-91725M - BOLT [ More info ] Unavailable |
|
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #7 | 83932M | BRACKET, REMOTE CONTROL (1 required per assembly) |
  |
|
83932M - Bracket, NLA [ More info ] Unavailable |
| #8 | 83719M | CABLE END ASSEMBLY (1 required per assembly) |
  |
|
83719M - Cable End [ More info ]
|
| #9 | 83720M | CABLE END (1 required per assembly) |
  |
|
83720M - Bracket [ More info ]
|
| #10 | 12-82216M | WASHER (1 required per assembly) |
  |
|
12-82216M - Washer, Lock, NLA [ More info ]
|
| #11 | 24-83721M | SPRING (1 required per assembly) |
  |
|
24-83721M - Spring, NLA [ More info ] Unavailable |
| #12 | 17-83722M | HOOK, CABLE (1 required per assembly) |
  |
17-83722M - Pin [ More info ] Unavailable |
|
  |
|
17-814500M - Anchor Pin, NLA [ More info ]
|
| #13 | 17-82146M | PIN, ROLL (1 required per assembly) |
  |
|
17-82146M - Pin -roll, NLA [ More info ] Unavailable |
| #14 | 83933M | CABLE END ASS'Y (1 required per assembly) |
  |
|
83933M - Cable End [ More info ]
|
| #15 | 83934M | CABLE END (1 required per assembly) |
  |
|
83934M - Cable End [ More info ]
|
| #17 | 24-83725M | SPRING (1 required per assembly) |
  |
|
24-83725M - Spring, NLA [ More info ] Unavailable |
| #18 | 17-83726M | HOOK, CABLE (1 required per assembly) |
  |
17-83726M - Pin [ More info ] Unavailable |
|
  |
|
17-814499M - PIN-ANCHOR,NLA [ More info ] Unavailable |
| #20 | 83698M | HOOK, MECHANICAL STEERING (1 required per assembly) |
  |
|
83698M - Bracket, NLA [ More info ]
|
| #21 | 10-82474M | BOLT (1 required per assembly) |
  |
10-82474M - BOLT [ More info ] Unavailable |
|
  |
|
10-91636M - Screw, NLA [ More info ]
|
| #22 | 13-82218M | LOCKWASHER (1 required per assembly) |
  |
|
13-82218M - LockWasher - Priced Individually [ More info ]
|
| #23 | 12-82220M | WASHER (1 required per assembly) |
  |
|
12-82220M - Washer - Priced Individually [ More info ] Unavailable |
| #24 | 11-82395M | NUT (1 required per assembly) |
  |
|
11-82395M - Nut - Priced Individually [ More info ]
|
| #25 | 25-83728M | GROMMET (1 required per assembly) |
  |
|
25-83728M - Grommet (w/o Manual Steering) NLA [ More info ] Unavailable |
