Parts for Mariner 40 Lightning XR (International) Steering Handle

Revise Search: All Models > 40 Lightning XR (International) > 0N000513 - 0N056164 > Steering Handle

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

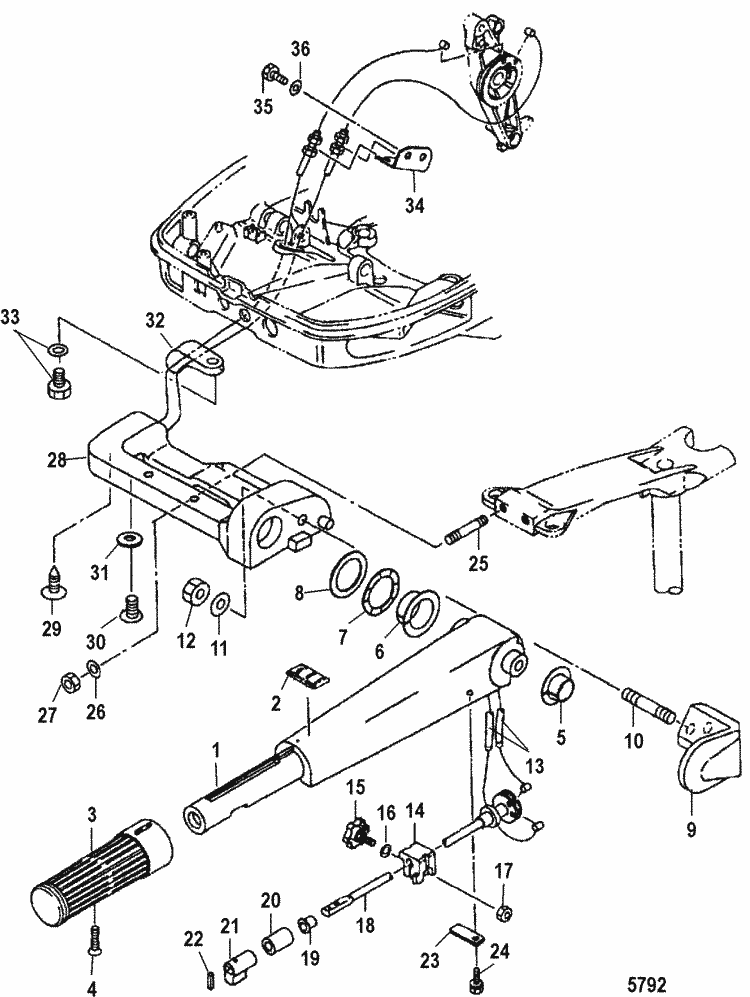

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	803996A 1	HANDLE KIT (1 required per assembly)
		803996A 1 - 803996A 1 - HANDLE KIT [ More info ] Unavailable Replaced by -803996T09
		803996T09 - Handle Kit [ More info ] $227.83 Available to Order: Shipping delay up to 10 days.
		8M0133053 - Handle Kit [ More info ] $207.99 Available to Order: Shipping delay up to 10 days.
#1	803996	HANDLE, Steering (1 required per assembly)
		803996 - HANDLE Steering [ More info ] Unavailable
#2	37-804020	DECAL, Throttle (1 required per assembly)
		37-804020 - DECAL Throttle [ More info ] Unavailable
#3	16086 1	GRIP (1 required per assembly)
		16086 1 - Grip [ More info ] $35.49 $8.50 3 In Stock.
#4	10-815046 1	SCREW (1 required per assembly)
		10-815046 1 - Screw [ More info ] $1.90 $0.38 10+ In Stock.
#5	23-851858 2	BUSHING (1 required per assembly)
		23-851858 2 - Bushing [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#6	23-851858 1	BUSHING (1 required per assembly)
		23-851858 1 - Bushing [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#7	13-804017	WAVE WASHER (1 required per assembly)
		13-804017 - Wave Washer [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#8	12-804508	WASHER (1 required per assembly)
		12-804508 - Washer - White [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#9	803997A 1	HOLDER ASSEMBLY, Steering Handle (1 required per assembly)
		803997A 1 - Bracket [ More info ] Unavailable
#10	16-811653 3	STUD (1 required per assembly)
		16-811653 3 - 16-811653 3 - STUD [ More info ] Unavailable Replaced by 16-879194300
		16879194300 - Stud [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#11	12-16826 1	WASHER (1 required per assembly)
		12-16826 1 - Washer [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#12	11-853722 15	NUT (1 required per assembly)
		11-853722 15 - Nut [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#13	84-804018	WIRE, Throttle (2 required per assembly)
		84-804018 - 84-804018 - WIRE Throttle [ More info ] Unavailable Replaced by 84-804018001
		84-804018001 - Throttle Cable [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#14	813026	FRICTION PIECE (1 required per assembly)
		813026 - Friction Piece [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#15	10-16087	SCREW, Adjusting (1 required per assembly)
		10-16087 - Screw [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#17	11-40021 2	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#18	803998	SHAFT, Throttle (1 required per assembly)
		803998 - Throttle Shaft [ More info ] $24.29 Available to Order: Shipping delay up to 10 days.
#19	23-16336	BUSHING (1 required per assembly)
		23-16336 - Bushing [ More info ] $5.30 $4.24 6 In Stock.
#20	23-16191	SPACER (1 required per assembly)
		23-16191 - Spacer - Throttle Shaft [ More info ] $6.09 $1.22 6 In Stock.
#21	23-853715 2	SPACER (1 required per assembly)
		23-853715 2 - Spacer [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#22	18-815026 3	COTTER PIN (1 required per assembly)
		18-815026 3 - Cotter Pin [ More info ] $4.49 1 In Stock.
#23	804055	BRACKET, Support (1 required per assembly)
		804055 - Plate-Support [ More info ] $3.19 $0.64 10+ In Stock.
#25	16-811654 1	STUD (2 required per assembly)
		16-811654 1 - STUD [ More info ] Unavailable
#26	12-16192	WASHER (2 required per assembly)
		12-16192 - Washer [ More info ] $3.59 3 In Stock.
#27	11-95374	NUT, Nylon (2 required per assembly)
		11-95374 - Nut, Nylon, Clamp Bracket Screw [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#28	804019	BRACKET, Steering (1 required per assembly)
		804019 - 804019 - BRACKET Steering [ More info ] Unavailable Replaced by -804019005
		804019005 - Bracket [ More info ] $120.99 Available to Order: Shipping delay up to 10 days.
#29	10-16263 6	BOLT (1 required per assembly)
		10-16263 6 - Screw [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#30	10-855544 10	SCREW (1 required per assembly)
		10-855544 10 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#31	12-95392 1	WASHER, Stainless Steel (1 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 4 In Stock.
#32	54-95395 1	CLAMP (1 required per assembly)
		54-95395 1 - Clamp [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#33	10-823042 7	BOLT, (M6 x 12) (1 required per assembly)
		10-823042 7 - Bolt [ More info ] $4.09 $2.30 10+ In Stock.
#34	853739 2	BRACKET, Throttle Link (1 required per assembly)
		853739 2 - Bracket [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#35	10-16214	BOLT (2 required per assembly)
		10-16214 - Bolt [ More info ] Unavailable
		10-16223 - Bolt [ More info ] $4.19 $0.85 10+ In Stock.
#36	12-16826	WASHER, Stainless Steel (2 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 1 In Stock.
