Parts for Mariner 40 (International) Power Trim Components

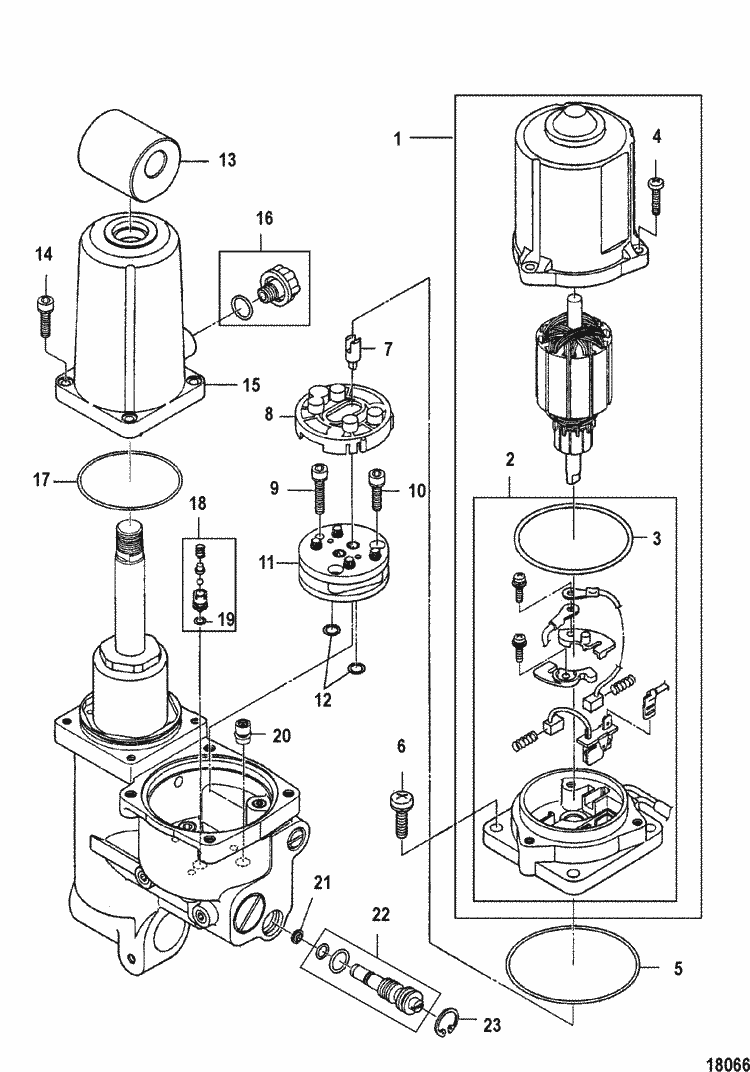

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 851873A04 | POWER TRIM ASSEMBLY (1 required per assembly) |
  |
|
851873A04 - 851873A04 - POWER TRIM ASSEMB [ More info ] Unavailable Replaced by -8M0097054 |
  |
8M0097054 - Power Trim [ More info ] Unavailable |
|
  |
|
8M0131043 - 8M0131043 - ->8M0219173 [ More info ] Unavailable Replaced by -8M0219173 |
  |
|
8M0219173 - POWER TRIM ASSY [ More info ] Unavailable |
| #1 | 827675002 | MOTOR (1 required per assembly) |
  |
827675002 - Motor [ More info ] Unavailable |
|
  |
|
8M0234862 - MOTOR ASSY [ More info ] Unavailable |
| #2 | 898101259 | BRACKET (1 required per assembly) |
  |
|
898101259 - Bracket [ More info ]
|
| #3 | 25-16131014 | O-RING (Component of O-Ring Set) (1 required per assembly) |
  |
|
25-16131014 - O-Ring [ More info ]
|
| #4 | 10-16078 | SCREW (3 required per assembly) |
  |
|
10-16078 - Screw, NLA [ More info ] Unavailable |
| #5 | 25-16131 5 | O-RING (1 required per assembly) |
  |
|
25-16131 5 - O-RING [ More info ] Unavailable |
| #6 | 10-851866013 | SCREW (4 required per assembly) |
  |
|
10-851866013 - Screw [ More info ]
|
| #7 | 851877002 | COUPLING (1 required per assembly) |
  |
|
851877002 - COUPLING [ More info ] Unavailable |
| #8 | 851876 | FILTER (1 required per assembly) |
  |
|
851876 - FILTER [ More info ] Unavailable |
| #9 | 10-851866 3 | BOLT (1 required per assembly) |
  |
|
10-851866 3 - Bolt [ More info ]
|
| #10 | 10-851866 4 | BOLT (2 required per assembly) |
  |
|
10-851866 4 - Bolt [ More info ]
|
| #11 | 827674002 | PUMP (1 required per assembly) |
  |
|
827674002 - Pump [ More info ]
|
| #12 | 25-16131 4 | O-RING (2 required per assembly) |
  |
|
25-16131 4 - O-Ring [ More info ]
|
| #13 | 853768001 | JOINT, (Metal) (1 required per assembly) |
  |
|
853768001 - Joint [ More info ]
|
| #14 | 10-851866014 | SCREW (4 required per assembly) |
  |
|
10-851866014 - Screw [ More info ]
|
| #15 | 896443 | TANK, Reservoir (1 required per assembly) |
  |
896443 - Tank-Reservoir [ More info ] Unavailable |
|
  |
|
8M0131044 - TANK - Reservoir [ More info ]
|
| #16 | 896440A01 | CAP ASSEMBLY (1 required per assembly) |
  |
|
896440A01 - Cap Assembly [ More info ]
|
| #17 | 25-16131A05 | O-RING SET (1 required per assembly) |
  |
|
2516131A05 - O-Ring Set [ More info ]
|
| #18 | 827672A05 | RELIEF VALVE ASSEMBLY (1 required per assembly) |
  |
|
827672A05 - Relief Valve [ More info ]
|
| #19 | NSS | NOT SOLD SEPARATE, O-Ring (Component of O-Ring Set) (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #20 | 813442A04 | VALVE ASSEMBLY (1 required per assembly) |
  |
|
813442A04 - Valve Assembly [ More info ]
|
| #21 | 12-95392015 | WASHER, Sealing (1 required per assembly) |
  |
12-95392015 - Washer, Sealing [ More info ] Unavailable |
|
  |
|
26-898101245 - Seal [ More info ]
|
| #22 | 813442A03 | MANUAL VALVE ASSEMBLY (1 required per assembly) |
  |
|
813442A03 - MANUAL Valve [ More info ]
|
| #23 | 53-804027004 | C RING (1 required per assembly) |
  |
53-804027004 - C-Ring [ More info ] Unavailable |
|
  |
|
53-804027002 - C Ring [ More info ]
|
