Parts for Mariner 40 HP Carburetor (3 Cylinder) (4-Stroke) Cylinder Head

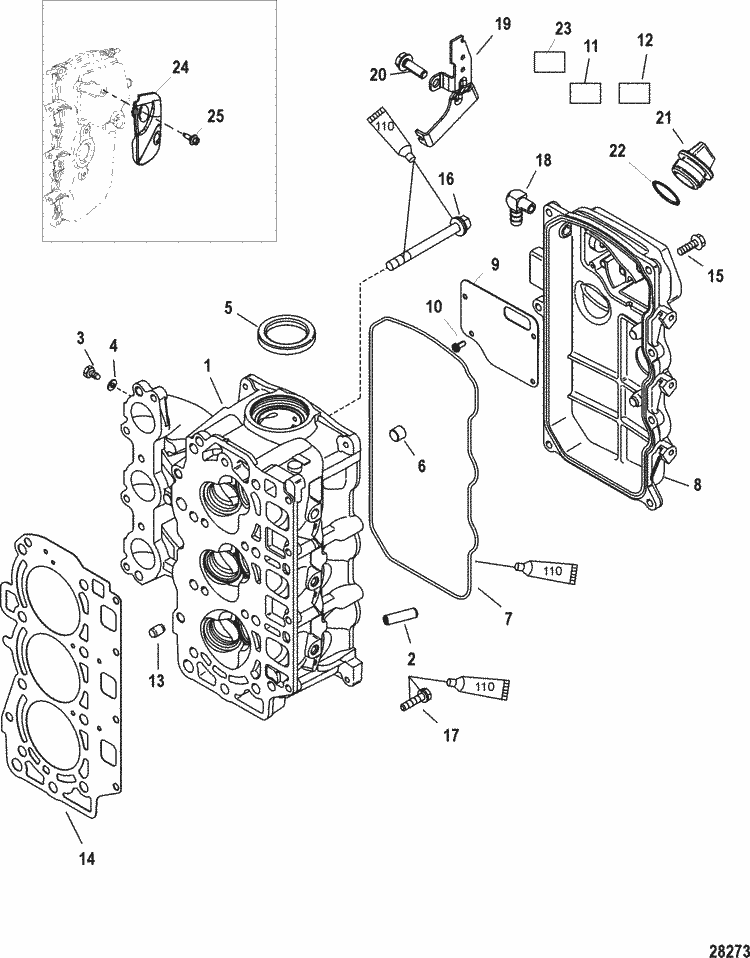

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 900-893504T02 | CYLINDER HEAD ASSEMBLY (1 required per assembly) |
  |
|
893504T02 - Cylinder Head Assembly [ More info ]
|
| # | 61-893714T05 | POWERHEAD ASSEMBLY (1 required per assembly) |
  |
|
893714T05 - Green PH Assembly -3 Cylinder [ More info ] Unavailable |
| # | 27-825231A02 | GASKET SET, Engine (1 required per assembly) |
  |
|
27-825231A02 - Engine Gasket Set [ More info ] Unavailable |
| #1 | 893504T | CYLINDER HEAD (1 required per assembly) |
  |
893504T - Cylinder Head [ More info ] Unavailable |
|
  |
|
900-8M0224247 - CYLINDER HEAD [ More info ] Unavailable |
| #2 | 858266 | GUIDE (6 required per assembly) |
  |
|
858266 - Valve Guide, NLA [ More info ]
|
| #3 | 10-40003 25 | SCREW, (M6 x 8) (3 required per assembly) |
  |
|
10-40003 25 - Screw [ More info ]
|
| #4 | 12-859768 | WASHER (3 required per assembly) |
  |
|
12-859768 - Washer [ More info ]
|
| #5 | 26-858267 | SEAL, Oil (1 required per assembly) |
  |
26-858267 - Seal [ More info ] Unavailable |
|
  |
|
26-893549 - Oil Seal [ More info ]
|
| #6 | 22-875209 | PIPE PLUG (5 required per assembly) |
  |
|
22-875209 - Pipe Plug [ More info ]
|
| #7 | 25-893898 | SEAL (1 required per assembly) |
  |
25-893898 - Seal [ More info ] Unavailable |
|
  |
|
25-8M0162934 - SEAL [ More info ]
|
| #8 | 893693A04 | COVER ASSEMBLY (1 required per assembly) |
  |
893693A04 - Cover Assembly [ More info ] Unavailable |
|
  |
|
8M0174399 - COVER ASSY [ More info ] Unavailable |
| #9 | 893711 | PLATE, Baffle (1 required per assembly) |
  |
|
893711 - Baffle Plate [ More info ]
|
| #10 | 10-8M0001075 | SCREW, (M4) (4 required per assembly) |
  |
|
10-8M0001075 - Screw - Priced Individually [ More info ]
|
| #11 | NSS | NOT SOLD SEPARATE, Decal- Servicing Referral (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #13 | 17-825010 | PIN, Dowel (2 required per assembly) |
  |
|
17-825010 - Pin -Dowel [ More info ]
|
| #14 | 27-834777 | GASKET (1 required per assembly) |
  |
27-834777 - Cylinder Head Gasket [ More info ] Unavailable |
|
  |
|
27-8M0118180 - Head Gasket - 3CYL [ More info ]
|
| #15 | 10-40011128 | SCREW, (M6 x 20) Stainless Steel (7 required per assembly) |
  |
10-40011128 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
108M4503518 - Screw , Priced Individually [ More info ] Unavailable |
|
  |
|
108M0204741 - SCREW Note: Priced Individually [ More info ]
|
| #16 | 10-825033 95 | SCREW, (M9 x 95) (8 required per assembly) |
  |
|
10-825033 95 - Screw [ More info ] Unavailable |
| #17 | 10-825009 25 | SCREW, (M6 x 25) (4 required per assembly) |
  |
|
10-825009 25 - Screw [ More info ]
|
  |
|
10893745025 - Screw (M6 x 25) [ More info ]
|
| #18 | 22-62910 1 | FITTING, Elbow - 90 Degree (.125-27) (1 required per assembly) |
  |
|
22-62910 1 - Elbow [ More info ]
|
| #19 | 830294T 1 | BRACKET (1 required per assembly) Handle |
  |
|
830294T 1 - Bracket [ More info ] Unavailable |
| #20 | 10-40011126 | SCREW, (M6 x 13) Stainless Steel (2 required per assembly) Handle |
  |
|
10-40011126 - Screw - Priced Individually [ More info ]
|
| #21 | 859578A 1 | PLUG ASSEMBLY, Oil (1 required per assembly) |
  |
|
859578A 1 - Oil Plug Assembly [ More info ]
|
| #22 | 25-90196 | O-RING, (.921 x .139) (1 required per assembly) |
  |
25-90196 - O-ring, (.921 X .139) [ More info ] Unavailable |
|
  |
|
258M0204673 - O RING [ More info ]
|
| #24 | 8M0026326 | DEFLECTOR, Cowl (1 required per assembly) |
  |
|
8M0026326 - Deflector [ More info ]
|
| #25 | 10-8M0012661 | SCREW (2 required per assembly) |
  |
|
10-8M0012661 - Screw [ More info ]
|
