Parts for Mariner 40 HP (2 Cylinder) Steering Handle Assembly

Revise Search: All Models > 40 HP (2 Cylinder) > 9251456 & Up (Belgium) > Steering Handle Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

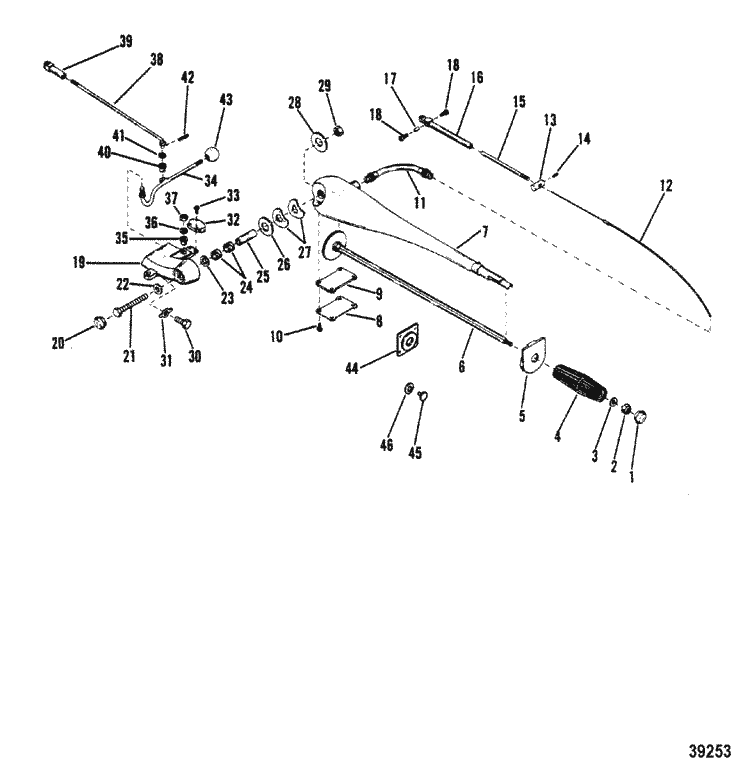

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	52148A 1	CO-PILOT KIT (1 required per assembly)
		52148A 1 - Co Pilot Assembly [ More info ] Unavailable
#	78551A 4	HANDLE ASSEMBLY, Steering (1 required per assembly)
		78551A 4 - Tiller Handle Kit, NLA [ More info ] Unavailable
#1	48416	CAP, STEERING HANDLE GRIP (1 required per assembly)
		48416 - Cap [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#2	11-20586	NUT, (.250-28), STEERING HANDLE ARM (1 required per assembly)
		11-20586 - Nut, (.250-28) [ More info ] $0.46 1 In Stock.
		11-35045 - Nut (1/4-28) [ More info ] Unavailable
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 4 In Stock.
#3	12-21631	WASHER, (.255 x .625 x .0312), STEERING HANDLE ARM (1 required per assembly)
		12-21631 - Washer, (.255 X .625 X .0312) [ More info ] $2.49 2 In Stock.
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#4	58192A 1	GRIP, STEERING HANDLE ARM (1 required per assembly)
		58192A 1 - GRIP ASSY,NLA [ More info ] Unavailable
#5	48414	HOUSING, DRIVE WHEEL - STEERING ARM HANDLE (1 required per assembly)
		48414 - Housing [ More info ] $41.49 Available to Order: Shipping delay up to 10 days.
#6	48516A 1	DRIVE WHEEL/ROD ASSEMBLY (1 required per assembly)
		48516A 1 - Drive Wheel Assembly, NLA [ More info ] Unavailable
#7	48405	ARM, STEERING HANDLE (1 required per assembly)
		48405 - ARM [ More info ] Unavailable
		48405A 2 - Arm Assembly - Black, NLA [ More info ] $64.13 $54.32 1 In Stock.
#8	48519	PLATE, COVER - DRIVE WHEEL (1 required per assembly)
		48519 - Plate [ More info ] $20.19 Available to Order: Shipping delay up to 10 days.
#9	27-48518	GASKET, COVER PLATE (1 required per assembly)
		27-48518 - Cover Plate Gasket [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#10	10-28192	SCREW, (#10-24 x .50) (4 required per assembly)
		10-28192 - Screw - Priced Individually [ More info ] $0.61 10+ In Stock.
		10-72169 - Screw [ More info ] $1.10 $0.88 1 In Stock.
#11	78551 2	CONDUIT, CABLE (1 required per assembly)
		78551 2 - Conduit, NLA [ More info ] Unavailable
		888524 2 - Conduit [ More info ] Unavailable
#12	48520	CABLE, Throttle (1 required per assembly)
		48520 - Throttle Cable [ More info ] Unavailable
#13	89578	BARREL, CONTROL LINKAGE (1 required per assembly)
		89578 - Barrel [ More info ] $49.24 9 In Stock.
#14	10-89601	SCREW, SET - THROTTLE CABLE GUIDE TUBE (1 required per assembly)
		10-89601 - Screw [ More info ] Unavailable
		10-824081 - Screw -set [ More info ] $1.00 $0.56 8 In Stock.
#15	89566	TUBE, THROTTLE CABLE GUIDE (1 required per assembly)
		89566 - Guide Tube [ More info ] Unavailable
		89566 1 - TUBE-GUIDE [ More info ] Unavailable
		8M0026078 - Tube - Guide [ More info ] Unavailable
#16	29880	GUIDE, THROTTLE CABLE (1 required per assembly)
		29880 - Guide - Priced Individually [ More info ] Unavailable
		43433 - Guide - Priced Individually [ More info ] $9.99 7 In Stock.
		8M0204660 - SHIFT CABLE END GUIDE Note: Priced Individually ZZ [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
		18-2149 - Guide, 43433 [ More info ] $13.59 1 In Stock.
#17	20007	ANCHOR, THROTTLE CABLE (1 required per assembly)
		20007 - End- Cable - Priced Individually [ More info ] $28.69 $19.26 10+ In Stock.
#18	10-20518	SET SCREW, (#8-32), THROTTLE CABLE ANCHOR (2 required per assembly)
		10-20518 - Screw -set - Priced Individually [ More info ] $1.11 10+ In Stock.
		10-8M0204644 - SCREW-SET @25 [ More info ] Unavailable
		18-2303 - Cable Anchor Set Screw [ More info ] $1.58 $1.22 Available to Order: Shipping delay up to 10 days.
#19	48404	BRACKET, STEERING HANDLE (1 required per assembly)
		48404 - Bracket [ More info ] Unavailable
		48404T - Bracket [ More info ] Unavailable
		48404T 1 - Bracket [ More info ] Unavailable
		48404F 3 - Bracket-BLACK [ More info ] Unavailable
		48404T 8 - Bracket [ More info ] Unavailable
#21	10-48476	SCREW (1 required per assembly)
		10-48476 - Screw [ More info ] Unavailable
		10-823597 - Screw, NLA [ More info ] $2.00 $1.69 10+ In Stock.
#22	12-48477	WASHER, STEERING HANDLE BRACKET (.505 I.D.) (1 required per assembly)
		12-48477 - Washer, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#23	12-48526	WASHER, NYLON - HANDLE BRACKET (.630 I.D.) (1 required per assembly)
		12-48526 - Washer, Nylon (.630) [ More info ] $2.99 $2.53 10+ In Stock.
#24	23-28919	BUSHING, NYLON - HANDLE BRACKET (5/8" I.D.) (2 required per assembly)
		23-28919 - Bushing , NLA [ More info ] $14.99 10+ In Stock.
#25	23-48525	SPACER, STEERING HANDLE BRACKET (1 required per assembly)
		23-48525 - Spacer, NLA [ More info ] Unavailable
#26	12-48527	WASHER, NYLON - HANDLE BRACKET (1-35/64" O.D.) (1 required per assembly)
		12-48527 - Washer-nylon (1-35/64 In. O.d.) [ More info ] Unavailable
		12-38000 - Washer, Synthane - Bell Housing (without Gimbal Trim Sender) NLA [ More info ] $2.59 10+ In Stock.
#27	13-48478	WAVE WASHER, STEERING HANDLE BRACKET (2 required per assembly)
		13-48478 - Wave Washer, NLA [ More info ] $2.22 $1.88 3 In Stock.
#28	12-49636	WASHER, NYLON - HANDLE BRACKET (1-3/4 O.D.) (1 required per assembly)
		12-49636 - Washer-nylon (1-3/4 In. O.d.) NLA [ More info ] $2.78 $2.36 10+ In Stock.
#29	11-20220	NUT, (.500-20), STEERING HANDLE BRACKET SCREW (1 required per assembly)
		11-20220 - Nut (1/2-20) [ More info ] $4.43 10+ In Stock.
		11-826713 17 - Nut, (.500-20) [ More info ] $3.79 $3.04 10+ In Stock.
#30	10-35786	SCREW, (.375-24 x 1.00), BRACKET TO ENGINE (2 required per assembly)
		10-35786 - Screw - Priced Individually [ More info ] $0.80 9 In Stock.
#31	14-31828	TAB WASHER, BRACKET SCREW (2 required per assembly)
		14-31828 - Tab Washer - Priced Individually [ More info ] Unavailable
		14-43589 - Tab Washer, NLA [ More info ] $1.99 $1.68 10 In Stock.
#32	78812A 1	DETENT, SHIFT LEVER (1 required per assembly)
		78812A 1 - Plate Assembly [ More info ] Unavailable
#33	10-48409	SCREW, (#10-16 x .625) Stainless Steel (2 required per assembly)
		10-48409 - Screw - Priced Individually [ More info ] $2.49 7 In Stock.
#34	48521	LEVER, Shift (1 required per assembly)
		48521 - Shift Lever [ More info ] Unavailable
		48568 1 - Shift Lever, NLA [ More info ] Unavailable
#35	23-48237	BUSHING, NYLON - SHIFT LEVER (3/8" I.D.) (1 required per assembly)
		23-48237 - Bushing [ More info ] $2.40 2 In Stock.
#36	12-34931	WASHER, (.406 x .734 x .063) Stainless Steel, SHIFT LEVER (1 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#37	11-34863	NUT, (.375-24), SHIFT LEVER TO STEERING HANDLE BRACKET (1 required per assembly)
		11-34863 - Nut (3/8-24) [ More info ] Unavailable
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#38	49563	SHIFT ROD, SHIFT (1 required per assembly)
		49563 - Rod [ More info ] Unavailable
		812806 1 - ROD-Shift, NLA [ More info ] Unavailable
#39	48419	ROD END, SHIFT ROD (1 required per assembly)
		48419 - Rod End [ More info ] Unavailable
		48419T - ROD END-2.16 IN [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#40	23-48475	BUSHING, NYLON - SHIFT ROD (1/4" I.D.) (1 required per assembly)
		23-48475 - Bushing [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#41	12-35950	WASHER, (.273 x .437 x .031) Stainless Steel, SHIFT ROD (1 required per assembly)
		12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ] $1.80 5 In Stock.
#42	18-25191	COTTER PIN, SHIFT ROD (2 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $3.79 10+ In Stock.
#43	98530	KNOB, SHIFT LEVER (1 required per assembly)
		98530 - Knob [ More info ] Unavailable
#44	45064	COVER, BOTTOM COWL - SHORTING SWITCH (1 required per assembly)
		45064 - Plug, NLA [ More info ] Unavailable
#45	19-35827	PLUG, BOTTOM COWL - SHORTING SWITCH HOLE (1 required per assembly)
		19-35827 - Plug, NLA [ More info ] $2.72 $2.31 10+ In Stock.
#46	11-30428	FASTENER, PLUG TO BOTTOM COWL (1 required per assembly)
		11-30428 - Nut, NLA [ More info ] Unavailable
