Parts for Mariner 4 HP (4-Stroke) Steering Handle

Revise Search: All Models > 4 HP (4-Stroke) > 0P401000 & Up (Belgium) > Steering Handle

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

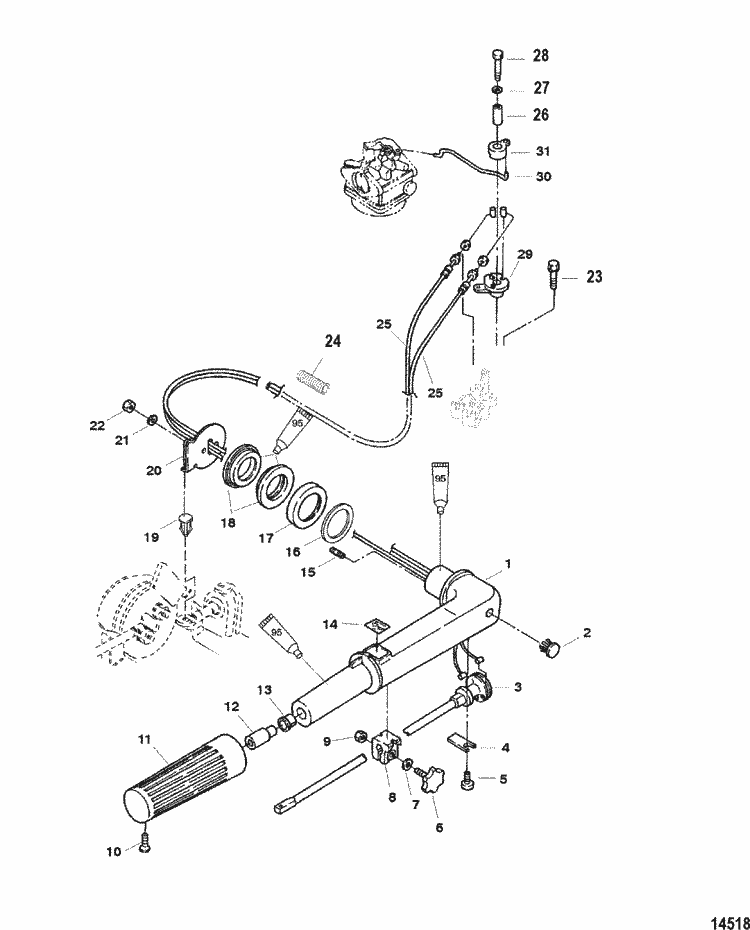

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	803565T 1	HANDLE KIT, Steering (1 required per assembly)
		803565T 1 - Steering Handle Assembly [ More info ] Unavailable
		8M0106934 - Handle Assembly [ More info ] $266.92 Available to Order: Shipping delay up to 10 days.
#1	803565T	HANDLE, Steering (1 required per assembly)
		803565T - Steering Handle A [ More info ] $109.99 Available to Order: Shipping delay up to 10 days.
#2	17-16085	PIN (1 required per assembly)
		17-16085 - Pin [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#3	16093	SHAFT, Throttle (1 required per assembly)
		16093 - Throttle Shaft [ More info ] $56.99 Available to Order: Shipping delay up to 10 days.
#4	16338	BRACKET (1 required per assembly)
		16338 - Throttle Shaft Bracket [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#5	10-16827	SCREW (1 required per assembly)
		10-16827 - Screw [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#6	10-16087	SCREW, Adjusting (1 required per assembly)
		10-16087 - Screw [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#7	12-16826	WASHER, Stainless Steel (1 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 1 In Stock.
#8	813026	FRICTION PIECE (1 required per assembly)
		813026 - Friction Piece [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#9	11-40021 2	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#10	10-16094	SCREW (1 required per assembly)
		10-16094 - Screw [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#11	16086	GRIP (1 required per assembly)
		16086 - Grip [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#12	803569	SHAFT, Rubber (1 required per assembly)
		803569 - Shaft, NLA [ More info ] $3.39 $2.72 10+ In Stock.
#13	23-803567 1	BUSHING (1 required per assembly)
		23-803567 1 - Bushing, NLA [ More info ] Unavailable
#14	37-16090	DECAL (1 required per assembly)
		37-16090 - Decal - Throttle [ More info ] Unavailable
		378M0097201 - Decal-Throttle [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#15	16-815028	STUD BOLT (2 required per assembly)
		16-815028 - Stud [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#16	12-804508	WASHER (1 required per assembly)
		12-804508 - Washer - White [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#17	23-803566	SPACER (1 required per assembly)
		23-803566 - Spacer, NLA [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#18	23-803567	BUSHING (2 required per assembly)
		23-803567 - Bushing [ More info ] $10.09 Available to Order: Shipping delay up to 10 days.
#20	803568 1	STOPPER (1 required per assembly)
		803568 1 - Stopper [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#21	13-40025 6	LOCKWASHER, (M6) (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#23	10-823042 35	BOLT, (M6 x 45) (2 required per assembly)
		10-823042 35 - Bolt [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#24	23-803564	PROTECTIVE SLEEVE (1 required per assembly)
		23-803564 - Sleeve [ More info ] Unavailable
		853740018 - Sleeve [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#25	84-803570001	WIRE, Throttle (1 required per assembly)
		84-803570001 - Throttle Wire [ More info ] $33.09 Available to Order: Shipping delay up to 10 days.
#26	23-803573	COLLAR (1 required per assembly)
		23-803573 - Collar [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#27	12-95392 1	WASHER, Stainless Steel (1 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#28	10-823042 20	BOLT, (M6 x 35) (1 required per assembly)
		10-823042 20 - Bolt [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#29	803571	DRUM, Throttle (1 required per assembly)
		803571 - Throttle Drum [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#30	803574	ROD, Throttle (1 required per assembly)
		803574 - Throttle Rod [ More info ] $9.99 1 In Stock.
#31	803572	OPENER, Throttle (1 required per assembly)
		803572 - Throttle Opener [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
