Parts for Mariner 3.5 HP Carburetor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1383-6908M | CARBURETOR (1 required per assembly) SERIAL 00025236-09999999 |
  |
|
1383-6908M - Carburetor [ More info ] Unavailable |
| # | 1383-6711M | CARBURETOR (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
1383-6711M - Carburetor [ More info ] Unavailable |
| #1 | 82839M | FLOAT BOWL (1 required per assembly) |
  |
|
82839M - Float Bowl, NLA [ More info ] Unavailable |
| #1 | 80118M | FLOAT BOWL (1 required per assembly) |
  |
|
80118M - Float Bowl,NLA [ More info ] Unavailable |

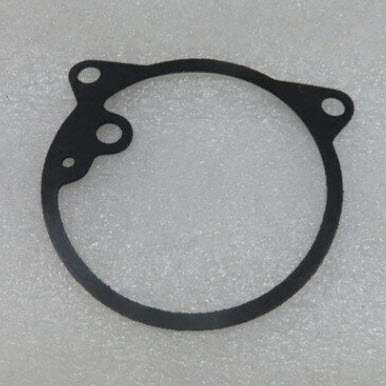

| #2 | 27-80078M | GASKET (1 required per assembly) |
  |
|
27-80078M - Carburetor Gasket [ More info ]
|
| #3 | 10-82501M | SCREW (3 required per assembly) |
  |
|
10-82501M - SCREW,NLA [ More info ] Unavailable |
| #4 | 13-82184M | LOCKWASHER (3 required per assembly) |
  |
13-82184M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-82206M - LockWasher - Priced Individually [ More info ]
|
| #5 | NLA | MAIN NOZZLE (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #6 | 24-80080M | SPRING (1 required per assembly) |
  |
|
24-80080M - SPRING,NLA [ More info ] Unavailable |
| #7 | 10-80089M | SCREW (1 required per assembly) |
  |
|
10-80089M - SCREW,NLA [ More info ] Unavailable |
| #8 | 80075M | FLOAT (1 required per assembly) |
  |
|
80075M - Float, NLA [ More info ] Unavailable |
| #9 | 17-80076M | FLOAT PIN (1 required per assembly) |
  |
|
17-80076M - Float Pin, NLA [ More info ]
|

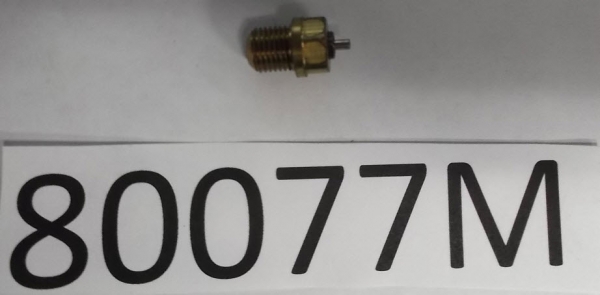

| #10 | 80077M | INLET VALVE (1 required per assembly) |
  |
|
80077M - Inlet Valve/Seat, NLA [ More info ] Unavailable |
| #11 | 27-80008M | GASKET (1 required per assembly) |
  |
|
27-80008M - Inlet Valve Gasket [ More info ]
|
| #12 | 80083M | MAIN JET (#75) (1 required per assembly) |
  |
|
80083M - Jet, NLA [ More info ]
|
| #12 | 80082M | MAIN JET (#70) (1 required per assembly) |
  |
|
80082M - Jet, NLA [ More info ]
|
| #12 | 80084M | ,MAIN JET (#80) (1 required per assembly) |
  |
|
80084M - JET,NLA [ More info ] Unavailable |
| #12 | 80085M | MAIN JET (#85) (1 required per assembly) |
  |
|
80085M - JET,NLA [ More info ] Unavailable |
| #13 | 10-82486M | SCREW (1 required per assembly) |
  |
|
10-82486M - SCREW,NLA [ More info ] Unavailable |
| #15 | 80014M | COVER (1 required per assembly) |
  |
|
80014M - Cover, NLA [ More info ] Unavailable |
| #16 | 80072M | CAP (1 required per assembly) |
  |
|
80072M - CAP,NLA [ More info ] Unavailable |
| #17 | 80074M | PLATE (1 required per assembly) |
  |
|
80074M - PLATE,NLA [ More info ] Unavailable |
| #18 | 24-80013M | SPRING (1 required per assembly) |
  |
|
24-80013M - SPRING,NLA [ More info ] Unavailable |
| #20 | 80117M | THROTTLE SHAFT (1 required per assembly) |
  |
|
80117M - SHAFT,NLA [ More info ] Unavailable |
| #23 | 13-82186M | LOCKWASHER (1 required per assembly) |
  |
|
13-82186M - LockWasher, NLA [ More info ]
|
| #24 | 11-82375M | NUT (1 required per assembly) |
  |
|
11-82375M - Nut, NLA [ More info ] Unavailable |
| #25 | 80069M | LOW SPEED JET (#40) (1 required per assembly) |
  |
|
80069M - JET,NLA [ More info ] Unavailable |
| #26 | 80070M | JET PIPE (1 required per assembly) |
  |
|
80070M - Pipe, NLA [ More info ]
|
| #27 | 10-80079M | IDLE MIXTURE SCREW (1 required per assembly) |
  |
|
10-80079M - Screw, NLA [ More info ] Unavailable |
| #28 | 27-80086M | GASKET S-25235 L-42370 & BELOEW (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
27-80086M - Drain Gasket [ More info ] Unavailable |
| #29 | 82540M | DRAIN VALVE (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
82540M - DRAIN Valve, NLA [ More info ] Unavailable |
| #30 | 24-80022M | SPRING (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
24-80022M - SPRING,NLA [ More info ] Unavailable |
| #31 | 12-81700M | WASHER (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
12-81700M - WASHER,NLA [ More info ] Unavailable |
| #32 | 10-81682M | BOLT (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
10-81682M - SCREW,NLA [ More info ] Unavailable |
| #33 | 32-81992M | HOSE (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
32-81992M - Hose, NLA [ More info ] Unavailable |
| #34 | 54-82045M | CLAMP (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
54-82045M - Clip, NLA [ More info ]
|
| #35 | 80081M | CAP (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
80081M - CAP,NLA [ More info ] Unavailable |
| #36 | 80090M | BUTTON PUSH (1 required per assembly) SERIAL 00000000-00025235 |
  |
|
80090M - PUSH BUTTON,NLA [ More info ] Unavailable |
