Parts for Mariner 3.5 (4-Stroke) Carburetor Clamp Bracket

Revise Search: All Models > 3.5 (4-Stroke) Carburetor > 0R131842 & Up > Clamp Bracket

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

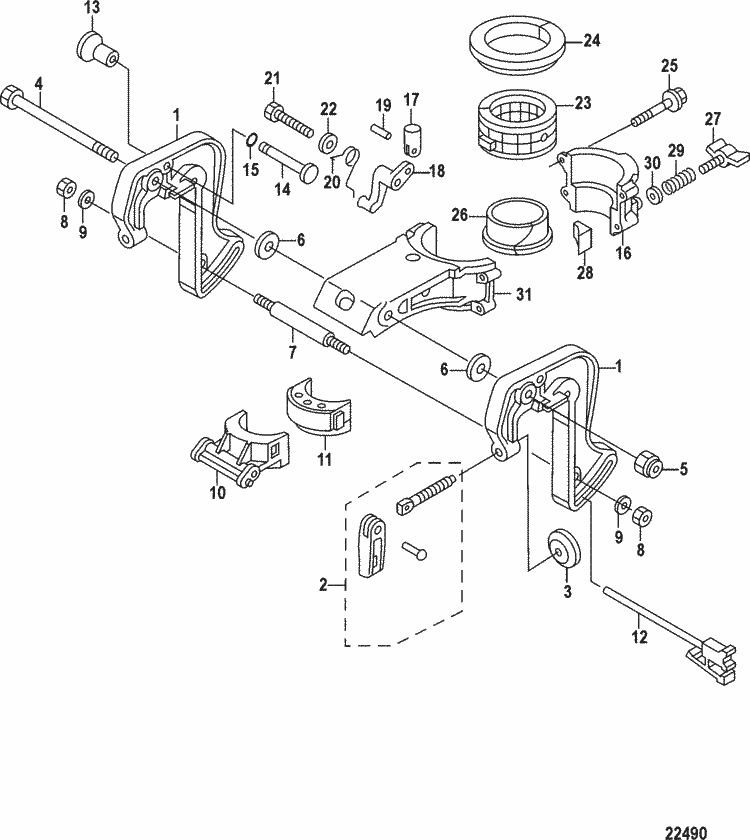

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	3406-898103T69	CLAMP BRACKET (2 required per assembly) SN# 0R190771 & Below
		3406-898103T69 - ORD3406-889246A8, NLA [ More info ] Unavailable
#1	3406-889246T84	CLAMP BRACKET (2 required per assembly) SN# 0R190772 & Up
		3406-889246T84 - CLAMP BRACKET NLA [ More info ] Unavailable
#2	10-898103A66	CLAMP SCREW ASSEMBLY (2 required per assembly)
		10-898103A66 - SCREW KIT-CLAMP [ More info ] Unavailable
#3	12-95379	PAD (2 required per assembly)
		12-95379 - Washer,Pad, Clamp Screw [ More info ] Unavailable
#4	10-898101337	SCREW (1 required per assembly)
		10-898101337 - Screw [ More info ] $24.99 Available to Order: Shipping delay up to 10 days.
#5	11-815088	NUT, (M8) (1 required per assembly)
		11-815088 - Nut, (M8) [ More info ] Unavailable
		11-95374 - Nut, Nylon, Clamp Bracket Screw [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#6	12-95375	WASHER (2 required per assembly)
		12-95375 - Washer, Clamp Bracket Bolt [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.

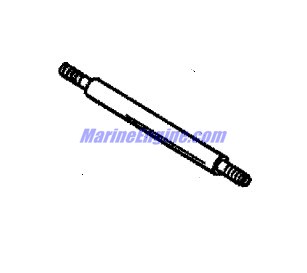

#7	815091	DISTANCE ROD (1 required per assembly)
		815091 - Distance Rod [ More info ] Unavailable
		8M0055576 - Distance Rod [ More info ] $15.89 1 In Stock.
#8	11-853722022	NUT (2 required per assembly)
		11-853722022 - NUT [ More info ] Unavailable
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#10	898101341	THRUST SUPPORTER (1 required per assembly)
		898101341 - Thrust Supporter [ More info ] $14.09 Available to Order: Shipping delay up to 10 days.
#11	898101626	DAMPER (1 required per assembly)
		898101626 - Damper [ More info ] $64.49 Available to Order: Shipping delay up to 10 days.
#12	898101631	THRUST ROD (1 required per assembly)
		898101631 - Thrust Rod [ More info ] Unavailable
		815092 1 - Thrust Rod [ More info ] $30.79 Available to Order: Shipping delay up to 10 days.
#13	815096	KNOB (1 required per assembly)
		815096 - Knob [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#14	815094001	STOPPER, Tilt (1 required per assembly) SN# 0R190771 & Below
		815094001 - Tilt Stopper [ More info ] Unavailable
#14	815094007	TILT STOPPER (1 required per assembly) SN# 0R190772 & Up
		815094007 - 8M0058363 [ More info ] Unavailable

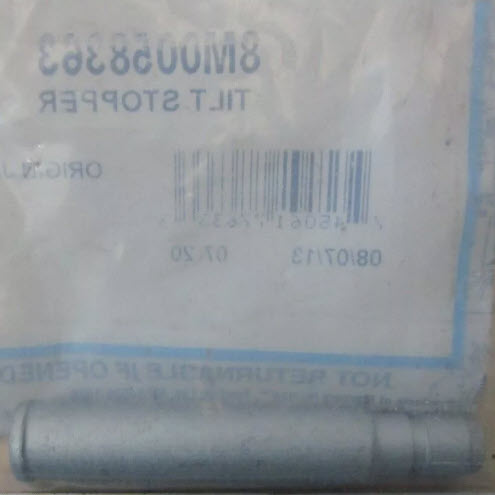

		8M0058363 - Tilt Stopper [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#15	25-898101798	O-RING (1 required per assembly) SN# 0R190771 & Below
		25-898101798 - O-Ring [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#15	25-16178 1	O-RING (1 required per assembly) SN# 0R190772 & Up
		25-16178 1 - O-Ring [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#16	3406-889246T63	CAP, Swivel Bracket (1 required per assembly)
		3406-889246T63 - Cap -Swivel Bracket [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#17	898101633	STOPPER (1 required per assembly)
		898101633 - Stopper [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#18	898101342	PLATE (1 required per assembly)
		898101342 - Plate [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#19	17-17033	PIN (1 required per assembly)
		17-17033 - Spring,Pin [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#20	24-898101347	SPRING (1 required per assembly)
		24-898101347 - Spring [ More info ] $12.09 Available to Order: Shipping delay up to 10 days.
#21	10-16126 8	BOLT, Stainless Steel (1 required per assembly)
		10-16126 8 - BOLT [ More info ] Unavailable
		10-879194305 - Bolt [ More info ] $10.09 Available to Order: Shipping delay up to 10 days.
#22	12-895106	WASHER, Stainless Steel (1 required per assembly)
		12-895106 - Washer, Stainless Steel [ More info ] Unavailable
		12-879194338 - Washer - Priced Individually [ More info ] Unavailable
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#23	23-824966	BUSHING (1 required per assembly)
		23-824966 - Bushing [ More info ] Unavailable
		238M0057473 - Bushing [ More info ] $23.89 Available to Order: Shipping delay up to 10 days.
#24	803582	THRUST PLATE (1 required per assembly)
		803582 - Thrust Plate [ More info ] $27.59 Available to Order: Shipping delay up to 10 days.
#25	10-803509018	SCREW (4 required per assembly)
		10-803509018 - SCREW [ More info ] Unavailable
		10-898103226 - Bolt [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.

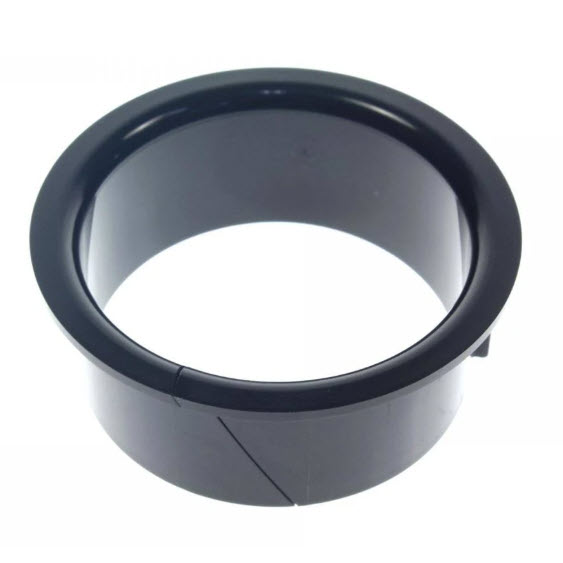

#26	23-95381001	BUSHING (1 required per assembly)
		23-95381001 - Bushing [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#27	10-16206 1	SCREW, Adjusting (1 required per assembly)
		10-16206 1 - Screw [ More info ] Unavailable
#28	95279 1	FRICTION PAD (1 required per assembly)
		95279 1 - Friction Piece [ More info ] $17.99 Available to Order: Shipping delay up to 10 days.
#29	24-95383 8	SPRING (1 required per assembly)
		24-95383 8 - Spring [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#31	3406-889246T62	SWIVEL BRACKET (1 required per assembly)
		3406-889246T62 - Swivel Bracket [ More info ] $76.99 Available to Order: Shipping delay up to 10 days.
