Parts for Mariner 30A Electric Start Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 89-96356M | STARTER SOLENOID ASSEMBLY (1 required per assembly) |
  |
89-96356M - Solenoid [ More info ] Unavailable |
|
  |
89-95642M - Solenoid [ More info ] Unavailable |
|
  |
89-825096 - Solenoid [ More info ] Unavailable |
|
  |
89-825096T - Solenoid [ More info ] Unavailable |
|
  |
|
825096T01 - Starter Solenoid [ More info ] Unavailable |
  |
|
18-5821 - Starter Solenoid [ More info ]
|
  |
|
89-8M0098898 - Relay Assembly [ More info ]
|
  |
|
SW945 - Solenoid [ More info ]
|
| #2 | 89-95642M | SOLENOID (1 required per assembly) |
| #3 | 95643M | BRACKET (1 required per assembly) |
  |
95643M - HOLDER - Solenoid [ More info ] Unavailable |
|
  |
|
8M0010250 - Bracket [ More info ]
|
| #4 | 811182M | PLATE (1 required per assembly) |
  |
|
811182M - PLATE,NLA [ More info ] Unavailable |
| #5 | 84-97133M | WIRE (1 required per assembly) |
  |
|
84-97133M - Wire, NLA [ More info ] Unavailable |
| #6 | 814995M | RECTIFIER (1 required per assembly) |
  |
|
814995M - Rectifier, NLA [ More info ] Unavailable |
  |
|
18-99437 - Rectifier Yamaha & Mariner 1, 2 & 3 Cylinder , 157-664-61 [ More info ]
|
| #7 | 10-82521M | SCREW (1 required per assembly) |
  |
|
10-82521M - Screw [ More info ]
|
  |
|
10-83108M - Screw, NLA [ More info ]
|
| #8 | 12-82211M | WASHER (1 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #9 | 10-813477M | BOLT (2 required per assembly) |
  |
10-813477M - BOLT [ More info ] Unavailable |
|
  |
|
10-91772M - Bolt [ More info ]
|
| #10 | 13-82212M | WASHER (2 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #11 | 84937M | FUSE ASSEMBLY (1 required per assembly) |
  |
|
84937M - Fuse Holder, NLA [ More info ] Unavailable |
| #12 | 88-81522M | FUSE (1 required per assembly) |
  |
|
88-81522M - Fuse, NLA [ More info ]
|
| #13 | 87-97684M | NEUTRAL SWITCH (1 required per assembly) |
  |
|
87-97684M - Switch [ More info ]
|
| #14 | 14230M | CHOKE SOLENOID (1 required per assembly) |
  |
|
14230M - Choke Solenoid, NLA [ More info ] Unavailable |

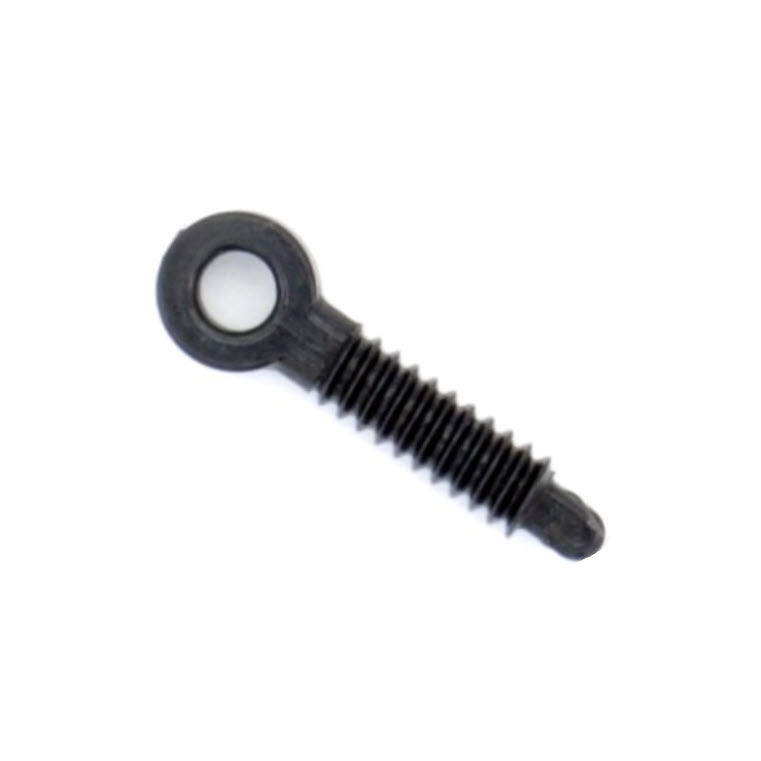

| #15 | 84411M | HOOK (1 required per assembly) |
  |
|
84411M - Hook, NLA [ More info ]
|
| #16 | 84701M | PULL (1 required per assembly) |
  |
|
84701M - Wire Pull, NLA [ More info ]
|
| #17 | 25-82258M | O-RING (1 required per assembly) |
  |
|
25-82258M - O-Ring - Priced Individually [ More info ]
|
| #18 | 14231M | RETAINER (1 required per assembly) |
  |
|
14231M - Retainer, NLA [ More info ] Unavailable |
| #19 | 25-82060M | GROMMET (1 required per assembly) |
  |
|
25-82060M - Grommet, NLA [ More info ] Unavailable |
| #20 | 10-82512M | SCREW (4 required per assembly) |
  |
|
10-82512M - Screw, NLA [ More info ]
|
| #21 | 10-14232M | SCREW (2 required per assembly) |
  |
|
10-14232M - Screw, NLA [ More info ]
|
| #22 | 84-811183M | ENGINE WIRING HARNESS (1 required per assembly) |
  |
|
84-811183M - Wiring Harness, NLA [ More info ] Unavailable |
| #23 | 84-811184M | WIRE (1 required per assembly) |
  |
|
84-811184M - Wire Assembly, NLA [ More info ] Unavailable |
| #24 | 84-97781M | WIRE (1 required per assembly) |
  |
84-97781M - Wire [ More info ] Unavailable |
|
  |
|
84-97771M - Wire, NLA [ More info ] Unavailable |
| #25 | 25-84950M | GROMMET (1 required per assembly) |
  |
|
25-84950M - Grommet, NLA Z [ More info ] Unavailable |
| #26 | 32-18936M | HOSE (1 required per assembly) |
  |
|
32-18936M - Hose, NLA [ More info ]
|
| #27 | 98915M | INSULATOR (2 required per assembly) |
  |
|
98915M - INSULATOR,NLA [ More info ] Unavailable |
| #28 | 54-811185M | CLAMP (1 required per assembly) |
  |
|
54-811185M - CLAMP,NLA [ More info ] Unavailable |
| #29 | 25-84876M | GROMMET (2 required per assembly) |
  |
|
25-84876M - Grommet, NLA [ More info ] Unavailable |
| #30 | 54-97772M | CLAMP (1 required per assembly) |
  |
|
54-97772M - Clamp [ More info ]
|
| #31 | 84708M | PLATE (1 required per assembly) |
  |
|
84708M - Plate [ More info ] Unavailable |
| #32 | 10-84709M | SCREW (1 required per assembly) |
  |
|
10-84709M - Screw, NLA [ More info ]
|
| #33 | 87-815003M | THERMO SWITCH (1 required per assembly) |
  |
|
87-815003M - Switch [ More info ] Unavailable |
| #34 | 811186M | PLATE (1 required per assembly) |
  |
|
811186M - Plate [ More info ] Unavailable |
