Parts for Mariner 30A Remote Control Attaching Kit
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

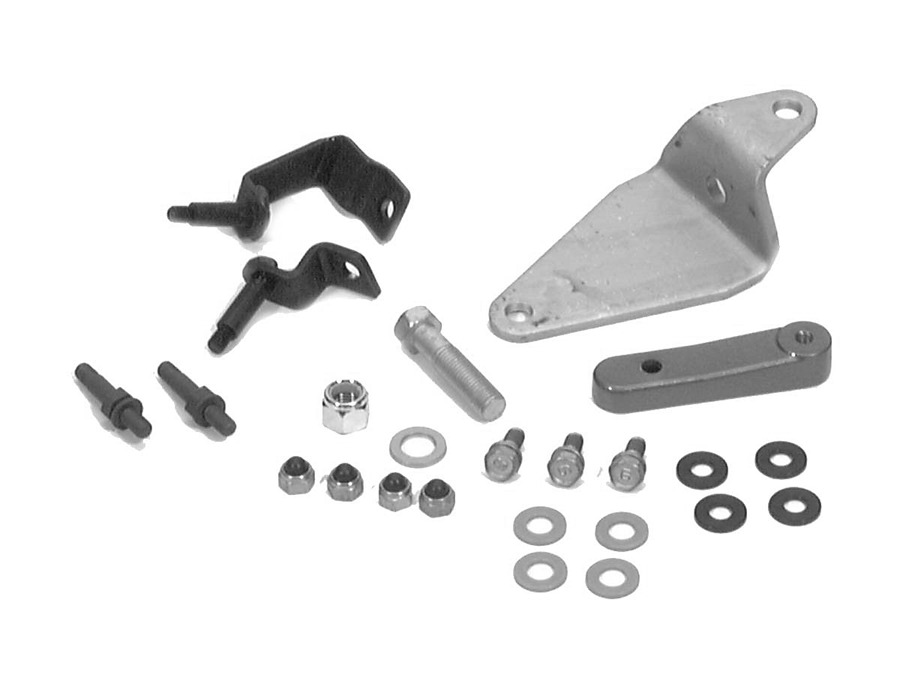

| #1 | 816845A 1 | ATTACHING KIT (1 required per assembly) |
  |
|
816845A 1 - Remote Control Attaching Kit [ More info ] Unavailable |
| #2 | 811187M | THROTTLE LEVER (1 required per assembly) |
  |
|
811187M - Throttle Lever [ More info ]
|
| #3 | 10-811188M | BOLT (1 required per assembly) |
  |
10-811188M - BOLT [ More info ] Unavailable |
|
  |
|
10-811188T - Bolt [ More info ] Unavailable |
| #4 | 811189M | BRACKET (1 required per assembly) |
  |
|
811189M - Bracket, NLA [ More info ] Unavailable |
| #5 | 811190M | BRACKET (1 required per assembly) |
  |
|
811190M - Bracket, NLA [ More info ]
|
| #6 | 814976M | HOOK (2 required per assembly) |
  |
|
814976M - Stud, NLA [ More info ]
|
| #8 | 12-814977M | WASHER (4 required per assembly) |
  |
|
12-814977M - Washer, NLA [ More info ]
|
| #9 | 12-814978M | WASHER (4 required per assembly) |
  |
|
12-814978M - Washer, NLA [ More info ]
|
| #10 | 11-814979M | NUT (4 required per assembly) |
  |
|
11-814979M - Nut, NLA [ More info ]
|
| #11 | 91635M | STEERING HOOK (1 required per assembly) |
  |
|
91635M - Bracket, NLA [ More info ]
|
| #12 | 10-91636M | BOLT (1 required per assembly) |
  |
|
10-91636M - Screw, NLA [ More info ]
|
| #13 | 12-82220M | WASHER (1 required per assembly) |
  |
|
12-82220M - Washer - Priced Individually [ More info ] Unavailable |
| #14 | 11-81785M | NUT (1 required per assembly) |
  |
|
11-81785M - Nut, Nylon,NLA [ More info ]
|
