Parts for Mariner 30A Electric Start Components

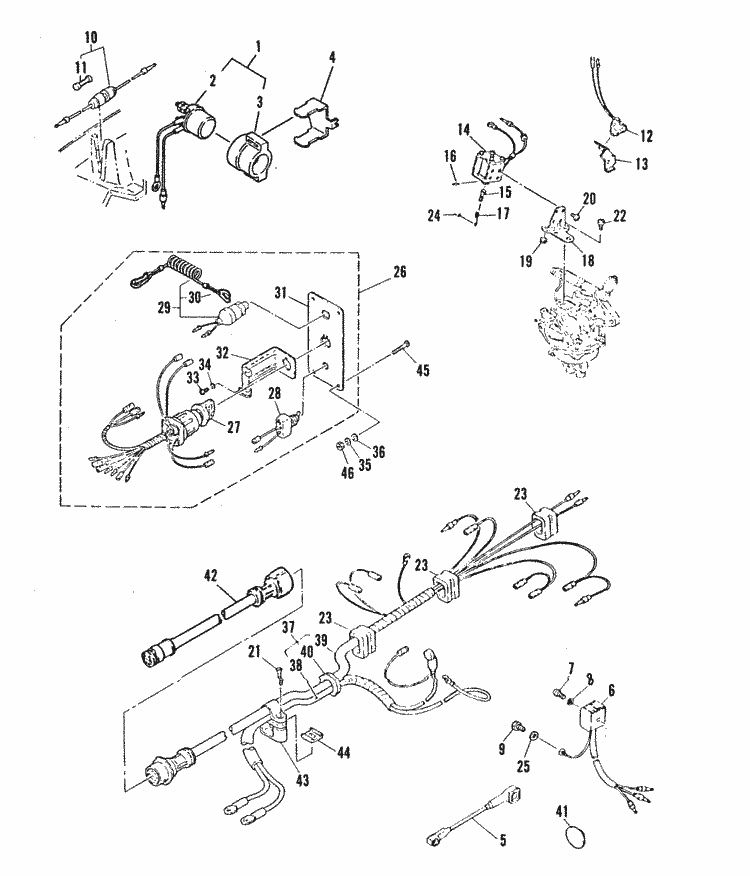

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 89-96356M | STARTER SOLENOID ASS'Y (1 required per assembly) |
  |
89-96356M - Solenoid [ More info ] Unavailable |
|
  |
89-95642M - Solenoid [ More info ] Unavailable |
|
  |
89-825096 - Solenoid [ More info ] Unavailable |
|
  |
89-825096T - Solenoid [ More info ] Unavailable |
|
  |
|
825096T01 - Starter Solenoid [ More info ] Unavailable |
  |
|
18-5821 - Starter Solenoid [ More info ]
|
  |
|
89-8M0098898 - Relay Assembly [ More info ]
|
  |
|
SW945 - Solenoid [ More info ]
|
| #2 | 89-95642M | SOLENOID (1 required per assembly) |
| #3 | 95643M | MOUNTING BRACKET (1 required per assembly) |
  |
95643M - HOLDER - Solenoid [ More info ] Unavailable |
|
  |
|
8M0010250 - Bracket [ More info ]
|
| #4 | 84935M | PLATE, SOLENOID MOUNTING (1 required per assembly) |
  |
|
84935M - Retainer, NLA [ More info ] Unavailable |
| #5 | 84-84936M | WIRE, SOLENOID (1 required per assembly) M-026304 ML-325084 MUL-601286 E-107089 EL-415058 EUL-620236 AND ABOVE |
  |
|
84-84936M - Lead Wire, NLA [ More info ]
|
| #5 | 84-97133M | WIRE, SOLENOID (1 required per assembly) M-00026303 ML--325083 MUL-601285 E-107088 EL-415057 EUL-620235 AND BELOW |
  |
|
84-97133M - Wire, NLA [ More info ] Unavailable |
| #6 | 81652M | RECTIFIER (1 required per assembly) |
  |
81652M - Rectifier [ More info ] Unavailable |
|
  |
810937M - Rectifier [ More info ] Unavailable |
|
  |
810937T - Rectifier [ More info ] Unavailable |
|
  |
|
8M0091976 - Rectifier [ More info ]
|
  |
|
18-99437 - Rectifier Yamaha & Mariner 1, 2 & 3 Cylinder , 157-664-61 [ More info ]
|
| #7 | 10-82521M | SCREW (1 required per assembly) |
  |
|
10-82521M - Screw [ More info ]
|
  |
|
10-83108M - Screw, NLA [ More info ]
|
| #8 | 12-82211M | WASHER (1 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #9 | 10-84303M | BOLT (1 required per assembly) |
  |
|
10-84303M - Screw , Priced Individually [ More info ]
|
  |
10-813477M - BOLT [ More info ] Unavailable |
|
  |
|
10-91772M - Bolt [ More info ]
|
| #10 | 84937M | FUSE ASS'Y (1 required per assembly) |
  |
|
84937M - Fuse Holder, NLA [ More info ] Unavailable |
| #11 | 88-81522M | FUSE (12V-20A) (1 required per assembly) |
  |
|
88-81522M - Fuse, NLA [ More info ]
|
| #12 | 87-97684M | NEUTRAL START SWITCH (1 required per assembly) |
  |
|
87-97684M - Switch [ More info ]
|
| #13 | 84939M | PLATE, SWITCH AND LOCKOUT MOUNTING (1 required per assembly) |
  |
|
84939M - Retainer, NLA [ More info ] Unavailable |
| #14 | 84940M | CHOKE SOLENOID (1 required per assembly) |
  |
|
84940M - Choke Solenoid,NLA [ More info ] Unavailable |
| #15 | 84411M | HOOK, WIRE (1 required per assembly) |
  |
|
84411M - Hook, NLA [ More info ]
|
| #16 | 17-82145M | PIN, ROLL (1 required per assembly) |
  |
|
17-82145M - PIN [ More info ] Unavailable |
| #17 | 24-81667M | WIRE,PULL (1 required per assembly) |
  |
|
24-81667M - SPRING,NLA [ More info ] Unavailable |
| #18 | 84941M | PLATE, SOLENOID MOUNTING (1 required per assembly) |
  |
|
84941M - Retainer, NLA [ More info ] Unavailable |
| #19 | 25-82060M | GROMMET (1 required per assembly) |
  |
|
25-82060M - Grommet, NLA [ More info ] Unavailable |
| #20 | 10-82512M | SCREW (4 required per assembly) |
  |
|
10-82512M - Screw, NLA [ More info ]
|
| #21 | 10-84709M | SCREW (1 required per assembly) |
  |
|
10-84709M - Screw, NLA [ More info ]
|
| #22 | 10-14232M | SCREW (2 required per assembly) |
  |
|
10-14232M - Screw, NLA [ More info ]
|
| #23 | 25-84876M | GROMMET (3 required per assembly) |
  |
|
25-84876M - Grommet, NLA [ More info ] Unavailable |
| #24 | 25-82258M | O-RING (1 required per assembly) |
  |
|
25-82258M - O-Ring - Priced Individually [ More info ]
|
| #25 | 13-82212M | WASHER (1 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #26 | 18975A 1 | SWITH PANEL ASS"Y (1 required per assembly) |
  |
|
18975A 1 - Key/Switch [ More info ] Unavailable |
| #27 | 87-95645M | KEY SWITCH (1 required per assembly) |
  |
|
87-95645M - Switch [ More info ] Unavailable |
| #28 | 87-84944M | CHOKE SWITCH (1 required per assembly) |
  |
|
87-84944M - Switch,NLA [ More info ] Unavailable |
| #29 | 97-16710M | KILL SWITCH ASS'Y (1 required per assembly) M-028478 ML-327903 MUL-601456 E-107929 EL-417075 EUL-620256 AND ABOVE |
  |
|
87-16710M - Switch,NLA [ More info ] Unavailable |
| #29 | 87-97682M | KILL SWITCH ASS'Y (1 required per assembly) M-028477 ML-327902 MUL-601455 E-107928 EL-417074 EUL-620255 AND BELOW |
  |
|
87-97682M - Switch [ More info ]
|
| #30 | 97756M | STOPPER (1 required per assembly) |
  |
|
97756M - Lanyard Stopper [ More info ]
|
| #31 | 16711M | PANEL (1 required per assembly) M-028478 ML-327903 MUL-601456 E-107929 EL-417075 EUL-620256 AND ABOVE |
  |
|
|
| #31 | 42435M | PANEL (1 required per assembly) M-028477 ML-327902 MUL-601455 E-107928 EL-417074 EUL-620255 AND BELOW |
  |
|
42435M - PANEL,NLA [ More info ] Unavailable |
| #32 | 16712M | BRACKET (1 required per assembly) M-028478 ML-327903 MUL-601456 E-107929 EL-417075 EUL-620256 AND ABOVE |
  |
|
16712M - Bracket, NLA [ More info ] Unavailable |
| #32 | 81537M | BRACKET (1 required per assembly) M-028477 ML-327902 MUL-601455 E-107928 EL-417074 EUL-620255 AND BELOW |
  |
|
81537M - Bracket, NLA [ More info ]
|
| #33 | 10-82487M | SCREW (1 required per assembly) SERIAL 00033628 |
  |
10-82487M - SCREW [ More info ] Unavailable |
|
  |
|
10-82500M - Screw, NLA [ More info ]
|
| #34 | 13-82184M | WASHER, SPRING (1 required per assembly) SERIAL (033928) AND ABOVE |
  |
13-82184M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-82206M - LockWasher - Priced Individually [ More info ]
|
| #35 | 13-82208M | WASHER (4 required per assembly) |
  |
13-82208M - LOCKWASHER Note: Priced Individually [ More info ] Unavailable |
|
  |
|
13-82186M - LockWasher, NLA [ More info ]
|
| #36 | 12-8221M | WASHER (4 required per assembly) |
  |
|
761-8221M - Piston, NLA [ More info ] Unavailable |
| #37 | 84-95677M | ENGINE WIRING HARNESS (1 required per assembly) |
  |
|
84-95677M - Wiring Harness, NLA [ More info ] Unavailable |
| #38 | 84-97781M | WIRE ASS'Y BATTERY (1 required per assembly) |
  |
84-97781M - Wire [ More info ] Unavailable |
|
  |
|
84-97771M - Wire, NLA [ More info ] Unavailable |
| #39 | 84-95647M | WIRE ASS'Y, IGNITION (1 required per assembly) |
  |
|
84-95647M - Wire, NLA [ More info ] Unavailable |
| #40 | 25-84950M | GROMMET (1 required per assembly) |
  |
|
25-84950M - Grommet, NLA Z [ More info ] Unavailable |
| #41 | 82066M | GROMMET (1 required per assembly) |
  |
|
82066M - Plug, NLA [ More info ] Unavailable |
| #42 | 84-18968M | EXTENSION, WIRE HARNESS (5M) (1 required per assembly) M-030662 ML-329959 E-108559 EL-418520 AND ABOVE |
  |
|
84-18968M - Extension [ More info ]
|
| #42 | 84-84711M | EXTNESION, WIRE HARNESS (5M) (1 required per assembly) M-030661 ML-329958 E-108558 EL-418519 AND BELOW |
  |
|
84-84711M - Harness Assembly [ More info ] Unavailable |
| #43 | 54-97772M | CLAMP (1 required per assembly) |
  |
|
54-97772M - Clamp [ More info ]
|
| #44 | 84708M | PLATE (1 required per assembly) |
  |
|
84708M - Plate [ More info ] Unavailable |
| #45 | 10-16713M | SCREW (4 required per assembly) M-028478 ML-327903 MUL-601456 E-107929 EL-417075 EUL-620256 AND ABOVE |
  |
10-16713M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-84946M - SCREW,NLA [ More info ] Unavailable |
| #45 | 10-80164M | SCREW (4 required per assembly) M-028477 ML-327902 MUL-601455 E-107928 EL-417074 EUL-620255 AND BELOW |
  |
|
10-80164M - SCREW,NLA [ More info ] Unavailable |
| #46 | 11-82388M | NUT (4 required per assembly) M-028478 ML-327903 MUL-601456 E-107929 EL-417075 EUL-620256 AND ABOVE |
  |
|
11-82388M - Nut, (M5) [ More info ]
|
| #46 | 11-82377M | NUT (4 required per assembly) M-028477 ML-327902 MUL-601455 E-107928 EL-417074 EUL-620255 AND BELOW |
  |
|
11-82377M - Nut, Panel Nut,NLA [ More info ] Unavailable |
