Parts for Mariner 30 HP Jet Electrical Box Components

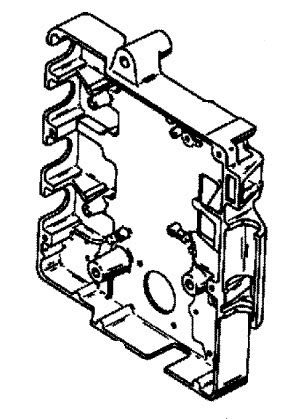

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 84-88807A15 | CABLE (RING/FEMALE CONNECTOR) (1 required per assembly) ELECTRIC |
  |
|
84-88807A15 - Cable, NLA [ More info ] Unavailable |
| # | 84-88807A14 | CABLE (RING/MALE CONNECTOR) (1 required per assembly) ELECTRIC |
  |
|
84-88807A14 - Cable, NLA [ More info ] Unavailable |
| #1 | 19106 | COVER-ELECTRICAL BOX (1 required per assembly) |
  |
|
19106 - Electrical Box Cover [ More info ] Unavailable |
| #2 | 10-41805 | SCREW-MERCURY SWITCH AND COVER (6 required per assembly) |
  |
10-41805 - SCREW [ More info ] Unavailable |
|
  |
|
10-41805 1 - Screw [ More info ]
|
| #3 | 10-19639 | SCREW-COVER AND BOX TO ENGINE (3 required per assembly) |
  |
|
10-19639 - Screw, NLA [ More info ]
|
| #4 | 88-812619 | FUSE (2 required per assembly) ELECTRIC |
  |
|
88-812619 - Fuse - Yellow - 20 Amp [ More info ]
|
| #5 | 816770 | RECTIFIER (1 required per assembly) ELECTRIC |
  |
816770 - Rectifier [ More info ] Unavailable |
|
  |
816770T - 8M0058226 [ More info ] Unavailable |
|
  |
|
8M0058226 - Rectifier - Outboard [ More info ]
|
  |
|
18-99416 - Regulated Rectifier 445114, 193-5114 [ More info ]
|
  |
|
18-5707 - Rectifier 816770 [ More info ]
|
  |
|
300-01404 - Rectifier, 8M0058226 [ More info ]
|
  |
|
AR351 - Rectifier [ More info ]
|
| #7 | 11-45076 | NUT-RECTIFIER TERMINAL (3 required per assembly) ELECTRIC |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #8 | 89-96054 | STARTER SOLENOID (1 required per assembly) ELECTRIC |
  |
89-96054 - Solenoid [ More info ] Unavailable |
|
  |
89-96054T - Solenoid [ More info ] Unavailable |
|
  |
|
89-8M0185149 - Start Solenoid [ More info ]
|
  |
|
18-5816 - Solenoid, 89-96054 [ More info ]
|
  |
|
89-02719 - Solenoid, 89-96054T [ More info ]
|
  |
|
SW054 - Solenoid [ More info ]
|
| #9 | 10-41508 | SCREW-SOLENOID (2 required per assembly) ELECTRIC |
  |
|
10-41508 - Screw [ More info ]
|
| #10 | 13-26992 | WASHER-STARTER SOLENOID SCREW (2 required per assembly) ELECTRIC |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #11 | 11-26419 | NUT-SOLENOID TERMINAL (#8-32) (2 required per assembly) ELECTRIC |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #13 | 11-64015 | NUT-SOLENOID TERMINAL (1/4-20) (2 required per assembly) ELECTRIC |
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #14 | 84-18672A 2 | WIRING HARNESS (USE WITH REF. #18) (1 required per assembly) ELECTRIC |
  |
|
84-18672A 2 - Harness, NLA [ More info ] Unavailable |
| #14 | 84-18672A 6 | HARNESS (GRAY LEAD HAS RING TERMINAL) (1 required per assembly) ELECTRIC |
  |
|
84-18672A 6 - Harness Assembly [ More info ]
|
| #14 | 84-18672A 8 | HARNESS (GRAY LEAD HAS BULLET CONNECTOR) (1 required per assembly) ELECTRIC |
  |
|
84-18672A 8 - Harness Assembly [ More info ]
|
| #15 | 10-812832 | SCREW-WIRING HARNESS LEAD (1 required per assembly) ELECTRIC |
  |
10-812832 - SCREW [ More info ] Unavailable |
|
  |
|
10-878608 - Screw [ More info ]
|
| #16 | 86-63813 1 | TERMINAL BLOCK (1 required per assembly) MANUAL |
  |
|
86-63813 1 - Terminal Block [ More info ]
|
| #17 | 10-62568 | SCREW-TERMINAL BLOCK (3/8 IN.) (2 required per assembly) MANUAL |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #18 | 16731A 1 | MERCURY SWITCH (1 required per assembly) |
  |
16731A 1 - Switch Assembly [ More info ] Unavailable |
|
  |
|
16731T01 - Switch Assembly [ More info ]
|
| #19 | 339-7370A13 | IGNITION COIL ASSEMBLY (4 required per assembly) |
  |
339-7370A13 - Ignition Coil [ More info ] Unavailable |
|
  |
339-832757A 4 - Ignition Coil [ More info ] Unavailable |
|
  |
|
8M0230859 - Ignition Coil [ More info ]
|
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
| #20 | 84-60466A19 | GROUND WIRE-COIL TO SWITCH BOX (4 required per assembly) |
  |
|
84-60466A19 - Wire Assembly, NLA [ More info ] Unavailable |
| #22 | 84-813715A12 | LEAD ASSEMBLY-SPARK PLUG (1 required per assembly) |
  |
|
84-813715A12 - Ignition Cable Set [ More info ]
|
| #23 | 85-63709A 1 | PROTECTOR ASSEMBLY (4 required per assembly) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #24 | 33-97182 | SPARK PLUG (4 required per assembly) |
  |
33-97182 - NGK BUHW-2 Note: Priced Individually [ More info ] Unavailable |
|
  |
33-97182Q - NGK Spark Plug BUHW-2 - Priced Individually [ More info ] Unavailable |
|
  |
|
33-896329833 - Spark Plug - L78V - Priced Individually [ More info ] Unavailable |
  |
|
L78V - Champion Spark Plug ( #833M) [ More info ]
|
| #24 | 33-14103550 | SPARK PLUG (4 required per assembly) (BELGIUM AND CANADA) |
  |
|
33-14103550 - NGK Buzhw - Priced Individually [ More info ] Unavailable |
  |
|
QL76V - Champion Spark Plug ( #898M) [ More info ]
|
| #25 | 332-5772A 5 | SWITCH BOX ASSEMBLY (1 required per assembly) |
  |
332-5772A 5 - Switch Box [ More info ] Unavailable |
|
  |
|
332-5772A 7 - Switch Box [ More info ]
|
  |
|
18-5881-1 - Switch Box 332-5772A5, 114-5772 [ More info ]
|
  |
|
18-5881-1 - Switch Box 332-5772A5, 114-5772 [ More info ]
|
| #26 | 10-812987 | SCREW-SWITCH BOX (4 required per assembly) |
  |
|
10-812987 - Screw [ More info ]
|
| #28 | 84-88818A 1 | CABLE (GREEN) (1 required per assembly) |
  |
|
84-88818A 1 - Cable [ More info ]
|
| #28 | 84-88819A 1 | CABLE (GREEN/WHITE) (1 required per assembly) |
  |
|
84-88819A 1 - Cable, NLA [ More info ]
|
| #28 | 84-88820A 1 | CABLE (GREEN/BLACK) (1 required per assembly) |
  |
|
84-88820A 1 - Cable,NLA [ More info ] Unavailable |
| #28 | 84-88821A 1 | CABLE (GREEN/RED) (1 required per assembly) |
  |
|
84-88821A 1 - Cable, NLA [ More info ]
|
| #29 | 84-88807A30 | CABLE (BLACK) (1 required per assembly) MANUAL |
  |
|
84-88807A30 - Cable Assembly, NLA [ More info ]
|
| #31 | 84-813060A 1 | CABLE (1 required per assembly) MANUAL |
  |
|
84-813060A 1 - Cable, NLA [ More info ] Unavailable |
| #32 | 14857A10 | OIL WARNING MODULE (1 required per assembly) ELECTRIC |
  |
14857A10 - MODULE ASSY-OIL [ More info ] Unavailable |
|
  |
|
14857A16 - Oil Warning Module [ More info ]
|
  |
|
18-99411 - Oil Warning Module, 14857A16, 144-4857-16 [ More info ]
|
| #34 | 88-19637 | SOCKET-FUSE (1 required per assembly) ELECTRIC |
  |
|
88-19637 - Socket [ More info ]
|
| #35 | 18758 1 | ELECTRICAL BOX (1 required per assembly) |
  |
18758 1 - Box - Electrical [ More info ] Unavailable |
|
  |
|
18758T 1 - Box - Electrical [ More info ] Unavailable |
| #36 | 84-18895A 1 | TRIM HARNESS (1 required per assembly) POWER TRIM |
  |
|
84-18895A 1 - Harness Assembly [ More info ]
|
| #37 | 87-19761 | RELAY SWITCH (2 required per assembly) POWER TRIM |
  |
|
87-19761 - Relay [ More info ]
|
  |
|
18-5737 - Relay, 87-19761 [ More info ]
|
| #38 | 812850 | SUPPORT-RELAY (1 required per assembly) POWER TRIM |
  |
|
812850 - Support - Relay [ More info ]
|
| #39 | 87-88890A 2 | SWITCH ASSEMBLY (1 required per assembly) ELECTRIC HANDLE W/ PT |
  |
|
87-88890A 2 - Switch Assembly [ More info ]
|
| #40 | 87-74605A 8 | SWITCH ASSEMBLY (1 required per assembly) ELECTRIC HANDLE W/ PT |
  |
|
87-74605A 8 - Switch Assembly, NLA [ More info ] Unavailable |
| #41 | 10-90342 | SCREW (2 required per assembly) ELECTRIC HANDLE W/ PT |
  |
|
10-90342 - Screw, NLA [ More info ]
|
| #42 | 11-24832 | NUT (2 required per assembly) ELECTRIC HANDLE W/ PT |
  |
|
11-24832 - Nut (4X40) [ More info ]
|
| #43 | 84-11149A 1 | CABLE (1 required per assembly) ELECTRIC HANDLE W/ PT |
  |
|
84-11149A 1 - Cable Assembly [ More info ]
|
| #44 | 89-818999A 2 | SOLENOID (1 required per assembly) DESIGN II |
  |
|
89-818999A 2 - Solenoid Assembly [ More info ]
|
  |
|
18-5820 - Solenoid Switch 89-818999 [ More info ]
|
  |
|
SW099 - Solenoid [ More info ]
|
| #45 | 23-818968 | BUSHING (2 required per assembly) DESIGN II |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #46 | 25-818967 | GROMMET (2 required per assembly) DESIGN II |
  |
|
25-818967 - Grommet [ More info ]
|
  |
|
258M0207785 - Grommet [ More info ]
|
| #47 | 10-28667 | SCREW (1 IN.) (2 required per assembly) DESIGN II |
  |
|
10-28667 - Screw - Priced Individually [ More info ]
|
| #48 | 84-88439A11 | CABLE (BLACK) (1 required per assembly) DESIGN II |
  |
|
84-88439A11 - Cable Assembly, NLA [ More info ]
|
| #49 | 815279T | VOLTAGE REGULATOR (1 required per assembly) DESIGN II |
  |
815279T - Voltage Regulator [ More info ] Unavailable |
|
  |
815279 5 - Voltage Regulator [ More info ] Unavailable |
|
  |
830179 2 - Voltage Regulator [ More info ] Unavailable |
|
  |
854515 - Voltage Regulator [ More info ] Unavailable |
|
  |
854515T 1 - Voltage Regulator [ More info ] Unavailable |
|
  |
883072T - Voltage Regulator [ More info ] Unavailable |
|
  |
|
8M0084173 - Voltage Regulator [ More info ]
|
  |
|
18-5743-1 - Voltage Regulator, Mercury [ More info ]
|
  |
|
18-5743 - Voltage Regulator, 815279-3, 81527 [ More info ]
|
  |
|
300-76382 - Rectifier/Regulator, Mercury Mariner, EMP [ More info ]
|
| #50 | 10-822970 | SCREW (2 required per assembly) DESIGN II |
  |
|
10-822970 - Screw [ More info ]
|
| #51 | 84-813524A 2 | CABLE (1 required per assembly) DESIGN II |
  |
|
84-813524A 2 - Cable Assembly [ More info ]
|
