Parts for Mariner 30 HP (2 Cylinder) Power Trim
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 25-827668A 1 | O-RING KIT (1 required per assembly) |
  |
|
25-827668A 1 - O-Ring Kit [ More info ]
|
| #1 | 822344T10 | POWER TRIM ASSEMBLY (1 required per assembly) |
  |
822344T10 - TRIM ASSY [ More info ] Unavailable |
|
  |
|
822344T14 - Power Trim Assembly [ More info ]
|
| #1 | 822344T14 | POWER TRIM ASSEMBLY (1 required per assembly) |

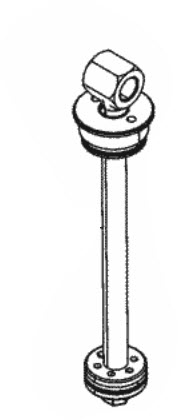

| #2 | 827670A 2 | SHOCK ROD ASSEMBLY (1 required per assembly) |
  |
827670A 2 - SHOCK ROD ASSY [ More info ] Unavailable |
|
  |
|
893931A01 - Shock Rod Assembly [ More info ]
|
| #3 | 827671A 1 | PILOT CHECK ASSEMBLY (1 required per assembly) |
  |
|
827671A 1 - Pilot Check Assembly [ More info ]
|
| #4 | 827672A 1 | TILT RELIEF VALVE ASSEMBLY (1 required per assembly) |
  |
|
827672A 1 - Valve Assembly [ More info ]
|
| #5 | 827673A 1 | SEAT ASSEMBLY, Suction (1 required per assembly) |
  |
|
827673A 1 - Seat Assembly -suction [ More info ]
|
| #6 | 827674A 1 | PUMP ASSEMBLY (1 required per assembly) |
  |
|
827674A 1 - Pump Assembly [ More info ]
|
| #7 | NSS | NOT SOLD SEPARATE, Ball and Spring (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #11 | 827675A 1 | MOTOR ASSEMBLY (1 required per assembly) |
  |
|
827675A 1 - Motor Assembly [ More info ]
|
  |
|
18-6286 - Tilt Trim Motor [ More info ]
|
  |
|
6255 - Tilt Trim Motor, 827675A1 [ More info ]
|
| #14 | 88238A15 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
88238A15 - Cable Assembly, Ground Strap [ More info ]
|
| #17 | 827676 | PISTON, Memory (1 required per assembly) |
  |
|
827676 - Memory Piston [ More info ]
|
| #18 | 813442A 2 | MANUAL RELEASE ASSEMBLY (1 required per assembly) |
  |
813442A 2 - Relief Valve [ More info ] Unavailable |
|
  |
|
893929A01 - Relief Valve [ More info ]
|
  |
|
18-6751 - Relief Valve, 893929A01 [ More info ]
|
| #19 | 19-811613 | PLUG ASSEMBLY (1 required per assembly) |
  |
|
19-811613 - Plug Assembly [ More info ]
|
| #20 | 830238T | BRACKET (1 required per assembly) |
  |
|
830238T - Bracket [ More info ]
|
| #21 | 84-826802A 9 | HARNESS ASSEMBLY, Trim, Trim (1 required per assembly) |
  |
|
84-826802A 9 - Harness Assembly [ More info ]
|
| #22 | 10-821291 25 | SCREW, (M6 x 25) (2 required per assembly) |
  |
|
10-821291 25 - Screw [ More info ] Unavailable |
| #23 | 882751A 1 | RELAY ASSEMBLY (2 required per assembly) |
  |
|
882751A 1 - Relay - 8M0207773 [ More info ] Unavailable |
  |
|
18-5849 - Relay, 882751A1 [ More info ]
|
  |
|
300-01562 - Power Trim Relay, 882751A1 [ More info ]
|
  |
|
|
| #24 | 828102 | BRACKET (2 required per assembly) |
  |
|
828102 - Relay Mounting Bracket [ More info ]
|
  |
|
8M0207771 - BRACKET [ More info ] Unavailable |
| #25 | 25-818967 | GROMMET (2 required per assembly) |
  |
|
25-818967 - Grommet [ More info ]
|
  |
|
258M0207785 - Grommet [ More info ]
|
| #26 | 23-818968 | BUSHING (2 required per assembly) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
