Parts for Mariner 2A HP Gearhousing Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1651-6885M | GEARHOUSING ASSEMBLY (1 required per assembly) |
  |
|
1651-6885M - GEAR Housing, NLA [ More info ] Unavailable |
| #1 | NLA | GEARHOUSING (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #2 | 23-95465M | BUSHING (2 required per assembly) |
  |
|
23-95465M - Bushing, NLA [ More info ] Unavailable |
| #3 | 22-81924M | PLUG (2 required per assembly) |
  |
|
22-81924M - Plug - Priced Individually [ More info ]
|
| #4 | 27-81987M | GASKET (2 required per assembly) |
  |
27-81987M - Plug Gasket [ More info ] Unavailable |
|
  |
|
27-81987 - Drain Plug Gasket [ More info ]
|
  |
|
18-46981-9 - Drain Fill Washer (50 Pack) [ More info ]
|
  |
|
18-4698 - Drain Fill Washer [ More info ]
|
| #5 | 30-82290M | BEARING (1 required per assembly) |
  |
|
30-82290M - Ball Bearing, NLA [ More info ] Unavailable |
| #6 | 15-80407M | SHIM(.3MM) (AR required per assembly) |
  |
|
15-80407M - Shim [ More info ] Unavailable |
| #6 | 15-80408M | SHIM(.5MM) (AR required per assembly) |
  |
|
15-80408M - Shim, NLA [ More info ] Unavailable |
| #7 | 43-80406M | GEAR ASSEMBLY (1 required per assembly) |
  |
|
43-80406M - Gear, NLA [ More info ] Unavailable |
| #8 | 53-82331M | SNAP RING (1 required per assembly) |
  |
|
53-82331M - E-Ring, NLA [ More info ]
|
| #9 | 43-80405M | PINION GEAR (1 required per assembly) |
  |
|
43-80405M - Pinion Gear,NLA [ More info ] Unavailable |
| #10 | 12-81875M | THRUST WASHER (1 required per assembly) |
  |
|
12-81875M - Thrust Washer, Driveshaft, NLA [ More info ]
|
| #11 | 12-80404M | SHIM(.3MM) (AR required per assembly) |
  |
|
12-80404M - Washer, Shim (.3mm) NLA [ More info ]
|
| #11 | 15-82802M | SHIM(.5MM) (AR required per assembly) |
  |
|
15-82802M - Shim, NLA [ More info ] Unavailable |

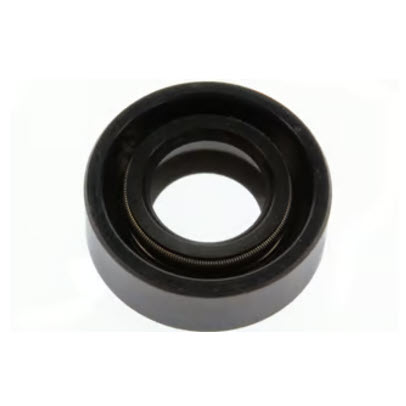

| #12 | 26-82251M | OIL SEAL (1 required per assembly) |
  |
|
26-82251M - Seal [ More info ]
|
| #13 | 80393M | INSERT (1 required per assembly) |
  |
|
|
| #14 | 47-80395M | IMPELLER (1 required per assembly) |
  |
|
47-80395M - Impeller [ More info ]
|
  |
|
18-3072 - Impeller 47-80395M [ More info ]
|
| #15 | 80394M | OUTER PLATE (1 required per assembly) |
  |
|
80394M - Face Plate, NLA [ More info ]
|
| #16 | 26-813497M | OIL SEAL (1 required per assembly) |
  |
26-813497M - Seal [ More info ] Unavailable |
|
  |
|
26-813497T - Seal [ More info ]
|
| #17 | 17-82356M | DOWEL PIN (2 required per assembly) |
  |
|
17-82356M - Pin -Dowel - Priced Individually [ More info ] Unavailable |
| #18 | 46-96337M | COVER (1 required per assembly) |
  |
|
46-96337M - Water Pump Cover & Seals [ More info ]
|
| #19 | 13-82208M | LOCKWASHER (2 required per assembly) |
  |
13-82208M - LOCKWASHER Note: Priced Individually [ More info ] Unavailable |
|
  |
|
13-82186M - LockWasher, NLA [ More info ]
|
| #20 | 10-82521M | BOLT (2 required per assembly) |
  |
|
10-82521M - Screw [ More info ]
|
  |
|
10-83108M - Screw, NLA [ More info ]
|
| #21 | 25-82269M | O-RING (1 required per assembly) |
  |
|
25-82269M - O-ring,NLA [ More info ]
|
| #22 | 26-80398M | RUBBER (1 required per assembly) |
  |
|
26-80398M - Seal - Priced Individually [ More info ]
|
| #23 | 45-92522M | DRIVESHAFT (1 required per assembly) |
  |
|
45-92522M - Drive Shaft, NLA [ More info ]
|
| #24 | 17-82355M | DOWEL PIN (1 required per assembly) |
  |
|
17-82355M - Pin -Dowel, NLA [ More info ]
|

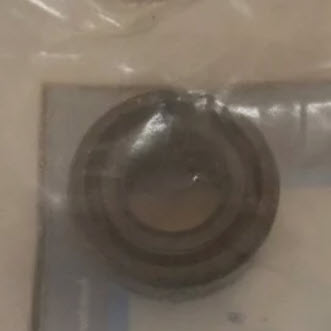

| #25 | 26-82250M | OIL SEAL (1 required per assembly) |
  |
|
26-82250M - Seal [ More info ]
|
| #26 | 27-80402M | GASKET (1 required per assembly) |
  |
27-80402M - Gear Housing Cap Gasket [ More info ] Unavailable |
|
  |
|
27-80402 - Gasket - Priced Individually [ More info ]
|
| #27 | 80401M | COVER (1 required per assembly) |
  |
|
80401M - Cover [ More info ] Unavailable |
| #28 | 12-82214M | WASHER (2 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #29 | 10-84368M | BOLT (2 required per assembly) |
  |
|
10-84368M - Screw, NLA [ More info ]
|
| #31 | 10-82454M | BOLT (1 required per assembly) |
  |
10-82454M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-95534M - Screw, NLA [ More info ]
|
| #32 | 17-82360M | DOWEL PINE (4 required per assembly) |
  |
|
17-82360M - PIN-DOWEL,NLA [ More info ] Unavailable |
| #33 | 17-81896M | DRIVE PIN (1 required per assembly) |
  |
|
17-81896M - Shear Pin, NLA [ More info ]
|
| #34 | 18-82134M | COTTER PIN (1 required per assembly) |
  |
|
18-82134M - Cotter Pin - Priced Individually [ More info ]
|
| #35 | 32-80396M | WATER TUBE (1 required per assembly) |
  |
|
32-80396M - Tubing, NLA [ More info ] Unavailable |
| #36 | 26-80397M | RUBBER (1 required per assembly) |
  |
|
26-80397M - Seal, NLA [ More info ]
|
| #37 | 84358M | FLUSHING ATTACHMENT (1 required per assembly) |
  |
|
84358M - Flushing Attachment, NLA [ More info ]
|
