Parts for Mariner 2A HP Carburetor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1383-6901M | CARBURETOR (1 required per assembly) SERIAL 00000000-00#20425 |
  |
|
1383-6901M - Carburetor [ More info ] Unavailable |
| # | 1383-6906M | CARBURETOR (1 required per assembly) SERIAL 0#032731-0Z999999 |
  |
|
1383-6906M - Carburetor [ More info ] Unavailable |
| # | 1383-6734M | CARBURETOR (1 required per assembly) SERIAL 00000000-00032730 |
  |
|
1383-6734M - Carburetor [ More info ] Unavailable |
| #1 | 82832M | FLOAT BOWL (1 required per assembly) SERIAL 0#032731-0Z999999 |
  |
|
82832M - Float Bowl,NLA [ More info ] Unavailable |
| #1 | 80343M | FLOAT BOWL (1 required per assembly) SERIAL 0A000000-0#032730 |
  |
|
80343M - Float Bowl,NLA [ More info ] Unavailable |

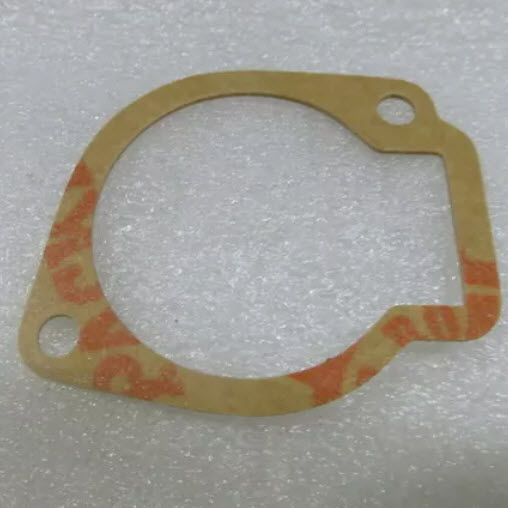

| #2 | 27-80344M | GASKET (1 required per assembly) |
  |
27-80344M - Float Bowl Gasket [ More info ] Unavailable |
|
  |
|
27-94691M - Gasket [ More info ]
|
| #3 | 80345M | FLOAT (1 required per assembly) |
  |
|
80345M - Float, NLA [ More info ]
|
| #4 | 80346M | FLOAT ARM (1 required per assembly) |
  |
|
80346M - ARM,NLA [ More info ] Unavailable |
| #5 | 80339M | MAIN JET (#64) (1 required per assembly) |
  |
|
80339M - JET,NLA [ More info ] Unavailable |
| #6 | 80338M | MAIN NOZZLE (1 required per assembly) |
  |
|
80338M - Main Nozzle,NLA [ More info ] Unavailable |
| #7 | 10-83509M | SCREW (2 required per assembly) |
  |
|
10-83509M - Screw, NLA [ More info ]
|
| #8 | 13-82184M | LOCKWASHER (2 required per assembly) |
  |
13-82184M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-82206M - LockWasher - Priced Individually [ More info ]
|
| #9 | NLA | CHOKE LEVER (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |

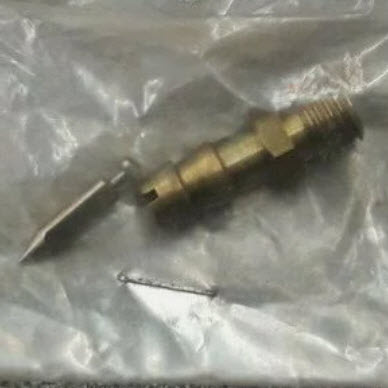

| #12 | 80347M | INLET VALVE & SEAT (1 required per assembly) SERIAL 00#21516-09999999 |
  |
|
80347M - Valve Seat, NLA [ More info ]
|
| #12 | 82601M | INLET VALVE & SEAT (1 required per assembly) SERIAL 00000000-00#21515 |
  |
|
82601M - INLET AND SEAT,NLA [ More info ] Unavailable |
| #13 | 27-80327M | GASKET (2 required per assembly) |
  |
|
27-80327M - Valve Seat Gasket [ More info ] Unavailable |
| #14 | 22-80326M | CONNECTOR (1 required per assembly) |
  |
|
22-80326M - Connector, NLA [ More info ] Unavailable |
| #15 | 11-80348M | NUT (1 required per assembly) |
  |
|
11-80348M - Nut, Valve Seat,NLA [ More info ] Unavailable |
| #16 | 10-80238M | SCREW (1 required per assembly) |
  |
|
80238M - PLATE,NLA [ More info ] Unavailable |
| #17 | 24-814460M | SPRING (1 required per assembly) SERIAL 00#21516-09999999 |
  |
|
24-814460M - Spring, NLA [ More info ]
|
| #17 | 24-82596M | SPRING (1 required per assembly) SERIAL 00000000-00#21515 |
  |
|
24-82596M - Spring, Pilot Adjusting [ More info ] Unavailable |
| #18 | 80333M | THROTTLE VALVE (1 required per assembly) |
  |
|
80333M - VALVE,18-6007,NLA [ More info ] Unavailable |
| #20 | 83-80324M | CLIP (1 required per assembly) |
  |
|
53-80324M - Retaining Ring, NLA [ More info ]
|
| #21 | 80323M | SEAT (1 required per assembly) |
  |
|
80323M - SEAT,NLA [ More info ] Unavailable |
| #22 | 24-82599M | SPRING (1 required per assembly) SERIAL 00000000-00#21515 |
  |
|
24-82599M - SPRING,NLA [ More info ] Unavailable |
| #23 | 80325M | COVER (1 required per assembly) |
  |
|
80325M - Chamber, NLA [ More info ] Unavailable |
| #24 | 80353M | RETAINER (1 required per assembly) |
  |
|
80353M - Retainer,NLA [ More info ] Unavailable |
| #25 | 10-80336M | THROTTLE SCREW (1 required per assembly) |
  |
|
10-80336M - Screw, NLA [ More info ]
|
| #27 | 80335M | THROTTLE LEVER (1 required per assembly) |
  |
|
80335M - LEVER,NLA [ More info ] Unavailable |
| #30 | 53-82328M | SNAP RING (1 required per assembly) |
  |
|
53-82328M - Snap Ring, NLA [ More info ]
|
| #31 | 25-80332M | O-RING (1 required per assembly) |
  |
|
25-80332M - O-ring,NLA [ More info ]
|
| #32 | 80322M | CLIP (1 required per assembly) |
  |
|
|
| #33 | 10-80321M | SCREW (1 required per assembly) |
  |
|
10-80321M - Screw, NLA [ More info ]
|
| #34 | 17-82804M | FLOAT PIN (1 required per assembly) |
  |
17-82804M - Pin, Float [ More info ] Unavailable |
|
  |
|
17-94698M - 17-94698M - PIN [ More info ] Unavailable Replaced by 17-811249M |
  |
|
17-811249M - Float Pin, NLA [ More info ]
|
| #35 | 80196M | CAP (1 required per assembly) |
  |
|
80196M - Choke Plunger Cap Cover, NLA [ More info ]
|
| #36 | 10-80349M | DRAIN VALVE (1 required per assembly) SERIAL 0#021516-00032730 |
  |
|
10-80349M - Screw, NLA [ More info ]
|
| #37 | 24-80331M | SPRING (1 required per assembly) SERIAL 0#021516-00032730 |
  |
|
24-80331M - Spring, NLA [ More info ] Unavailable |
| #38 | 25-80350M | O-RING (1 required per assembly) SERIAL 00000000-00#21515 |
  |
|
25-80350M - O-ring,NLA [ More info ]
|
| #40 | 18-82050M | LOCK RING (1 required per assembly) SERIAL 00000000-00#31100 |
  |
|
18-82050M - Cotter Pin, NLA [ More info ]
|
