Parts for Mariner 28 HP Remote Control Attaching Kit

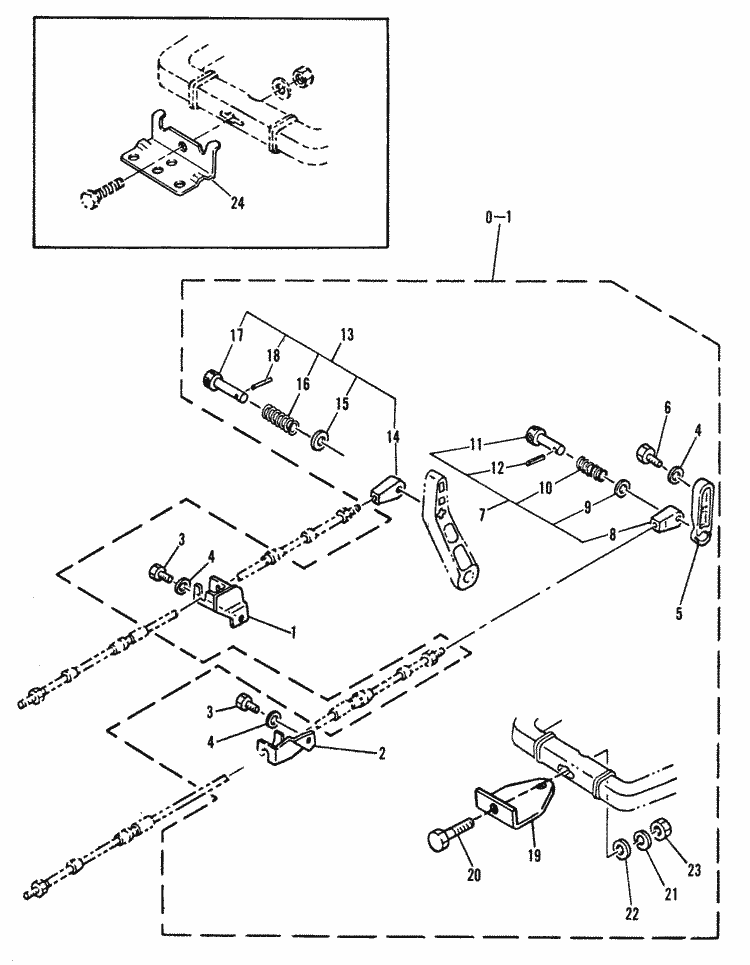

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0-1 | 82830M | ATTACHING KIT (1 required per assembly) |
  |
82830M - Attaching Assembly [ More info ] Unavailable |
|
  |
|
43990A 1 - Remote Control Attaching Kit [ More info ]
|
  |
|
8M0116998 - R/C ATTACHING KIT NLA [ More info ] Unavailable |
| #1 | 84221M | BRACKET, GEAR SHIFT (1 required per assembly) |
  |
|
84221M - Bracket, NLA [ More info ]
|
| #2 | 83717M | BRACKET, THROTTLE (1 required per assembly) |
  |
|
83717M - Bracket, NLA [ More info ]
|
| #3 | 10-83395M | BOLT (2 required per assembly) |
  |
10-83395M - SCREW [ More info ] Unavailable |
|
  |
10-91725M - BOLT [ More info ] Unavailable |
|
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #4 | 12-82214M | WASHER (3 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #5 | 84222M | THROTTLE LEVER (1 required per assembly) |
  |
|
84222M - Lever [ More info ] Unavailable |
| #6 | 10-82448M | BOLT (1 required per assembly) |
  |
10-82448M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-91772M - Bolt [ More info ]
|
| #7 | 83723M | CABLE END ASS"Y, THROTTLE (1 required per assembly) |
  |
|
83723M - Cable End [ More info ]
|
| #8 | 83724M | CABLE END (1 required per assembly) |
  |
|
83724M - Cable End Fitting, NLA [ More info ]
|
| #9 | 12-82216M | WASHER (1 required per assembly) |
  |
|
12-82216M - Washer, Lock, NLA [ More info ]
|
| #10 | 24-83725M | SPRING (1 required per assembly) |
  |
|
24-83725M - Spring, NLA [ More info ] Unavailable |
| #11 | 17-83726M | HOOK (1 required per assembly) |
  |
17-83726M - Pin [ More info ] Unavailable |
|
  |
|
17-814499M - PIN-ANCHOR,NLA [ More info ] Unavailable |
| #12 | 17-82146M | PIN, ROLL (1 required per assembly) |
  |
|
17-82146M - Pin -roll, NLA [ More info ] Unavailable |
| #13 | 83719M | CABLE END ASS"Y GEAR (1 required per assembly) |
  |
|
83719M - Cable End [ More info ]
|
| #14 | 83720M | CABLE END (1 required per assembly) |
  |
|
83720M - Bracket [ More info ]
|
| #16 | 24-83721M | SPRING (1 required per assembly) |
  |
|
24-83721M - Spring, NLA [ More info ] Unavailable |
| #17 | 17-83722M | HOOK (1 required per assembly) |
  |
17-83722M - Pin [ More info ] Unavailable |
|
  |
|
17-814500M - Anchor Pin, NLA [ More info ]
|
| #19 | 84220M | BRACKET, STEERING (1 required per assembly) |
  |
84220M - Bracket [ More info ] Unavailable |
|
  |
11670M - Steering Bracket Ball Post Type [ More info ] Unavailable |
|
  |
|
11670T - Bracket [ More info ] Unavailable |
| #20 | 10-82474M | BOLT (1 required per assembly) |
  |
10-82474M - BOLT [ More info ] Unavailable |
|
  |
|
10-91636M - Screw, NLA [ More info ]
|
| #21 | 13-82218M | WASHER (1 required per assembly) |
  |
|
13-82218M - LockWasher - Priced Individually [ More info ]
|
| #22 | 12-82220M | WASHER, LOCK (1 required per assembly) |
  |
|
12-82220M - Washer - Priced Individually [ More info ] Unavailable |
| #23 | 11-82395M | NUT (1 required per assembly) |
  |
|
11-82395M - Nut - Priced Individually [ More info ]
|
| #24 | 82776 | BRACKET, STEERING (ROPE/PULLEY-OPT) (1 required per assembly) |
  |
|
82776 - Attaching Assembly [ More info ]
|
