Parts for Mariner 28 HP Crankshaft & Piston
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 463-6849M | CRANKSHAFT ASS'Y (1 required per assembly) |
  |
463-6849M - Crankshaft [ More info ] Unavailable |
|
  |
|
463-9245M - Crankshaft,NLA [ More info ] Unavailable |
| #2 | 30-82307M | BEARING, CRANKSHAFT (2 required per assembly) |
  |
30-82307M - Ball Bearing [ More info ] Unavailable |
|
  |
|
30-82307T - Ball Bearing, NLA [ More info ]
|
| #3 | 761-6937M | PISTON (STD 66.96 MM) (2 required per assembly) |
  |
761-6937M - Piston [ More info ] Unavailable |
|
  |
|
761-8375M - Piston, NLA [ More info ]
|
| #3 | 761-6785M | PISTON (STD 66.97 MM) (2 required per assembly) |
  |
761-6785M - Piston [ More info ] Unavailable |
|
| #3 | 761-6786M | PISTON (STD 66.98 MM) (2 required per assembly) |
  |
761-6786M - Piston [ More info ] Unavailable |
|
| #3 | 761-6787M | PISTON (1ST O.X. 67.25 MM) (2 required per assembly) |
  |
761-6787M - Piston [ More info ] Unavailable |
|
  |
|
761-8376M - Piston, NLA [ More info ] Unavailable |
| #3 | 761-6788M | PISTON (2ND O.S. 67.50 MM) (2 required per assembly) |
  |
761-6788M - Piston [ More info ] Unavailable |
|
  |
|
761-8377M - Piston, NLA [ More info ] Unavailable |
| #4 | 39-81095M | PISTON RING SET (STD) (2 required per assembly) |
  |
39-81095M - Piston Ring Set [ More info ] Unavailable |
|
  |
|
39-81095T - Piston Rings [ More info ]
|
| #4 | 39-81096M | PISTON RING SET (1ST O.S. 67.25 MM) (2 required per assembly) |
  |
39-81096M - Piston Ring Set [ More info ] Unavailable |
|
  |
|
39-81096T - Rings, NLA [ More info ]
|
| #4 | 39-81097M | PISTON RING SET (2ND O.S. 67.50 MM) (2 required per assembly) |
  |
39-81097M - Piston Ring Set [ More info ] Unavailable |
|
  |
|
39-81097T - Rings, NLA [ More info ] Unavailable |
| #5 | 29-84452M | BEARING, NEEDLE (62 required per assembly) |
  |
|
29-84452M - Needle Bearing [ More info ]
|
| #6 | 12-81829M | WASHER, CONNECTING ROD BEARING (4 required per assembly) |
  |
|
12-81829M - Washer, Connecting Rod Bearing, NLA [ More info ]
|
| #7 | 41-80565M | PIN, PISTON (2 required per assembly) |
  |
|
41-80565M - Piston Pin, NLA [ More info ] Unavailable |
| #8 | 53-82345M | SNAP RING (4 required per assembly) |
  |
|
53-82345M - Snap Ring, NLA [ More info ]
|
| #9 | 25-82268M | O-RING, CRANKSHAFT TO DRIVESHAFT (1 required per assembly) |
  |
|
25-82268M - O_ring, Crankshaft To Driveshaft,NLA [ More info ]
|
| #10 | 23-81842M | SPACER, INNER BEARING (1 required per assembly) |
  |
|
23-81842M - Spacer, NLA [ More info ] Unavailable |

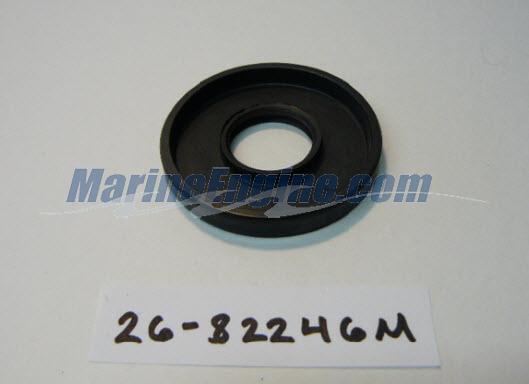

| #11 | 26-82246M | OIL SEAL, CRANKSHAFT (LOWER) (1 required per assembly) |
  |
|
26-82246M - Seal, NLA [ More info ] Unavailable |
| #12 | 82254M | RETAINER, OIL SEAL (1 required per assembly) |
  |
|
82254M - Retainer,NLA [ More info ] Unavailable |
| #13 | 28-81914M | KEY, CRANKSHAFT TO FLYWHEEL (1 required per assembly) |
  |
|
28-81914M - Key - Priced Individually [ More info ]
|
  |
|
288M0057164 - Key , Priced Individually [ More info ]
|
