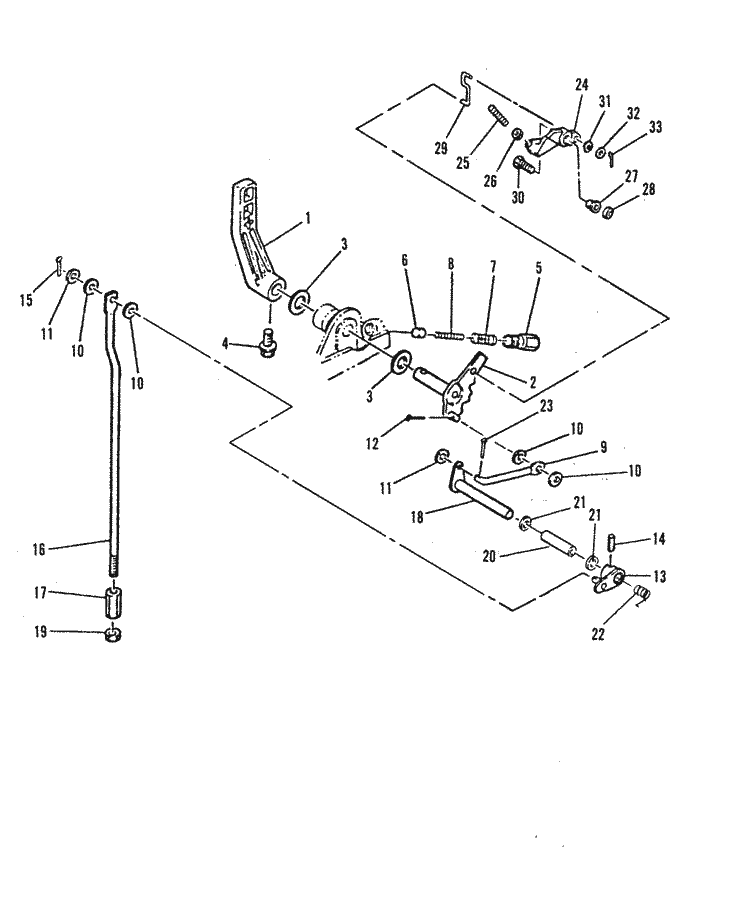

Parts for Mariner 25C (Thru Prop. Exhaust) Gear Shift Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 84865M | HANDLE, GEAR SHIFT (1 required per assembly) |
  |
|
84865M - Handle A [ More info ]
|
| #2 | 84653M | CAM, SHAFT (1 required per assembly) |
  |
|
84653M - CAM,NLA [ More info ] Unavailable |
| #3 | 12-81851M | WASHER (2 required per assembly) |
  |
|
12-81851M - Washer, NLA [ More info ]
|
| #4 | 10-84830M | BOLT (1 required per assembly) |
  |
|
10-84830M - Bolt [ More info ]
|
| #5 | 84459M | RETAINER, SHIFT DETENT (1 required per assembly) |
  |
|
84459M - Retainer, NLA [ More info ] Unavailable |
| #6 | 84460M | PLUNGER, SHIFT CAM (1 required per assembly) |
  |
|
84460M - Plunger, NLA [ More info ]
|
| #7 | 24-84461M | SPRING, COMPRESSION (1 required per assembly) |
  |
|
24-84461M - Spriing, Compression,NLA [ More info ] Unavailable |
| #8 | 24-84462M | SPRING, COMPRESSION (1 required per assembly) |
  |
|
24-84462M - Spring, Compression,NLA [ More info ] Unavailable |
| #9 | 81595M | LINK ROD, SHIFT (1 required per assembly) |
  |
|
81595M - Link Rod, NLA [ More info ] Unavailable |
| #10 | 12-81843M | WASHER (4 required per assembly) |
  |
|
12-81843M - Washer, NLA [ More info ]
|
| #11 | 12-82211M | WASHER (2 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #12 | 18-82125M | PIN, COTTER (1 required per assembly) |
  |
|
18-82125M - Cotter Pin, NLA [ More info ]
|
| #13 | 84867M | SWIVEL, SHIFT ROD (1 required per assembly) |
  |
|
84867M - Shift Rod LEVER,NLA [ More info ] Unavailable |
| #14 | 17-82155M | PIN, ROLL (1 required per assembly) |
  |
|
17-82155M - Pin -roll, NLA [ More info ]
|
| #15 | 18-82127M | PIN, COTTER (1 required per assembly) |
  |
|
18-82127M - Cotter Pin, NLA [ More info ]
|
| #16 | 80651M | SHAFT, SHIFT (UPPER) (1 required per assembly) SERIAL 00031675-09999999 |
  |
|
80651M - Upper Shift Shaft, NLA [ More info ] Unavailable |
| #16 | 81596M | SHAFT, SHIFT (UPPER) (1 required per assembly) SERIAL 00000000-00031674 |
  |
|
81596M - Shift Shaft, NLA [ More info ]
|
| #17 | 80652M | CONNECTOR, SHIFT (1 required per assembly) |
  |
|
80652M - Shift Rod Connector Connector [ More info ]
|
| #18 | 97139M | LEVER, SHIFT ROD (1 required per assembly) |
  |
|
97139M - Lever [ More info ] Unavailable |
| #19 | 11-81767M | NUT (1 required per assembly) |
  |
|
11-81767M - Nut, NLA [ More info ]
|
| #20 | 23-97142M | COLLAR (1 required per assembly) |
  |
|
23-97142M - Collar, NLA [ More info ] Unavailable |
| #21 | 12-81846M | WASHER (2 required per assembly) |
  |
|
12-81846M - Washer, NLA [ More info ]
|
| #22 | 24-97140M | SPRING, TENSION (1 required per assembly) |
  |
|
24-97140M - Spring, Tension,NLA [ More info ] Unavailable |
| #23 | 18-82124M | PIN, COTTER (1 required per assembly) |
  |
18-82124M - COTTER PIN Note: Priced Individually [ More info ] Unavailable |
|
  |
|
18-16189 - Cotter Pin [ More info ]
|
| #24 | 91648M | ARM (1 required per assembly) FOR MANUAL MODELS ONLY |
  |
|
91648M - Lever [ More info ] Unavailable |
| #25 | 16-41883M | BOLT (1 required per assembly) FOR MANUAL MODELS ONLY |
  |
|
16-41883M - Stud, NLA [ More info ] Unavailable |
| #26 | 11-82378M | NUT (1 required per assembly) FOR MANUAL MODELS ONLY |
  |
11-82378M - NUT [ More info ] Unavailable |
|
  |
|
11-82388M - Nut, (M5) [ More info ]
|
| #27 | 23-83310M | COLLAR (1 required per assembly) FOR MANUAL MODELS ONLY |
  |
|
23-83310M - COLLAR,NLA [ More info ] Unavailable |
| #28 | 12-81969M | COLLAR (1 required per assembly) FOR MANUAL MODELS ONLY |
  |
|
12-81969M - Washer, NLA [ More info ]
|
| #29 | 91650M | LINK (1 required per assembly) FOR MANUAL MODELS ONLY |
  |
|
91650M - Link, NLA [ More info ]
|
| #30 | 10-83539M | BOLT (1 required per assembly) FOR MANUAL MODELS ONLY |
  |
|
10-83539M - 10-83539M - BOLT (M6 x 20) [ More info ] Unavailable Replaced by 10-84058M |
  |
|
10-84058M - Bolt [ More info ]
|
| #31 | 13-81865M | WASHER, WAVE (2 required per assembly) FOR MANUAL MODELS ONLY |
  |
|
13-81865M - Wave Washer - Priced Individually [ More info ]
|
