Parts for Mariner 250 HP Verado (4-Stroke) (6 Cylinder) Cylinder Block

Revise Search: All Models > 250 HP Verado (4-Stroke) (6 Cylinder) > 1B381712 - 1B517433 (USA) > Cylinder Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

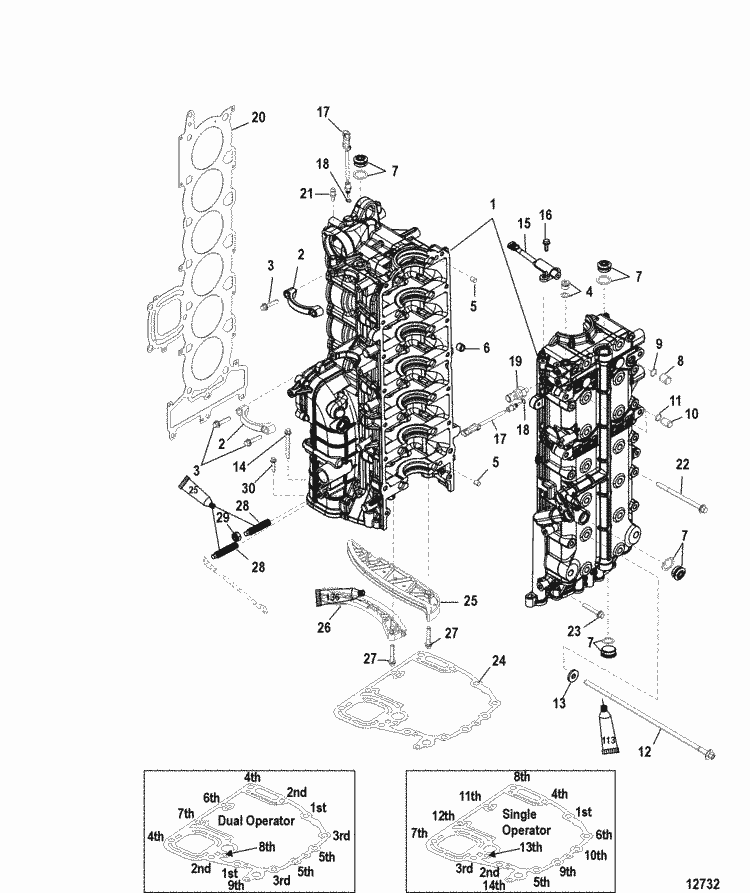

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-880552A06	GASKET SET, Powerhead (1 required per assembly)
		27-880552A06 - Powerhead Gasket Set [ More info ] Unavailable
		27-880552A07 - Gasket Set [ More info ] $383.49 Available to Order: Shipping delay up to 10 days.
#	61-895247A06	POWERHEAD ASSEMBLY (1 required per assembly)
		61-895247A06 - PH L6 4S [ More info ] Unavailable
#1	800-880506A11	CYLINDER BLOCK ASSEMBLY (1 required per assembly)
		800-880506A11 - Cylinder Block [ More info ] Unavailable
#2	856966 2	BRACKET, Mounting-Starter Motor (2 required per assembly)
		856966 2 - COVER [ More info ] Unavailable
		8M0041759 - Cover [ More info ] Unavailable
		8M0111325 - Cover [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#3	10-885526 40	SCREW, (M8 x 40) (4 required per assembly)
		10-885526 40 - Screw - Priced Individually [ More info ] Unavailable
#4	19-889767	PLUG, (12 mm) (1 required per assembly)
		19-889767 - Plug - Priced Individually [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#5	17-43044	PIN, Dowel - Without Hole (.375 x .625) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#6	23-893392001	DAMPER (14 required per assembly)
		23-893392001 - Bushing [ More info ] $4.19 4 In Stock.
#7	19-896951	PLUG, (24 mm) (4 required per assembly)
		19-896951 - Plug [ More info ] $16.39 1 In Stock.
#8	17-880524	PIN, Dowel (14 mm) (1 required per assembly)
		17-880524 - Pin, Dowel (14 Mm) [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#9	25-884409	O-RING (1 required per assembly)
		25-884409 - O-ring, Cylinder Block Dowl Pin [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#10	17-884424	PIN, Dowel (11 mm) (1 required per assembly)
		17-884424 - Pin, Dowel (11 Mm) [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#11	25-884423	O-RING (1 required per assembly)
		25-884423 - O-ring, Cylinder Block Dowl Pin [ More info ] $1.50 $1.20 5 In Stock.
#12	10-896923	SCREW, (M10 x 342) (14 required per assembly)
		10-896923 - SCREW [ More info ] Unavailable
		10-8M0021876 - Screw [ More info ] Unavailable
		108M4501000 - Screw [ More info ] $37.99 $36.16 6 In Stock.
#13	12-892573001	WASHER (14 required per assembly)
		12-892573001 - Washer - Priced Individually [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#14	10-885526 75	SCREW, (M8 x 75) (1 required per assembly)
		10-885526 75 - Screw - Priced Individually [ More info ] Unavailable
#15	828358 2	SENSOR (1 required per assembly)
		828358 2 - Sensor Assembly [ More info ] Unavailable
		8M0030022 - Sensor Assembly [ More info ] Unavailable
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#16	10-40011107	SCREW, (M5 x 16) Stainless Steel (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 5 In Stock.
#17	8M0010146	SENSOR ASSEMBLY (2 required per assembly)
		8M0010146 - Sensor [ More info ] Unavailable
		8M0142542 - Sensor TEMPERATUR [ More info ] Unavailable
		8M0205787 - Temperature Sensor [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#18	25-888814	O-RING, (.351 x .072) (2 required per assembly)
		25-888814 - O-ring, (.351 X .072) [ More info ] Unavailable
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#19	8M0010469	SENSOR, Pressure (1 required per assembly)
		8M0010469 - 8M6000637 [ More info ] Unavailable
		8M6000637 - Sensor [ More info ] Unavailable
		718M0142688 - PRESSURE Sensor [ More info ] $219.49 Available to Order: Shipping delay up to 10 days.
#20	27-895374006	GASKET, Head (1 required per assembly)
		27-895374006 - Cylinder Head To Block Gasket [ More info ] Unavailable
		27-8M0024564 - Cylinder Head To Block Gasket [ More info ] Unavailable
		27-8M0033476 - Gasket [ More info ] $166.49 Available to Order: Shipping delay up to 10 days.
#21	17-888517	PIN (1 required per assembly)
		17-888517 - Pin [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#22	10-895810115	SCREW, (M8 x 115) (12 required per assembly)
		10-895810115 - Screw - Priced Individually [ More info ] Unavailable
		10-8M0193831 - SCREW @2 [ More info ] Unavailable
#23	10-895810050	SCREW, (M8 x 50) (2 required per assembly)
		10-895810050 - Screw [ More info ] Unavailable
		10-8M0193659 - SCREW [ More info ] Unavailable
#24	27-880624003	GASKET, Block to Adaptor (1 required per assembly)
		27-880624003 - Block To Adaptor Gasket [ More info ] $63.49 $54.67 Available to Order: Shipping delay up to 10 days.
#25	880559	GUIDE, Fixed (1 required per assembly)
		880559 - Guide -fixed [ More info ] $46.49 Available to Order: Shipping delay up to 10 days.
#26	880557	GUIDE, Moveable (1 required per assembly)
		880557 - Guide -moveable [ More info ] $56.99 Available to Order: Shipping delay up to 10 days.
#27	10-892456045	SCREW (2 required per assembly)
		10-892456045 - Screw - Priced Individually [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#28	16-888849002	STUD (2 required per assembly)
		16-888849002 - Stud [ More info ] Unavailable
		16-8M0022160 - Stud [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#29	11-40138 8	NUT, (M8) Stainless Steel (1 required per assembly)
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#30	10-885526 35	SCREW, (M8 x 35) (1 required per assembly)
		10-885526 35 - Screw - Priced Individually [ More info ] Unavailable
