Parts for Mariner 2.5 HP Cowl & Fuel Tank

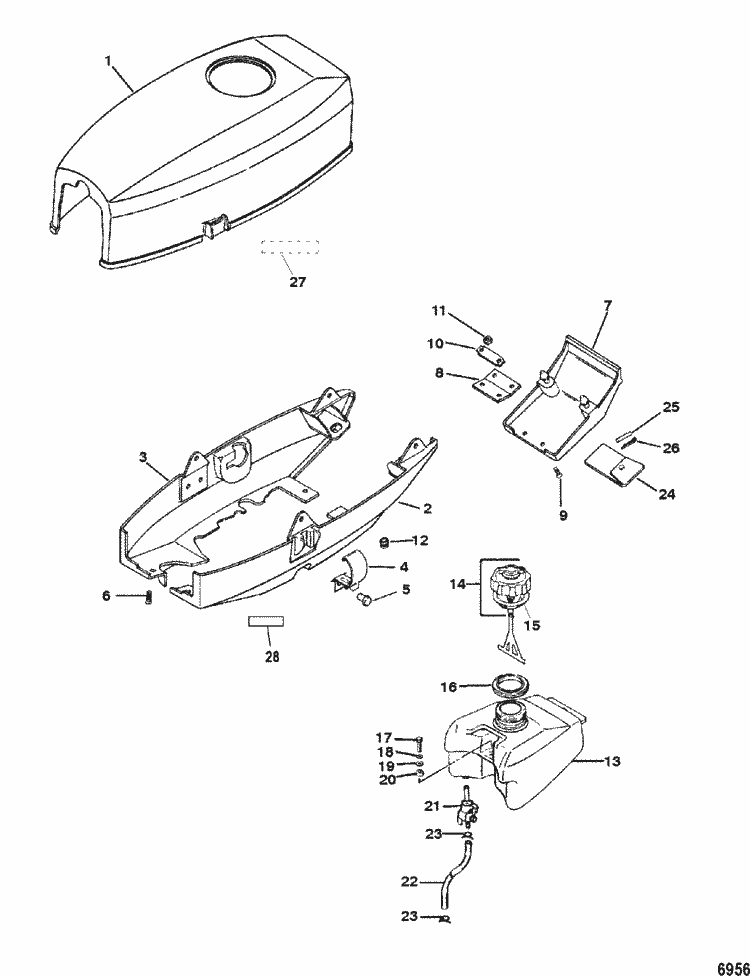

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2189-815098A 3 | TOP COWL ASSEMBLY (1 required per assembly) Black |
  |
|
2189-815098A 3 - 8M0045102 [ More info ] Unavailable |
| #1 | 2189-815098A 4 | TOP COWL ASSEMBLY (1 required per assembly) Silver |
  |
|
2189-815098A 4 - 8M0046050 [ More info ] Unavailable |
| #2 | 2189-824926A 1 | BOTTOM COWL, Port (1 required per assembly) |
  |
|
2189-824926A 1 - Bottom Cowl - Black, NLA [ More info ]
|
| #3 | 2189-824927T 1 | BOTTOM COWL, Starboard (1 required per assembly) |
  |
2189-824927T 1 - Cowl -bottom- Black [ More info ] Unavailable |
|
  |
2189-8M0046055 - Bottom Cowl- Stbd [ More info ] Unavailable |
|
  |
|
1008M0145391 - BOTTOM COWL - Starboard [ More info ]
|
| #4 | 824931A 1 | LATCH KIT (2 required per assembly) |
  |
|
824931A 1 - Latch Kit [ More info ] Unavailable |
| #5 | 17-825829 | RIVET (4 required per assembly) |
  |
|
17-825829 - Rivet [ More info ]
|
| #6 | 10-16827 | SCREW (6 required per assembly) |
  |
|
10-16827 - Screw [ More info ]
|
| #7 | 815103 | COVER (1 required per assembly) |
  |
815103 - Cover [ More info ] Unavailable |
|
  |
|
8M0148363 - Cover [ More info ]
|
| #8 | 815105 | HINGE, Rear (1 required per assembly) |
  |
|
|
| #9 | 10-95386 | BOLT (4 required per assembly) |
  |
|
10-95386 - Screw [ More info ] Unavailable |
| #10 | 95280 | PLATE (2 required per assembly) |
  |
|
95280 - Plate -th [ More info ]
|
| #11 | 11-95385 | NUT (4 required per assembly) |
  |
|
11-95385 - Nut, Plate Screw [ More info ]
|
| #12 | 25-95387 | GROMMET (2 required per assembly) |
  |
|
25-95387 - Grommet [ More info ]
|

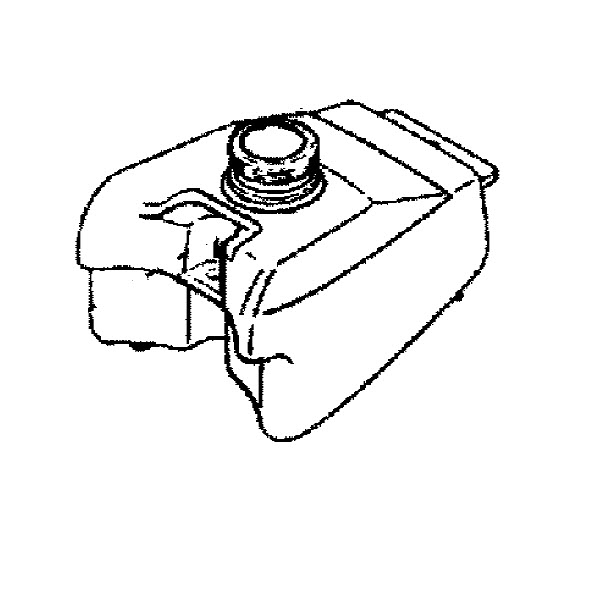

| #13 | 1258-824963A 2 | TANK ASSEMBLY, Fuel (1 required per assembly) |
  |
1258-824963A 2 - Fuel Tank [ More info ] Unavailable |
|
  |
|
1258-824963A03 - Fuel Tank [ More info ]
|

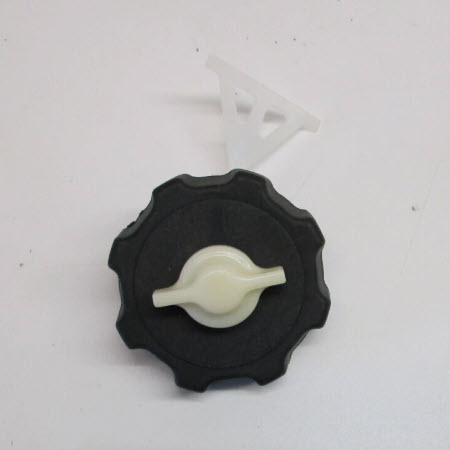

| #14 | 36-824961A 2 | CAP (1 required per assembly) |
  |
|
36-824961A 2 - Cap [ More info ]
|
  |
36-824962A 2 - Cap Assembly [ More info ] Unavailable |
|
  |
|
368M0060029 - Fuel Cap Assembly [ More info ]
|
| #15 | 27-815087 | GASKET (1 required per assembly) |
  |
27-815087 - Fuel Cap Gasket [ More info ] Unavailable |
|
  |
|
278M0065762 - Gasket [ More info ] Unavailable |
| #16 | 25-815109 | SEAL (1 required per assembly) |
  |
|
25-815109 - O-Ring [ More info ]
|
| #17 | 10-803858 | BOLT (2 required per assembly) |
  |
|
10-803858 - Bolt [ More info ]
|
| #18 | 13-16818 | LOCKWASHER (2 required per assembly) |
  |
|
13-16818 - LockWasher [ More info ]
|
| #19 | 12-95392 | WASHER (2 required per assembly) |
  |
|
12-95392 - Washer, Fuel Tank Screw [ More info ]
|
| #20 | 23-95390 | SPACER (2 required per assembly) |
  |
|
23-95390 - Spacer -th, NLA [ More info ] Unavailable |
| #21 | 22-95393 | VALVE (1 required per assembly) |
  |
|
22-95393 - Fuel Valve [ More info ]
|
| #22 | 32-95394 9 | LINE, Fuel (1000 mm) (1 required per assembly) |
  |
32-95394 9 - Hose [ More info ] Unavailable |
|
  |
32879194470 [ More info ] Unavailable |
|
  |
|
328M0057113 - Hose [ More info ]
|
| #23 | 54-95395 | CLIP, Stainless Steel (2 required per assembly) |
  |
|
|
| #24 | 91-815110 | TOOL KIT (1 required per assembly) |
  |
91-815110 - TOOL Kit [ More info ] Unavailable |
|
  |
|
91-95399 - Tool Kit [ More info ] Unavailable |
| #25 | 17-815111 | SHEAR PIN, Stainless Steel (1 required per assembly) |
  |
|
17-815111 - Shear Pin, Stainless Steel - Priced Individually [ More info ]
|
  |
17-815111002 - SHEAR PIN Note: Priced Individually [ More info ] Unavailable |
|
  |
|
17-815111Q02 - Shear Pin Kit - Priced Individually [ More info ]
|
| #26 | 18-95295 | COTTER PIN (1 required per assembly) |
  |
|
18-95295 - Cotter Pin - Priced Individually [ More info ]
|
  |
|
18-95295Q - Cotter Pin - Priced Individually [ More info ]
|
| #27 | 37-804660A06 | DECAL, EPA Label Information (1 required per assembly) |
  |
|
37-804660A06 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #28 | 37-824085 7 | DECAL, Fuel Lever (1 required per assembly) |
  |
|
37-824085 7 - Decal [ More info ]
|
