Parts for Mariner 2.5 HP Crankshaft & Piston

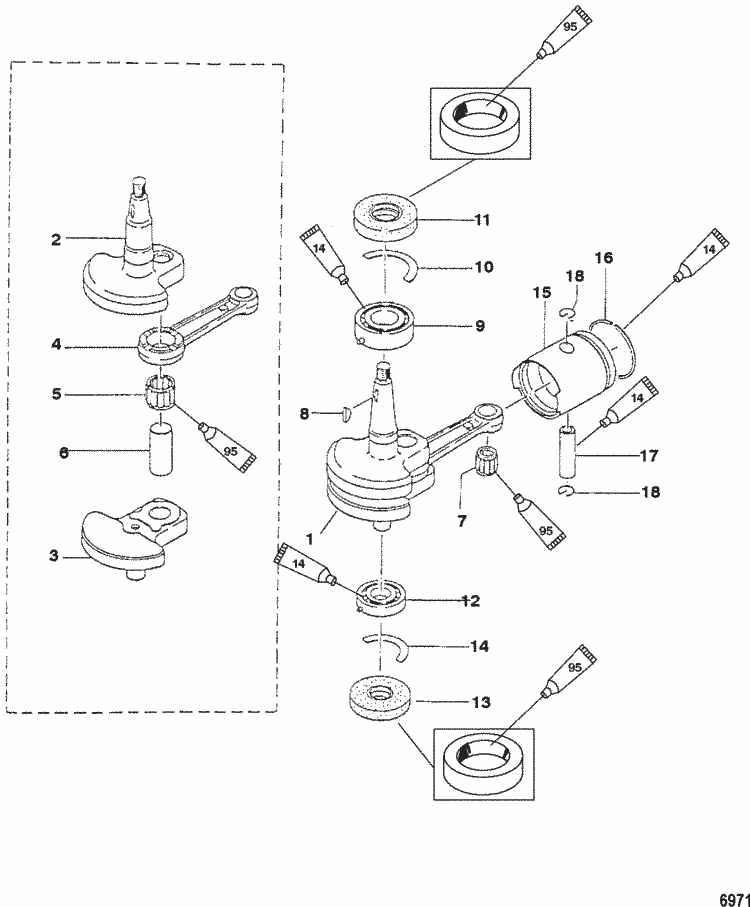

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-815076A 2 | GASKET SET, Powerhead (1 required per assembly) 3.3 Horsepower |
  |
27-815076A 2 - Powerhead Gasket Set [ More info ] Unavailable |
|
  |
27-815076A03 - Gasket Set-P/H [ More info ] Unavailable |
|
  |
27-815076A04 - Powerhead Gasket Set [ More info ] Unavailable |
|
  |
|
27-8M0203727 - GASKET SET P/H [ More info ] Unavailable |
| # | 27-95220A 5 | GASKET SET, Powerhead (1 required per assembly) 2 Horsepower |
  |
27-95220A 5 - Powerhead Gasket Set [ More info ] Unavailable |
|
  |
|
27-898101928 - Gasket Set -powerhead [ More info ]
|
| #1 | 474-9153 1 | CRANKSHAFT ASSEMBLY (1 required per assembly) 2 Horsepower |
  |
474-9153 1 - Crankshaft [ More info ] Unavailable |
|
  |
474-879147T14 - Crankshaft [ More info ] Unavailable |
|
  |
|
463-879147T16 - CrankShaft Assembly [ More info ]
|
| #1 | 474-822892 | CRANKSHAFT ASSEMBLY (1 required per assembly) 3.3 Horsepower |
  |
474-822892 - Crankshaft [ More info ] Unavailable |
|
  |
474-822892T01 - Crankshaft BOX001 [ More info ] Unavailable |
|
  |
|
474-822892T02 - CrankShaft Assembly [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE, Crankshaft (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 629-813269 | CONNECTING ROD (1 required per assembly) |
  |
|
629-813269 - Connecting Rod Assembly [ More info ]
|
| #5 | 31-813270 | BEARING (1 required per assembly) |
  |
|
31-813270 - Bearing [ More info ]
|
| #6 | 813271 | PIN, Crank (1 required per assembly) |
  |
813271 - CRANK PIN-TH [ More info ] Unavailable |
|
  |
|
813271001 - Crank Pin -th [ More info ]
|
| #7 | 31-95227 | BEARING, Roller (1 required per assembly) |
  |
|
31-95227 - Roller Bearing [ More info ]
|
| #8 | 28-95229 | KEY (1 required per assembly) |
  |
|
|
| #9 | 30-95228 | BEARING, Ball (1 required per assembly) |
  |
30-95228 - Bearing - Ball - Upper Crankshaft [ More info ] Unavailable |
|
  |
|
30-898101936 - Bearing [ More info ]
|
| #10 | 95230 | PLATE (1 required per assembly) |
  |
|
95230 - Upper Plate [ More info ]
|
| #11 | 26-95232 | SEAL, Oil (1 required per assembly) |
  |
|
26-95232 - Oil Seal [ More info ]
|
| #12 | 30-95307 | BEARING, Ball (1 required per assembly) 2 Horsepower |
  |
|
30-95307 - Ball Bearing [ More info ]
|
| #12 | 30-822894 | BEARING, Ball (1 required per assembly) 3.3 Horsepower |
  |
|
30-822894 - Ball Bearing [ More info ]
|
| #13 | 26-95308 | SEAL, Oil (1 required per assembly) 2 Horsepower |
  |
|
26-95308 - Oil Seal [ More info ]
|
| #13 | 26-822897 | SEAL, Oil (1 required per assembly) 3.3 Horsepower |
  |
|
26-822897 - Oil Seal [ More info ]
|
| #14 | 822896 | THRUST PLATE, Lower (1 required per assembly) |
  |
|
|
| #15 | 779-9154A01 | PISTON ASSEMBLY, Complete (1 required per assembly) Standard |
  |
779-9154A01 - Piston Assembly [ More info ] Unavailable |
|
  |
|
7798M0103754 - Piston [ More info ]
|
| #15 | 779-9183A01 | PISTON ASSEMBLY, Complete (1 required per assembly) .5MM Oversize |
  |
779-9183A01 - Piston Assembly [ More info ] Unavailable |
|
  |
|
7798M0103753 - Piston [ More info ]
|
| #15 | 779-9154 | PISTON (1 required per assembly) Standard-Bare Piston |
  |
|
779-9154 - ORD 799-9154A01 [ More info ] Unavailable |
| #15 | 779-9183 | PISTON (AR required per assembly) .5MM Oversize-Bare Piston |
  |
|
779-9183 - Piston [ More info ]
|
| #16 | 39-95234 | RING, Piston (1 required per assembly) Standard |
  |
|
39-95234 - Piston Ring, Standard, Priced Individually [ More info ]
|
| #16 | 39-95309 | RING, Piston (AR required per assembly) .5MM Oversize |
  |
|
39-95309 - Ring -PIS-.5MMOS [ More info ]
|
| #17 | 41-95235 | PIN, Piston (1 required per assembly) |
  |
41-95235 - Piston Pin [ More info ] Unavailable |
|
  |
|
898101917 - Piston Pin [ More info ]
|
| #18 | 53-95236 6 | CLIP (2 required per assembly) |
  |
|
53-95236 6 - Clip- Piston Pin [ More info ]
|
