Parts for Mariner 25 HP (2 Cylinder) Ignition Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 84-88891A 1 | HARNESS ASSEMBLY, PRIMARY (1 required per assembly) |
  |
|
84-88891A 1 - Harness, NLA [ More info ] Unavailable |
| #2 | 86617A 5 | STATOR ASSEMBLY (1 required per assembly) |
  |
86617A 5 - Stator Assembly [ More info ] Unavailable |
|
  |
86617A 9 - Stator Assembly [ More info ] Unavailable |
|
  |
86617A11 - Stator Assembly [ More info ] Unavailable |
|
  |
86617A13 - Stator [ More info ] Unavailable |
|
  |
|
86617A20 - Stator [ More info ]
|
 |
|
18-58641 - Stator, Mercury MC#86617A20 [ More info ]
|
| #3 | 10-40001 20 | SCREW, STATOR ATTACHING (25MM) (2 required per assembly) |
  |
|
10-40001 20 - Screw, NLA [ More info ]
|
| #3 | 10-40001 5 | SCREW, STATOR ATTACHING (10MM) - MANUAL (2 required per assembly) |
  |
|
10-40001 5 - Screw, NLA [ More info ]
|
| #4 | 54-23568 | CLIP, STATOR LEADS (1 required per assembly) |
  |
54-23568 - Clip - Priced Individually [ More info ] Unavailable |
|
  |
|
54-24836 - Clip - Priced Individually [ More info ]
|
| #5 | 10-40057108 | SCREW, CLIP TO SWITCH BOX (20MM) (1 required per assembly) |
  |
10-40057108 - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-40019108 - Screw [ More info ] Unavailable |

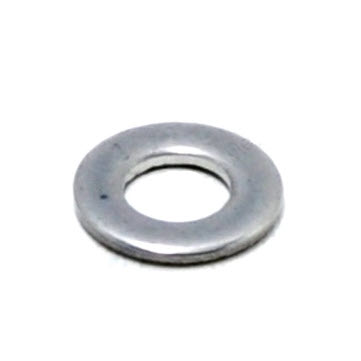

| #6 | 12-27736 | WASHER, CLIP SCREW (1 required per assembly) |
  |
|
12-27736 - Washer [ More info ]
|
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #7 | 93880A 1 | TRIGGER ASSEMBLY (1 required per assembly) UNITED STATES 6055407 AND BELOW AUSTRALIA 8074217 AND BELOW BELGIUM 9340565 AND BELOW CANADA 7186767 AND BELOW |
  |
93880A 1 - Trigger Assembly [ More info ] Unavailable |
|
  |
98450A 1 - Trigger Assembly [ More info ] Unavailable |
|
  |
98450A 3 - TRIGGER ASSY [ More info ] Unavailable |
|
  |
98450A 5 - Trigger Assembly [ More info ] Unavailable |
|
  |
|
98450A10 - Trigger Assembly [ More info ]
|
| #7 | 98450A 1 | TRIGGER ASSEMBLY (1 required per assembly) UNITED STATES 6055408 AND UP BELGIUM 9340566 AND UP CANADA 7186768 AND UP |
| #8 | 54-24836 | CLIP, TRIGGER LEADS (1 required per assembly) |
| #9 | 10-77137 | SCREW, CLIP TO CRANKCASE (1 required per assembly) |
  |
|
10-77137 - Screw [ More info ]
|
| #10 | 69205 | "C" WASHER, CLIP SCREW (1 required per assembly) |
  |
69205 - C Washer [ More info ] Unavailable |
|
  |
|
8M0084613 - Washer [ More info ]
|
| #11 | 339-7370A 6 | IGNITION COIL ASSEMBLY (2 required per assembly) |
  |
339-7370A 6 - Ignition Coil [ More info ] Unavailable |
|
  |
339-7370A 8 - Ignition Coil [ More info ] Unavailable |
|
  |
339-7370A13 - Ignition Coil [ More info ] Unavailable |
|
  |
339-832757A 4 - Ignition Coil [ More info ] Unavailable |
|
  |
|
8M0230859 - Ignition Coil [ More info ]
|
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
| #12 | 10-40001 89 | SCREW, COIL TO CYLINDER BLOCK (45MM) (2 required per assembly) |
  |
|
10-40001 89 - SCREW,NLA [ More info ] Unavailable |
| #13 | 88173 | TAB, COIL SCREW (2 required per assembly) |
  |
|
88173 - Tab [ More info ]
|
| #14 | 23-88171 | BUSHING, COIL SCREW (2 required per assembly) |
  |
|
23-88171 - Bushing [ More info ]
|
| #15 | 11-45076 | NUT, COIL TERMINAL (4 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #16 | 84-90816A25 | LEAD ASSEMBLY, HIGH TENSION (2 required per assembly) |
  |
84-90816A25 - WIRE ASSY Note: Priced Individually [ More info ] Unavailable |
|
  |
84-93475A25 - WIRE ASSY [ More info ] Unavailable |
|
  |
84-99215A25 - Wire Assembly [ More info ] Unavailable |
|
  |
|
84-813715A 1 - Ignition Cable Assembly [ More info ]
|
  |
|
18-5228-1 - Spark Plug Wire, 9 Inch, 84-813715A1 [ More info ]
|
  |
|
18-5227-1 - Spark Plug Wire, 9 Inch Pre-made [ More info ]
|
| #17 | 85-70674 | BOOT, COIL (2 required per assembly) |
  |
85-70674 - Insulator [ More info ] Unavailable |
|
  |
|
85-92308 - Insulator [ More info ]
|
| #18 | 85-63709A 1 | BOOT ASSEMBLY, SPARK PLUG (2 required per assembly) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #19 | 33-86864 | SPARK PLUG, CHAMPION #L-77J4 (2 required per assembly) |
  |
33-86864 - NGK Spark Plug B9HS-10 - Priced Individually [ More info ] Unavailable |
|
  |
33-97186 - NGK Spark Plug B9HS-10 - Priced Individually [ More info ] Unavailable |
|
  |
338M0114742 - S Plug B9HS - Priced Individually [ More info ] Unavailable |
|
  |
|
33-813418 - NGK Spark Plug BR9HS-10 - Priced Individually [ More info ] Unavailable |
  |
|
L77JC4 - Champion Spark Plug ( #821M) [ More info ]
|
| #19 | 33-86866 | SPARK PLUG (2 required per assembly) CHAMPION #QL-77J4 - CANADA AND BELGIUM |
  |
|
33-86866 - 33-86866 - SPARK PLUG [ More info ] Unavailable Replaced by 33-828C |
  |
33-828C - SP #QL77JC4 Note: Priced Individually [ More info ] Unavailable |
|
  |
|
33-896329828 - Spark Plug - QL77JC4 - Priced Individually [ More info ] Unavailable |
  |
|
QL77JC4 - Champion Spark Plug ( #828M) [ More info ]
|
| #20 | 339-7452A 3 | SWITCH BOX ASSEMBLY (1 required per assembly) |
  |
|
339-7452A 3 - Switch Box [ More info ] Unavailable |
|
|
18-57761 - SWITCHBOX, MERCURY [ More info ]
|
  |
|
18-5776 - Switch Box 339-7452A3 [ More info ]
|
  |
|
899883230 - Switch Box Assembly [ More info ]
|
| #21 | 13-69432 | LOCKWASHER, GROUND (1 required per assembly) |
  |
|
13-69432 - LockWasher - Priced Individually [ More info ]
|
