Parts for Mariner 225 HP EFI (4-Stroke) Electrical Components

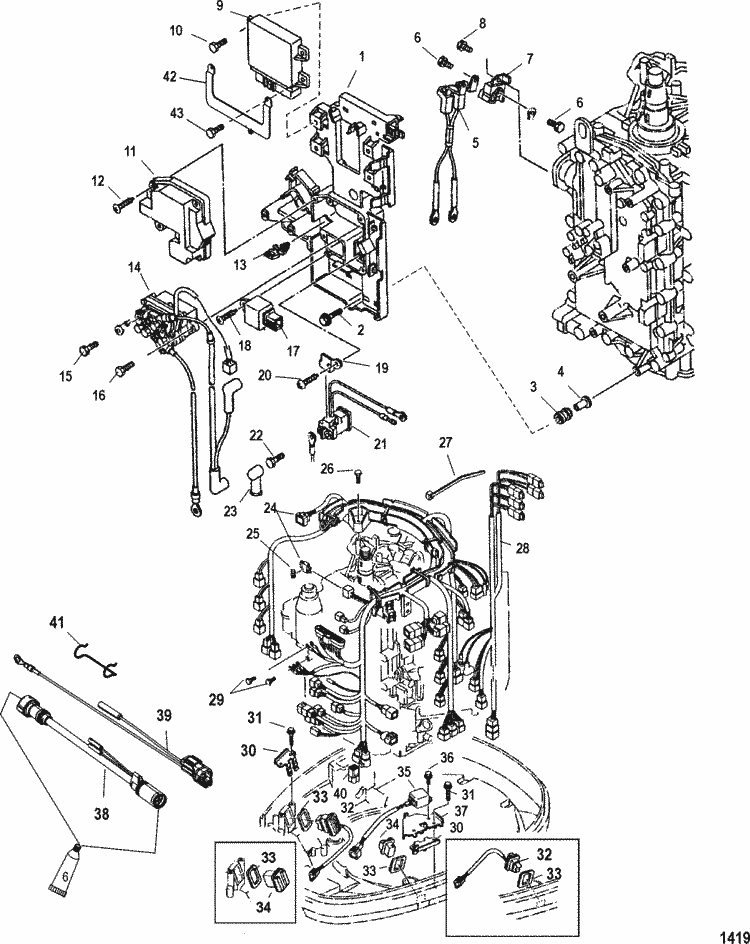

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 88-832969 20 | FUSE, Mini (Yellow - 20 Ampere) (4 required per assembly) |
  |
88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable |
|
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| # | 88-832969 30 | FUSE, Mini (Green - 30 Ampere) (6 required per assembly) |
  |
|
88-832969 30 - Fuse - Green-30 Amp [ More info ]
|
| # | 891825 | FUSE COVER (Brown) (10 required per assembly) |
  |
|
891825 - Cap -Brown [ More info ]
|
| #1 | 888319T | BRACKET (1 required per assembly) |
  |
|
888319T - Bracket [ More info ] Unavailable |
| #2 | 10-804270 | BOLT, (M6 x 28) (6 required per assembly) |
  |
|
10-804270 - Bolt [ More info ] Unavailable |
| #3 | 25-881304 | GROMMET (6 required per assembly) |
  |
|
25-881304 - Damper [ More info ]
|
| #4 | 23-82851M | BUSHING (6 required per assembly) |
  |
23-82851M - Bushing [ More info ] Unavailable |
|
  |
|
23-804344003 - Collar [ More info ]
|
| #5 | 84-887955 | BATTERY CABLE (1 required per assembly) |
  |
|
84-887955 - Battery Cable [ More info ] Unavailable |
| #6 | 10-825501 2 | BOLT (2 required per assembly) |
  |
|
10-825501 2 - Bolt [ More info ]
|
| #7 | 888314 | TERMINAL (1 required per assembly) |
  |
|
888314 - Terminal [ More info ]
|
| #8 | 10-881816 | BOLT, (M8 x 20) (2 required per assembly) |
  |
|
10-881816 - Bolt [ More info ]
|
| #9 | 888286T 1 | ECU (1 required per assembly) SN# 0T807875 & Below |
  |
888286T 1 - ECU [ More info ] Unavailable |
|
  |
888286T10 - ECU [ More info ] Unavailable |
|
  |
|
888286T11 - ECU [ More info ] Unavailable |
| #9 | 888286T10 | ECU (1 required per assembly) SN# 0T807876 & Up |
| #10 | 10-811188M | BOLT, (M6 x 16) (2/4 required per assembly) |
  |
10-811188M - BOLT [ More info ] Unavailable |
|
  |
|
10-811188T - Bolt [ More info ] Unavailable |
| #11 | 888321 | COVER (1 required per assembly) |
  |
|
|
| #12 | 10-888322 | SCREW (4 required per assembly) |
  |
|
10-888322 - Bolt - Priced Individually [ More info ]
|
| #13 | 54-888311 | CLAMP (2 required per assembly) |
  |
|
54-888311 - Clamp [ More info ] Unavailable |
| #14 | 888320T | RELAY (1 required per assembly) |
  |
|
888320T - Relay Assembly [ More info ] Unavailable |
| #15 | 10-824832 4 | SCREW, (M6 x 16) (2 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
| #16 | 10-825009 25 | SCREW, (M6 x 25) (2 required per assembly) |
  |
|
10-825009 25 - Screw [ More info ]
|
  |
|
10893745025 - Screw (M6 x 25) [ More info ]
|
| #17 | 881350T | RELAY (1 required per assembly) |
  |
|
881350T - Relay Assembly [ More info ] Unavailable |
| #18 | 10-881351 | SCREW (1 required per assembly) |
  |
|
10-881351 - Screw [ More info ]
|
| #19 | 54-881353 | CLAMP (1 required per assembly) |
  |
|
54-881353 - Clamp [ More info ]
|
| #20 | 10-881351 1 | SCREW (1 required per assembly) |
  |
|
10-881351 1 - Screw [ More info ]
|
| #21 | 881352T | RELAY (1 required per assembly) |
  |
|
|
  |
|
89-8M0098898 - Relay Assembly [ More info ]
|
| #23 | 85-804284 | BOOT (1 required per assembly) |
  |
85-804284 - BOOT [ More info ] Unavailable |
|
  |
|
85-804284001 - Boot [ More info ]
|
| #24 | 84-888323A 1 | ENGINE WIRING HARNESS (1 required per assembly) |
  |
|
84-888323A 1 - Engine Harness [ More info ]
|
| #25 | 88-832969 5 | FUSE, Mini (Tan - 5 Ampere) (2 required per assembly) |
  |
88-832969 5 - Fuse, Tan-5 AMP [ More info ] Unavailable |
|
  |
|
88-832969T05 - Fuse -TAN-5 AMP [ More info ]
|
| #26 | 10-850879 | BOLT, (M6 x 35) (2 required per assembly) |
  |
|
10-850879 - Bolt [ More info ]
|
| #27 | 54-816311T | CABLE TIE, (8.00 Inches) (6 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #28 | 84-888330A 1 | WIRING HARNESS (1 required per assembly) |
  |
|
84-888330A 1 - Harness [ More info ] Unavailable |
| #29 | 10-804604 | BOLT, (M6 x 20) (2 required per assembly) |
  |
|
10-804604 - Bolt [ More info ]
|
| #30 | 888328 | BRACKET (2 required per assembly) |
  |
|
888328 - Bracket [ More info ]
|
| #31 | 10-887807 | BOLT (4 required per assembly) |
  |
|
10-887807 - Bolt - Priced Individually [ More info ]
|
| #32 | 87-888325A 1 | TRIM/TILT SWITCH ASSEMBLY (1 required per assembly) |
  |
|
87-888325A 1 - Switch [ More info ]
|
| #33 | 27-888327 | GASKET (2 required per assembly) |
  |
|
27-888327 - Gasket [ More info ]
|
| #34 | 888326 | COVER (1 required per assembly) |
  |
|
|
| #35 | 888329A 1 | DRIVE ASSEMBLY (1 required per assembly) |
  |
|
888329A 1 - Drive Assembly [ More info ]
|
| #36 | 10-888332 | BOLT (1 required per assembly) |
  |
|
10-888332 - Bolt [ More info ]
|
| #37 | 888331 | BRACKET (1 required per assembly) |
  |
|
888331 - Bracket [ More info ]
|
| #38 | 84-858740A 1 | HARNESS ASSEMBLY, Remote Adaptor (1 required per assembly) SN# 1B226999 & Below |
  |
|
84-858740A 1 - Harness - Adaptor [ More info ]
|
| #38 | 84-858740T07 | HARNESS ASSEMBLY, Remote Adaptor (1 required per assembly) SN# 1B227000 & Up |
  |
|
84-858740T07 - Harness - Adaptor [ More info ]
|
| #39 | 84-888166A 1 | TRIM SENDER ADAPTOR HARNESS (1 required per assembly) |
  |
|
84-888166A 1 - Trim Harness [ More info ] Unavailable |
| #40 | 859249T 1 | CONNECTOR (1 required per assembly) |
  |
|
859249T 1 - Connector [ More info ]
|
| #41 | 92753 | RETAINER (1 required per assembly) |
  |
|
92753 - Harness Retainer [ More info ]
|
| #42 | 892769 | PLATE (1 required per assembly) |
  |
|
|
| #43 | 10-825702 1 | BOLT, (M6 x 20) (2 required per assembly) |
  |
|
10-825702 1 - Bolt [ More info ]
|
