Parts for Mariner 225 HP (3.0L-DFI) (DTS) Shift Components

Revise Search: All Models > 225 HP (3.0L-DFI) (DTS) > 1B504989 & Up (USA) > Shift Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

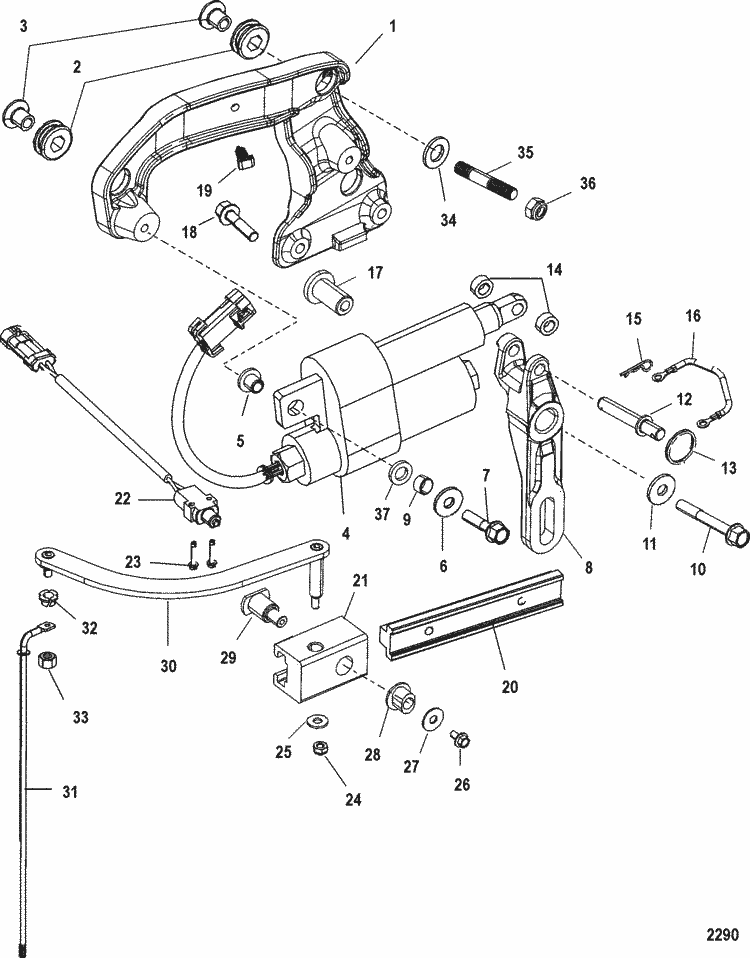

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	884526T	PLATE, Actuator (1 required per assembly)
		884526T - Plate - Actuator [ More info ] $391.99 Available to Order: Shipping delay up to 10 days.
#2	25-855362001	GROMMET (3 required per assembly)
		25-855362001 - Grommet, Coolant Reservoir [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#3	23-855364	BUSHING (3 required per assembly)
		23-855364 - Bushing [ More info ] $5.99 10+ In Stock.
#4	8M0048114	SHIFT ACTUATOR (1 required per assembly)
		8M0048114 - Shift Actuator [ More info ] Unavailable
		8M0124413 - Shift Actuator [ More info ] $1,904.99 In Stock
#5	23-884532001	BUSHING (1 required per assembly)
		23-884532001 - Bushing [ More info ] $35.92 1 In Stock.
#6	12-898097	WASHER (1 required per assembly)
		12-898097 - Washer [ More info ] Unavailable
#7	10-818934 35	SCREW, (M8 x 35) (1 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#8	884530	BELL CRANK (1 required per assembly)
		884530 - Bell Crank [ More info ] Unavailable
#9	23-888589	WEAR SLEEVE (1 required per assembly)
		23-888589 - Wear Sleeve [ More info ] $10.00 $8.47 1 In Stock.
#10	10-818934 60	SCREW, (M8 x 60) (1 required per assembly)
		10-818934 60 - Screw [ More info ] $5.39 1 In Stock.
#12	17-841098	PIN (1 required per assembly)
		17-841098 - Pin [ More info ] $154.49 Available to Order: Shipping delay up to 10 days.
#13	885569	SPLIT RING (1 required per assembly)
		885569 - Split Ring [ More info ] Unavailable
#14	884599	SPACER (2 required per assembly)
		884599 - Spacer [ More info ] $16.70 Available to Order: Shipping delay up to 10 days.
#15	NSS	NOT SOLD SEPARATE, Cotter Pin - See Outboard Parts Bulletin 2003-10 (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	84-88807A 6	CABLE ASSEMBLY, (3.50 Inches) Black (1 required per assembly)
		84-88807A 6 - Wire Assembly [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#17	23-884554	BUSHING (1 required per assembly)
		23-884554 - Bushing [ More info ] $39.49 Available to Order: Shipping delay up to 10 days.
#18	10-821550 25	SCREW, (M8 x 25) Stainless Steel (2 required per assembly)
		10-821550 25 - Screw - Priced Individually [ More info ] $3.19 $1.79 9 In Stock.
#19	54-828991T	CLIP (1 required per assembly)
		54-828991T - Clip [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#20	884528	SHIFT RAIL (1 required per assembly)
		884528 - Rail- Shift [ More info ] $52.99 Available to Order: Shipping delay up to 10 days.
#21	884527	SHIFT SLIDER (1 required per assembly)
		884527 - Shift Slider [ More info ] Unavailable
#22	87-889514A01	SWITCH (1 required per assembly)
		87-889514A01 - Switch [ More info ] Unavailable
		87-8M0052939 - Switch [ More info ] Unavailable
		87-8M0207794 - SWITCH [ More info ] $58.99 1 In Stock.
#23	10-824706 20	SCREW, (M3.5 x 20) (2 required per assembly)
		10-824706 20 - Screw [ More info ] $1.70 1 In Stock.
#24	11-40138 6	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#25	12-35459	WASHER (1 required per assembly)
		12-35459 - Washer (.265 X .620 X .06) [ More info ] $1.70 2 In Stock.
#26	10-821045 10	SCREW, (M5 x 10) (1 required per assembly)
		10-821045 10 - Screw [ More info ] $1.10 2 In Stock.
#27	12-65567	WASHER, (.265 x .750 x .048) Stainless Steel (1 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#28	887901	BUSHING (1 required per assembly)
		887901 - Bushing [ More info ] $133.49 Available to Order: Shipping delay up to 10 days.
#29	23-884555	BUSHING (1 required per assembly)
		23-884555 - Bushing [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#30	884529	SHIFT LINK (1 required per assembly)
		884529 - Shift Link [ More info ] $184.49 Available to Order: Shipping delay up to 10 days.
#31	8M0021886	SHIFT SHAFT, Long (1 required per assembly)
		8M0021886 - Ord 8M0026175, NLA [ More info ] Unavailable
		8M0026175 - Shift Shaft Long [ More info ] $259.99 Available to Order: Shipping delay up to 10 days.
#31	8M0021887	SHIFT SHAFT, X-Long (1 required per assembly)
		8M0021887 - Shift Shaft Xl [ More info ] Unavailable
		8M0026176 - Shift Shaft Xl [ More info ] $293.99 Available to Order: Shipping delay up to 10 days.
#31	8M0021888	SHIFT SHAFT, XX-Long (1 required per assembly)
		8M0021888 - Shift Shaft [ More info ] Unavailable
#32	23-42994	BUSHING (1 required per assembly)
		23-42994 - Bushing [ More info ] $3.19 1 In Stock.
#34	12-40023 18	WASHER (3 required per assembly)
		12-40023 18 - Washer - Priced Individually [ More info ] $2.99 5 In Stock.
#35	16-884824	STUD, (M8 x 50) (3 required per assembly)
		16-884824 - Stud [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#36	11-40138 8	NUT, (M8) Stainless Steel (3 required per assembly)
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#37	12-889661	WASHER, Rubber (1 required per assembly)
		12-889661 - Washer, Rubber [ More info ] Unavailable
