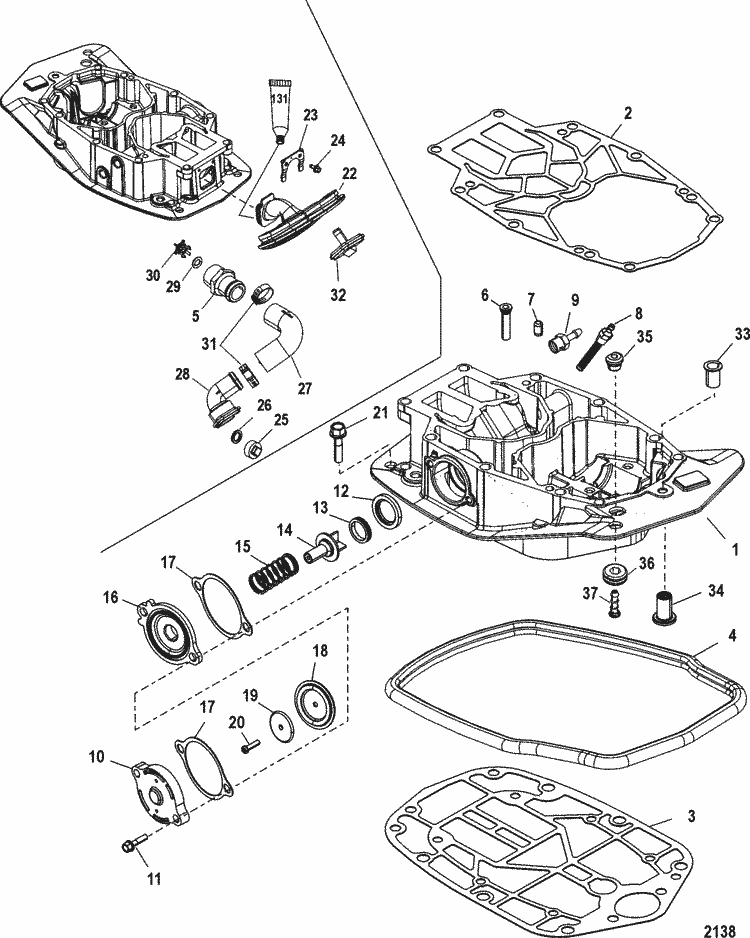

Parts for Mariner 225 HP (3.0L-DFI) (DTS) Exhaust Plate
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-832934A00 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-832934A00 - Powerhead Gasket Set [ More info ]
|
| #1 | 832935A16 | PLATE ASSEMBLY, Exhaust (1 required per assembly) SN# 0T800999 & Below |
  |
832935A16 - PLATE KIT-EXHAUST [ More info ] Unavailable |
|
  |
|
832935A17 - Exhaust Plate Kit [ More info ]
|
| #1 | 832935A17 | PLATE ASSEMBLY, Exhaust (1 required per assembly) SN# 0T801000 & Up |
| #2 | 27-832933 5 | GASKET (1 required per assembly) |
  |
|
27-832933 5 - ORD 27-832933006 [ More info ] Unavailable |
  |
|
18-2739 - Gasket 27-832335 [ More info ]
|
| #3 | 27-832934 4 | GASKET (Lower) (1 required per assembly) |
  |
|
27-832934 4 - ORD 27-832934006 [ More info ] Unavailable |
| #4 | 823805 1 | SEAL (1 required per assembly) |
  |
|
|
  |
|
8M0043157 - Seal [ More info ]
|
| #5 | 22-832076 1 | FITTING, Check Valve (1 required per assembly) |
  |
|
22-832076 1 - Fitting [ More info ]
|
| #6 | 21-817519A 1 | CHECK VALVE ASSEMBLY, Drain (2 required per assembly) |
  |
|
21-817519A 1 - Drain Valve Assembly [ More info ]
|
| #7 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) (4 required per assembly) |
  |
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #8 | 35-834808 4 | STRAINER (1 required per assembly) |
  |
|
35-834808 4 - Strainer [ More info ]
|
| #9 | 22-887603 | FITTING (1 required per assembly) |
  |
|
22-887603 - Fitting [ More info ]
|
| #10 | 65663A 2 | COVER ASSEMBLY (1 required per assembly) |
  |
|
65663A 2 - Cover Assembly [ More info ] Unavailable |
| #11 | 10-818934 35 | SCREW, (M8 x 35) (2 required per assembly) |
  |
|
10-818934 35 - Screw [ More info ]
|
| #12 | 814190 | CARRIER (1 required per assembly) |
  |
|
814190 - Carrier [ More info ] Unavailable |
| #13 | 25-814191 | GROMMET (1 required per assembly) |
  |
|
25-814191 - Grommet [ More info ]
|
| #14 | 814189 | POPPET (1 required per assembly) |
  |
|
|
| #15 | 24-64878 | SPRING (1 required per assembly) |
  |
|
24-64878 - Spring, Compresion Poppet Valve [ More info ]
|
| #16 | 65664A 1 | PLATE ASSEMBLY (1 required per assembly) |
  |
|
65664A 1 - Plate Assembly [ More info ]
|
| #17 | 27-88907003 | GASKET (2 required per assembly) |
  |
|
27-88907003 - Relief Valve Plate Gasket [ More info ]
|
| #18 | 64877 1 | DIAPHRAGM (1 required per assembly) |
  |
|
64877 1 - Diaphragm [ More info ]
|
| #19 | 12-76451 | WASHER (1 required per assembly) |
  |
|
12-76451 - Washer, Diaphragm [ More info ]
|
| #20 | 10-69570 | SCREW, (#10-16 x .750) (1 required per assembly) |
  |
|
10-69570 - Screw [ More info ]
|
| #22 | 850306 1 | BOOT, Idle Exhaust (1 required per assembly) SN# 0T800999 & Below |
  |
850306 1 - BOOT [ More info ] Unavailable |
|
  |
|
850306A04 - Boot Kit - Idle Exhaust [ More info ]
|
| #22 | 850306A04 | BOOT KIT, Idle Exhaust (1 required per assembly) SN# 0T801000 & Up |
| #23 | 888910 | PLATE (1 required per assembly) SN# 0T801000 & Up |
  |
|
|
| #24 | 10-822393 12 | SCREW, (M5 x 12) (2 required per assembly) SN# 0T801000 & Up |
  |
|
10-822393 12 - SCREW (M5 x 12) [ More info ]
|
| #25 | 19-821908 | PLUG (1 required per assembly) |
  |
|
19-821908 - Plug [ More info ]
|
| #26 | 12-821915 | WASHER (1 required per assembly) |
  |
|
12-821915 - Washer [ More info ]
|
| #27 | 32-859626A 1 | FLUSH HOSE KIT (Inlet) (1 required per assembly) |
  |
|
32-859626A 1 - Flush Hose Kit [ More info ]
|
| #28 | 22-859600 1 | FITTING (1 required per assembly) |
  |
|
22-859600 1 - Fitting [ More info ]
|
| #29 | 25-30641 | O-RING, (.299 x .103) (1 required per assembly) |
  |
|
25-30641 - O-ring, (.299 X .103) [ More info ]
|
| #30 | 821963 1 | CHECK VALVE (1 required per assembly) |
  |
|
821963 1 - Check Valve [ More info ]
|
| #31 | 54-850896 | CLAMP, (28.6) (2 required per assembly) |
  |
|
54-850896 - Clamp [ More info ]
|
| #32 | 821904 | FITTING, Tell-Tale (1 required per assembly) |
  |
821904 - Fitting [ More info ] Unavailable |
|
  |
|
22-8M0077650 - Tell Tale Fitting [ More info ]
|
| #33 | 23-48237 | BUSHING (1 required per assembly) |
  |
|
23-48237 - Bushing [ More info ]
|
| #34 | 43585 | COUPLING (1 required per assembly) |
  |
|
43585 - Shift Shaft Coupling [ More info ]
|
  |
|
18-1730 - Coupling, 43585 [ More info ]
|
  |
|
93-02639 - Shift Coupling 43585 [ More info ]
|
| #35 | 25-12602 1 | GROMMET (1 required per assembly) SN# 0T979999 & Below |
  |
25-12602 1 - Grommet [ More info ] Unavailable |
|
  |
|
25-12602002 - Grommet (.44 I.d.) [ More info ]
|
| #35 | 25-12602002 | GROMMET (1 required per assembly) SN# 0T980000 & Up |
| #36 | 25-822002 | GROMMET (1 required per assembly) |
  |
|
25-822002 - Grommet [ More info ]
|
| #37 | 22-94848 | FITTING (1 required per assembly) |
  |
|
22-94848 - Fitting [ More info ]
|
