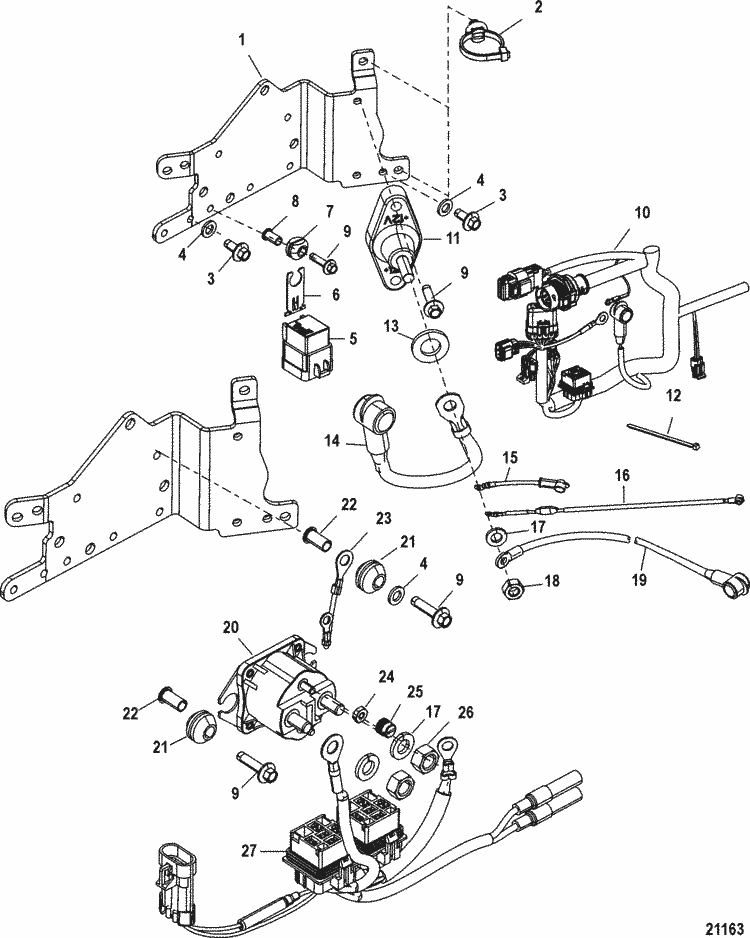

Parts for Mariner 200 HP (DFI) 3.0L Electrical Plate Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 88-832969 20 | FUSE, Mini - Yellow - 20 Ampere (3 required per assembly) |
  |
88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable |
|
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| # | 84-881262A 2 | HARNESS ASSEMBLY, Alternator (1 required per assembly) |
  |
|
84-881262A 2 - Harness Assembly [ More info ]
|
  |
|
18-6500 - Harness Assembly Delco [ More info ]
|
| # | 84-858781A 2 | HARNESS ASSEMBLY, Direct Injector (1 required per assembly) |
  |
84-858781A 2 - Harness Kit-DI [ More info ] Unavailable |
|
  |
|
879346A49 - Harness Repair Kit - Direct Inject [ More info ]
|
| # | 88-832969 2 | FUSE, Mini - Gray - 2 Ampere (1 required per assembly) |
  |
|
88-832969 2 - Fuse - GRAY-2 Amp [ More info ] Unavailable |
| # | 84-878073A 2 | HARNESS ASSEMBLY, Throttle Position Sensor (1 required per assembly) |
  |
84-878073A 2 - HARNESS-TPS [ More info ] Unavailable |
|
  |
|
879346A41 - KT-3 Pin Delphi [ More info ]
|
| # | NSS | NOT SOLD SEPARATE, Electrical Plate Assembly-Complete (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| # | 84-858780A 2 | HARNESS ASSEMBLY, Fuel Injector (1 required per assembly) |
  |
84-858780A 2 - Harness Kit [ More info ] Unavailable |
|
  |
|
879346A50 - Fuel Injection Harness Kit [ More info ]
|
| # | 88-832969 5 | FUSE, Mini - Tan - 5 Ampere (1 required per assembly) |
  |
88-832969 5 - Fuse, Tan-5 AMP [ More info ] Unavailable |
|
  |
|
88-832969T05 - Fuse -TAN-5 AMP [ More info ]
|
| #1 | 899071T01 | PLATE (1 required per assembly) |
  |
|
899071T01 - Plate [ More info ]
|
| #2 | 54-899145 | CLIP, Tie Strap (2 required per assembly) |
  |
|
54-899145 - Clip [ More info ]
|
| #3 | 10-821291 14 | SCREW, (M6 x 14) (2 required per assembly) |
  |
|
10-821291 14 - Screw [ More info ]
|
| #4 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (3 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #5 | 882751A 1 | RELAY ASSEMBLY (3 required per assembly) |
  |
|
882751A 1 - Relay - 8M0207773 [ More info ] Unavailable |
  |
|
18-5849 - Relay, 882751A1 [ More info ]
|
  |
|
300-01562 - Power Trim Relay, 882751A1 [ More info ]
|
  |
|
|
| #6 | 828102 | BRACKET (3 required per assembly) |
  |
|
828102 - Relay Mounting Bracket [ More info ]
|
  |
|
8M0207771 - BRACKET [ More info ] Unavailable |
| #7 | 25-818967 | GROMMET (3 required per assembly) |
  |
|
25-818967 - Grommet [ More info ]
|
  |
|
258M0207785 - Grommet [ More info ]
|
| #8 | 23-818968 | BUSHING (3 required per assembly) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #9 | 10-821291 25 | SCREW, (M6 x 25) (7 required per assembly) |
  |
|
10-821291 25 - Screw [ More info ] Unavailable |
| #10 | 84-892971T05 | HARNESS ASSEMBLY, Engine (1 required per assembly) |
  |
|
84-892971T05 - Engine Harness [ More info ]
|
| #11 | 85-875302A 1 | HOT STUD ASSEMBLY (1 required per assembly) |
  |
|
85-875302A 1 - Hot Stud Assembly [ More info ]
|
| #12 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #13 | 12-85172 | WASHER (1 required per assembly) |
  |
|
12-85172 - Washer,rubber-upper Mount Screw [ More info ]
|
| #14 | 84-93388T21 | CABLE ASSEMBLY, Black (1 required per assembly) |
  |
|
84-93388T21 - Cable Assembly [ More info ]
|
| #15 | 84-93388A17 | CABLE ASSEMBLY, (8.50 Inches) (1 required per assembly) |
  |
|
84-93388A17 - Starter Cable [ More info ]
|
| #16 | 84-878231A 6 | HARNESS ASSEMBLY, Fuse - 100 Ampere (1 required per assembly) |
  |
|
84-878231A 6 - Harness Assembly [ More info ]
|
| #17 | 13-53166 | LOCKWASHER, (.312) (3 required per assembly) |
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #18 | 11-40021 3 | NUT, (M8) Stainless Steel (1 required per assembly) |
  |
|
11-40021 3 - Nut - Priced Individually [ More info ]
|
| #19 | 84-88439A46 | CABLE ASSEMBLY, Battery - Positive (1 required per assembly) |
  |
|
84-88439A46 - Battery Cable Pos [ More info ]
|
| #20 | 89-817109A 2 | SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) (1 required per assembly) |
  |
|
89-817109A 2 - Solenoid Kit [ More info ]
|
  |
|
18-5834 - Solenoid, 89-817109A2 [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #21 | 25-822179 | GROMMET (2 required per assembly) |
  |
|
25-822179 - Grommet [ More info ]
|
| #23 | 84-88807A16 | CABLE ASSEMBLY, (4.00 Inches) Black (1 required per assembly) |
  |
|
84-88807A16 - Cable Assembly [ More info ]
|
| #24 | 11-45076 | NUT, (#10-32) Brass (2 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #25 | 11-813938 | CAP NUT, (#10-32) (2 required per assembly) |
  |
|
11-813938 - Capnut [ More info ]
|
| #26 | 11-68292 | NUT, (.312-18) (2 required per assembly) |
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #27 | 84-819514T26 | HARNESS ASSEMBLY, Trim (1 required per assembly) |
  |
|
84-819514T26 - Trim Harness [ More info ]
|
