Parts for Mariner 200 HP (DFI) 3.0L Cylinder Block & End Cap

Revise Search: All Models > 200 HP (DFI) 3.0L > 0T801000 - 1B417701 (USA) > Cylinder Block & End Cap

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

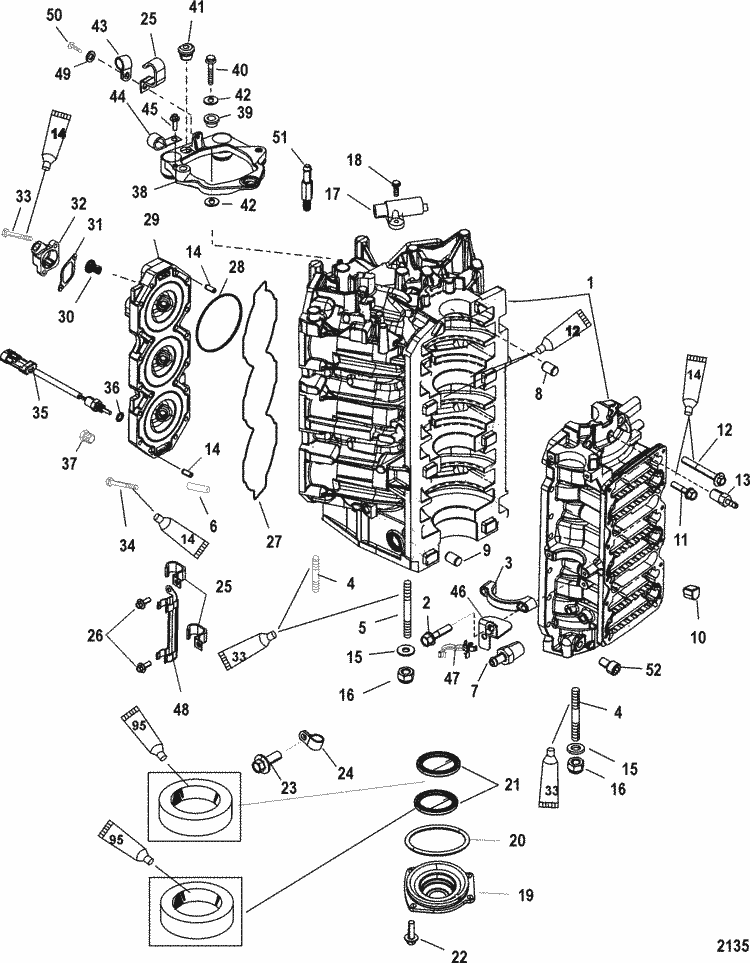

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	877869A04	POWERHEAD ASSEMBLY (1 required per assembly) (225)
		877869A04 - PH 225 DFI 3.0L [ More info ] Unavailable
		877869A07 - Powerhead 225DFI 3L [ More info ] Unavailable
#	27-832934A00	GASKET SET, Powerhead (1 required per assembly)
		27-832934A00 - Powerhead Gasket Set [ More info ] $186.49 Available to Order: Shipping delay up to 10 days.
#	854198A04	POWERHEAD ASSEMBLY (1 required per assembly) (200)
		854198A04 - PH 200 DFI [ More info ] Unavailable
		854198A07 - Powerhead 200DFI 3L [ More info ] Unavailable
#1	885-9811T91	CYLINDER BLOCK (1 required per assembly) (200)
		885-9811T91 - Cylinder Block [ More info ] Unavailable
		885-899162A05 - Cylinder Block [ More info ] Unavailable
#1	885-9811T92	CYLINDER BLOCK (1 required per assembly) (225)
		885-9811T92 - Cylinder Block [ More info ] Unavailable
		885-899162A06 - Cylinder Block [ More info ] Unavailable
#2	10-818934 40	SCREW, (M8 x 40) (4 required per assembly)
		10-818934 40 - Screw [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#3	856966 2	BRACKET (2 required per assembly)
		856966 2 - COVER [ More info ] Unavailable
		8M0041759 - Cover [ More info ] Unavailable
		8M0111325 - Cover [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#4	16-90350 9	STUD, (M10 x 1.5 x 64) (4 required per assembly)
		16-90350 9 - Stud [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#5	16-815443 1	STUD, (M10 x 1.5 x 155) (6 required per assembly)
		16-815443 1 - Stud [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#6	824857 7	DEFLECTOR (6 required per assembly)
		824857 7 - Water Deflector [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#7	21-878105 1	CHECK VALVE (1 required per assembly)
		21-878105 1 - Check Valve [ More info ] $45.99 3 In Stock.
#8	17-67296	PIN (3 required per assembly)
		17-67296 - Pin, Dowel - Center Main [ More info ] $1.96 2 In Stock.
		17-8M0036405 - Pin - Center Main [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
#9	17-43044	PIN, Dowel - Without Hole (.375 x .625) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#10	19-850309	PLUG (6 required per assembly) SN# 0T979999 & Below
		19-850309 - PLUG-STOP [ More info ] Unavailable
		19-850309001 - Plug - Stop [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#10	19-850309001	PLUG, Stop (6 required per assembly) SN# 0T980000 & Up
#11	10-818934 35	SCREW, (M8 x 35) (14 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#12	10-824461 80	SCREW, (M10 x 80) (8 required per assembly)
		10-824461 80 - Screw [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#13	22-824502 1	CONNECTOR (1 required per assembly)
		22-824502 1 - Connector [ More info ] $8.59 Available to Order: Shipping delay up to 10 days.
#14	17-63779	PIN, Dowel (.250 x .625) (4 required per assembly)
		17-63779 - Pin, Dowel (.250 X .625) [ More info ] $5.09 2 In Stock.
#15	12-856774	WASHER, (.406 x .750 x .105) Stainless Steel (10 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#16	11-40136 10	NUT, (M10) Stainless Steel (10 required per assembly)
		11-40136 10 - Nut, (M10) Stainless Steel [ More info ] $7.79 $6.24 10+ In Stock.
#17	828358 2	SENSOR (1 required per assembly)
		828358 2 - Sensor Assembly [ More info ] Unavailable
		8M0030022 - Sensor Assembly [ More info ] Unavailable
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#18	10-40011107	SCREW, (M5 x 16) Stainless Steel (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 5 In Stock.
#19	1171-9787A 4	END CAP ASSEMBLY (1 required per assembly)
		1171-9787A 4 - End Cap Assembly [ More info ] $100.49 Available to Order: Shipping delay up to 10 days.
#20	25-62700	O-RING, (3.237 x .103) (1 required per assembly)
		25-62700 - O-Ring [ More info ] $3.99 1 In Stock.
		18-0860-9 - O-Ring 25-62700 2-Pack [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#21	26-830898 1	SEAL (2 required per assembly)
		26-830898 1 - Seal [ More info ] $27.39 Available to Order: Shipping delay up to 10 days.
#22	10-821300 20	SCREW, (M6 x 20) (4 required per assembly)
		10-821300 20 - Screw - Priced Individually [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#23	10-821300 12	SCREW, (M6 x 12) (1 required per assembly)
		10-821300 12 - Screw - Priced Individually [ More info ] $1.80 4 In Stock.
#24	54-858902	CLAMP (1 required per assembly)
		54-858902 - Clamp [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#25	54-65292	J CLIP (AR required per assembly)
		54-65292 - J Clip [ More info ] Unavailable
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#27	818574	SEAL (2 required per assembly)
		818574 - Cylinder Head Seal [ More info ] $27.69 In Stock
#28	884391	SEAL (6 required per assembly)
		884391 - Cylinder Bore Seal [ More info ] $21.19 $20.49 Available to Order: Shipping delay up to 10 days.
#29	900-858485T07	CYLINDER HEAD, Starboard (1 required per assembly) (STARBOARD)
		900-858485T07 - Cylinder Head Assembly - Stbd [ More info ] $564.99 Available to Order: Shipping delay up to 10 days.
#29	900-858483T07	CYLINDER HEAD, Port (1 required per assembly) (PORT)
		900-858483T07 - Cylinder Head Assembly - Port [ More info ] $564.99 Available to Order: Shipping delay up to 10 days.
#30	885599003	THERMOSTAT, 54Â°C (130Â°F) (130 Degrees) (2 required per assembly) SN# 0T947111 & Below
		885599003 - Thermostat 130 Degree [ More info ] Unavailable
		885599004 - Thermostat, 130 Degrees [ More info ] Unavailable
		8M0057307 - Thermostat 130 [ More info ] $134.99 $129.49 In Stock
		18-3535 - Thermostat, 130 Degrees, 885599004 [ More info ] $116.99 $108.43 7 In Stock.
		75-75012 � 130 Degree Thermostat, 8M0057307 [ More info ] $74.99 $65.51 2 In Stock.
#30	885599004	THERMOSTAT, 54 Degree C/130 Degree F (2 required per assembly) SN# 0T947112 & Up
#31	27-850318 1	GASKET (2 required per assembly)
		27-850318 1 - Gasket [ More info ] $4.99 4 In Stock.
#32	887601	COVER, Thermostat (1 required per assembly) (PORT)
		887601 - Cover [ More info ] $11.99 1 In Stock.
		887601002 - Port Cover [ More info ] $31.32 10+ In Stock.
#32	887602	COVER, Thermostat (1 required per assembly) (STARBOARD)
		887602 - Cover [ More info ] Unavailable
		887602002 -Starboard Cover [ More info ] $29.79 10+ In Stock.
#33	10-821300 25	SCREW, (M6 x 25) (4 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#34	10-859096	SCREW, (M8 x 50) (40 required per assembly)
		10-859096 - SCREW [ More info ] Unavailable
		10-891570050 - SCREW Note: Priced Individually [ More info ] Unavailable
		10-8M0045380 - Screw - Priced Individually [ More info ] $6.89 1 In Stock.
#35	885342001	SENSOR ASSEMBLY (2 required per assembly)
		885342001 - Temperature Sensor [ More info ] Unavailable
		885342002 - Sensor Assembly [ More info ] Unavailable
		8M0148668 - Temperature Sensor [ More info ] $47.49 1 In Stock.
#36	25-888814	O-RING, (.351 x .072) (2 required per assembly)
		25-888814 - O-ring, (.351 X .072) [ More info ] Unavailable
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#37	22-32802 2	PLUG, Pipe (.125-27) Brass (1 required per assembly)
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.59 1 In Stock.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.30 10+ In Stock.
#38	857186A 1	PLATE ASSEMBLY (1 required per assembly)
		857186A 1 - Plate-ALT [ More info ] Unavailable
		857186T02 - Plate Assembly -alt [ More info ] $204.49 Available to Order: Shipping delay up to 10 days.
#39	23-855729	MOUNT (3 required per assembly)
		23-855729 - Mount [ More info ] $49.99 Available to Order: Shipping delay up to 10 days.
#40	10-821301 45	SCREW, (M10 x 45) (3 required per assembly)
		10-821301 45 - Screw [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#41	25-19565	GROMMET (1 required per assembly) SN# 0T979999 & Below
		25-19565 - Grommet [ More info ] $14.43 3 In Stock.
		25-19565002 - Grommet [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#41	25-19565002	GROMMET (1 required per assembly) SN# 0T980000 & Up
#42	12-855725	WASHER (6 required per assembly)
		12-855725 - Washer [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#43	54-858424	CLAMP (1 required per assembly)
		54-858424 - Clamp [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#44	54-858951	J CLIP (1 required per assembly)
		54-858951 - J Clip [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#46	858952 1	BRACKET (Use where Applicable) (1 required per assembly)
		858952 1 - Starter Bracket [ More info ] Unavailable
#47	54-859376	CLIP (Use where Applicable) (1 required per assembly)
		54-859376 - Clip [ More info ] $3.99 $0.80 10 In Stock.
#48	826624 1	CLAMP (Use where Applicable) (1 required per assembly)
		826624 1 - Clamp [ More info ] $26.59 Available to Order: Shipping delay up to 10 days.
#49	12-29245	WASHER, (.281 x .500 x .060) Stainless Steel (1 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#50	10-821300 16	SCREW, (M6 x 16) (1 required per assembly)
		10-821300 16 - Screw - Priced Individually [ More info ] $5.89 1 In Stock.
#51	17-840510 1	PIN (1 required per assembly)
		17-840510 1 - Pin [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#52	10-824948 10	SCREW, (M6 x 10) (1 required per assembly)
		10-824948 10 - Screw [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
