Parts for Mariner 20 HP (2 Cylinder) Jet Water Pump Components

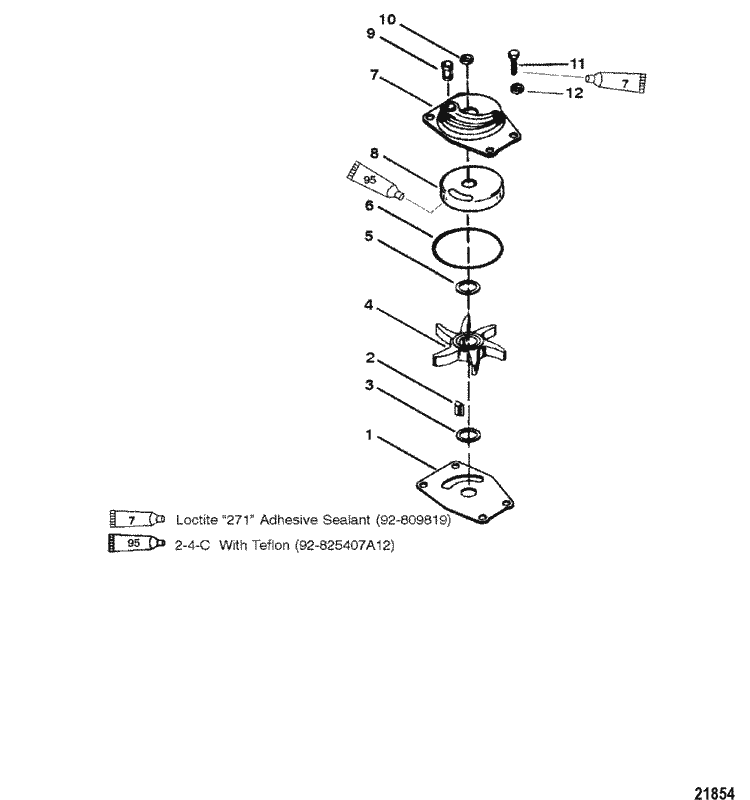

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 46-99157A 2 | WATER PUMP REPAIR KIT (1 required per assembly) |
  |
46-99157A 2 - Water Pump Kit [ More info ] Unavailable |
|
  |
|
46-99157T 2 - Water Pump Kit [ More info ]
|
| # | 26-85090A 2 | SEAL KIT (1 required per assembly) |
  |
|
26-85090A 2 - Seal Kit [ More info ]
|
| #1 | 85083 | FACE PLATE (1 required per assembly) |
  |
|
85083 - Face Plate [ More info ]
|
| #2 | 12-86645 1 | WASHER (1 required per assembly) |
| #3 | 28-85119 | KEY (1 required per assembly) |
  |
28-85119 - Key - Priced Individually [ More info ] Unavailable |
|
  |
28-8M0032838 - Key - Priced Individually [ More info ] Unavailable |
|
  |
|
288M0214993 - KEY Note: Priced Individually [ More info ]
|
| #4 | 47-85089 3 | IMPELLER (1 required per assembly) |
  |
47-85089 3 - Water Pump Impeller [ More info ] Unavailable |
|
  |
|
47-85089 10 - Impeller [ More info ] Unavailable |
  |
|
18-3057 - Impeller 47-85089-3 [ More info ]
|
  |
|
47-8M0204712 - Impeller [ More info ]
|
  |
|
47-00125 - Water Pump Impeller Mercury & Force 8508910 18-50HP [ More info ]
|
| #6 | 25-69202 | O-RING (1 required per assembly) |
  |
|
25-69202 - O-ring, Water Pump [ More info ]
|
  |
|
18-7419 - O-Ring 25-69202 [ More info ]
|
| #7 | 46-99157A 1 | WATER PUMP ASSEMBLY (1 required per assembly) |
  |
|
46-99157A 1 - Water Pump Housing, New Take Off, See Detail Page [ More info ]
|
  |
|
46-99157A02 - Water Pump Housing [ More info ]
|
| #8 | NSS | NOT SOLD SEPARATE, Insert (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #9 | 26-85090 | SEAL (1 required per assembly) |
  |
26-85090 - Seal - Priced Individually [ More info ] Unavailable |
|
  |
|
26-85090001 - Seal - Priced Individually [ More info ]
|
| #10 | 25-86203 | RING, RUBBER (1 required per assembly) |
  |
|
25-86203 - O Ring-Driveshaft [ More info ]
|
| #11 | 10-824832 4 | SCREW, (M6 x 16) (4 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
| #11 | 10-40011107 | SCREW, (M5 x 16) (4 required per assembly) |
  |
|
10-40011107 - SCREW [ More info ]
|
| #12 | 23-85095 | BUSHING (USE WITH M5 X 16 REF. #11) (4 required per assembly) |
  |
23-85095 - Bushing - Priced Individually [ More info ] Unavailable |
|
  |
|
238M0214959 - Bushing Note: Priced Individually [ More info ] Unavailable |
