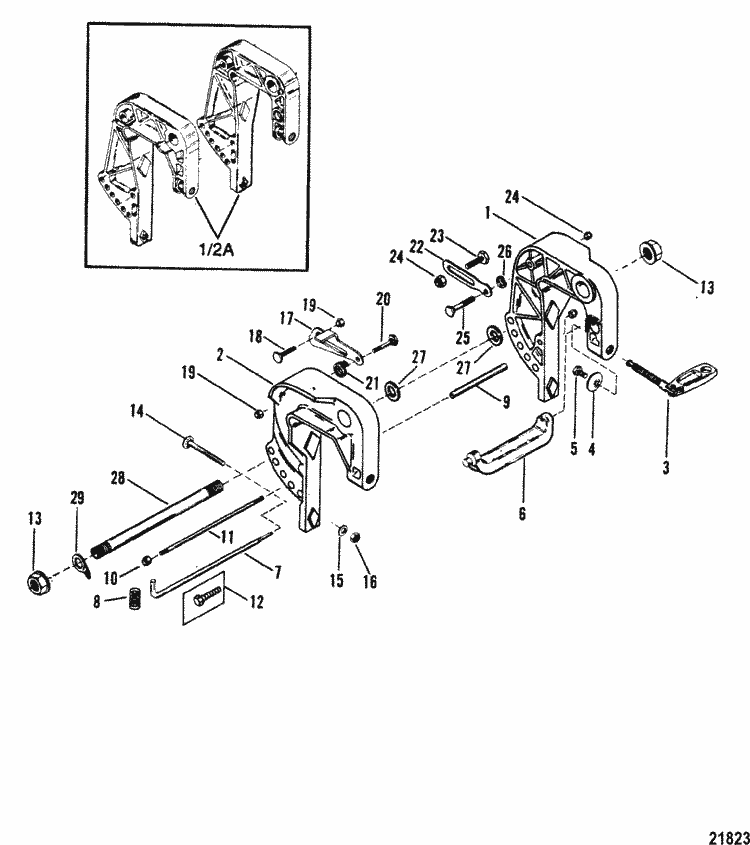

Parts for Mariner 20 HP (2 Cylinder) Clamp Bracket Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1/2A | 1497-8794A 5 | TRANSOM BRACKET (PORT/STBD.) (BLACK) (1 required per assembly) 6 HOLE |
  |
|
1497-8794A 5 - Transom Bracket KIT,NLA [ More info ] Unavailable |
| #1/2A | 1497-8794A 6 | TRANSOM BRACKET (PORT/STBD.) (GRAY) (1 required per assembly) 6 HOLE |
  |
|
1497-8794A 6 - Transom Bracket Kit, NLA [ More info ] Unavailable |
| #1 | 1497-8794A 7 | TRANSOM BRACKET (PORT) (BLACK) (1 required per assembly) (5 Hole Stud Attaching) |
  |
|
1497-8794A 7 - Transom Bracket, Black, Port Side, NLA [ More info ] Unavailable |
| #2 | 1497-8796A 5 | TRANSOM BRACKET (STBD.) (BLACK) (1 required per assembly) (5 Hole Stud Attaching) |
  |
|
1497-8796A 5 - Clamp Bracket, NLA [ More info ] Unavailable |
| #1 | 1497-8794A 8 | TRANSOM BRACKET (PORT)(GRAY) (1 required per assembly) (5 Hole Stud Attaching) |
  |
1497-8794A 8 - Transom Bracket -gra, NLA [ More info ] Unavailable |
|
| #2 | 1497-8796A 6 | TRANSOM BRACKET (STBD.)(GRAY) (1 required per assembly) (5 Hole Stud Attaching) |
  |
|
1497-8796A 6 - Clamp Bracket, NLA [ More info ] Unavailable |
| #1 | 1497-8794A 9 | TRANSOM BRACKET (PORT) (BLACK) (1 required per assembly) (5 Hole Screw Attaching) |
  |
|
1497-8794A 9 - Transom Bracket, Port Side, Black [ More info ]
|
| #2 | 1497-8796A 7 | TRANSOM BRACKET (STBD.) (BLACK) (1 required per assembly) (5 Hole Screw Attaching) |
  |
|
1497-8796A 7 - Transom Bracket - Black [ More info ] Unavailable |
| #1 | 1497-8794A10 | TRANSOM BRACKET (PORT)(GRAY) (1 required per assembly) (5 Hole Screw Attaching) |
  |
|
1497-8794A10 - Bracket , Transom, Gray, Port Side, NLA [ More info ] Unavailable |
| #2 | 1497-8796A 8 | TRANSOM BRACKET (STBD.)(GRAY) (1 required per assembly) (5 Hole Screw Attaching) |
  |
|
1497-8796A 8 - ORD1497- 8796A 7, NLA [ More info ] Unavailable |
| #1 | 1497-8794A11 | TRANSOM BRACKET (PORT) (TRACKER) (1 required per assembly) |
  |
|
1497-8794A11 - Transom Bracket -tra, NLA [ More info ] Unavailable |
| #2 | 1497-8796A 9 | TRANSOM BRACKET (STBD.) (TRACKER) (1 required per assembly) |
  |
|
1497-8796A 9 - Ord 1497-8796A7, NLA [ More info ] Unavailable |
| #3 | 10-92767A 1 | THUMBSCREW ASSEMBLY, (14MM) (2 required per assembly) |
  |
|
10-92767A 1 - Thumb Screw Assembly, 14MM [ More info ]
|
| #3 | 10-92767A 3 | THUMB SCREW ASSEMBLY, (16 mm) (2 required per assembly) |
  |
|
10-92767A 3 - Thumb Screw Assembly, 16MM [ More info ]
|
| #4 | 12-73719 | WASHER, THUMB SCREW (2 required per assembly) |
  |
|
12-73719 - Washer, Thumb Screw [ More info ]
|
| #5 | 10-76804 1 | SCREW, WASHER ATTACHING (2 required per assembly) |
  |
10-76804 1 - SCREW [ More info ] Unavailable |
|
  |
|
10-76804 2 - Screw [ More info ]
|
| #6 | 41042 | HANDLE, CARRYING (1 required per assembly) |
  |
|
41042 - Carrying Handle [ More info ]
|
| #7 | 17-99929A 1 | TILT PIN ASSEMBLY (1 required per assembly) USE WITH 6 HOLE BRACKET |
  |
|
17-99929A 1 - Tilt Lock Pin Kit [ More info ]
|
| #7 | 17-56373A 2 | TILT PIN ASSEMBLY (1 required per assembly) USE WITH 5 HOLE BRACKET |
  |
|
17-56373A 2 - Pin Assembly, Tilt [ More info ]
|
| #8 | 24-92995 | SPRING (1 required per assembly) USE WITH 5 HOLE BRACKET |
  |
|
24-92995 - Spring [ More info ]
|
| #9 | 23-41041 | SPACER (1 required per assembly) STUD ATTACHING |
  |
|
23-41041 - Spacer - Clamp Bracket Stud [ More info ]
|
| #10 | 11-40021 3 | NUT, (M8 - Stainless Steel) (2 required per assembly) STUD ATTACHING |
  |
|
11-40021 3 - Nut - Priced Individually [ More info ]
|
| #11 | 16-99928 | STUD (1 required per assembly) STUD ATTACHING |
  |
|
16-99928 - Stud, NLA [ More info ]
|
| #9 | 23-818538 | SPACER (1 required per assembly) SCREW ATTACHING |
  |
|
23-818538 - Spacer [ More info ]
|
| #12 | 10-40003 33 | SCREW, (M6 x 40) (2 required per assembly) SCREW ATTACHING |
  |
|
10-40003 33 - Screw - Priced Individually [ More info ]
|
| #13 | 11-93164 | NUT, (.875), TILT TUBE (2 required per assembly) |
  |
|
11-93164 - Nut, (.875) [ More info ]
|
| #14 | 10-814945 | SCREW, (.312-18 x 3.500), CLAMP BRACKET TO TRANSOM (2 required per assembly) |
  |
|
10-814945 - Screw [ More info ]
|
| #15 | 12-67981 | WASHER, CLAMP BRACKET BOLT (2 required per assembly) |
  |
|
12-67981 - Washer, Clamp Bracket Bolt [ More info ]
|
| #16 | 11-815848 | NUT, (.312), CLAMP BRACKET BOLT (2 required per assembly) |
  |
|
11-815848 - Nut, (.312) [ More info ]
|
| #17 | 96965 | LEVER, TILT STOP - STARBOARD STAR (1 required per assembly) |
  |
|
96965 - Tilt Stop Lever [ More info ]
|
| #21 | 24-44581 | SPRING, TILT STOP LEVER SCREW (1 required per assembly) |
  |
|
24-44581 - Spring, Tilt Stop Lever Screw [ More info ]
|
| #22 | 90901 | STRAP, TILT STOP - PORT SIDE (1 required per assembly) |
  |
|
90901 - Tilt Stop Strap [ More info ] Unavailable |
| #23 | 10-41523 | SCREW, (.250-28 x 1.00), STRAP TO SWIVEL BRACKET (1 required per assembly) |
  |
|
10-41523 - Screw [ More info ]
|
| #24 | 11-35045 | NUT, (.250-28), TILT STOP STRAP SCREW (2 required per assembly) |
  |
11-35045 - Nut (1/4-28) [ More info ] Unavailable |
|
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #25 | 10-41524 | SCREW, (.250-28 x 1.75), STRAP TO CLAMP BRACKET (1 required per assembly) |
  |
|
10-41524 - Screw [ More info ]
|
| #26 | 13-31030 | WAVE WASHER, , TILT STOP STRAP SCREW (1 required per assembly) |
  |
|
13-31030 - Wave Washer - Priced Individually [ More info ]
|
| #27 | 12-71421 | WASHER, Nylon, TILT TUBE (NYLON) (2 required per assembly) |
  |
|
12-71421 - Washer, Nylon [ More info ]
|
| #28 | 41171 | TILT TUBE (1 required per assembly) |
  |
41171 - 8M0035075 [ More info ] Unavailable |
|
  |
883068 - Tilt Tube [ More info ] Unavailable |
|
  |
|
8M0035075 - Tilt Tube [ More info ]
|
| #29 | 54-30954 | CLIP, SAFETY (1 required per assembly) |
  |
54-30954 - Clip [ More info ] Unavailable |
|
  |
|
548M0085928 - Clip [ More info ]
|
