Parts for Mariner 15K HP Throttle Linkage

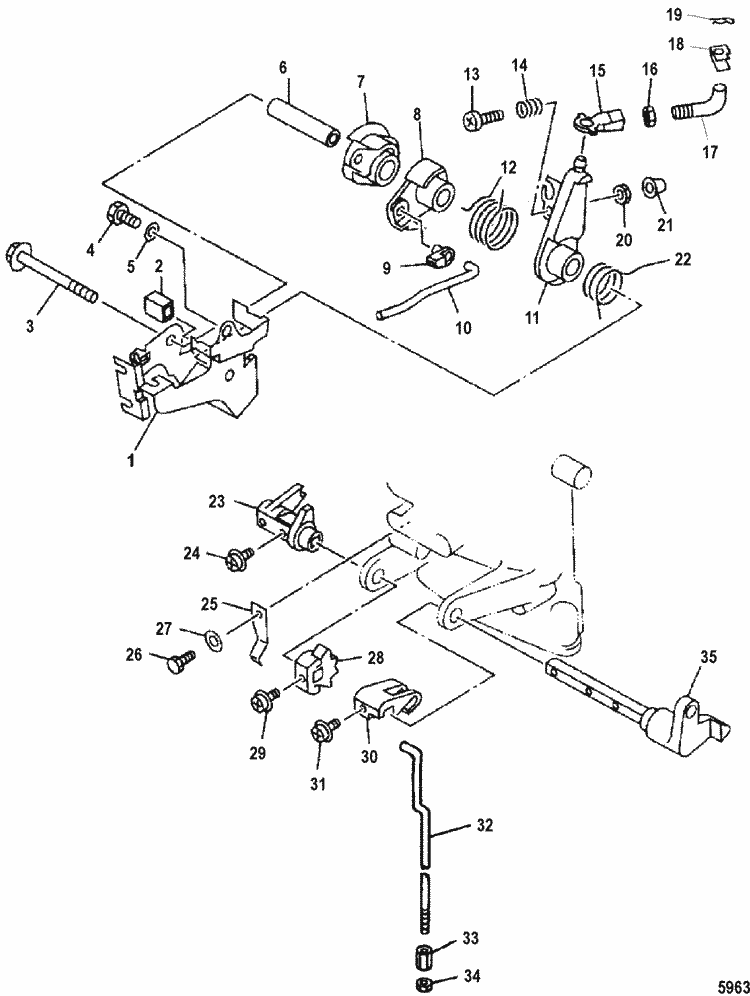

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 852838 1 | BRACKET, Throttle Wire (1 required per assembly) |
  |
|
852838 1 - BRACKET Throttle NLA [ More info ] Unavailable |
| #2 | 852839 | CAP (1 required per assembly) |
  |
|
|
| #3 | 10-852776 12 | BOLT (1 required per assembly) |
  |
|
10-852776 12 - BOLT NLA [ More info ] Unavailable |
| #4 | 10-91772M | BOLT (1 required per assembly) |
  |
|
10-91772M - Bolt [ More info ]
|
| #5 | 12-82214M | WASHER (1 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #6 | 23-852814 8 | COLLAR (1 required per assembly) |
  |
|
23-852814 8 - COLLAR NLA [ More info ] Unavailable |
| #7 | 852843 | PULLEY (1 required per assembly) |
  |
|
852843 - PULLEY NLA [ More info ] Unavailable |
| #8 | 852841 1 | LEVER (1 required per assembly) |
  |
|
852841 1 - LEVER NLA [ More info ] Unavailable |
| #9 | 852842 | JOINT (1 required per assembly) |
  |
|
852842 - JOINT NLA [ More info ] Unavailable |
| #10 | 852840 1 | LINK (1 required per assembly) |
  |
|
852840 1 - LINK NLA [ More info ] Unavailable |
| #11 | 826987 1 | LEVER, Magneto Control (1 required per assembly) |
  |
|
826987 1 - LEVER Magneto Con NLA [ More info ] Unavailable |
| #12 | 24-852778 8 | SPRING (1 required per assembly) |
  |
|
24-852778 8 - SPRING NLA [ More info ] Unavailable |
| #13 | 10-852787 6 | SCREW (1 required per assembly) |
  |
|
10-852787 6 - Screw, NLA [ More info ]
|
| #14 | 24-92509M | SPRING (1 required per assembly) |
  |
|
24-92509M - Spring, NLA [ More info ]
|
| #15 | 16715M | JOINT (1 required per assembly) |
  |
|
|
| #16 | 11-852816 4 | NUT (1 required per assembly) |
  |
|
11-852816 4 - 11-852816 4 - NUT [ More info ] Unavailable Replaced by 11-83763M |
  |
|
|
| #17 | 852840 | JOINT (1 required per assembly) |
  |
|
852840 - JOINT NLA [ More info ] Unavailable |
| #18 | 13-852831 2 | LOCKWASHER (1 required per assembly) |
  |
|
13-852831 2 - LOCKWASHER NLA [ More info ] Unavailable |
| #19 | 18-82051M | COTTER PIN (1 required per assembly) |
  |
|
18-82051M - Cotter Pin - Priced Individually [ More info ]
|
| #20 | 11-852816 3 | NUT (1 required per assembly) |
  |
|
11-852816 3 - NUT [ More info ] Unavailable |
| #21 | 97087M | CAP (1 required per assembly) |
  |
|
97087M - Cap, NLA [ More info ] Unavailable |
| #22 | 24-852778 7 | SPRING (1 required per assembly) |
  |
|
24-852778 7 - SPRING NLA [ More info ] Unavailable |
| #23 | 852847 | BRACKET (1 required per assembly) |
  |
|
852847 - BRACKET NLA [ More info ] Unavailable |
| #24 | 10-852787 7 | SCREW (1 required per assembly) |
  |
|
10-852787 7 - SCREW NLA [ More info ] Unavailable |
| #25 | 24-804397 | SPRING (1 required per assembly) |
  |
|
24-804397 - Spring,NLA [ More info ] Unavailable |
| #28 | 804396 | LEVER, Shift Rod (1 required per assembly) |
  |
|
804396 - Lever [ More info ] Unavailable |
| #30 | 852845 | LEVER, Shift Rod (1 required per assembly) |
  |
|
852845 - Lever [ More info ] Unavailable |
| #32 | 852840 2 | SHIFT ROD (1 required per assembly) |
  |
|
852840 2 - SHIFT ROD NLA [ More info ] Unavailable |
| #33 | 11-81763M | NUT (1 required per assembly) |
  |
|
11-81763M - Nut, NLA [ More info ]
|
| #34 | 11-82390M | NUT, (M6) (1 required per assembly) |
  |
|
11-82390M - Nut, (M6) [ More info ]
|
| #35 | 804502 1 | SHIFT ROD ARM (1 required per assembly) |
  |
|
804502 1 - SHIFT ROD ARM NLA [ More info ] Unavailable |
