Parts for Mariner 15A HP Crankshaft & Piston
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 463-6861M | CRANKSHAFT ASS'Y (1 required per assembly) |
  |
|
463-6861M - Crankshaft,NLA [ More info ] Unavailable |
| #2 | 30-82306M | BEARING, LOWER (1 required per assembly) |
  |
|
30-82306M - Ball Bearing,NLA [ More info ] Unavailable |
| #3 | 30-82303M | BEARING, UPPER (1 required per assembly) |
  |
30-82303M - Ball Bearing [ More info ] Unavailable |
|
  |
|
30-82303T - Ball Bearing [ More info ]
|
| #4 | 29-82349M | BEARINGS, PISTON PIN (50 required per assembly) |
  |
|
29-82349M - Needle Bearing [ More info ]
|
| #5 | 12-81823M | WASHER, PISTON PIN (4 required per assembly) |
  |
|
12-81823M - Washer, Piston Pin, NLA [ More info ]
|
| #6 | 761-6760M | PISTON (56.96 MM STD) (2,AR required per assembly) |
  |
|
761-6760M - Piston, NLA [ More info ] Unavailable |
| #6 | 761-6947M | PISTON (56.97 MM STD) (2,AR required per assembly) |
  |
|
761-6947M - Piston, NLA [ More info ] Unavailable |
| #6 | 761-6761M | PISTON (56.98 MM STD) (2,AR required per assembly) |
  |
|
761-6761M - Piston, NLA [ More info ] Unavailable |
| #6 | 761-6762M | PISTON (57.25 MM 1ST O.S.) (2,AR required per assembly) |
  |
|
761-6762M - Piston, NLA [ More info ] Unavailable |
| #6 | 761-6763M | PISTON (57.50 MM 2ND O.S.) (2,AR required per assembly) |
  |
|
761-6763M - Piston, NLA [ More info ] Unavailable |
| #7 | 41-80272M | PIN, PISTON (2 required per assembly) |
  |
|
41-80272M - Piston Pin, NLA [ More info ]
|
| #8 | 53-82343M | CLIP, PISTON PIN (4 required per assembly) |
  |
|
53-82343M - Ring -snap - Priced Individually [ More info ]
|
| #9 | 39-80937M | PISTON RING SET (STD) (2 required per assembly) |
  |
39-80937M - Piston Ring Set [ More info ] Unavailable |
|
  |
|
39-80937T - Rings, NLA [ More info ] Unavailable |
| #9 | 39-80938M | PISTON RING SET (57.25 MM 1ST O.S.) (2 required per assembly) |
  |
|
39-80938M - Piston Ring,NLA [ More info ] Unavailable |
| #9 | 39-80939M | PISTON RING SET (57.50 MM 2ND O.S.) (2 required per assembly) |
  |
|
39-80939M - Piston Ring Set,NLA [ More info ] Unavailable |
| #10 | 15-80731M | SHIM, LOWER BEARING (0.2 MM) (AR required per assembly) |
  |
|
15-80731M - Shim, NLA [ More info ] Unavailable |
| #11 | 26-82244M | OIL SEAL, CRANKSHAFT LOWER (1 required per assembly) |
  |
|
26-82244M - Seal, NLA [ More info ] Unavailable |
| #12 | 15-80728M | SHIM, UPPER BEARING (0.3 MM) (AR required per assembly) |
  |
|
15-80728M - Shim, NLA [ More info ] Unavailable |
| #12 | 15-80729M | SHIM, UPPER BEARING (0.4 MM) (AR required per assembly) |
  |
|
15-80729M - Shim, NLA [ More info ] Unavailable |
| #12 | 15-80730M | SHIM, UPPER BEARING (0.5 MM) (AR required per assembly) |
  |
|
15-80730M - Shim, NLA [ More info ] Unavailable |
| #13 | 28-81913M | KEY, CRANKSHAFT TO FLYWHEEL (1 required per assembly) |
  |
28-81913M - KEY - Priced Individually [ More info ] Unavailable |
|
  |
28-18856M - Supercedes to 28-893761 [ More info ] Unavailable |
|
  |
|
28893761 - Key - Priced Individually [ More info ]
|
| #14 | 26-82245M | OIL SEAL, CRANKSHAFT-UPPER (1 required per assembly) |
  |
|
26-82245M - Seal, NLA [ More info ]
|
| #15 | 80745M | HOUSING, OIL SEAL (1 required per assembly) |
  |
|
80745M - Housing, NLA [ More info ] Unavailable |
| #15 | 80746M | HOUSING, OIL SEAL CHROME (OPTIONAL) (1 required per assembly) |
  |
80746M - Housing [ More info ] Unavailable |
|

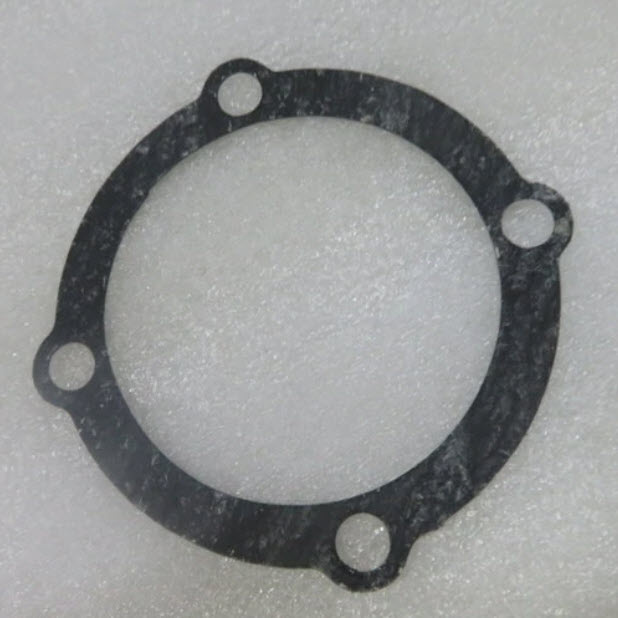

| #16 | 27-80206M | GASKET, OIL SEAL HOUSING (1 required per assembly) |
  |
|
27-80206M - Oil Seal Housing Gasket [ More info ] Unavailable |
| #17 | 10-82423M | BOLT, OIL SEAL HOUSING ATTACHING (4 required per assembly) |
  |
|
10-82423M - Bolt, NLA [ More info ]
|
| #18 | 13-82199M | WASHER, HOUSING BOLT (4 required per assembly) |
  |
13-82199M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
