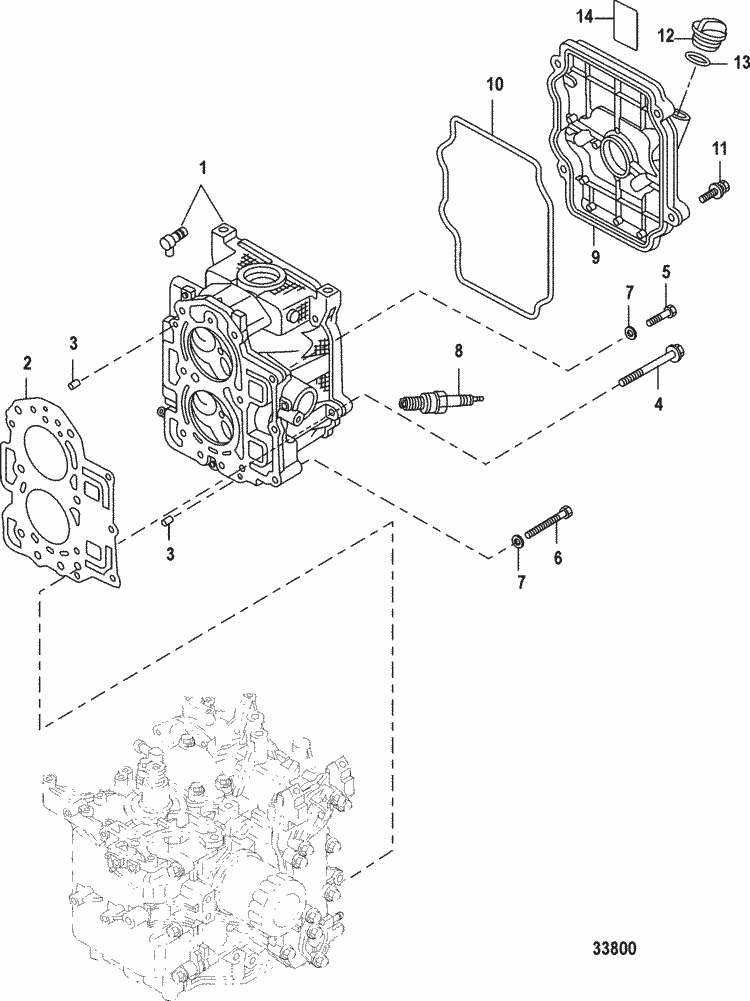

Parts for Mariner 15 Carburetor (2 Cylinder) (4-Stroke) Cylinder Head
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 895274T08 | SHORT BLOCK (1 required per assembly) |
  |
895274T08 - 8M0099416 [ More info ] Unavailable |
|
  |
8M0099416 - Short Block BOXED [ More info ] Unavailable |
|
  |
|
8M0145938 - SHORT BLOCK [ More info ] Unavailable |
| # | 27-803663A08 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-803663A08 - Powerhead Gasket Set [ More info ]
|
| #1 | 879147T57 | CYLINDER HEAD ASSEMBLY (1 required per assembly) |
  |
|
879147T57 - Cylinder Head [ More info ]
|
| #2 | 27-812939T25 | GASKET, Cylinder Head (1 required per assembly) |
  |
|
27-812939T25 - Head Gasket [ More info ]
|
| #3 | 17-16119 | PIN, Dowel (2 required per assembly) |
  |
|
17-16119 - Dowel Pin [ More info ]
|
| #4 | 10-855677002 | BOLT (6 required per assembly) |
  |
|
10-855677002 - Bolt [ More info ]
|
| #5 | 10-823042054 | BOLT (2 required per assembly) |
  |
|
10-823042054 - Bolt [ More info ]
|
| #6 | 10-898101009 | SCREW (1 required per assembly) |
  |
|
10-898101009 - Screw [ More info ]
|
| #7 | 12-879194338 | WASHER (3 required per assembly) |
  |
12-879194338 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #8 | 33-803507 | SPARK PLUG, NGK#DCPR6E (2 required per assembly) |
  |
33-803507 - Spark Plug DCPR6E - Priced Individually [ More info ] Unavailable |
|
  |
338M0204682 - PLUG DCPR6E Note: Priced Individually [ More info ] Unavailable |
|
  |
|
33-8M0234113 - PLUG DCPR6E @4 [ More info ] Unavailable |
  |
|
DCPR6E - NGK Spark Plug, 3481 [ More info ]
|
| #9 | 879147T58 | COVER, Cylinder Head, Cylinder Head (1 required per assembly) |
  |
|
879147T58 - Cover [ More info ]
|
| #10 | 27-812939T26 | GASKET, Rubber, Cylinder Head Cover (1 required per assembly) |
  |
|
27-812939T26 - Cylinder Head Cover Gasket [ More info ]
|
| #11 | 10-16830A 1 | SCREW KIT (4 required per assembly) |
  |
|
10-16830A 1 - Screw Kit [ More info ]
|
| #12 | 859578A02 | CAP ASSEMBLY, Oil Filler (1 required per assembly) |
  |
859578A02 - Cap [ More info ] Unavailable |
|
  |
|
368M0135589 - CAP OIL FILL [ More info ]
|
| #13 | 25-803513007 | O-RING (1 required per assembly) |
  |
|
25-803513007 - O-ring, Oil Filler Cap [ More info ]
|
| #14 | NSS | NOT SOLD SEPARATE, Decal-Engine Oil (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
