Parts for Mariner 140 HP Swivel Bracket Assembly

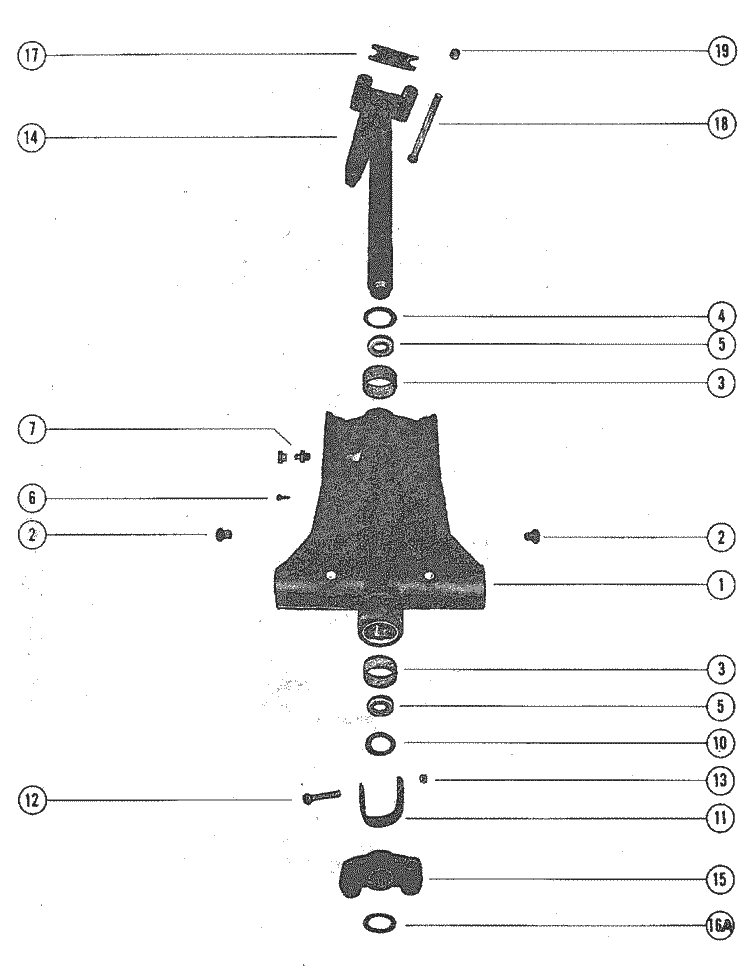

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1482-6386A 4 | SWIVEL BRACKET ASSEMBLY (1 required per assembly) |
  |
|
1482-6386A 4 - Swivel Bracket,NLA [ More info ] Unavailable |
| #2 | 23-69132 | BUSHING, REVERSE LOCK PIVOT SHAFT (2 required per assembly) |
  |
|
23-69132 - Bushing, NLA [ More info ]
|
| #3 | 23-69341 | BUSHING, SWIVEL BRACKET (2 required per assembly) |
  |
|
23-69341 - Bushing [ More info ]
|
| #4 | 12-69342 | WASHER, SWIVEL PIN - UPPER (1 required per assembly) |
  |
|
12-69342 - Washer, Swivel Pin - Upper, NLA [ More info ]
|
| #5 | 26-37448 | OIL SEAL, SWIVEL BRACKET (2 required per assembly) |
  |
|
26-37448 - Seal, NLA [ More info ]
|
| #6 | 10-47828 | SCREW, DRIVE - SWIVEL BRACKET (1 required per assembly) |
  |
|
10-47828 - Screw, NLA [ More info ]
|
| #7 | 22-74036 | FITTING, GREASE - SWIVEL BRACKET (4 required per assembly) |
  |
22-74036 - Fitting - Priced Individually [ More info ] Unavailable |
|
  |
|
228M0169589 - Fitting Note: Priced Individually [ More info ]
|
| #10 | 12-69380 | WASHER, SWIVEL PIN - LOWER (1 required per assembly) |
  |
12-69380 - Washer, Swivel Pin - Lower [ More info ] Unavailable |
|
  |
|
12-37429 - Washer [ More info ]
|
| #11 | 28205 | STRAP STO, DRIVE SHAFT HOUSING TO SWIVEL BRACKET (1 required per assembly) |
  |
28205 - Strap [ More info ] Unavailable |
|
  |
|
28205T - Strap, NLA [ More info ]
|
| #12 | 10-28200 | SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8") (1 required per assembly) |
  |
|
10-28200 - Screw, NLA [ More info ]
|
| #13 | 11-25269 | NUT, STRAP STOP FASTENING SCREW (1 required per assembly) |
  |
|
11-25269 - Nut (3/8-24) [ More info ]
|
| #14 | 17-73593A 1 | SWIVEL PING AND ARM ASSEMBLY (1 required per assembly) |
  |
17-73593A 1 - Swivel Pin Assembly [ More info ] Unavailable |
|
  |
|
17-73593A 2 - Swivel Pin, NLA [ More info ] Unavailable |
| #15 | 73984 | YOKE, BOTTOM (1 required per assembly) |
  |
|
73984 - Bottom Yoke [ More info ]
|
  |
|
73984T - Bottom Yoke, NLA [ More info ] Unavailable |
| #16A | 53-73591 | RETAINING RING, BOTTOM YOKE ATTACHING (1 required per assembly) |
  |
|
53-73591 - Retaining Ring, NLA [ More info ]
|
| #17 | 28203 | BUMPER, STEERING ARM (1 required per assembly) |
  |
|
28203 - Bumper, NLA [ More info ]
|
| #18 | 10-49554 | BOLT, STEERING ARM TO UPPER MOUNT (5 7/8") (2 required per assembly) |
  |
|
10-49554 - Screw, NLA [ More info ]
|
| #19 | 11-34933 | NUT, STEERING ARM BOLT FASTENEING (2 required per assembly) |
  |
|
11-34933 - Nut (7/16-20) [ More info ]
|
  |
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
11-00118 - Nut, Sold Individually [ More info ]
|
