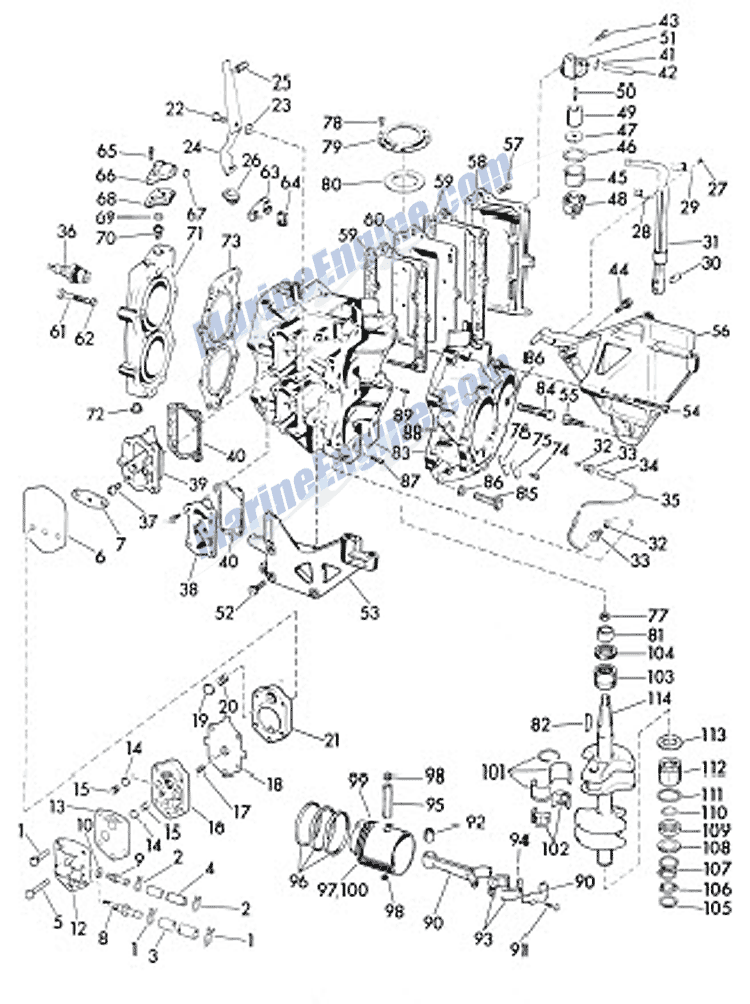

Fastwin Power Head And Fuel Pump Parts for 1960 Evinrude 18 hp 15032 Outboard Motor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0 — 377927 — (1 required per assembly) | ||
 |
|
0377927 [ More info ] Unavailable Replaced by 0388685 |
  |
|

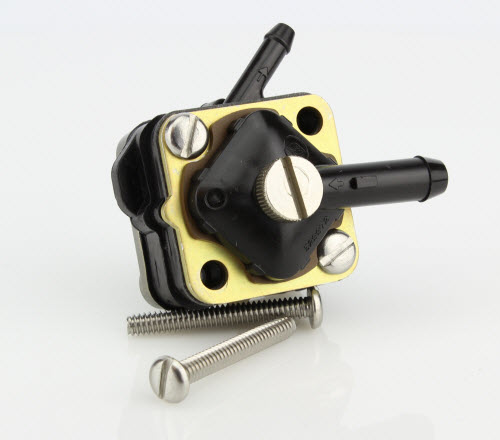

0388685 - Fuel Pump, Gasket Not Included [ More info ]
|
| #0 — 377599 — (1 required per assembly) | ||
|
|
0377599 [ More info ] Unavailable Replaced by 0378576 |
  |
|

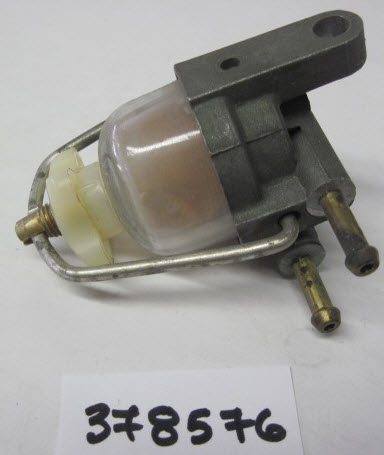

0378576 - Fuel Filter A [ More info ] Unavailable |
| #0 — 377826 — (1 required per assembly) | ||
|
|
0377826 [ More info ] Unavailable Replaced by 0383837 |
  |
|

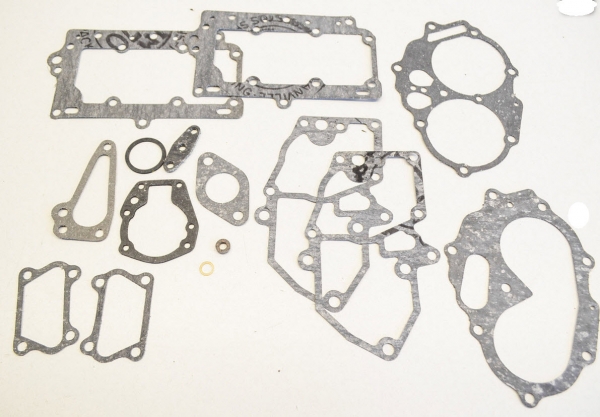

0383837 - Gasket Set [ More info ]
|

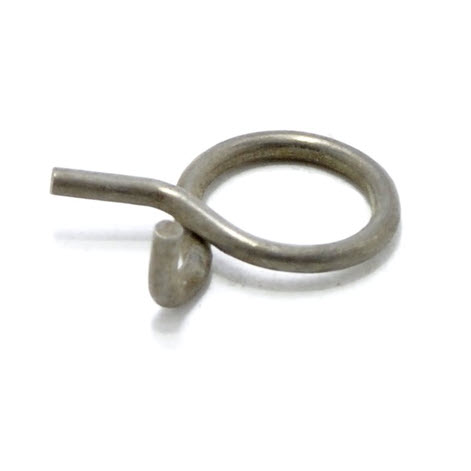

| #1 — 552199 — (2 required per assembly) | ||
  |
|
0552199 - Hose Clamp [ More info ]
|
| #2 — 302647 — (2 required per assembly) | ||
  |
|
0302647 - Clamp, NLA [ More info ] Unavailable |
| #3 — 305700 — (1 required per assembly) | ||
|
0305700 - Fuel Pump To Carburetor Hose [ More info ] Unavailable |
|
  |
|
|
| #4 — 203909 — (1 required per assembly) | ||
  |
|

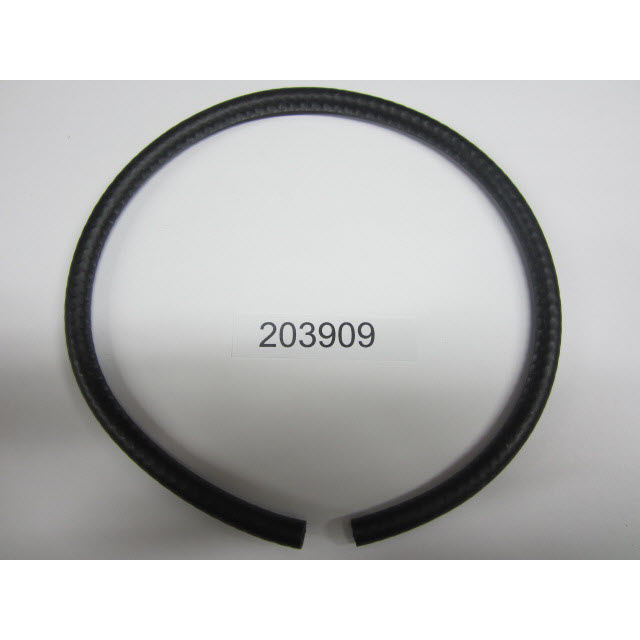

0203909 - Oil Return Hose [ More info ]
|

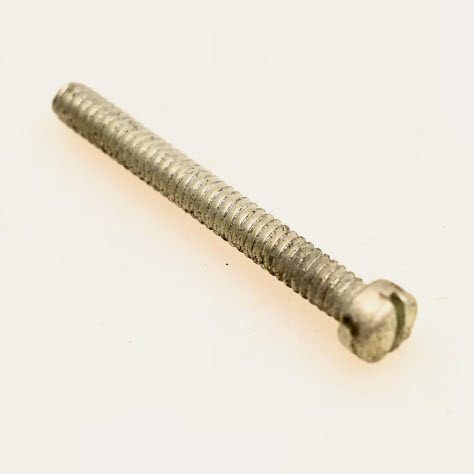

| #5 — 552649 — (2 required per assembly) | ||
|
|
|
| #6 — 303680 — (1 required per assembly) | ||
  |
|

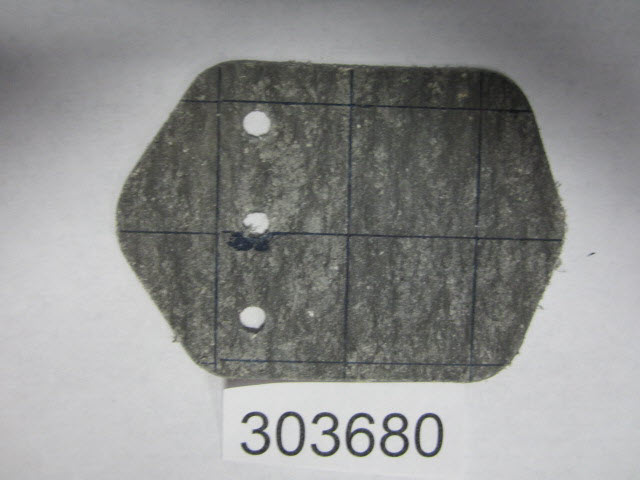

0303680 - Pump Deflector Gasket [ More info ] Unavailable |

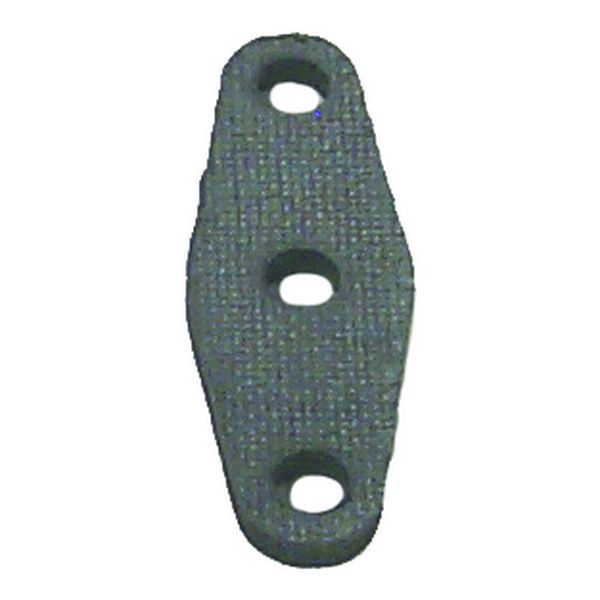

| #7 — 303615 — (1 required per assembly) | ||
  |
|
0303615 - Fuel Pump Gasket [ More info ]
|
  |
|

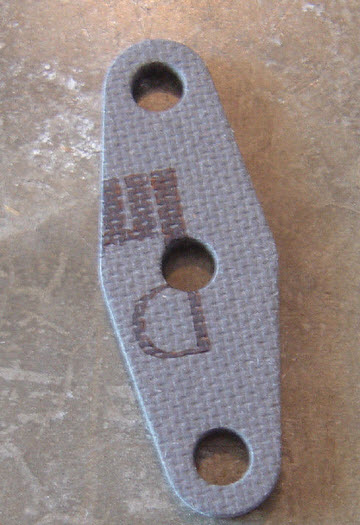

18-0850-9 - Gasket 303615 2-Pack [ More info ]
|
| #8 — 376161 — (1 required per assembly) | ||
  |
|

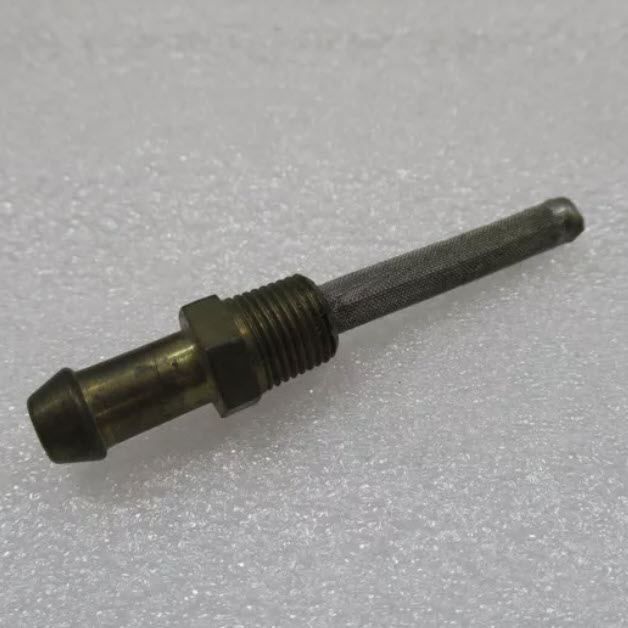

0376161 - Nipple & Screw [ More info ]
|
| #9 — 303638 — (1 required per assembly) | ||
|
|

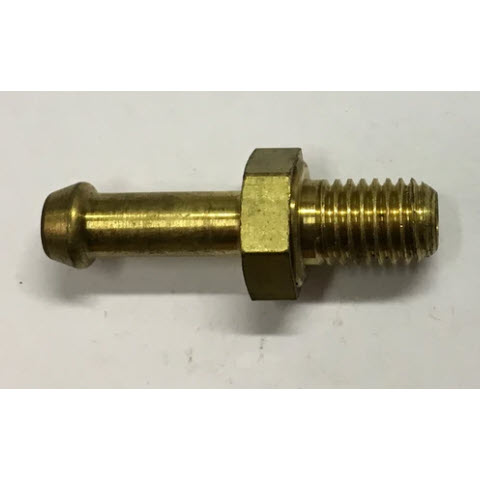

0303638 - Nipple [ More info ]
|
| #10 — 303630 — (1 required per assembly) | ||
  |
|
0303630 - Fiber Washer [ More info ]
|
| #11 — 133451 — (3 required per assembly) | ||
|
|
|
| #12 — 304091 — (1 required per assembly) | ||
|
|
0304091 [ More info ] Unavailable Replaced by 0388685 |
|
|
0388685 - Fuel Pump, Gasket Not Included [ More info ]
|
| #13 — 304092 — (1 required per assembly) | ||
|
|

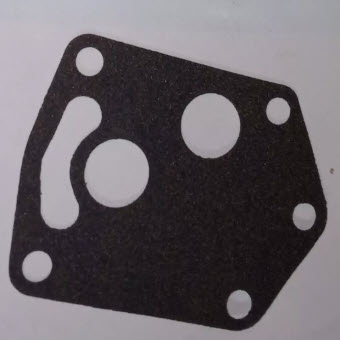

0304092 - Fuel Pump Gasket [ More info ]
|
|
|
0388685 - Fuel Pump, Gasket Not Included [ More info ]
|
| #14 — 303643 — (2 required per assembly) | ||
|
0303643 - Fuel Pump, Gasket Not Included [ More info ] Unavailable |
|
|
|
0388685 - Fuel Pump, Gasket Not Included [ More info ]
|
| #15 — 303642 — (2 required per assembly) | ||
  |
|
0303642 - Spring [ More info ]
|
| #16 — 304090 — (1 required per assembly) | ||
|
|
0304090 [ More info ] Unavailable Replaced by 0388685 |
|
|
0388685 - Fuel Pump, Gasket Not Included [ More info ]
|

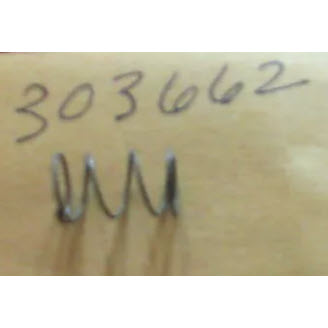

| #17 — 303662 — (1 required per assembly) |
| #18 — 376619 — (1 required per assembly) | ||
|
0376619 - Fuel Pump [ More info ] Unavailable |
|
|
|
0388685 - Fuel Pump, Gasket Not Included [ More info ]
|
| #19 — 304094 — (1 required per assembly) | ||
  |
|
0304094 - Spring Support [ More info ]
|

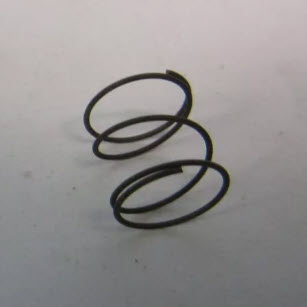

| #20 — 304486 — (1 required per assembly) | ||
|
|
0304486 - Spring [ More info ]
|
| #21 — 304089 — (1 required per assembly) | ||
|
0304089 - Fuel Pump, Gasket Not Included [ More info ] Unavailable |
|
|
|
0388685 - Fuel Pump, Gasket Not Included [ More info ]
|
| #22 — 302592 — (1 required per assembly) | ||
  |
|

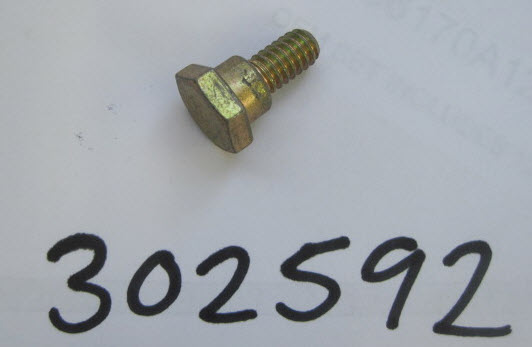

0302592 - Screw, Lever [ More info ]
|
| #23 — 304051 — (1 required per assembly) | ||
  |
|
0304051 - Ignition Coil Mounting Washer [ More info ]
|
  |
|
0328703 - Washer [ More info ]
|
  |
|
3852193 - Washer, Volvo [ More info ]
|
| #24 — 203596 — (1 required per assembly) | ||
  |
|

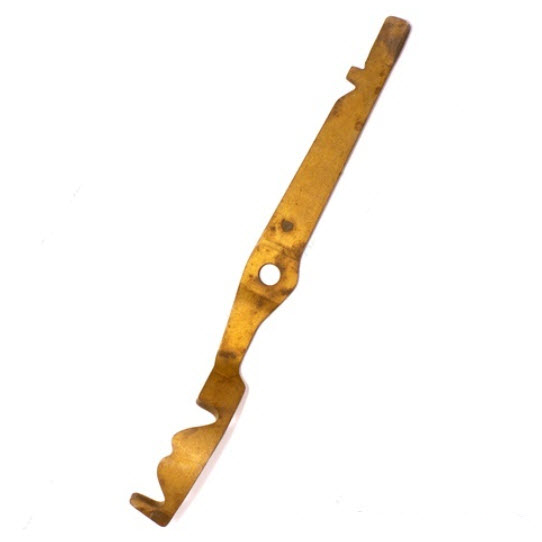

0203596 - Shifter Lock [ More info ]
|
| #25 — 302587 — (1 required per assembly) | ||
  |
|

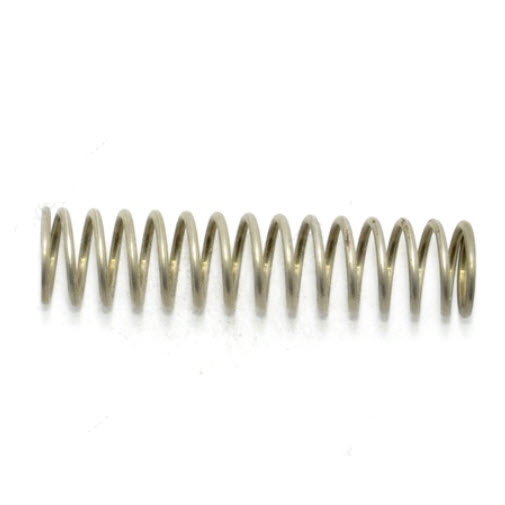

0302587 - Shifter Lock Spring [ More info ]
|

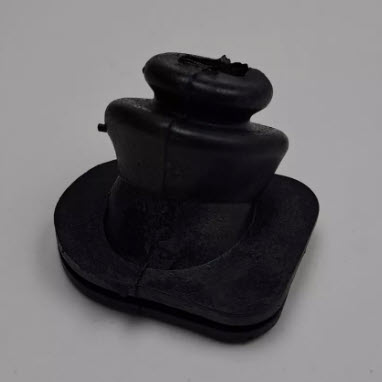

| #26 — 306222 — (1 required per assembly) | ||
  |
|
0306222 - Shifter Lock Grommet [ More info ]
|
| #27 — 303737 — (2 required per assembly) | ||
  |
|
0303737 - Lead Assembly Screw [ More info ]
|
  |
|
0329594 - Screw, Clamp [ More info ]
|
| #28 — 303109 — (1 required per assembly) | ||
  |
|

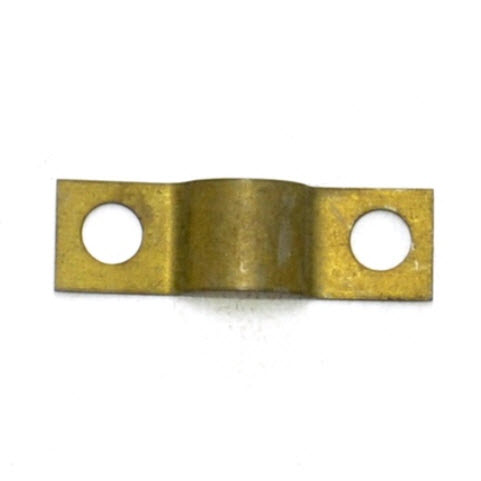

0303109 - Bearing Clamp [ More info ]
|
| #29 — 305609 — (1 required per assembly) | ||
  |
|

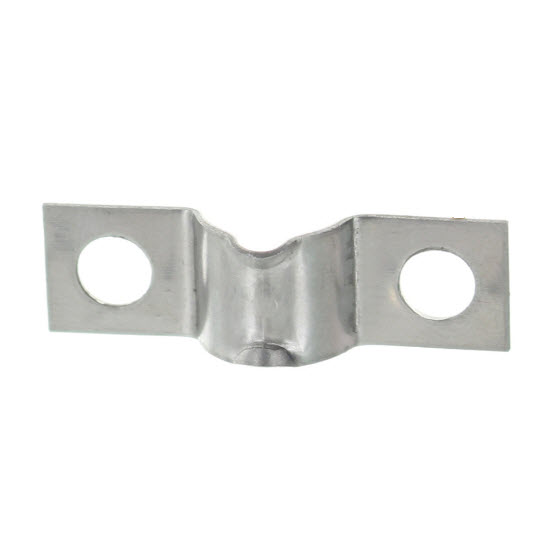

0305609 - Control Lever Bearing Clamp [ More info ]
|
| #30 — 304155 — (1 required per assembly) | ||
  |
0304155 - Pin [ More info ] Unavailable |
|
  |
|
|

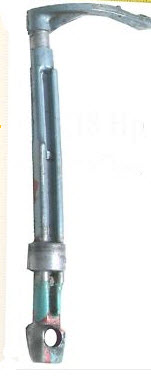

| #31 — 203805 — (1 required per assembly) | ||
  |
0203805 - Control Lever [ More info ] Unavailable |
|
  |
|

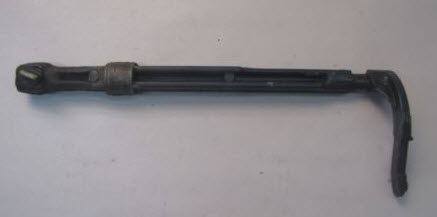

0385509 - Control Lever [ More info ]
|

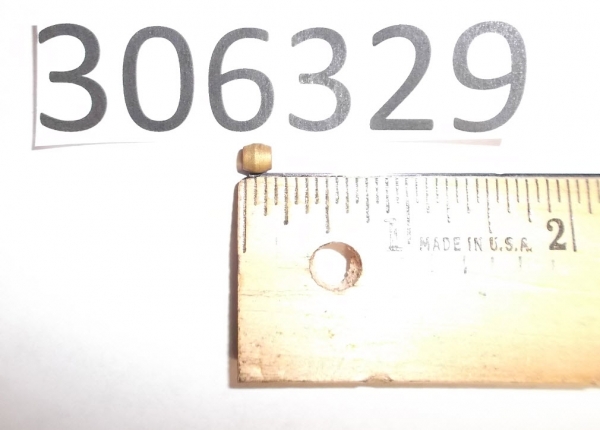

| #32 — 306329 — (2 required per assembly) | ||
  |
|
|

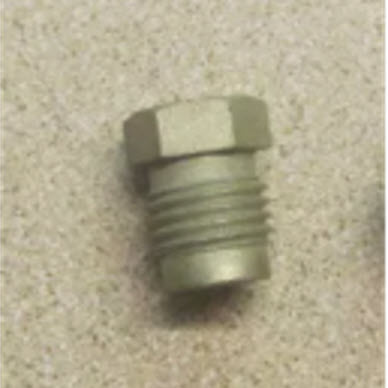

| #33 — 307564 — (2 required per assembly) | ||
|
|
|
| #34 — 302811 — (1 required per assembly) | ||
|
|
0302811 [ More info ] Unavailable Replaced by 0203909 |
|
|
0203909 - Oil Return Hose [ More info ]
|
| #35 — 203723 — (1 required per assembly) | ||
|
|
|
| #36 — 378101 — (2 required per assembly) | ||
  |
0378101 - Spark Plug J4C [ More info ] Unavailable |
|
  |
|

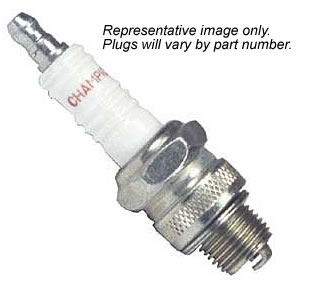

0502193 - Spark Plug J4C [ More info ] Unavailable |
  |
|
J4C - Champion Spark Plug ( #825) [ More info ]
|
|
|
J4C - Champion Spark Plug ( #825) [ More info ]
|
| #36 — 377245 — (2 required per assembly) | ||
|
|
0377245 [ More info ] Unavailable Replaced by 0378320 |
  |
|
0378320 - Spark Plug [ More info ] Unavailable |
| #37 — 306483 — (8 required per assembly) | ||
|
|

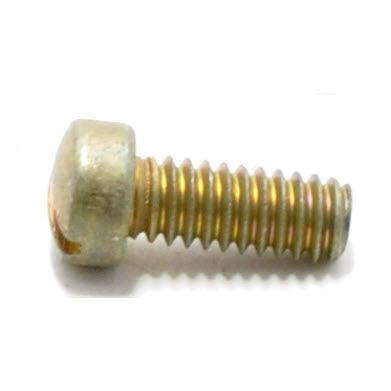

0306483 - Cylinder to Crankcase Screw [ More info ]
|
| #38 — 304781 — (1 required per assembly) | ||
|
|
0304781 - Bypass Cover, NLA [ More info ] Unavailable |
| #39 — 307477 — (1 required per assembly) | ||
|
|
0307477 - Cover,USE GALE 552213 N [ More info ] Unavailable |
| #40 — 304782 — (2 required per assembly) | ||
|
0304782 - Bypass Cover Gasket [ More info ] Unavailable |
|
  |
|

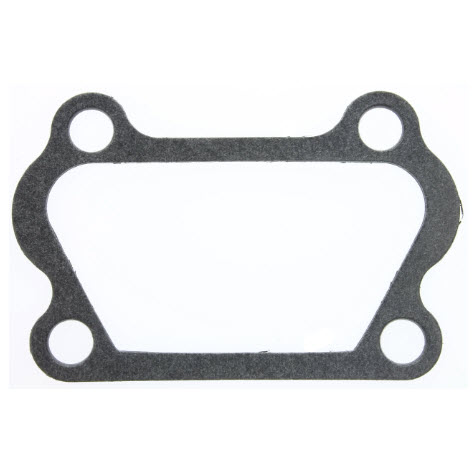

0314818 - By-Pass Cover Gasket [ More info ]
|
| #41 — 302647 — (4 required per assembly) | ||
|
|
0302647 - Clamp, NLA [ More info ] Unavailable |
| #42 — 203730 — (1 required per assembly) | ||
|
|
0203730 - Hose [ More info ] Unavailable |
| #43 — 304607 — (3 required per assembly) | ||
|
|
0304607 - L/P .80 [ More info ] Unavailable |
| #44 — 303699 — (1 required per assembly) | ||
|
|
|
| #45 — 303967 — (1 required per assembly) | ||
  |
|
0303967 - Filter Bowl [ More info ]
|

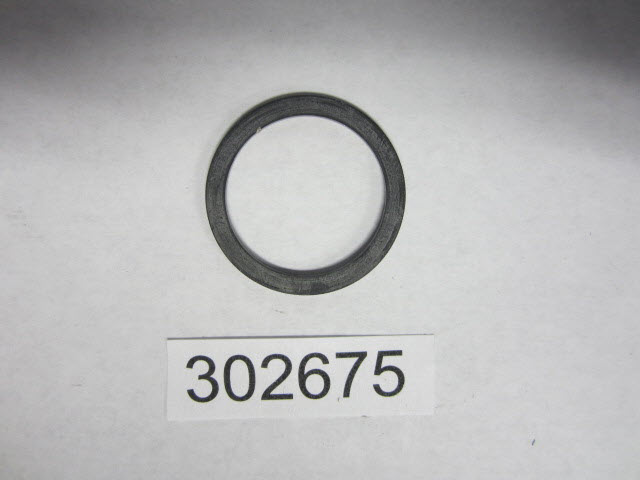

| #46 — 302675 — (1 required per assembly) | ||
  |
|
0302675 - Gasket [ More info ]
|
  |
|

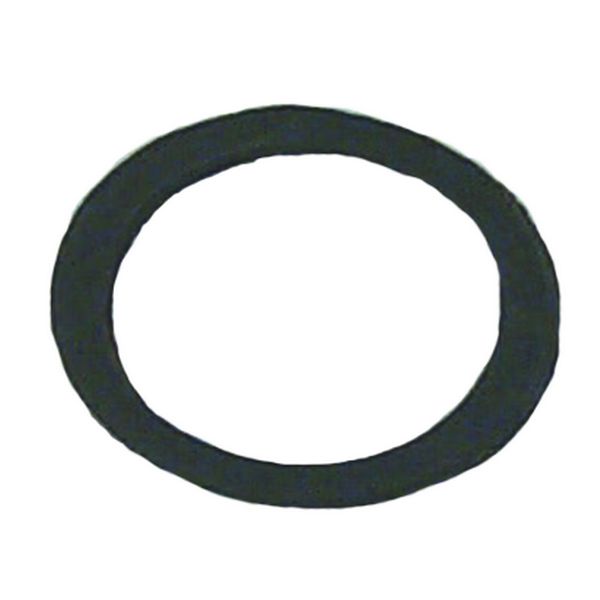

18-2889-9 - Gasket 302675 2-Pack [ More info ]
|

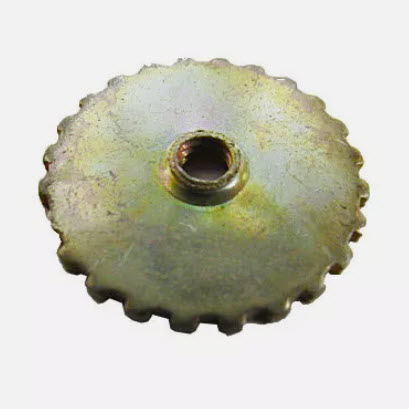

| #47 — 304523 — (1 required per assembly) | ||
  |
|
|

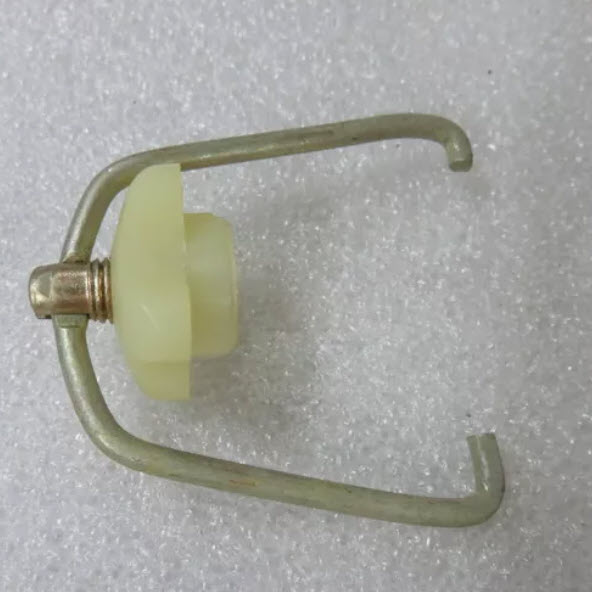

| #48 — 377600 — (1 required per assembly) | ||
  |
|
0377600 - Nut & Yoke Assembly [ More info ]
|

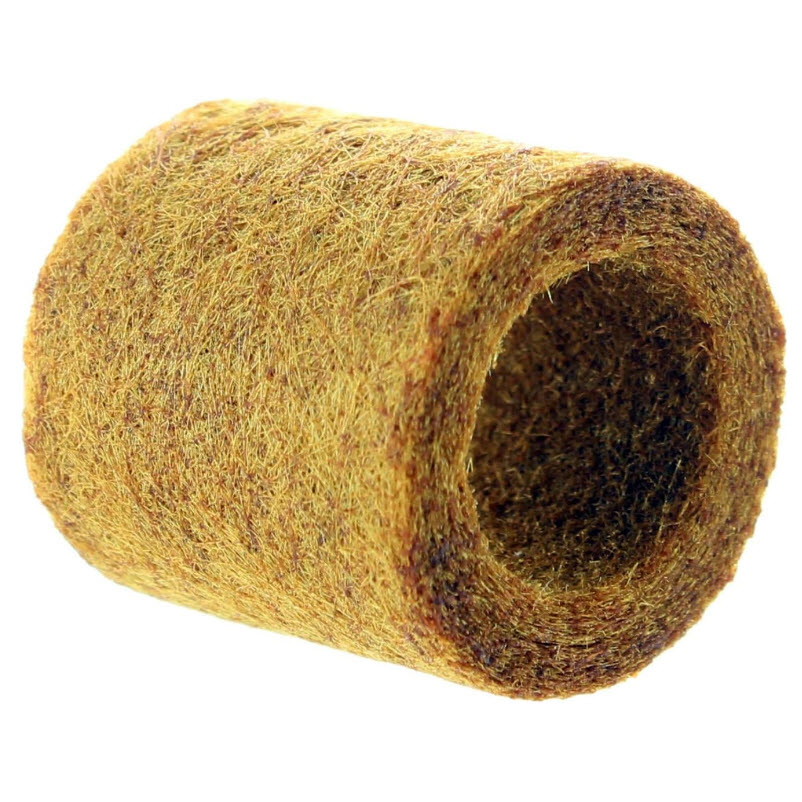

| #49 — 302062 — (1 required per assembly) | ||
  |
|
0302062 - Filter [ More info ]
|

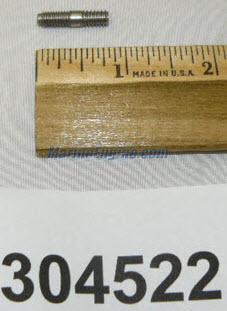

| #50 — 304522 — (1 required per assembly) | ||
  |
|
|
| #51 — 376836 — (1 required per assembly) | ||
  |
|

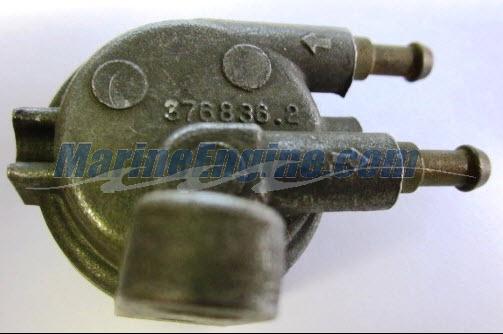

0376836 - Filter Cap Only [ More info ]
|
| #52 — 303699 — (3 required per assembly) | ||
|
|
|
| #54 — 303459 — (1 required per assembly) | ||
  |
|
|

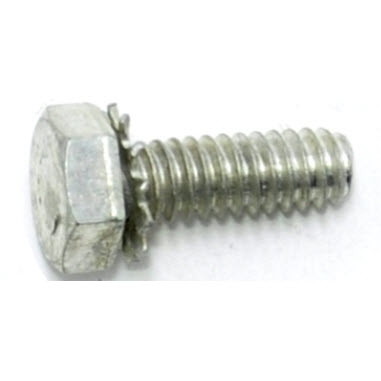

| #55 — 551793 — (1 required per assembly) | ||
  |
|
|
| #56 — 306194 — (1 required per assembly) | ||
|
|
0306194 - Bracket [ More info ] Unavailable |

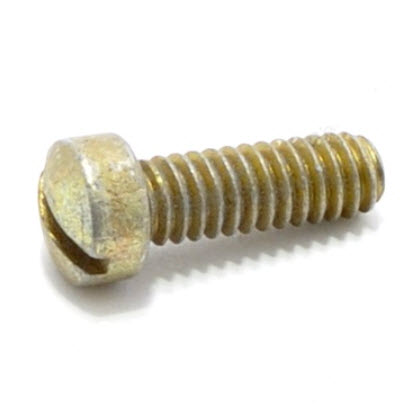

| #57 — 306408 — (13 required per assembly) | ||
  |
|
0306408 - Screw [ More info ] Unavailable |
| #59 — 306164 — (2 required per assembly) | ||
|
0306164 - Exhaust Cover Gasket [ More info ] Unavailable |
|
  |
|

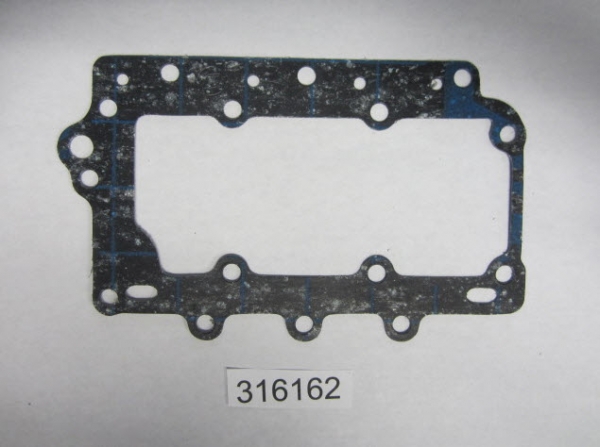

0316162 - Exhaust Cover Gasket [ More info ]
|
| #60 — 306165 — (1 required per assembly) | ||
  |
|

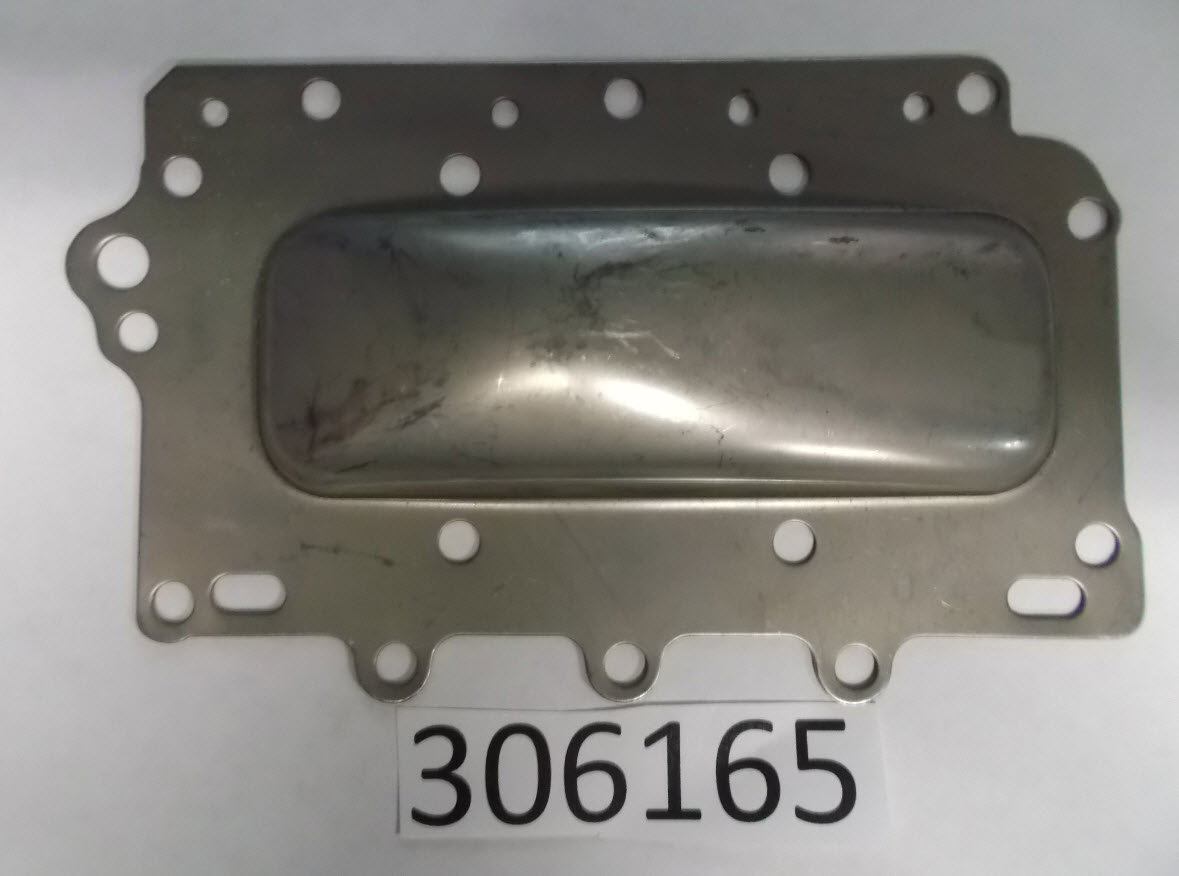

0306165 - Inner Exhaust Cover [ More info ] Unavailable |
  |
|

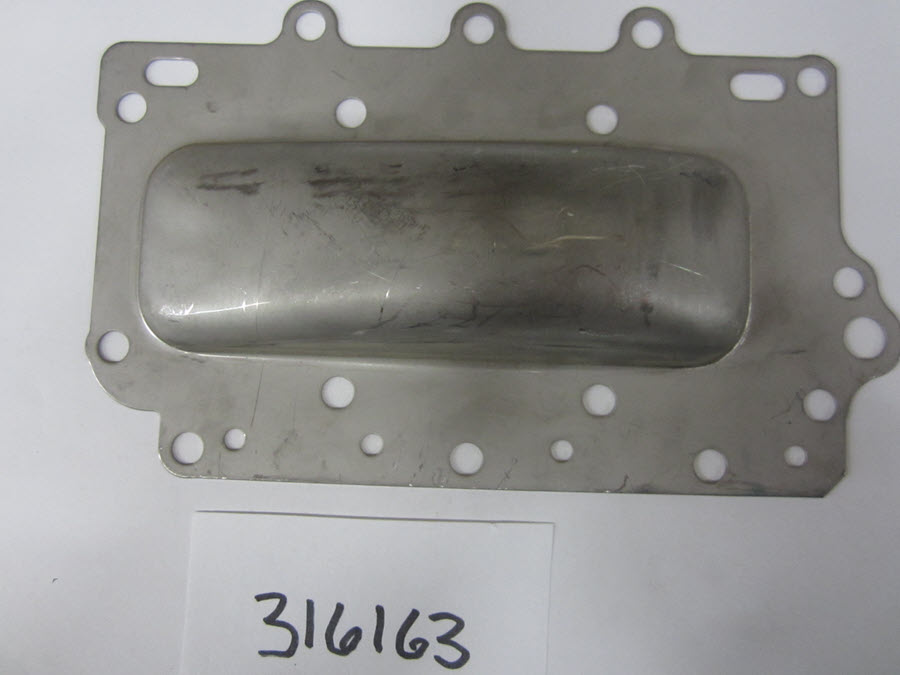

0316163 - Exhaust Cover, Inner [ More info ]
|
| #61 — 306424 — (10 required per assembly) | ||
  |
|

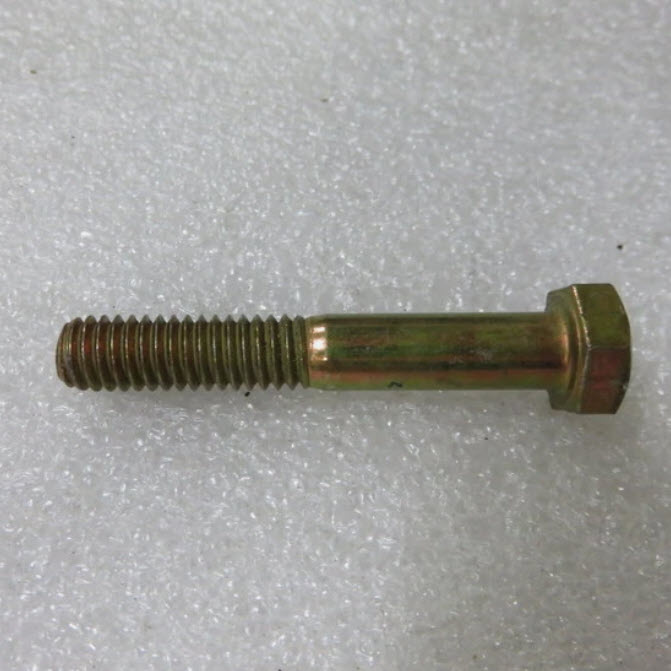

0306424 - Cylinder Head Screw [ More info ]
|
| #62 — 306453 — (9 required per assembly) | ||
|
|
0306453 - Washer [ More info ]
|

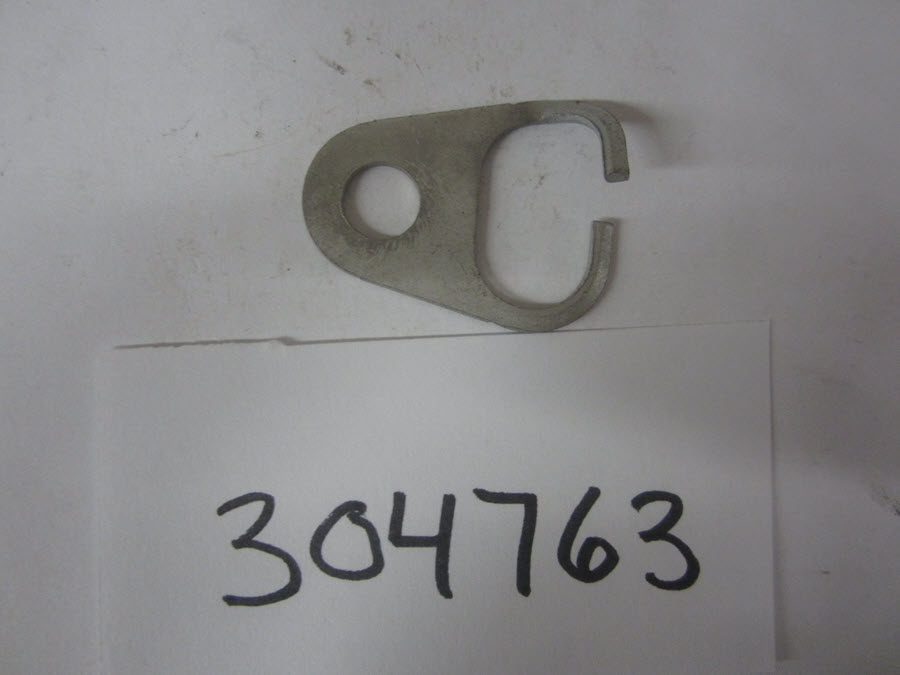

| #63 — 304763 — (1 required per assembly) | ||
  |
|
0304763 - Lead Anchor [ More info ]
|
| #64 — 300454 — (1 required per assembly) | ||
  |
|
0300454 - Ignition Lead Grommet [ More info ]
|

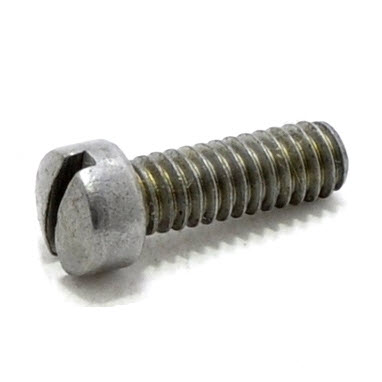

| #65 — 300258 — (3 required per assembly) | ||
  |
|
|
| #66 — 377614 — (1 required per assembly) | ||
|
|
|
| #67 — 303405 — (1 required per assembly) | ||
  |
|
0303405 - Core Plug [ More info ]
|
| #68 — 306161 — (1 required per assembly) | ||
  |
|

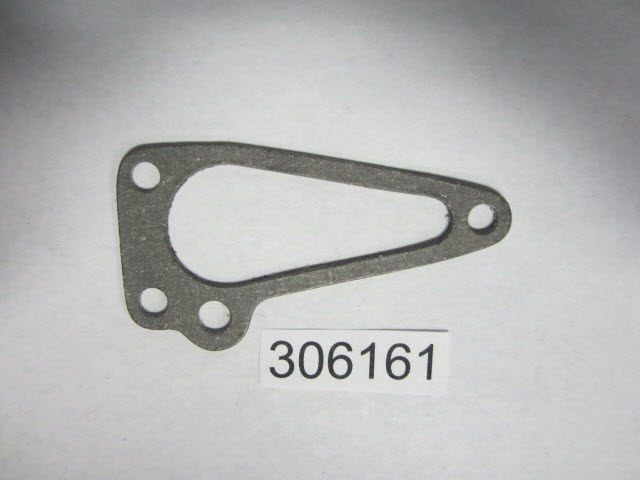

0306161 - Thermostat Gasket [ More info ]
|
| #69 — 306162 — (1 required per assembly) | ||
|
|
0306162 [ More info ] Unavailable Replaced by 0310058 |
  |
|

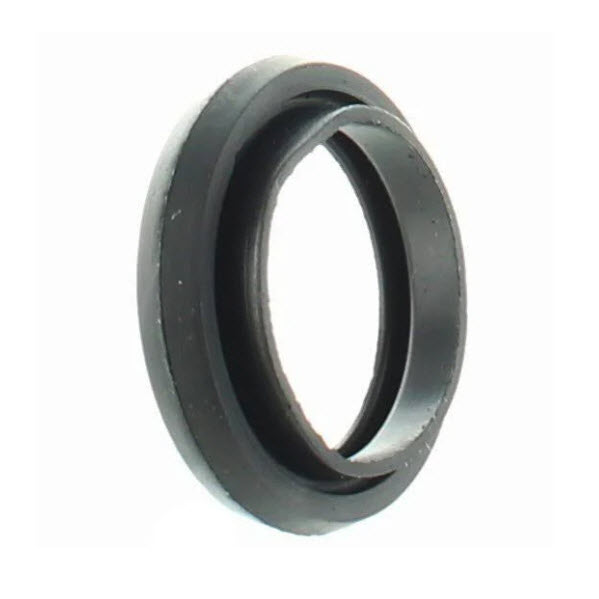

0310058 - Thermostat Seal [ More info ]
|
  |
|
18-0182-9 - Gasket 27-62386 2-Pack [ More info ]
|
| #70 — 378065 — (1 required per assembly) | ||
  |
0378065 - Thermostat, 143 Degrees [ More info ] Unavailable |
|
  |
0393659 - Thermostat, 143 Degrees [ More info ] Unavailable |
|
  |

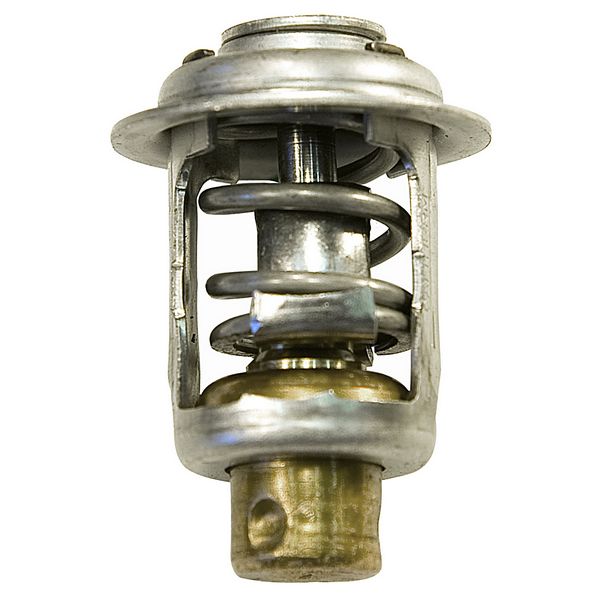

0437414 - Thermostat, 143 Degrees [ More info ] Unavailable |
|
  |
0434841 - Thermostat, 143 Degrees [ More info ] Unavailable |
|
  |
|

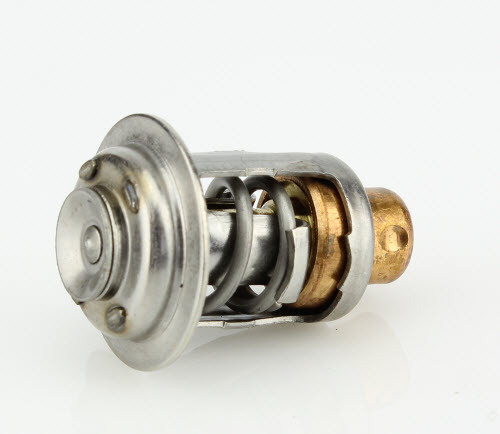

5005440 - Thermostat, 143 Degrees [ More info ]
|
  |
|

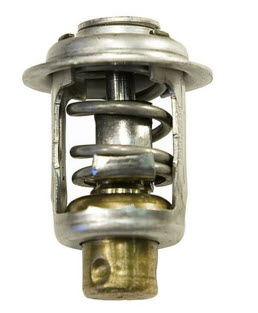

18-3543 - Thermostat, 143 Degrees, 5005440, 8330720 [ More info ]
|
| #71 — 377613 — (1 required per assembly) | ||
|
|
0377613 - Cylinder Head And Plug Assembly [ More info ]
|

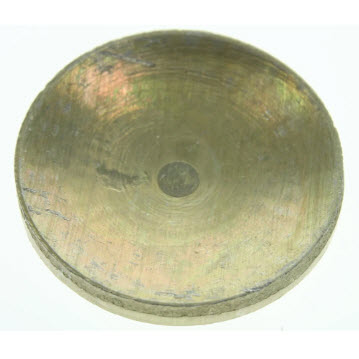

| #72 — 202310 — (1 required per assembly) | ||
  |
|
0202310 - Core Plug [ More info ]
|
| #73 — 306163 — (1 required per assembly) | ||
|
0306163 - Cylinder Head Gasket [ More info ] Unavailable |
|
  |
|

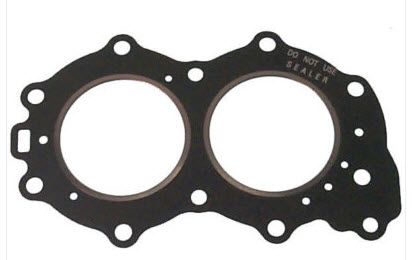

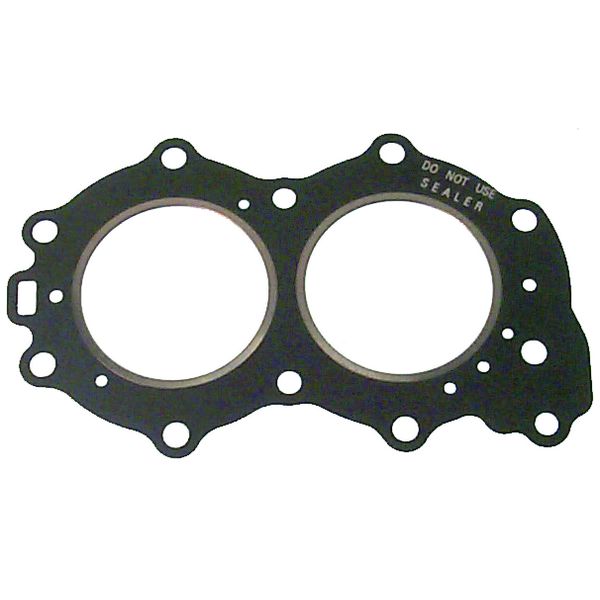

0322332 - Head Gasket [ More info ]
|
  |
|
18-2962 - Head Gasket 322332 [ More info ]
|

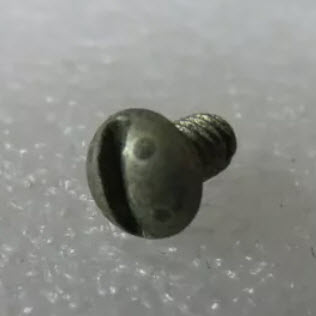

| #74 — 306402 — (1 required per assembly) | ||
  |
|
0306402 - Screw, Oil Drain Valve [ More info ]
|
| #75 — 203248 — (1 required per assembly) | ||
  |
|

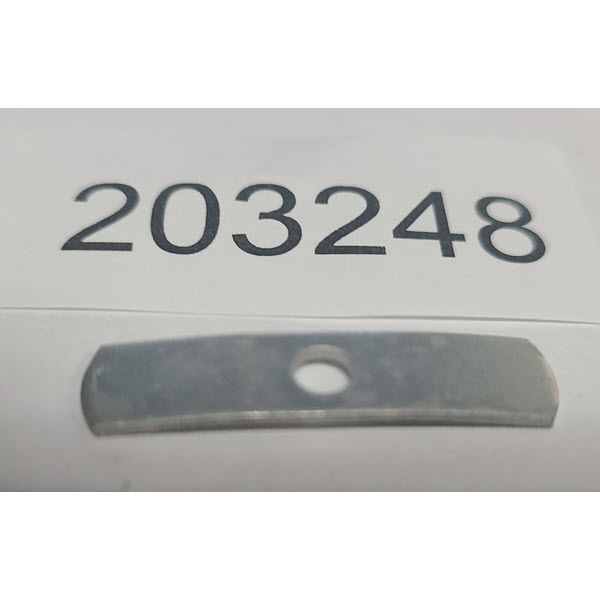

0203248 - Oil Drain Valve Plate [ More info ]
|
| #76 — 203235 — (1 required per assembly) | ||
  |
|

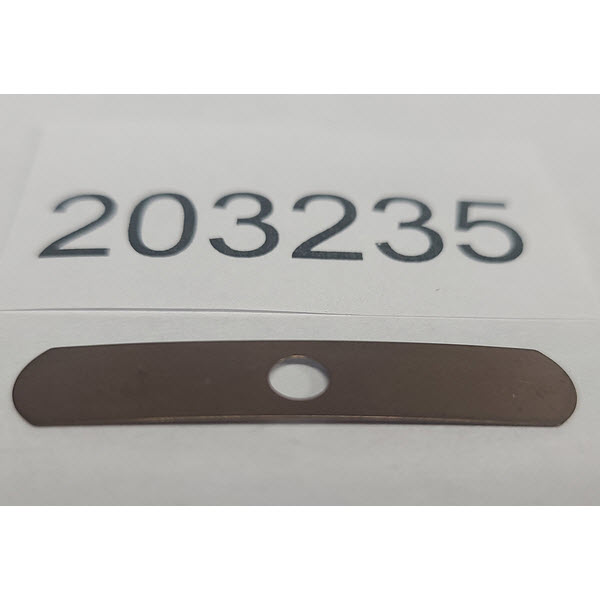

0203235 - Oil Drain Leaf Valve [ More info ]
|

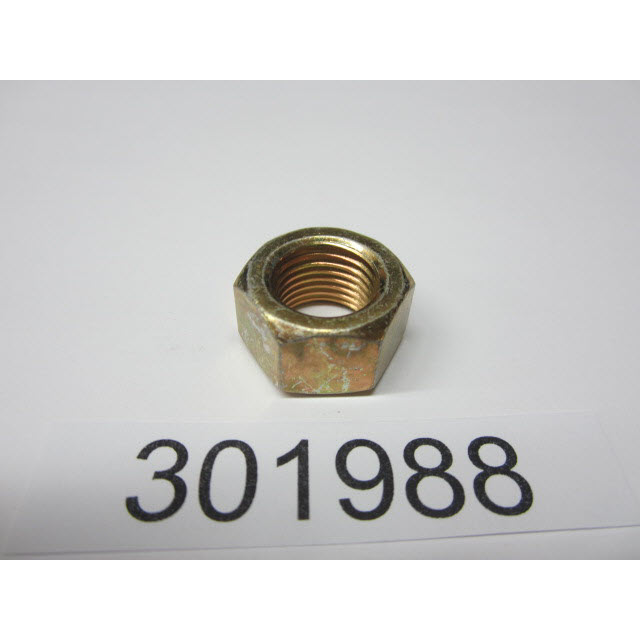

| #77 — 301988 — (1 required per assembly) | ||
  |
|
|
| #78 — 304442 — (3 required per assembly) | ||
  |
|

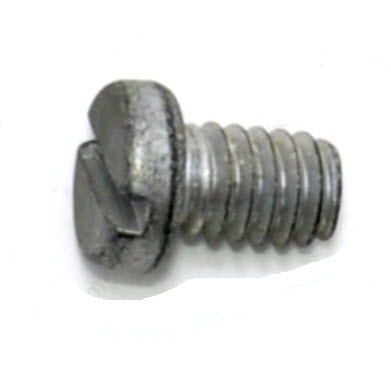

0304442 - Screw, Support [ More info ]
|
  |
|

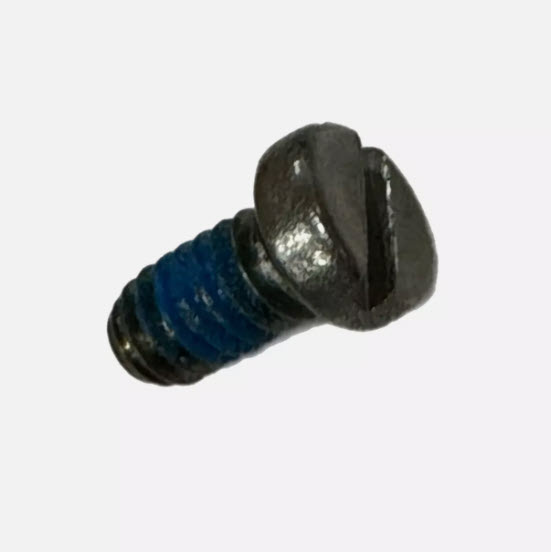

0326875 - Screw, Support [ More info ]
|
  |
|

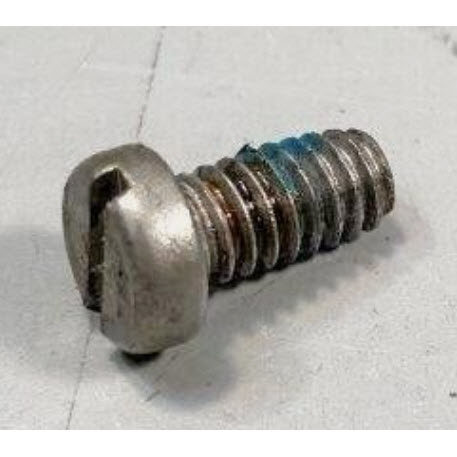

0332070 - Screw, Support Plate To Crankcase [ More info ]
|
| #79 — 303278 — (1 required per assembly) | ||
  |
|
0303278 - Armature Plate Support [ More info ]
|
| #80 — 303277 — (1 required per assembly) | ||
  |
|
0303277 - Retaining Ring [ More info ]
|
| #81 — 510168 — (1 required per assembly) | ||
  |
|
0510168 [ More info ] Unavailable Replaced by 0316583 |
  |
|
0316583 - Magneto Cam [ More info ]
|
| #82 — 120395 — (1 required per assembly) | ||
  |
|
|
| #83 — 377643 — (1 required per assembly) |
| #84 — 203249 — (2 required per assembly) | ||
|
|
0203249 - Screw,Crankcase [ More info ]
|
| #85 — 306435 — (4 required per assembly) | ||
  |
|

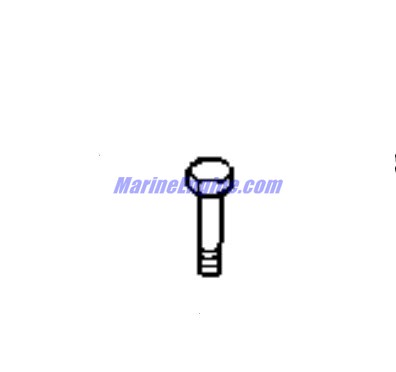

0306435 - Screw [ More info ] Unavailable |
| #86 — 306371 — (6 required per assembly) | ||
|
|
0306371 - Washer [ More info ]
|
| #87 — 300402 — (2 required per assembly) | ||
  |
|
|
| #88 — 301732 — (1 required per assembly) | ||
  |
|
|

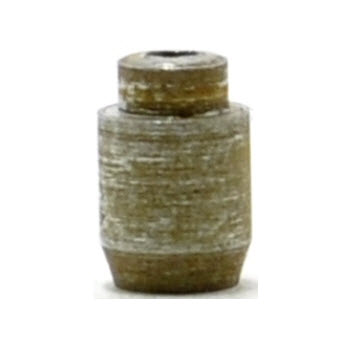

| #89 — 302037 — (3 required per assembly) | ||
|
|
|
| #90 — 377261 — (2 required per assembly) | ||
  |
|

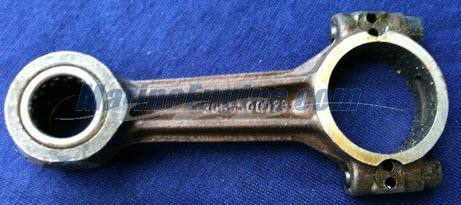

0377261 - Rod Assembly [ More info ]
|
| #91 — 202967 — (4 required per assembly) | ||
  |
|

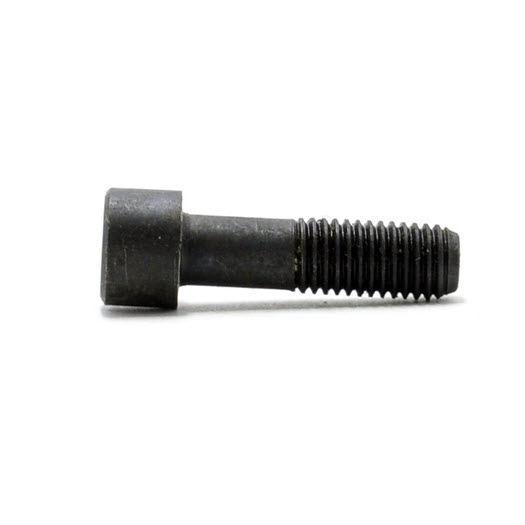

0202967 - Screw, Rod Cap [ More info ]
|
| #92 — 377260 — (2 required per assembly) | ||
  |
|

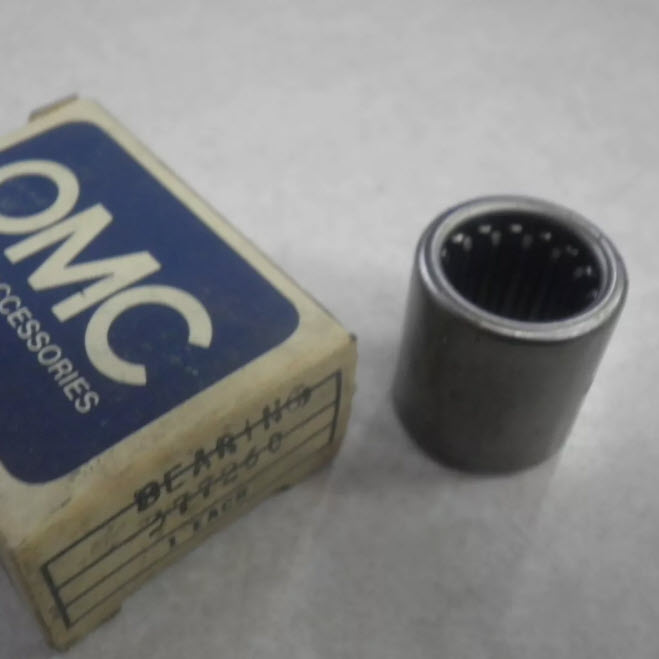

0377260 - Roller Bearing [ More info ]
|
| #93 — 203244 — (2 required per assembly) | ||
  |
|

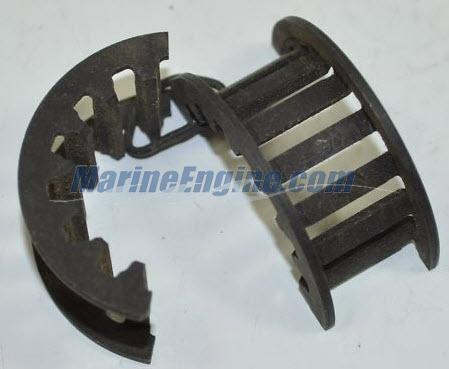

0203244 - Retainer [ More info ]
|
| #94 — 302529 — (30 required per assembly) | ||
|
|
0302529 - SEE PRICEBOOK [ More info ] Unavailable |
| #95 — 304691 — (2 required per assembly) | ||
  |
|
0304691 - Wrist Pin [ More info ]
|
| #96 — 486406 — (1 required per assembly) |
| #96 — 486444 — (1 required per assembly) |
| #96 — 486452 — (1 required per assembly) |
| #97 — 377262 — (2 required per assembly) | ||
  |
|
0377262 - Piston, NLA [ More info ]
|
  |
|
0385338 - Piston, Standard [ More info ]
|
| #98 — 302577 — (4 required per assembly) | ||
  |
|

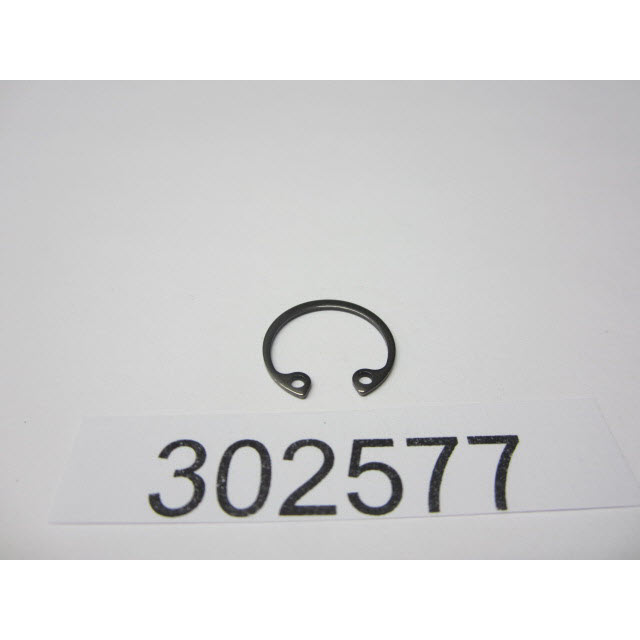

0302577 - Circlip [ More info ]
|
| #99 — 300288 — (6 required per assembly) |
| #100 — 377263 — (2 required per assembly) | ||
  |
|
0377263 - Piston Assembly, NLA [ More info ] Unavailable |
| #100 — 377264 — (2 required per assembly) | ||
  |
|
0377264 - Piston, No Rings 0.040 Oversize [ More info ]
|
  |
|
0383478 - Piston, No Rings 0.040 Oversize [ More info ]
|
| #101 — 302585 — (1 required per assembly) | ||
|
|
0302585 [ More info ] Unavailable Replaced by 0309010 |
  |
|

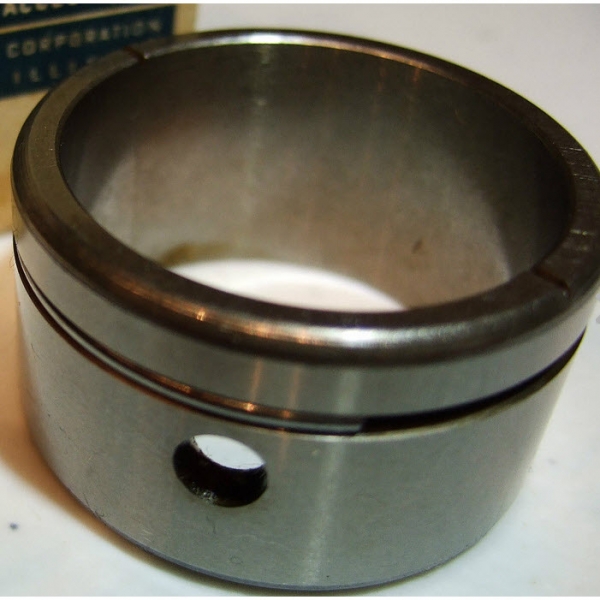

0309010 - Center Bearing Sleeve [ More info ]
|
| #102 — 378155 — (1 required per assembly) | ||
  |
|
0378155 - Retainer & Needles [ More info ]
|
  |
|
0378838 - Retainer and Needles [ More info ]
|
| #103 — 377528 — (1 required per assembly) | ||
  |
|
0377528 - Roller Bearing [ More info ]
|
| #104 — 305987 — (1 required per assembly) | ||
  |

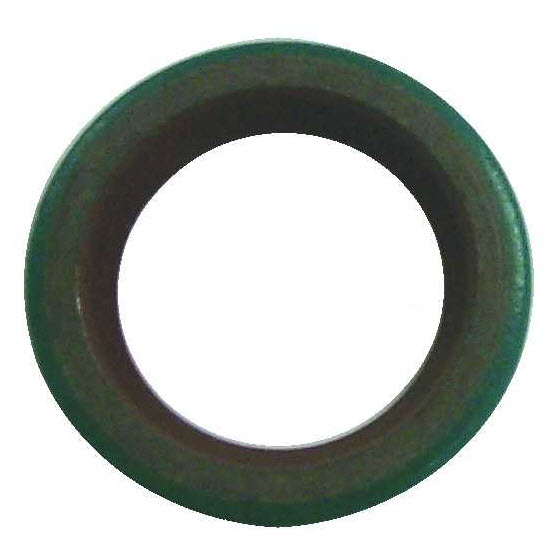

0305987 - Powerhead Seal [ More info ] Unavailable |
|
  |
|

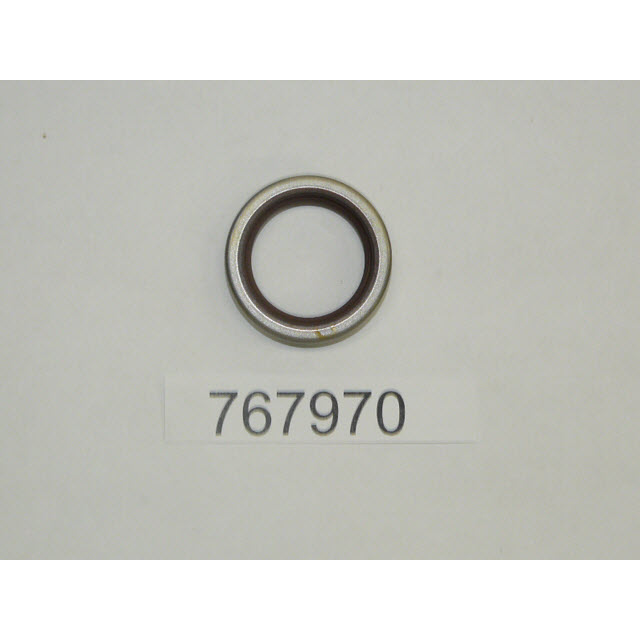

0767970 - Seal, 305987 [ More info ]
|
|
|
0767970 - Seal, 305987 [ More info ]
|
| #105 — 302536 — (1 required per assembly) | ||
  |
|

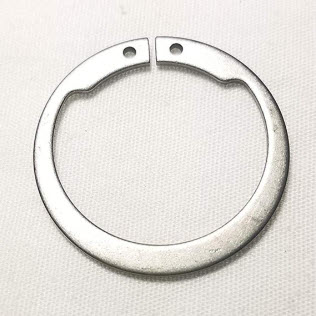

0302536 - Retaining Ring [ More info ]
|
| #106 — 303801 — (1 required per assembly) | ||
  |
|

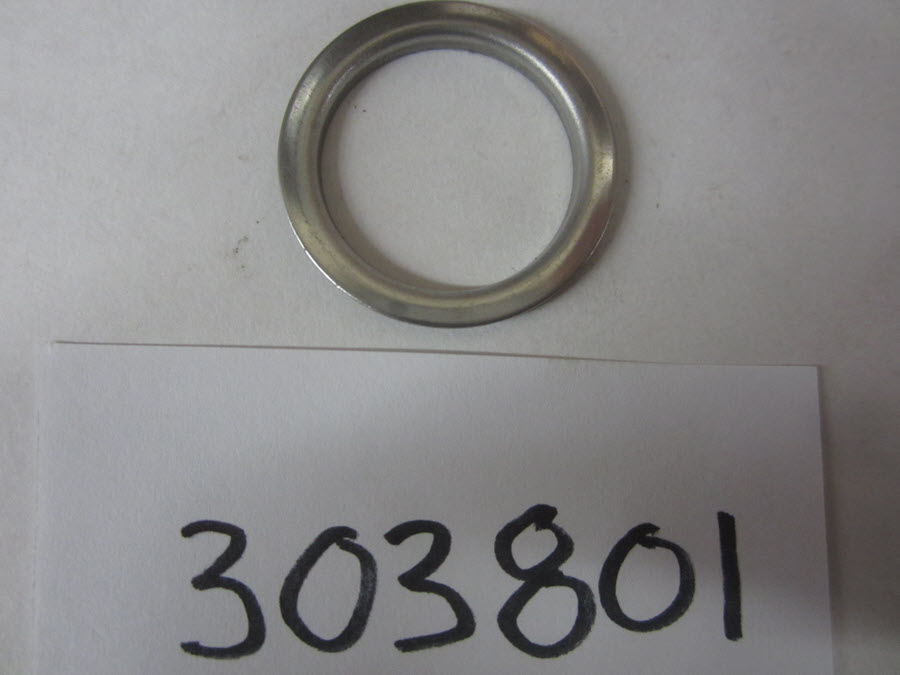

0303801 - Lower Washer [ More info ]
|
| #107 — 302539 — (1 required per assembly) | ||
  |
|

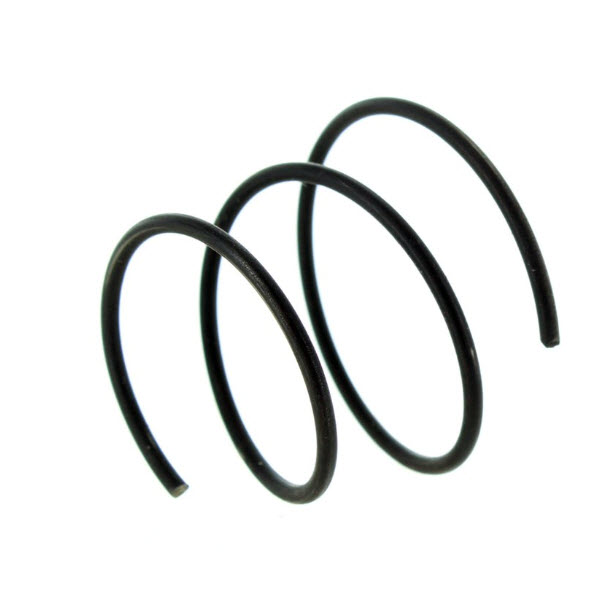

0302539 - Lower Seal Spring [ More info ]
|
| #108 — 302594 — (1 required per assembly) | ||
  |
|

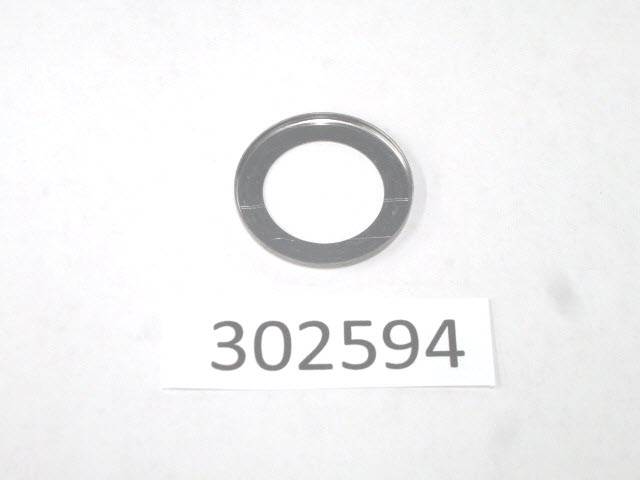

0302594 - Retaining Washer [ More info ]
|
| #109 — 302538 — (1 required per assembly) | ||
  |
|

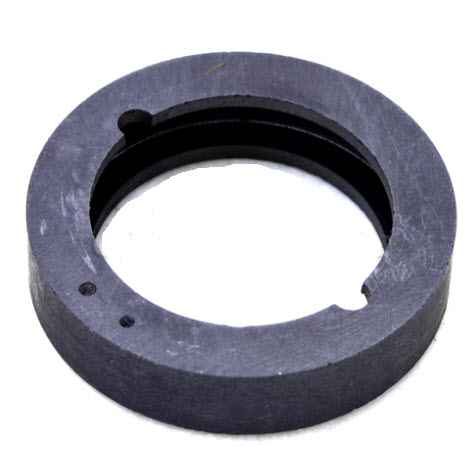

0302538 - Bearing Seal [ More info ]
|
| #110 — 302540 — (1 required per assembly) | ||
  |
|
0302540 - O-Ring [ More info ]
|
  |
|
18-7114 - O-Ring 25-23145, 302540 [ More info ]
|
| #111 — 302537 — (1 required per assembly) | ||
  |
|
0302537 - O-Ring [ More info ]
|
  |
|
18-7164-9 - O-Ring (PK5) 25-33466 [ More info ]
|
| #112 — 375763 — (1 required per assembly) | ||
  |
|
0375763 - Roller Bearing [ More info ]
|
| #113 — 304732 — (1 required per assembly) | ||
  |
|

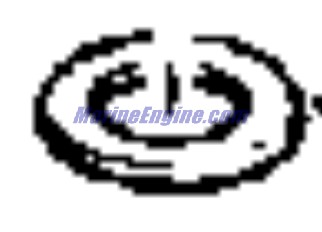

0304732 - Washer [ More info ]
|
| #114 — 304794 — (1 required per assembly) | ||
  |
|
0304794 [ More info ] Unavailable Replaced by 0315286 |
  |
|

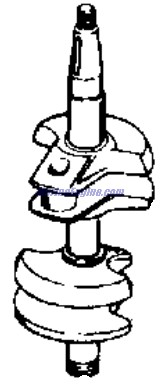

0315286 - CrankShaft [ More info ] Unavailable |
