Fastwin Carburetor Parts for 1960 Evinrude 18 hp 15032 Outboard Motor

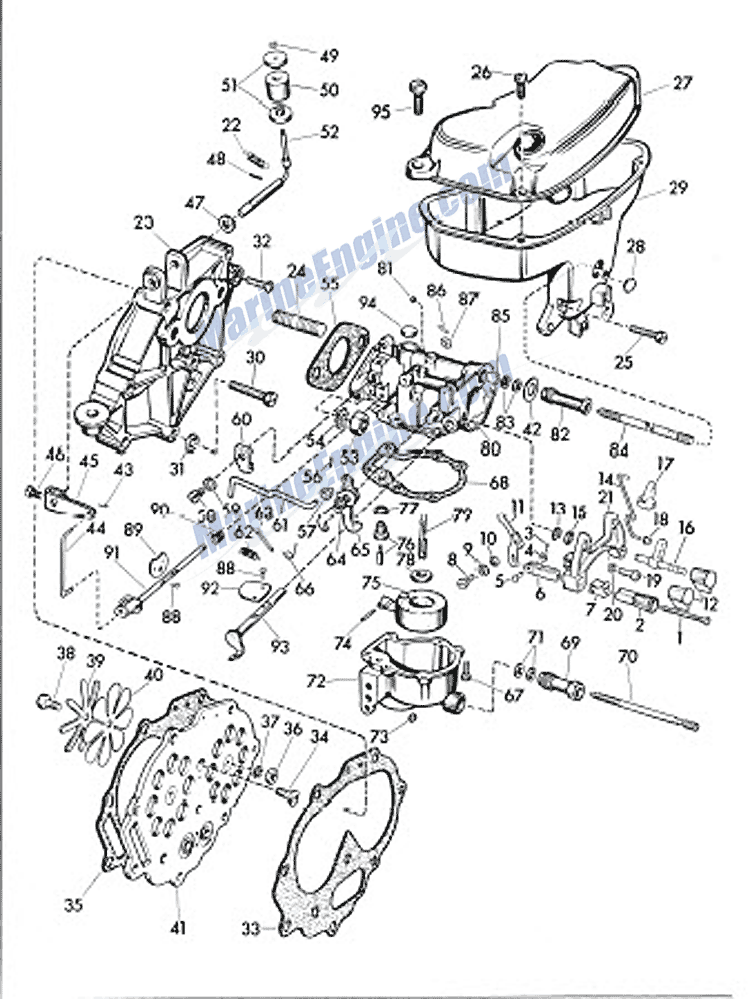

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0 — 377908 — (1 required per assembly) | ||
 |
|
[ More info ] Unavailable |
| #0 — 278212 — (1 required per assembly) | ||
|
|
0278212 - Part [ More info ] Unavailable |

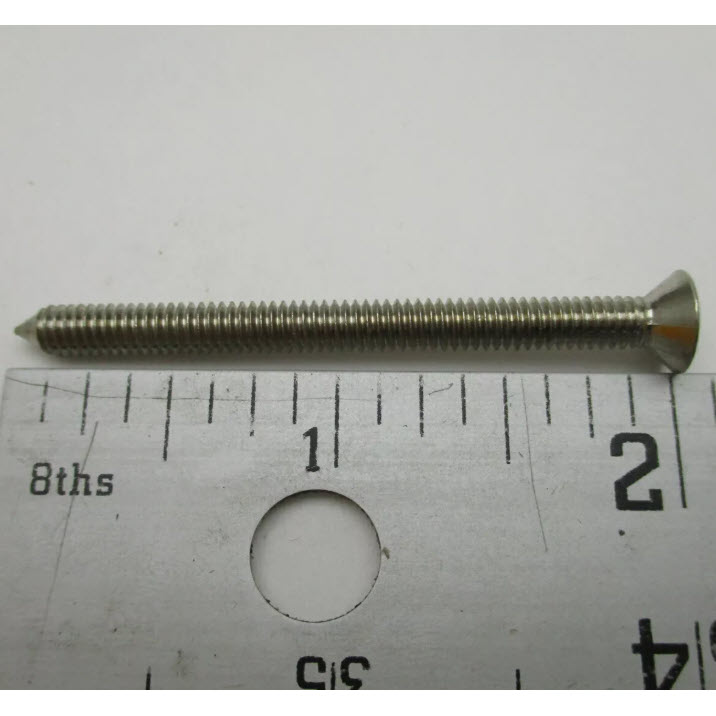

| #1 — 203676 — (1 required per assembly) | ||
|
|
|

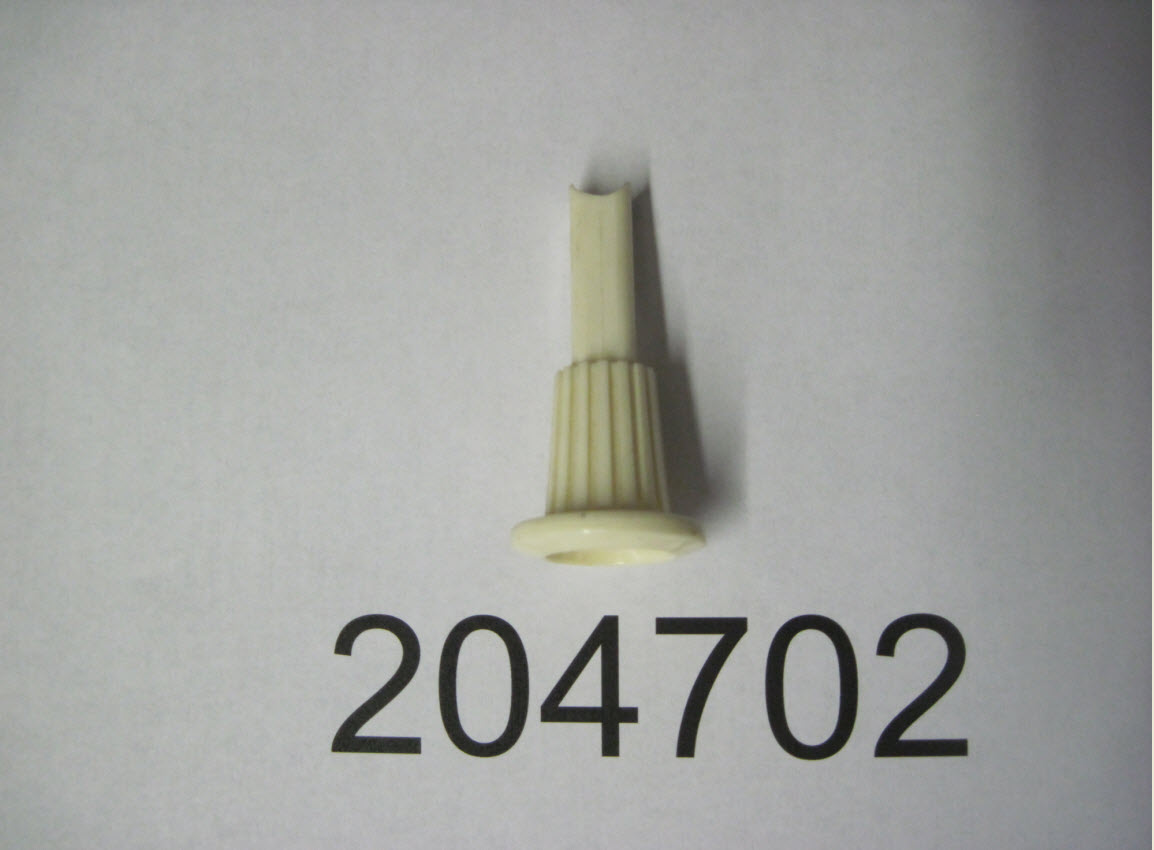

| #2 — 204702 — (1 required per assembly) | ||
  |
|
|
| #3 — 301912 — (1 required per assembly) | ||
  |
|
0301912 - Cotter Pin [ More info ]
|
| #4 — 306544 — (1 required per assembly) | ||
  |
|
0306544 - Washer [ More info ]
|
| #5 — 303738 — (1 required per assembly) | ||
|
0303738 - Hinge Pin [ More info ] Unavailable |
|
  |
|
0382778 - Hinge Pin [ More info ]
|
| #6 — 204497 — (1 required per assembly) | ||
|
|
|

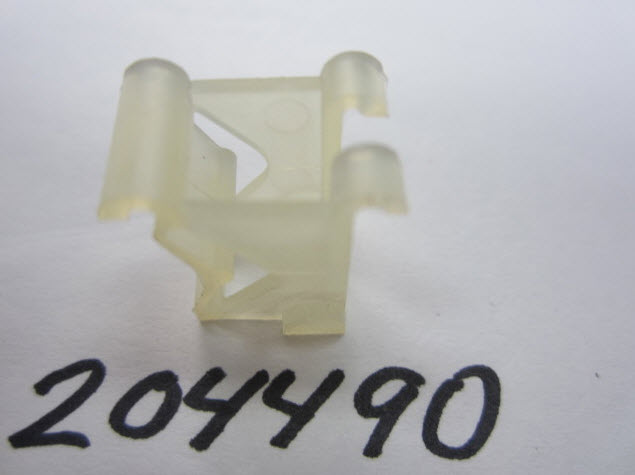

| #7 — 204490 — (1 required per assembly) | ||
  |
|
0204490 - Choke Detent Link [ More info ]
|

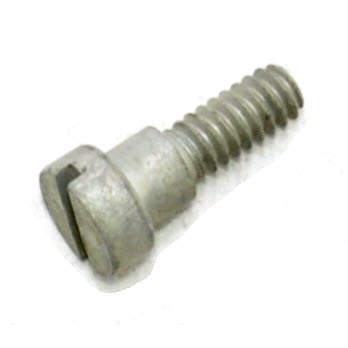

| #8 — 303247 — (1 required per assembly) | ||
  |
|
|
| #9 — 305894 — (1 required per assembly) | ||
  |
|

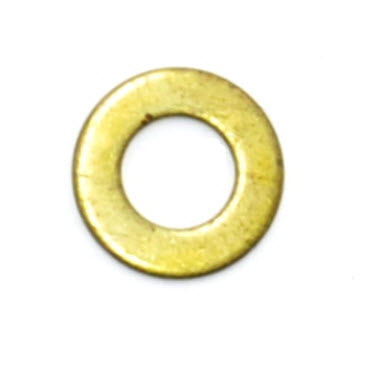

0305894 - Washer [ More info ]
|
| #10 — 204757 — (1 required per assembly) | ||
  |
|

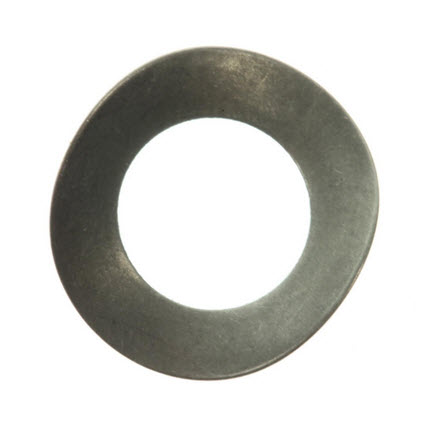

0204757 - Washer [ More info ]
|
| #11 — 204489 — (1 required per assembly) | ||
|
|
0204489 - Part [ More info ] Unavailable |
| #12 — 204701 — (2 required per assembly) | ||
  |
|

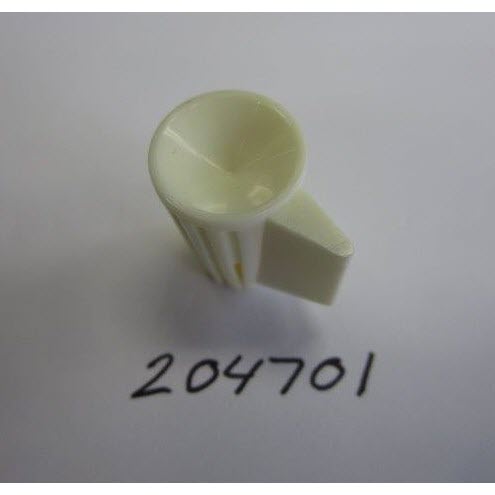

0204701 - Knob [ More info ] Unavailable |
| #13 — 202139 — (1 required per assembly) | ||
  |
|
0202139 [ More info ] Unavailable Replaced by 0203470 |
  |
|
0203470 - Retaining Ring [ More info ]
|
| #14 — 204707 — (1 required per assembly) | ||
|
|
|
| #15 — 204757 — (1 required per assembly) | ||
|
|
0204757 - Washer [ More info ]
|
| #16 — 278208 — (1 required per assembly) | ||
  |
|
0278208 - Arm & Shaft [ More info ]
|
| #17 — 204705 — (1 required per assembly) | ||
  |
|

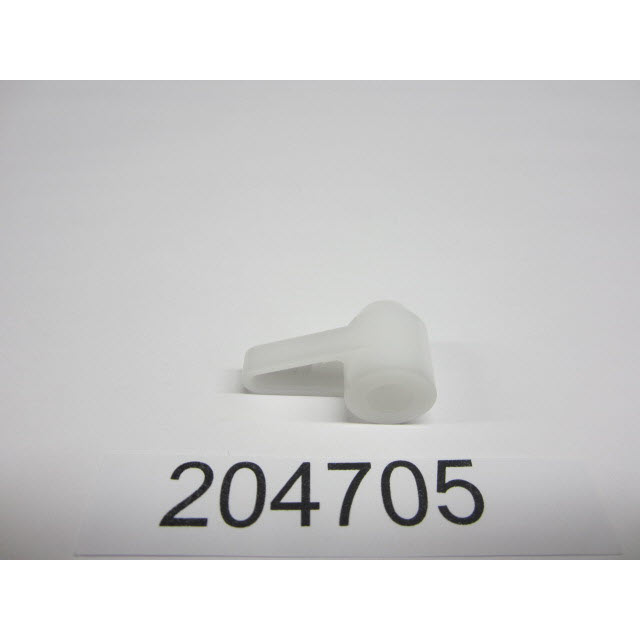

0204705 - Valve Arm [ More info ]
|
| #18 — 204708 — (1 required per assembly) | ||
  |
|

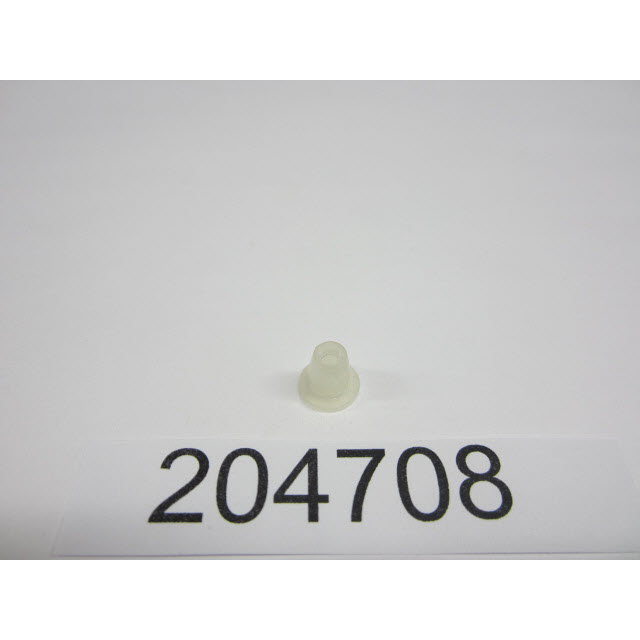

0204708 - Link Retainer [ More info ]
|
| #19 — 300646 — (2 required per assembly) | ||
  |
|
|
| #20 — 306488 — (2 required per assembly) | ||
  |
|
0306488 - Cable Ground Lock Washer [ More info ]
|
| #21 — 278047 — (1 required per assembly) | ||
|
|
0278047 - Support [ More info ] Unavailable |
| #22 — 203276 — (1 required per assembly) | ||
  |
|

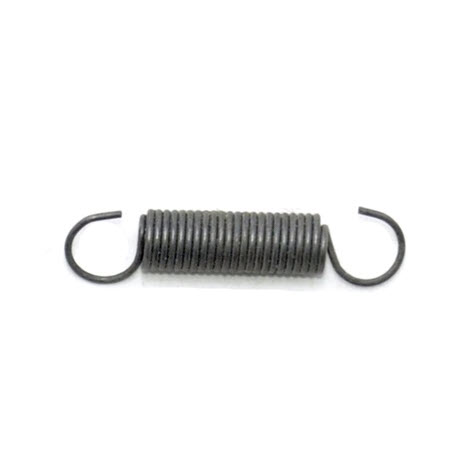

0203276 - Cam Follower Spring [ More info ]
|
| #23 — 377899 — (1 required per assembly) | ||
  |
|

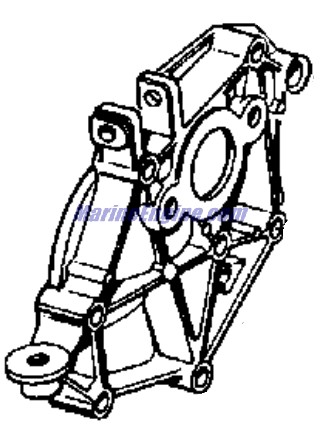

0377899 - Intake Manifold [ More info ]
|
| #24 — 302822 — (2 required per assembly) | ||
  |
|
0302822 - Manifold Stud [ More info ]
|
| #25 — 304889 — (2 required per assembly) | ||
|
0304889 - Screw, Exhaust Cover [ More info ] Unavailable |
|
  |
|
|

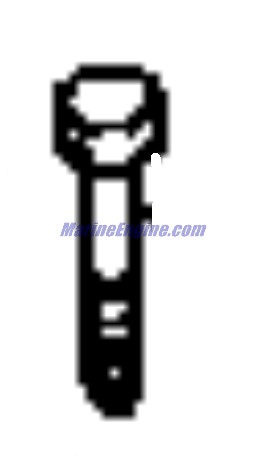

| #26 — 306431 — (4 required per assembly) | ||
  |
|
0306431 - Screw, Cover To Body [ More info ]
|
| #27 — 277437 — (1 required per assembly) | ||
|
|
0277437 - SILENCER [ More info ] Unavailable |
| #28 — 203652 — (1 required per assembly) | ||
  |
|
0203652 - Plug Button, Rear Cover [ More info ]
|

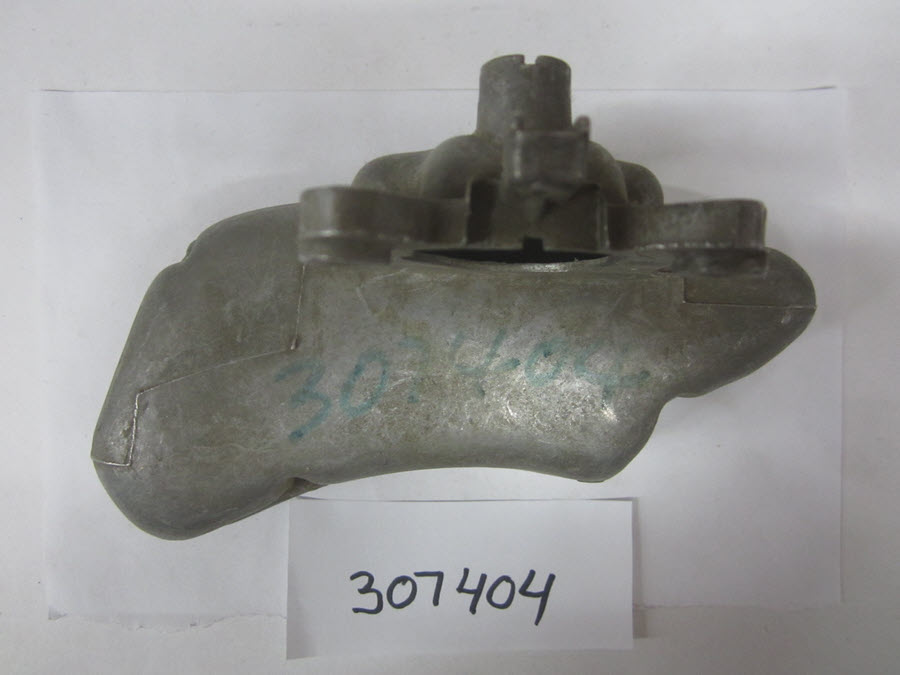

| #29 — 307404 — (1 required per assembly) | ||
|
|
|
| #30 — 130618 — (7 required per assembly) | ||
  |
|

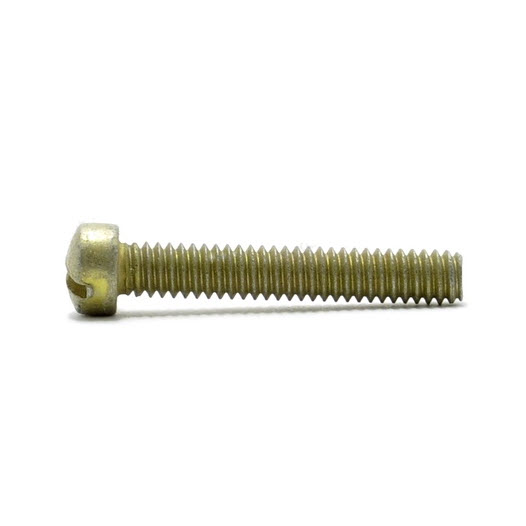

0130618 - Screw, NLA [ More info ]
|
| #31 — 302376 — (7 required per assembly) | ||
  |
|
0302376 - LockWasher [ More info ]
|
| #32 — 304294 — (1 required per assembly) | ||
|
|

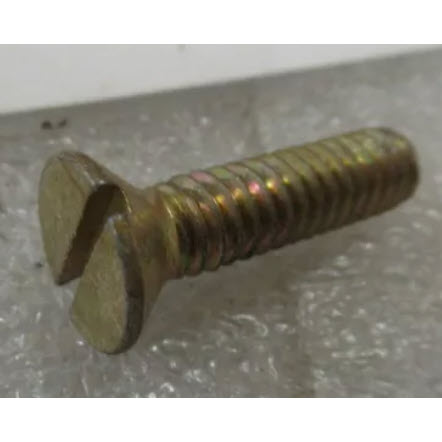

0304294 - Screw Manifold To Crankcase [ More info ]
|
| #33 — 304779 — (1 required per assembly) | ||
  |

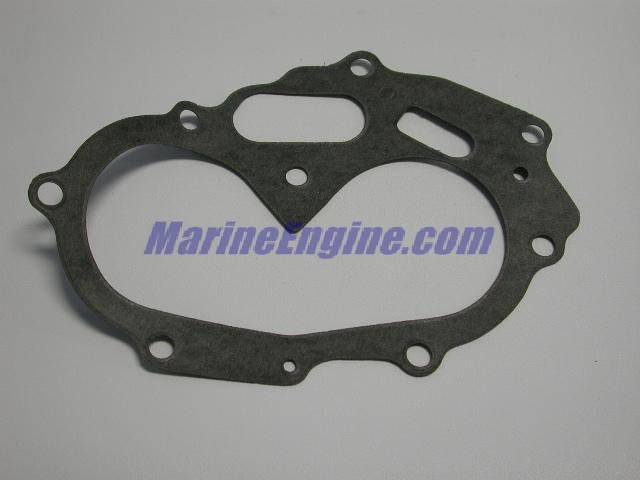

0304779 - 315991 GSK [ More info ] Unavailable |
|
  |
|

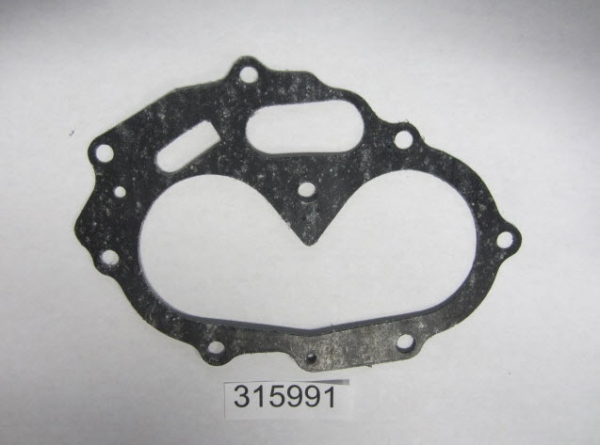

0315991 - Manifold Gasket [ More info ]
|

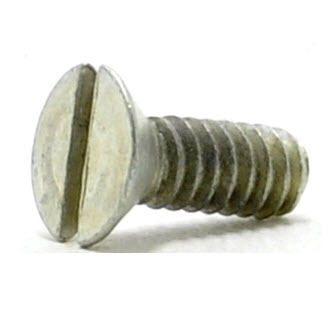

| #34 — 302104 — (1 required per assembly) | ||
  |
|
|

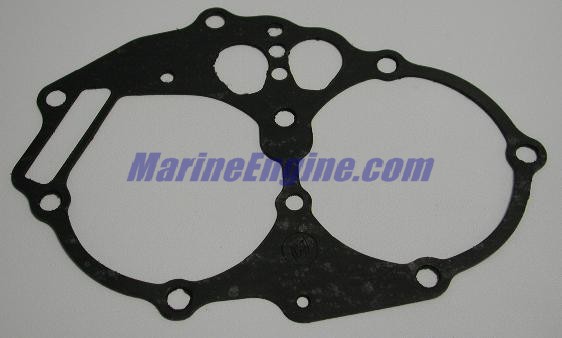

| #35 — 304780 — (1 required per assembly) | ||
  |
|
0304780 [ More info ] Unavailable Replaced by 0316540 |
  |
|

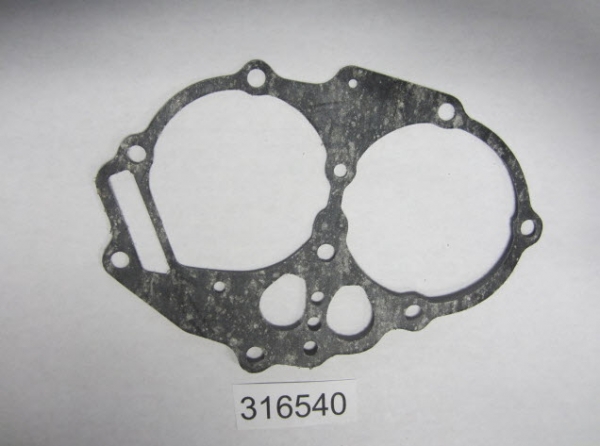

0316540 - Leaf Plate To Crankcase Gasket [ More info ]
|
| #36 — 306556 — (2 required per assembly) | ||
  |
|
0306556 - Circuit Breaker Nut [ More info ]
|
| #37 — 306546 — (2 required per assembly) | ||
  |
|

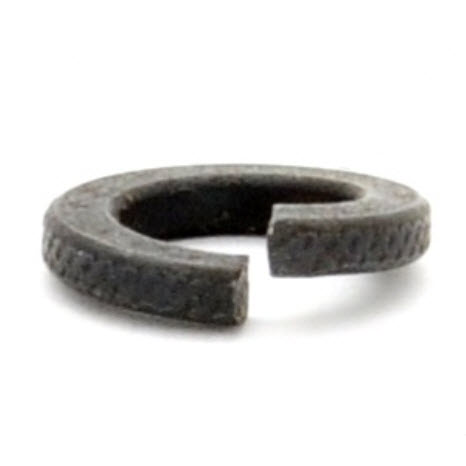

0306546 - Lock Washer [ More info ]
|
| #38 — 301858 — (2 required per assembly) | ||
  |
|

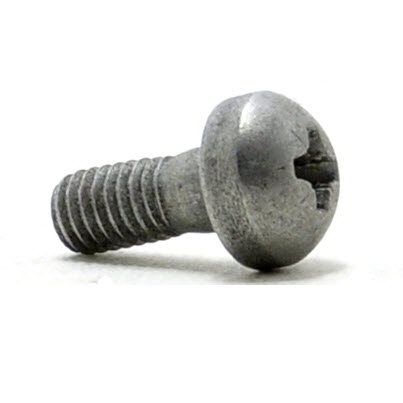

0301858 - Screw, Leaf Mounting [ More info ]
|
| #39 — 203234 — (2 required per assembly) | ||
  |
|
0203234 - Stop Leaf [ More info ]
|
| #40 — 203246 — (2 required per assembly) | ||
|
|
0203246 - Leaf Valve [ More info ] Unavailable |
  |
|
0313724 - Carburetor Leaf [ More info ]
|
| #42 — 203355 — (1 required per assembly) | ||
|
|
0203355 - Washer [ More info ] Unavailable |
| #43 — 307565 — (1 required per assembly) | ||
  |
|
|

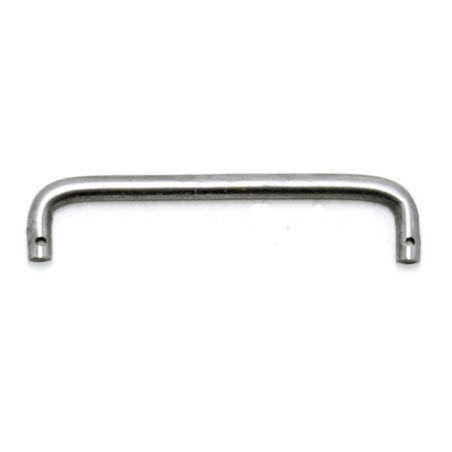

| #44 — 203727 — (1 required per assembly) | ||
|
|
|
| #45 — 376729 — (1 required per assembly) | ||
  |
|
0376729 [ More info ] Unavailable Replaced by 0381717 |
  |
|

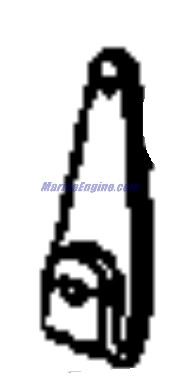

0381717 - Arm Screw [ More info ]
|
| #46 — 304572 — (1 required per assembly) | ||
  |
|
0304572 - Arm to Shaft Screw [ More info ]
|
| #47 — 303048 — (1 required per assembly) | ||
  |
|
0303048 [ More info ] Unavailable Replaced by 0330191 |
  |
|
0330191 - Washer [ More info ]
|
| #48 — 306463 — (1 required per assembly) | ||
  |
0306463 - Cotter Pin [ More info ] Unavailable |
|
  |
|
0305650 - Cotter Pin [ More info ]
|
  |
|
3852052 - Cotter Pin - Volvo Penta (3852052) [ More info ]
|
| #49 — 203363 — (1 required per assembly) | ||
  |
|
0203363 - Retainer [ More info ]
|
| #50 — 203362 — (1 required per assembly) | ||
  |
|
0203362 - Cam Follower Roller [ More info ]
|
| #51 — 303279 — (2 required per assembly) | ||
  |
|
0303279 - Cam Follower Bushing [ More info ]
|
| #52 — 304919 — (1 required per assembly) | ||
  |
|
0304919 - Throttle Cam Follower Lever [ More info ]
|
| #53 — 306320 — (2 required per assembly) | ||
|
|
0306320 - Nut [ More info ] Unavailable |
| #54 — 306799 — (2 required per assembly) | ||
  |
|
0306799 - Lock Washer [ More info ]
|
| #55 — 203237 — (1 required per assembly) | ||
  |
|

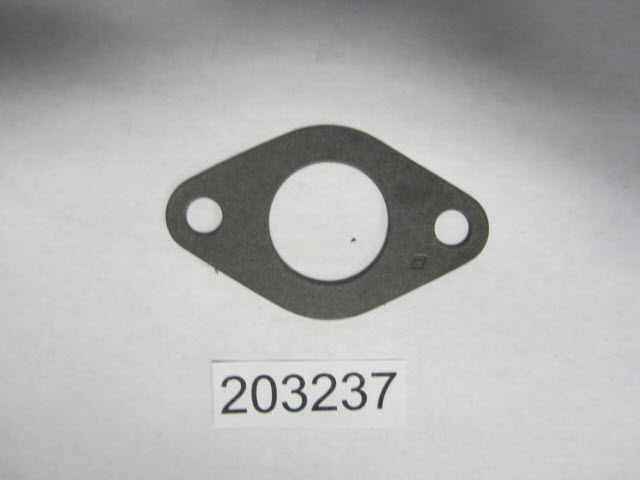

0203237 - Carburetor to Manifold Gasket [ More info ]
|
| #56 — 307565 — (2 required per assembly) | ||
|
|
|
| #57 — 304216 — (1 required per assembly) | ||
  |
|
0304216 - Bushing [ More info ]
|
| #58 — 131249 — (1 required per assembly) | ||
|
|

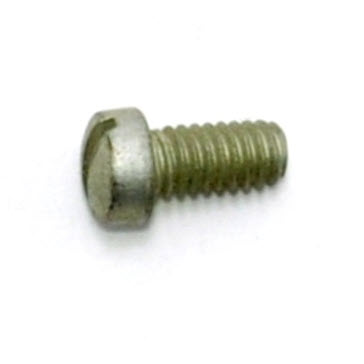

0131249 - Screw, Rod Support [ More info ]
|
| #59 — 303497 — (1 required per assembly) | ||
|
|
0303497 - Washer [ More info ]
|
| #60 — 204488 — (1 required per assembly) | ||
  |
|
0204488 - Throttle Control Rod Bracket [ More info ]
|
| #61 — 204486 — (1 required per assembly) | ||
  |
|

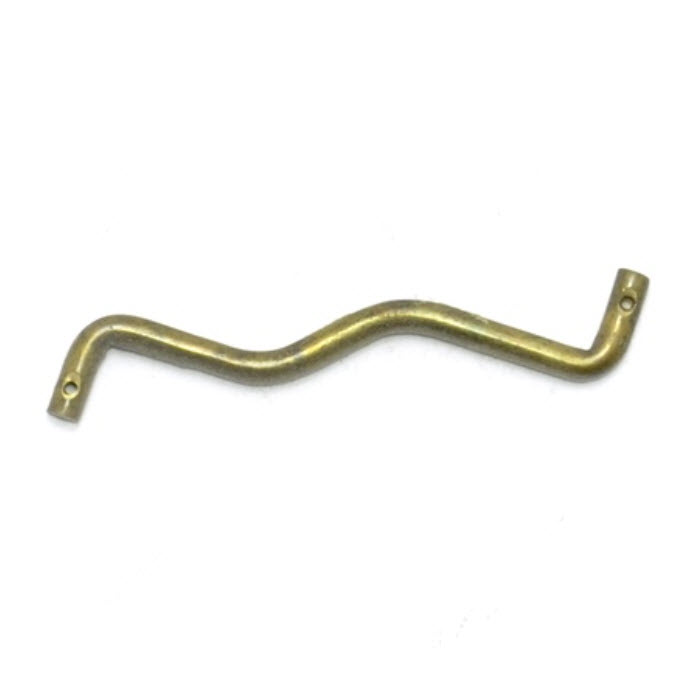

0204486 - Throttle Control Rod [ More info ]
|
| #62 — 303316 — (1 required per assembly) | ||
  |
|
0303316 - Bellcrank to Choke Lever Spring [ More info ]
|
| #63 — 306463 — (1 required per assembly) | ||
|
0306463 - Cotter Pin [ More info ] Unavailable |
|
|
|
0305650 - Cotter Pin [ More info ]
|
|
|
3852052 - Cotter Pin - Volvo Penta (3852052) [ More info ]
|
| #64 — 307596 — (1 required per assembly) | ||
  |
|

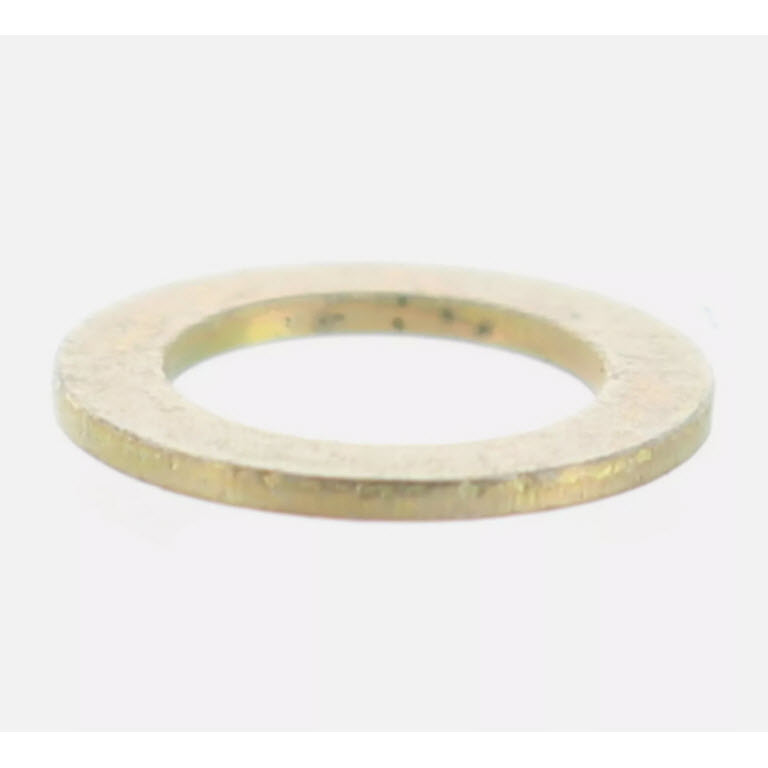

0307596 - Washer [ More info ]
|
| #65 — 204487 — (1 required per assembly) | ||
  |
|
0204487 - Choke Lever [ More info ]
|
| #66 — 204491 — (1 required per assembly) | ||
  |
|

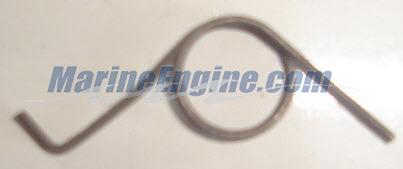

0204491 - Choke Return Spring [ More info ]
|

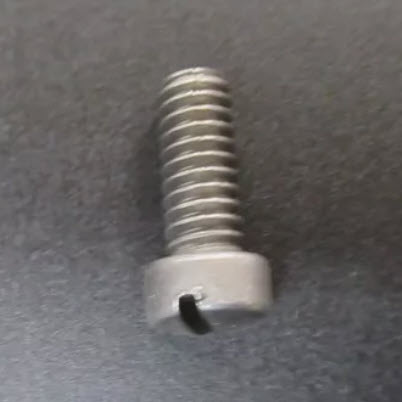

| #67 — 306552 — (5 required per assembly) | ||
|
|
|
| #68 — 302994 — (1 required per assembly) | ||
  |
0302994 - Bowl Gasket [ More info ] Unavailable |
|
  |
0331203 - Float Bowl Gasket, Sold Individually [ More info ] Unavailable |
|
  |
|
0338886 - Float Bowl Gasket, Sold Individually [ More info ]
|
  |
|
18-2890-9 - Float Bowl Gasket 338886 2-Pack [ More info ]
|

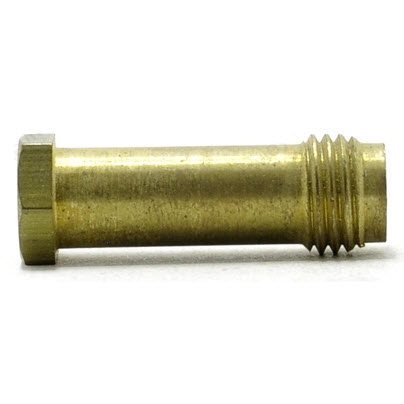

| #69 — 303479 — (1 required per assembly) | ||
  |
|
|
| #70 — 204698 — (1 required per assembly) | ||
  |
|

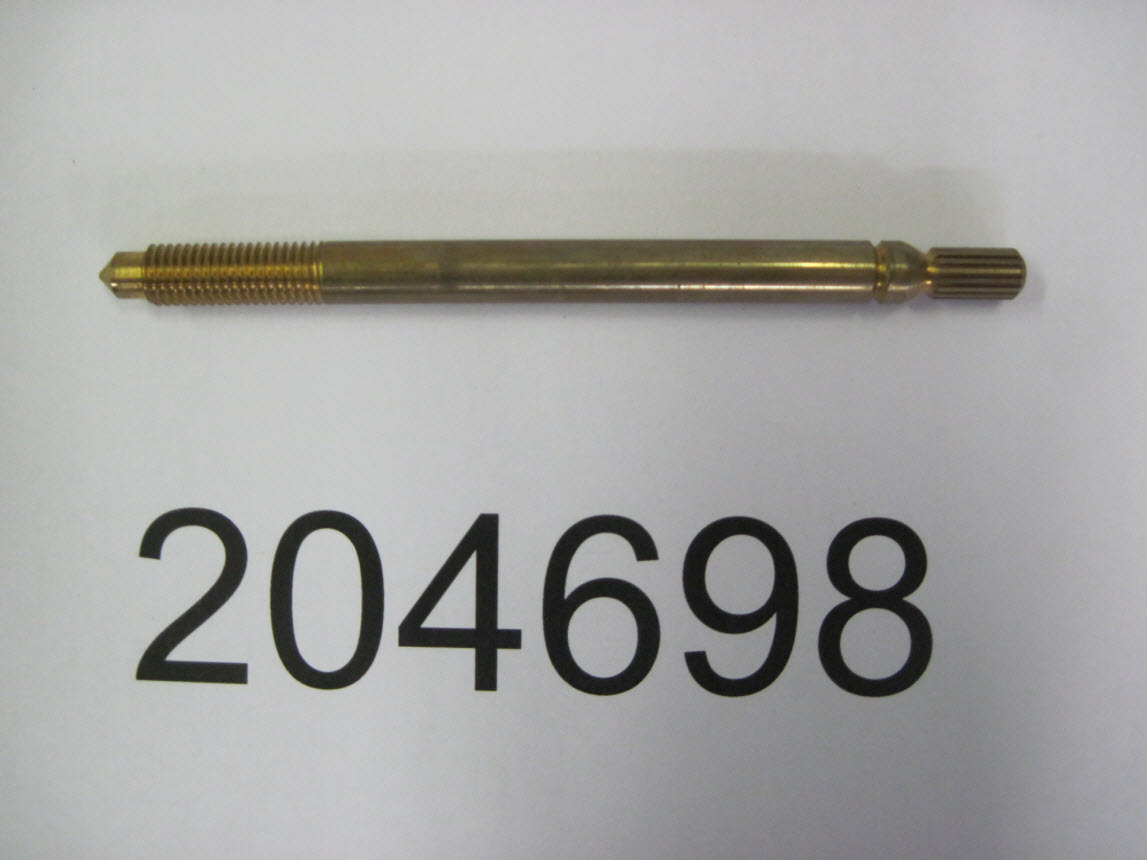

0204698 - Needle [ More info ]
|
| #71 — 307583 — (2 required per assembly) | ||
  |
|
0307583 - Needle Valve Packing Washer [ More info ]
|
  |
|
18-7106-9 - Needle Packing 10 Pack 307583 [ More info ]
|
  |
|
18-7106-9 - Needle Packing 10 Pack 307583 [ More info ]
|

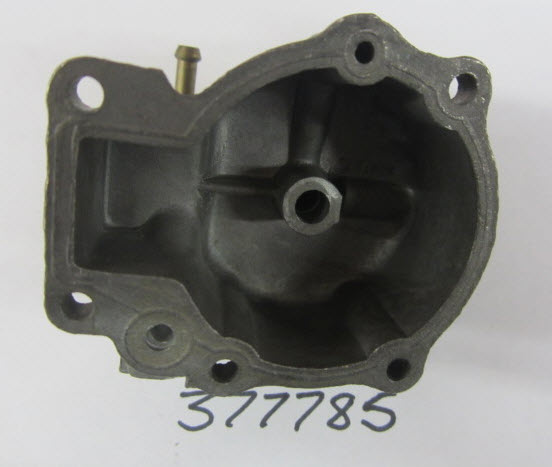

| #72 — 377785 — (1 required per assembly) | ||
  |
|
0377785 - Carburetor Bowl , NLA [ More info ]
|
| #73 — 303041 — (1 required per assembly) | ||
|
|
0303041 - Screw, Bowl Drain [ More info ]
|
| #74 — 300096 — (1 required per assembly) | ||
  |
|
0300096 - Hinge Pin [ More info ]
|
| #75 — 375919 — (1 required per assembly) | ||
  |
0375919 - Cork Float and Arm [ More info ] Unavailable |
|
  |
|
0396514 - Float And Arm [ More info ]
|
| #76 — 375985 — (1 required per assembly) | ||
|
|
0375985 [ More info ] Unavailable Replaced by 0379313 |
  |
0379313 - Float Valve Assembly [ More info ] Unavailable |
|
  |
|
0396522 - Float Valve Assembly [ More info ]
|
  |
|
18-7094 - Needle And Seat 396522 [ More info ]
|
| #77 — 301996 — (1 required per assembly) | ||
  |
|
0301996 - Float Valve Washer [ More info ]
|
| #78 — 304940 — (1 required per assembly) | ||
|
|
0304940 [ More info ] Unavailable Replaced by 0331181 |
  |
|
0331181 - Gasket [ More info ]
|
  |
|
0344037 - Gasket - Sold individually [ More info ]
|
| #79 — 304938 — (1 required per assembly) | ||
  |
|

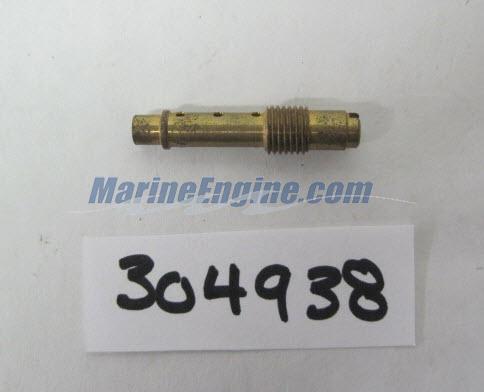

0304938 - Nozzle [ More info ] Unavailable |
| #81 — 304201 — (2 required per assembly) | ||
  |
|
0304201 - Lead Shot [ More info ]
|
| #82 — 303479 — (1 required per assembly) | ||
|
|
|
| #83 — 307583 — (2 required per assembly) | ||
|
|
0307583 - Needle Valve Packing Washer [ More info ]
|
|
|
18-7106-9 - Needle Packing 10 Pack 307583 [ More info ]
|
|
|
18-7106-9 - Needle Packing 10 Pack 307583 [ More info ]
|
| #84 — 204704 — (1 required per assembly) | ||
  |
|

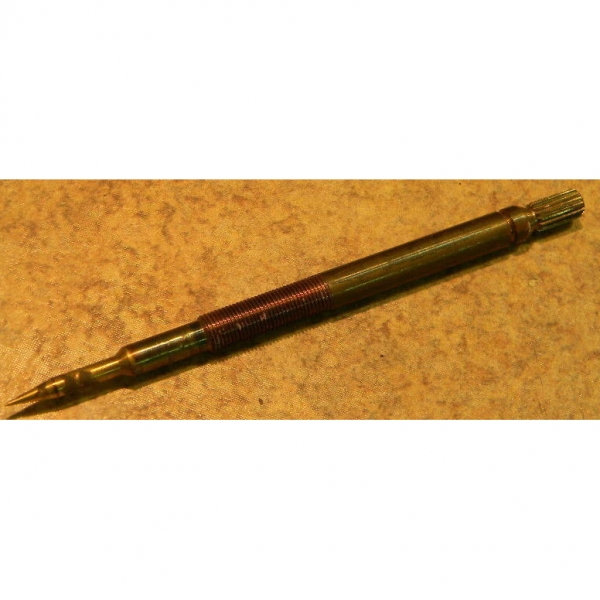

0204704 - Needle Valve [ More info ] Unavailable |
| #85 — 303947 — (1 required per assembly) | ||
  |
|

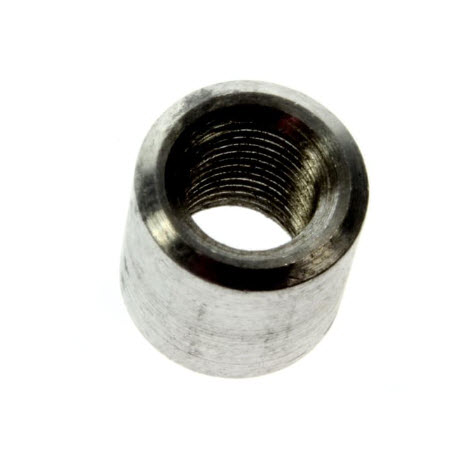

0303947 - Needle Valve Bushing [ More info ] Unavailable |
| #86 — 303049 — (1 required per assembly) | ||
  |
|
0303049 - COTTER PIN [ More info ]
|
| #87 — 303048 — (1 required per assembly) | ||
|
|
0303048 [ More info ] Unavailable Replaced by 0330191 |
|
|
0330191 - Washer [ More info ]
|
| #88 — 303760 — (4 required per assembly) | ||
  |
|
|
| #89 — 304937 — (1 required per assembly) | ||
|
|
|

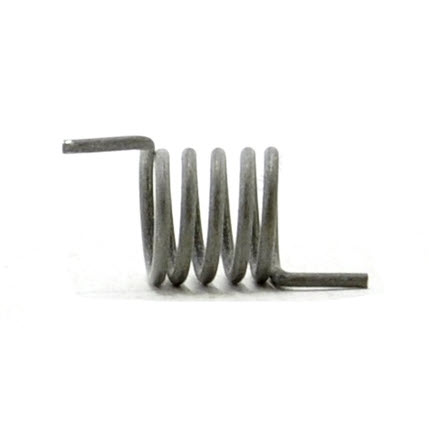

| #90 — 303119 — (1 required per assembly) | ||
  |
|
0303119 - Throttle Shaft Spring [ More info ]
|
| #91 — 376954 — (1 required per assembly) | ||
  |
|

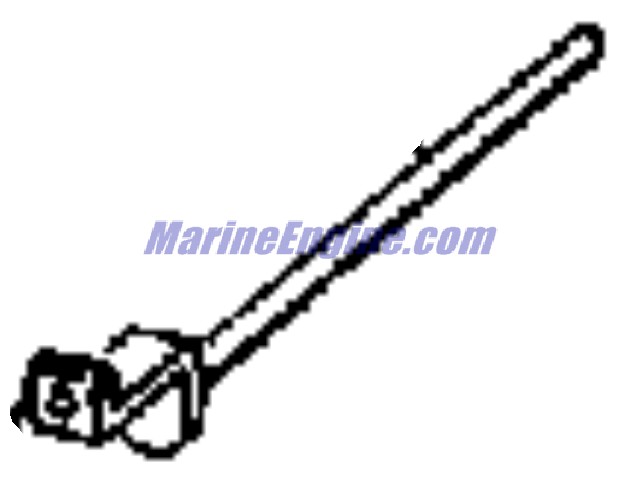

0376954 [ More info ] Unavailable Replaced by 0381715 |
  |
|
0381715 - Shaft [ More info ] Unavailable |
| #92 — 303126 — (1 required per assembly) | ||
|
|

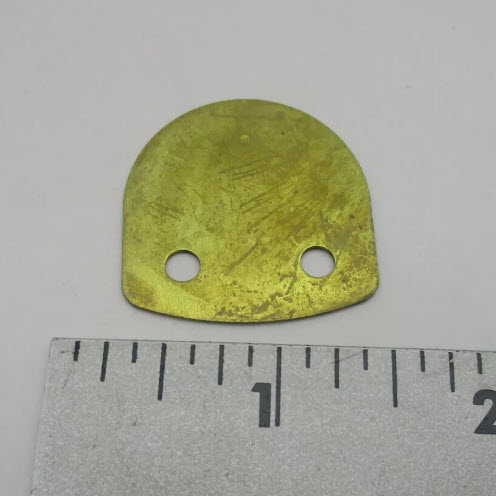

0303126 - Choke Valve [ More info ]
|
| #93 — 375993 — (1 required per assembly) | ||
|
|
0375993 - Shaft [ More info ] Unavailable |
| #94 — 202310 — (1 required per assembly) | ||
  |
|
0202310 - Core Plug [ More info ]
|
| #95 — 304607 — (2 required per assembly) | ||
|
|
0304607 - L/P .80 [ More info ] Unavailable |
